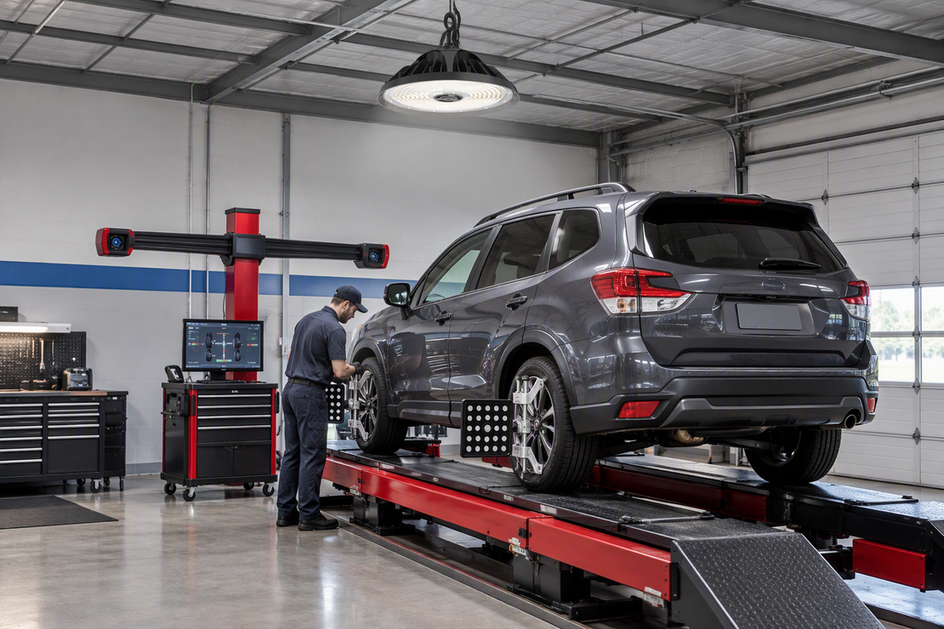

Wheel Alignment Rack Lighting: Improve Visibility Without Interfering With Cameras

The safest way to configure wheel alignment rack lighting is to start with a shielded or diffused fixture aimed at the tie-rods, camber bolts, and other adjustment points, positioned so its bright source and reflections stay out of the camera and target-head viewing path. Accept that position only after you power up the alignment system and confirm normal tracking and readable target images. No universal distance, angle, or brightness level works for every rack or camera system, so the real test happens on your own equipment before anything gets permanently mounted.

Key Takeaways

• Begin with shielded or diffused light aimed at the adjustment points, not at the camera or target faces.
• Treat glare, shadows, and flicker as separate problems with separate checks, not one universal cause.
• Map camera-to-target sightlines first, then compare candidate mounting zones for clearance and access.
• Test any new lighting arrangement with the aligner powered and target heads installed before permanent mounting.
• Recheck the setup whenever the fixture, controls, or rack layout change.

Start with Sightline-Safe, Testable Lighting

Good alignment-bay lighting has two jobs: make the tie-rods and camber bolts easy to see, and stay out of the camera's or target head's line of sight. Those two goals do not automatically align, since the direction that helps a technician see a bolt is not always the direction a camera needs to see a clean target image. When planning lighting a wheel alignment rack without camera interference, balancing physical task visibility and optical clearance from day one prevents costly adjustments later.

General workplace guidance supports starting with indirect or shielded fixtures and checking for glare before assuming a placement works, as described in OSHA's workstation lighting guidance. OSHA's construction table also lists a minimum illumination level for general shops and plant areas under illumination requirements, but that figure is a workplace baseline, not a target built for alignment cameras. If your bay has dark walls or reflective equipment that swallow light or bounce it unpredictably, our reflective equipment guide covers diagnosing that separately. Once you pick a candidate fixture position, treat it as provisional until you test it with the alignment system running.

Separate Useful Illumination From Camera Interference

Not every lighting problem on an alignment rack is the same problem, so check each mechanism separately instead of assuming one fix covers all of them. Evaluating potential camera interference from rack lighting requires looking at four distinct optical and physical factors:

• Direct source visibility: A bare or unshielded emitter pointed toward a camera can compete with its view or wash out the image; check whether the camera lens itself can "see" the fixture from its mounted position.
• Reflected glare on target heads: Glossy or metallic target faces can bounce light back toward the camera even when the source itself is out of view; inspect the target surface for hotspots or washed-out patterns, not just the camera's direct sightline.
• Shadows at the adjustment point: A rack, lift arm, wheel, or the technician's own body can block light at the exact bolt or tie-rod being adjusted, even with strong output elsewhere in the bay; check visibility from the technician's actual working position, not from across the room.
• Flicker or control-related behavior: Dimming, motion sensors, or driver behavior can interact with some camera systems; if tracking changes after adding or adjusting a fixture, treat the control settings as a variable to test, not confirmed as the cause.

Place Fixtures Around the Rack and Adjustment Points

Placement should follow the sightlines your camera and target heads actually use, not a fixed rule for every shop. Work through this four-step method before deciding on a permanent mounting position for an alignment-bay lighting setup.

1. Map the sightline from each camera to each target head, first with the rack empty and again with a representative vehicle loaded, since the vehicle's body can change what the camera actually sees.
2. Mark the adjustment points — tie-rods, camber bolts, and other suspension hardware — and view them from the technician's normal working stance to check for real visibility, not theoretical coverage.
3. Compare candidate mounting zones, such as ceiling, side-wall, low-angle, or portable positions, against which ones can light the adjustment points without aiming a bright source or an obvious reflection path into the camera or target face.
4. Confirm clearance and access for the vehicle, lift, technician, and target heads at each candidate zone; a position that scores well on sightlines but blocks a lift arm or a technician's reach is not a workable choice.

Portable positioning is useful here: moving a temporary fixture between candidate zones lets you compare results before committing to any fixed installation.

Compare Fixture Categories for an Alignment Bay

Each fixture category fits different bay conditions, and each carries its own thing to verify before permanent mounting.

If your bay layout is fixed and stable, a ceiling or linear fixture that passes the sightline and glare checks is usually the simplest path. If the rack is crowded or the layout changes often, start with a portable fixture to compare positions before choosing anything permanent.

Test a Proposed Setup Before Permanent Installation

A temporary, powered test is the strongest way to catch a lighting problem before it becomes a wiring job. Run through these steps in order with the aligner operating normally and target heads installed.

1. Record a baseline. Power up the alignment system with your current lighting and note normal tracking behavior and target readings.
2. Position the fixture temporarily at the candidate mounting zone, aimed at the adjustment points and away from direct camera or target sightlines.
3. Power the alignment system with the new lighting in place and a representative vehicle on the rack.
4. Inspect for changes: check adjustment-point visibility, target-face reflections, camera tracking status, and any shift in readings compared to the baseline.
5. Adjust one variable at a time — position, aim, shielding, diffusion, dimming, or sensor behavior — and re-test after each change rather than changing several things at once.
6. Decide: if tracking, readings, and visibility hold steady, the arrangement is ready for a closer look at product and electrical details. If anything changes, return to the last known-good state and revise before trying again.

This test confirms whether a specific arrangement works on your equipment; it does not certify that the fixture is compatible with every alignment system or camera design.

Verify Product and Electrical Details Before Installation

Once a lighting position passes the powered test, confirm the fixture and wiring details before mounting anything permanently.

• Voltage and power: Confirm the fixture's rated voltage against your available supply, along with its wattage, total connected load, and inrush current for the circuit it will share.
• Controls and sensors: Check the control type, any motion-sensor rating, and 0-10V dimming compatibility if the fixture will run on a dimmable circuit.
• Mounting and access: Confirm mounting hardware, physical dimensions, clearance, and aiming range match the candidate zone you tested, and keep the manufacturer's current instructions on hand.
• Documentation, not assumption: Treat any listed fixture's published specifications as a starting checklist, not proof that it suits an alignment bay. For example, our HBF Series product details show the kind of voltage, wattage, control, and mounting information you should confirm for any candidate fixture, but that listing does not establish camera compatibility for your specific alignment system.
• Layout support: If you're planning lighting across multiple racks or a full bay retrofit, our lighting design support page can help you work through a layout before you commit to fixture positions.

Have qualified personnel handle any line-voltage installation, circuit work, or electrical testing. This guide does not cover wiring, circuit design, live testing, or bypassing safety devices, and none of those steps should be attempted without a licensed electrician and compliance with local requirements.

Maintain Visibility and Recheck After Changes

Keep the setup working by rechecking it when something changes, not on a fixed schedule. Inspect for dust or film on lenses, damaged or shifted fixtures, new hotspots on target faces, and shadows returning at the adjustment points.

Recheck the full baseline-versus-lighting test after any fixture replacement, aiming change, control or sensor adjustment, rack relocation, vehicle-impact event, or noticeable new glare or shadow. Clean camera lenses, target faces, and fixture lenses only according to their respective manuals rather than a generic cleaning routine.

Before drilling holes or running dedicated conduits, your definitive next step is to grab a portable work light, map your bay's active camera sightlines, and run a powered live test on the rack today. Confirm that targets register accurately under illumination, and finalize your permanent fixture selection only once tracking stability is proven.
