Aim the motion-sensor floodlight at the area you want the camera to cover, not at the camera itself. Keep the bulb and its brightest reflections out of the lens's direct view, using shielding or a higher mounting position when the site allows it. Then check both the live view and a recorded clip after dark, and make small adjustments until the footage looks clean.
This guide covers aiming, positioning, and after-dark verification. It does not cover opening a fixture, rewiring it, or testing live circuits, which should follow the manufacturer's instructions and a licensed electrician.

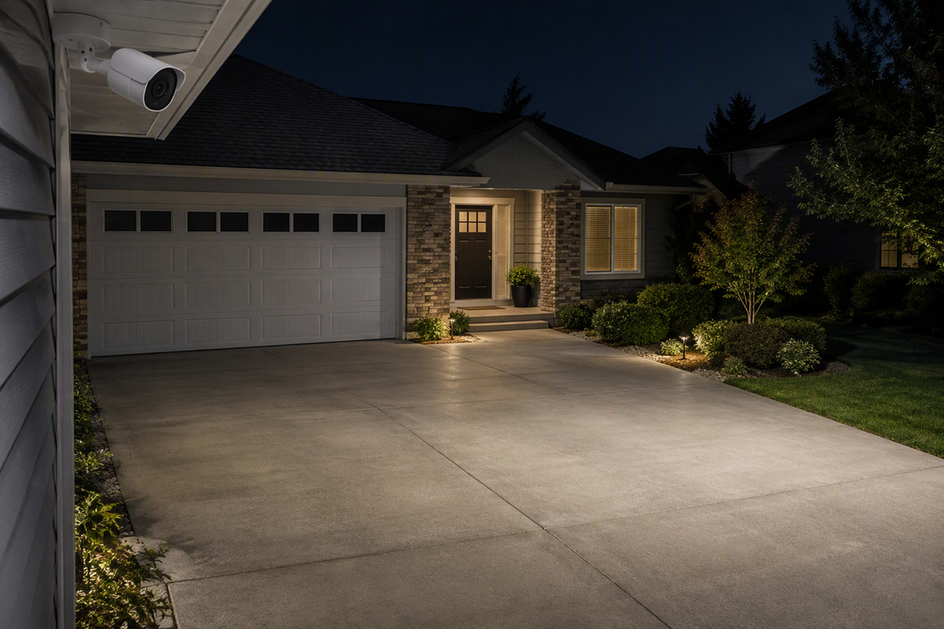

How to Aim an Outdoor Floodlight Without Washing Out the Camera
Start by mapping exactly what the camera records, then keep the brightest point of the light outside that view. A CCTV camera tends to expose for the brightest object in frame, so a visible bulb or hot spot can push everything else into shadow, according to a technical security lighting guideline.
Start with the camera's field of view
Before touching the light, walk the area and note exactly what the camera sees on screen. Keep the brightest part of the fixture, and any likely reflected hot spot, outside that view. Then aim the beam at the entry door, driveway, garage apron, gate, or path you actually want recorded, not at the lens.
Separate and integrated fixture setups
If the floodlight is a separate unit from the camera, you have the most freedom. Move it, angle it, or add a shield so the source sits away from the lens's direct line of sight. An above-camera relationship can help when the site allows it, but treat that as a starting point rather than a fixed rule.
If the light and camera share one housing, your adjustment range is limited to whatever tilt or shield options the fixture offers. In that case, lean on the built-in optical control first, then judge the result strictly by the recorded footage rather than by how bright the scene looks in person.
Why Direct Floodlight Glare Ruins Nighttime Camera Detail
A camera does not see brightness the way your eyes do. Once a strong point source enters the frame, the sensor exposes for that point, and everything darker can drop out of the picture.
What the camera sees as a hot spot
A visible bright point, whether it is the bulb itself or a reflection off a nearby surface, can dominate the exposure the camera chooses for the whole scene. That is different from a scene simply not having enough light. The same technical guideline notes that a luminaire visible inside the field of view causes glare and high contrast, and recommends shielding it and, where practical, locating it above the camera. Fixing the source's placement or adding a shield addresses this before any camera setting change would help.
Why reflections and uneven light matter
Wet pavement, parked cars, pale siding, foliage, and snow can all bounce a floodlight's beam back toward the lens, creating glare the same guideline flags as a common site-condition challenge. A single bright circle surrounded by deep shadow can also record worse than a more evenly lit target, because uniform coverage is often more useful to a camera than raw output. The same principle applies to driveways and vehicle approaches, where an unshielded beam can bother drivers as well; the approach used to reduce parking garage glare for driver safety relies on the same beam-control idea.
How to Verify the Aim After Dark
Confirm the fix actually worked by testing the real camera view after dark, not just the light's appearance on-site. Change one thing at a time and watch both the live feed and a saved clip.
Run the after-dark baseline
- Confirm the exact target area and the camera's current field of view.
- Set the floodlight to a conservative starting position without touching any wiring.
- Turn the fixture on through its normal switch or control and watch the live camera feed.
- Review a short recorded clip of the same scene, not only the live preview.
- Adjust one variable, such as angle, shield position, or mounting point, and repeat the check.
Apply a pass/fail decision
The setup passes when the target area is clearly visible, the source itself is not dominating the frame, and anyone approaching by car or on foot isn't facing direct glare. If it fails, change the position, beam direction, or shielding before assuming a camera setting will fix it. Retest after rain or near reflective surfaces, since those conditions can reintroduce glare that a dry-night test missed.
Camera Washout Troubleshooting: Symptom, Cause, Next Check
Use the table below to match what you're seeing to the most likely cause, then confirm it with the listed check before making a change.
| Symptom | Likely Cause | Safe Next Check | Decision |
|---|---|---|---|
| Blown-out white spot or halo in frame | Bulb or a reflection sits directly in the camera's view | Look for a visible source or glare ring in the live feed | Move, angle, or shield the fixture out of frame |
| Glare spikes after rain or near vehicles | Wet pavement, glass, or metal reflecting the beam | Retest the same spot during or right after rain | Redirect the beam or add a shield over the reflected path |
| Bright patch with dark shadow nearby | Narrow beam lighting only part of the target | Compare recorded detail in the patch versus the shadow | Choose wider, more even coverage instead of more output |
| Light triggers late or camera misses the event | Sensor timing doesn't match the camera's trigger zone | Watch a live trigger and compare it to the recorded clip | Adjust sensor delay/sensitivity or reposition it against the camera view |
More than one of these can happen at once. Check the visible source first, since removing a direct hot spot often reduces reflected glare too, then work through reflections, uneven coverage, and sensor timing in that order.
Product Fit Boundary: Verify the Fixture Before You Buy
A general outdoor floodlight listing, even one with a motion sensor, is not automatically proven to work well beside a security camera. Motion detection tells the fixture when to turn on; it says nothing about beam control, shielding, or how the light will actually record on your specific camera.
We don't have product-level testing connecting a specific hi-hyperlite fixture to residential camera-washout prevention, so we're not recommending a particular model for this exact use. The safer path is to start from the LED flood light collection as a browsing point, then check the exact current SKU's optics, shielding, mounting range, and documentation before you buy. If the listing doesn't answer those questions, treat that as a reason to verify further, not as proof the fixture is unsuitable.
What to Check Before Buying a Motion-Sensor Floodlight
Before adding a new fixture near an existing or planned camera, confirm the following against the current product page or manual rather than assuming any of it:
- Beam control and shielding. Outdoor lighting guidance recommends fixtures that direct light only onto the intended area and include shielding or optical control rather than relying on tilt alone, per DLC outdoor light strategies.
- Documented lumen output and CCT. These are published characteristics, not a guarantee against washout; compare them alongside beam control rather than choosing by lumens alone.
- Motion-sensor behavior. Check the trigger area, delay, sensitivity, and whether the sensor can be adjusted or run independently of the light.
- Mounting and adjustment range. Confirm how far the fixture can tilt or rotate relative to where your camera sits.
- Environmental rating and current instructions. Look for up-to-date ingress or weather information and installation instructions from the manufacturer.
- Camera compatibility. Verify the fixture's placement options actually work with your camera's field of view before installing.
- Electrical specifications. Note the voltage and load information so you can hand it to a qualified electrician if wiring changes are needed; this article does not cover that work.
FAQs
Can I adjust a hardwired floodlight myself?
Aiming, repositioning, and adding an external shield to an already-installed fixture are typically external adjustments. Opening the housing, changing wiring, or testing a live circuit is different work and should follow the manufacturer's instructions with help from a qualified electrician.
Does a motion sensor prevent security-camera washout?
No. A motion sensor only controls when the light turns on. It does not control the beam pattern, shielding, or how the camera exposes the scene, so you still need to check the live view and recorded footage after installing or adjusting the fixture.
Does mounting the light above the camera always stop glare?
Not always. Locating the source above camera level can reduce glare when the site allows it, but that is a starting condition, not a guarantee. Confirm the result with the camera's actual recorded footage rather than assuming the height alone solved the problem.
