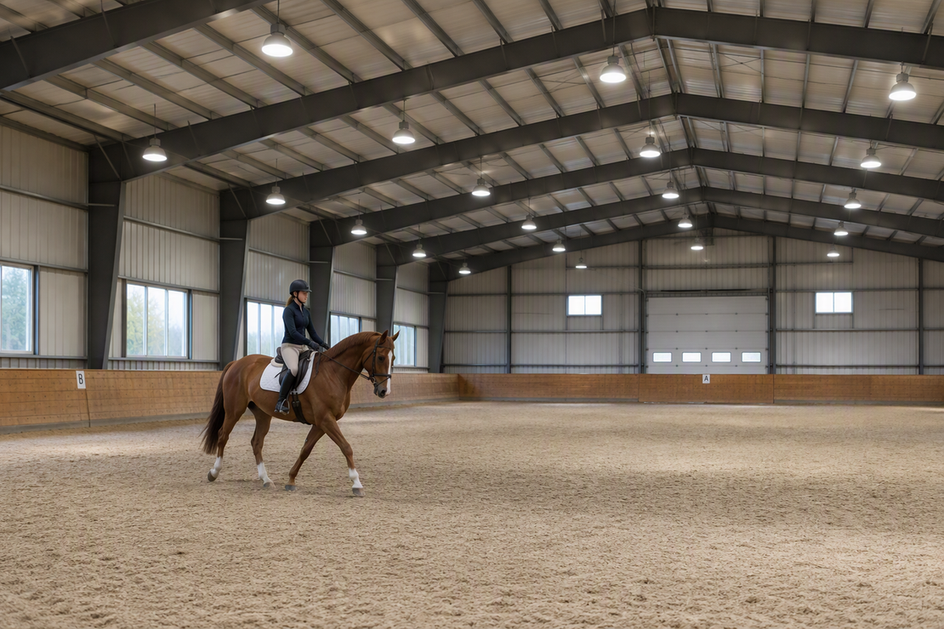

Start with the light itself, not the fixture count. When planning how to light an indoor riding arena high bay layout, a workable setup keeps footing-level brightness changing gradually across every riding lane, with no harsh shadow bands and no bright source sitting in a horse's or rider's direct line of sight.
Getting there means treating the layout as a modeled, testable plan built from your arena's actual dimensions, mounting height, and sightlines, not a lumens-per-square-foot shortcut. The sections below walk through that planning logic: what a defensible layout brief includes, how geometry and retrofit constraints shape spacing, how distribution and optics control shadows and glare, and what to verify before you buy or install.
Start With Footing-Level Uniformity, Not Fixture Count
The right starting point is a layout brief that can be tested against your arena's footing, not a fixture-count target. Total wattage or lumens tells you how much light is available; it says nothing about how that light transitions across the riding surface.
A usable preliminary brief lists your arena's length and width, ceiling and mounting height, footing or work-plane assumptions, the photometric file for the fixtures you're considering, proposed placement, controls, and where horses and riders will actually look during typical movement. When a lighting designer or supplier can run that brief through a project-specific model, the output should show how brightness rises and falls across the footing, not just an average number. Our guide on IES light plans explains how those files let you compare placement options before you commit to fixtures. The first action for any arena project is requesting that exact file and a layout run against your real geometry, not a catalog spec sheet.
Map the Arena Before Choosing Fixture Spacing
Fixture spacing is an output of your arena's geometry and photometric model, not a rule you apply on its own. Mounting height changes both the area a fixture covers and how bright that fixture looks from the ground, so it has to be fixed before spacing gets compared.
Treat the Footing as the Measurement Area
- Map the entire usable footing and every riding lane, not just the arena's center.
- Note where horse and rider movement changes the direction they're facing, since that changes which sources fall into their sightline.
- Ask for modeled or measured results at the footing or working plane, not at desk height or an arbitrary reference point.
Separate New Layouts From Constrained Retrofits
- In new construction, you can coordinate mounting points, wiring, and controls directly with the photometric model.
- In a retrofit, the model has to work from existing fixture locations, wiring runs, structural members, and controls as fixed inputs.
- A fixed mounting point is a constraint to model around, not proof that the original spacing pattern still produces even coverage.
Either way, obstructions and reflective surfaces belong in the same review: trusses, doors, mirrors, and kickboards can all block or bounce light in ways a simple spacing grid won't catch.
Reduce Shadows and Glare With Distribution, Optics, and Sightlines
Shadow and glare risk comes down to how light is distributed across the footing and how bright individual sources look from where horses and riders are moving. The fix is comparing distribution, mounting, and documentation together, not chasing one spec in isolation.
Reduce Hard Shadows With Distribution, Not Excess Output
Compare how each fixture's light pattern overlaps with its neighbors across the riding lanes, and review spacing and aiming as one decision rather than two. A single beam-angle number on a spec sheet doesn't tell you whether adjacent fixtures fill in each other's shadow zones; that depends on mounting height, spacing, and aiming working together in the model.
Control Glare in Horse and Rider Sightlines
- Check the direct and peripheral views riders and horses have toward mounted fixtures at typical riding heights and directions of travel.
- Confirm whether the fixture's documentation describes a lens, diffuser, shield, or adjustable aiming that limits visible source brightness, rather than assuming a "diffuse" fixture is present.
- Ask for configuration-specific temporal light modulation data rather than accepting a "flicker-free" label at face value. The Department of Energy's review of temporal light modulation explains why flicker needs to be evaluated through a documented test method and metric, not a marketing phrase, and no source here sets an arena-specific pass or fail threshold.
Use a Ceiling-Height and Design-Condition Matrix
Ceiling height and site conditions change what you need to verify before selecting fixtures, even though they don't set a universal spacing or foot-candle number. Use the matrix below to decide what to check next for your specific project.
| Design condition | Main layout concern | Verify before selection |
|---|---|---|
| Higher or more remote mounting | Light has farther to travel before reaching the footing | Photometric model checked at the footing plane, not just at the fixture |
| Retrofit with fixed mounting points | Spacing can't be redesigned freely | Model built around existing locations, wiring, and obstructions |
| New construction | Mounting and controls are still flexible | Coordinate mounting points and controls with the modeled layout before installation |
| Dusty or maintenance-constrained arena | Dust and limited access affect long-term output and serviceability | Environmental documentation, cleaning exposure, and maintenance access reviewed together |
Every row still ends the same way: the exact fixture count, spacing, and footing-level output stay specific to your project's model and measurements. The matrix tells you which condition should trigger which check, not what number to design toward.
Verify the Layout Before Buying or Installing
Before you commit to a purchase or an installation date, work through a short sequence that moves from the model to the field. Skipping steps here is what turns a modeled layout into an unverified guess once fixtures are actually mounted.
- Collect the inputs: arena dimensions, ceiling and mounting height, footing description, intended riding activities, and existing controls or wiring.
- Review the photometric plan for the exact fixture configuration you intend to buy, not a similar model, and confirm it shows footing-level results across the riding lanes.
- Compare horse and rider sightlines against the plan, noting any position where a fixture would sit in a direct or peripheral line of sight.
- Verify environmental documentation, mounting requirements, and control compatibility for the specific configuration, and confirm maintenance access matches your arena's dust or moisture conditions.
- If the project involves structural changes, new circuits, or local permitting, complete a qualified electrical, structural, or lighting-design review, or a professional layout service, before installation moves forward.
- After installation, measure footing-level brightness across the actual riding lanes and confirm it matches what the model predicted.
Pause before installation whenever structural mounting, electrical conditions, or applicable local requirements haven't been reviewed by the qualified professionals responsible for them. That single stop condition matters more than any other item on this list, because a modeled layout only holds up if the physical installation matches it.
When a High-Bay Product Is Only a Candidate
A high-bay fixture earns a place on your shortlist when its documented output, distribution, controls, and environmental rating fit your arena's requirements, but documentation alone doesn't prove arena fit. Screening and recommending are two different steps, and skipping straight to the second one is where mismatches happen.
Use a three-part test: is the fixture's photometric distribution documented for your exact configuration, has it been modeled against your footing rather than a generic space, and has the project-specific mounting, controls, and environmental fit been reviewed for your arena? When any of those remain unconfirmed, treat the fixture as a candidate for further review, not a finished recommendation. The Department of Energy's guidance on efficiency and product information is useful for comparing input power and output data across candidates, but it addresses general commercial purchasing, not equestrian-specific fit, so it can't substitute for your own arena model.
Our High Bay Lights collection is a starting point for browsing available configurations and documentation, not a shortcut past that review. If you're comparing options, request the full spec sheet and IES file for the exact configuration you're considering before treating any single product as arena-ready.
Next Steps: Turn the Plan Into a Photometric Brief
Once you've identified your arena's geometry and any product evidence gaps, the next step is assembling a handoff package for a project-specific photometric review. Gather your arena plan, dimensions, mounting points, ceiling height, footing description, intended activities, existing controls, and any notes or photos on rider and horse sightlines.
Request a project-specific photometric plan when the arena is large, the retrofit is tightly constrained, or the cost of uneven footing illumination and glare complaints is high enough to justify the extra planning step. We offer a Lighting Design resource for readers who want to move from this checklist into a project-specific layout, and we're glad to review compatibility or provide a bulk quotation once you have your configuration and arena details ready. Finalize your brief before ordering fixtures so every mounting point aligns with modeled footing results.
FAQs
What should a retrofit photometric plan show when the existing fixture locations cannot move?
It should document the fixed mounting points, existing obstructions, current fixture configuration, and a model of expected footing-level results run against those constraints, along with any sightline concerns the fixed positions create. Because the mounting points can't move, the plan also needs to flag which results still require field verification once the fixtures are running, rather than assuming the model alone settles the question.
How should I evaluate a supplier's "flicker-free" claim for an arena?
Ask for the tested configuration, the measurement method used, the driver and dimming condition during testing, and any available temporal light modulation metrics rather than accepting the phrase on its own. No source here sets an arena-specific flicker threshold, so the useful outcome is documentation you can compare against your own installed configuration, not a pass/fail number.
What should an arena brief specify to evaluate glare from rider and horse sightlines?
The brief should record typical eye levels for mounted riders, primary directions of travel along rail and centerline tracks, and potential upward views toward fixtures during jumping or schooling. Pairing those sightline angles with the exact fixture IES file and lens or shielding documentation helps the lighting designer identify direct-view hot spots before placement is finalized.
