Low-wall lighting for lower car panels works best when the source sits low and to the side, aimed across the rocker panels and door bottoms instead of straight into the paint. The goal is a long, readable reflection that breaks or bends wherever the panel has swirls, waviness, or coating streaks. Exact height, distance, and angle depend on your vehicle, your bay, and the fixture's optics, so treat the reflection itself as your guide rather than a fixed number.
Start with the light direction: across the lower body, not straight at it
A raking light works by grazing the surface at a shallow angle instead of flooding it head-on. That low, sideways path is what turns a flat-looking panel into a map of texture changes.
When the source is aimed across rocker panels, door bottoms, and lower-quarter contours, its reflection travels along the body line. Any dent, orange peel, or coating streak interrupts that line and becomes visible. Aim the same light straight at the paint from a few inches away and you get the opposite result: a bright, uniform glare that hides the very defects you're trying to find. Wheel-arch transitions and body creases need the same grazing treatment, since a flat, head-on light tends to smooth them over rather than reveal them.
Set up the low-wall inspection zone around lower panels
Set the light's position by the panel you're checking, then confirm the reflection before you trust it. Move around the vehicle to rule out a coverage gap hidden by a single fixed angle.
Set the source relative to the target panel
Start by identifying the exact section you're correcting, then place the source low enough that its reflection actually reaches that area.
- Position the light to the side of the vehicle, roughly level with or below the rocker panel, rather than overhead.
- Aim it along the surface so the reflection travels across the panel instead of pointing straight into it.
- If the reflection turns into a bright, blown-out patch rather than a visible line or edge, increase the distance or change the angle before judging the finish.
A wall-mounted detailing guide covers how a fixed side layout holds this angle consistently across a bay. A long linear source has an advantage here: its straight edge bends visibly wherever the paint surface departs from flat, which is why strip-style detailing lights are useful for highlighting orange peel, etching, and deeper scratches.
Extend coverage around contours and transitions
Treat wheel arches, bumper-to-fender transitions, and body creases as their own inspection zones instead of assuming the same wall angle covers them.
- Check each interruption separately, since a single side light often can't graze both a flat rocker panel and a curved wheel-arch lip at the same useful angle.
- Move to the opposite side of the vehicle, or reposition a portable light, to confirm an area that looked clean from one angle still looks clean from another.
- For coating work, change your viewing angle once the broad panel looks uniform. High spots and streaks can hide from a single position even after the surface looks even.
Recheck lower panels again after final coating or finish work, not just during polishing, since a defect that was buffed out can still show up as a streak once product is applied.
Use the reflection to diagnose glare and blind spots
Most inspection problems trace back to one of a few causes: the light is too direct, too close, poorly positioned, or mismatched in color. Match the symptom to the likely cause before assuming the paint itself is the problem.
| Symptom or task | Likely lighting issue | Adjustment | Next check |
|---|---|---|---|
| Panel looks blown out or "too clean" | Source aimed straight at the paint or too close | Increase distance or shift to a lower, more oblique angle | Look for a readable line, not a flat glow |
| Rocker panel looks dim or flat | Weak grazing angle or source too far from that panel | Lower the source or move it closer to the rocker line | Confirm the reflection now crosses the panel |
| Dark strip near a wheel arch or crease | Single-angle blind spot at a contour transition | Reposition or add a light from another angle | Recheck from the opposite side of the vehicle |
| Paint color or haze looks inconsistent between checks | Mixed light sources with different color temperatures | Standardize on one consistent light for the inspection pass | Compare the same panel section under only that source |
| Suspected localized swirl or holograms | Broad fixed light isn't concentrated enough | Switch to a movable spotlight and change its angle | Look for swirl patterns that shift as the angle changes |
Aiming a light that's too bright or too close directly at a panel is a common setup mistake, since it creates glare rather than a useful reflection. Our garage glare fixes guide walks through the shadow and glare patterns that cause vehicle sides to stay dim even when the rest of the bay looks bright.
Choose fixed low-wall coverage or a portable inspection light
Pick fixed low-wall lighting when the vehicle stays in one bay and long lower-body contours need repeatable side coverage. Pick a portable inspection light when the target area, vehicle position, or viewing angle changes often.
Fixed low-wall linear lighting
Fixed side lighting fits a dedicated bay where you're repeatedly polishing and inspecting long rocker, door-bottom, and lower-quarter runs. Its value is a stable, repeatable side reflection that fills the shadow overhead lights leave along the vehicle's lower half, not automatic coverage of every wheel-arch transition. Because one wall angle can still miss a contour on the far side, check the panel again from the opposite side or with a portable light before accepting the correction as finished.
Portable inspection lighting

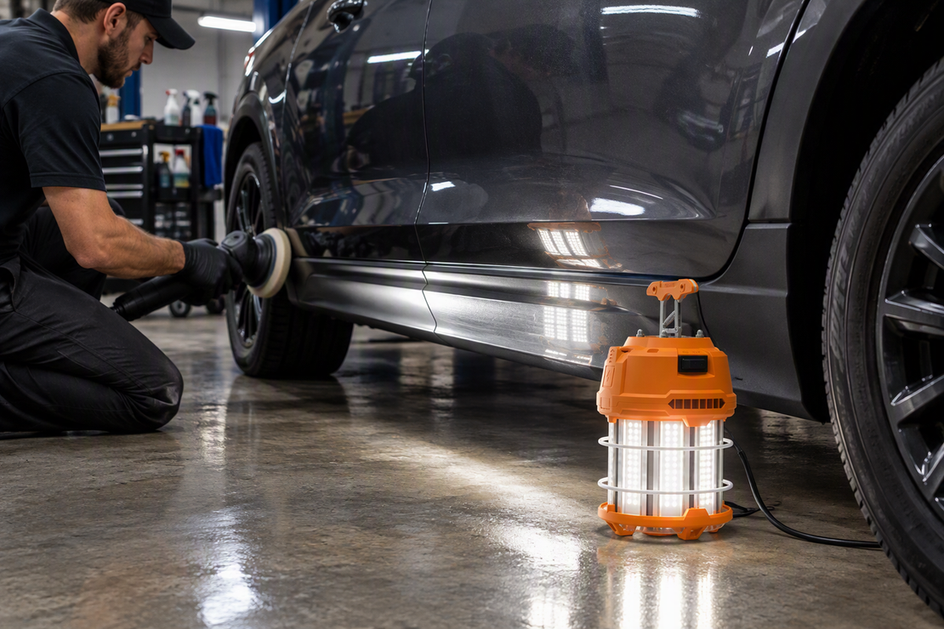

A portable light fits changing work areas, localized correction sections, obstructions around wheels or jack stands, and any check that benefits from more than one viewing angle. Move the source and watch how swirls, haze, holograms, or coating high spots appear and disappear as the angle changes; a static reflection can hide exactly the defect you're chasing. Keep enough distance to avoid a concentrated hotspot, and adjust the angle again if the panel starts to wash out.
A hybrid setup, fixed side fill for baseline coverage plus a portable light for final localized checks, covers both needs without forcing a single fixture to do everything.
Verify the fixture before buying or mounting it
Before you buy or permanently mount a light for this job, confirm what it will actually show you and whether it can be installed the way you plan. Specification sheets and product scenarios don't automatically prove a fixture suits low-wall paint inspection.
Verify what the light will show
Look past general brightness claims and check the details that affect the reflection itself.
- Look for optical distribution or photometric information describing how the light spreads and reflects, not just a lumen total.
- Check available color-quality information. Consistent, neutral-looking illumination is preferable to judging correction under mixed or strongly tinted sources, as technical paint polishing guidance notes when explaining color consistency.
- Confirm dimming, switching, or sensor behavior won't change the inspection pattern mid-session in a way you don't expect.
Verify mounting, environment, and electrical details
Confirm the physical and electrical facts match your bay before you drill a hole or plug anything in.
- Confirm the mounting hardware fits the wall or fixture position you intend to use, and that the manufacturer's instructions cover that mounting method.
- Check the exact model's environmental rating, voltage, wattage, and total electrical load, since these come from the specific product's documentation rather than a general product category.
- Treat ratings like IP ingress protection, UL or cUL listing, color temperature, and wattage as individual facts. None of them alone proves the fixture is approved for a wet or damp location or fully code-compliant for your bay.
Do not proceed with a fixed installation if the mounting, environmental, or electrical instructions for your specific model are unavailable or unclear. Route line-voltage work through a qualified electrician and check applicable local requirements before finalizing a permanent layout. If you're still narrowing down a fixture, our garage lighting collection is a reasonable starting point for comparing current models and specification sheets before you commit to one.
FAQs
What safety check applies before using a portable inspection light in a detailing bay?
Inspect the cord, plug, and housing for damage before each use, and take the light out of service immediately if you find a defect rather than continuing to use it. If the bay has any risk of contact with water or conductive liquids, such as rinse water or spilled detailing chemicals, confirm the equipment is approved for that kind of location. This pre-use inspection follows OSHA portable equipment rules to prevent electrical hazards in damp shop environments.
How do I adjust low-wall lighting if the lower panel reflection creates blinding glare?
Increase the fixture's distance from the vehicle or shift the light to a shallower grazing angle along the panel surface. Direct or overly close illumination creates a blown-out reflection that washes out surface flaws, so you should adjust the angle until the reflection forms a clean, readable edge across the body line.
Why do lower car panels look finished from one side but still show defects from another?
Body curves, wheel flares, and rocker contours block light from reaching every recess at a single angle, creating hidden blind spots. Moving to the opposite side of the bay or checking with a portable light from an alternate angle reveals scratches and coating streaks that remain invisible under a single fixed wall reflection.
