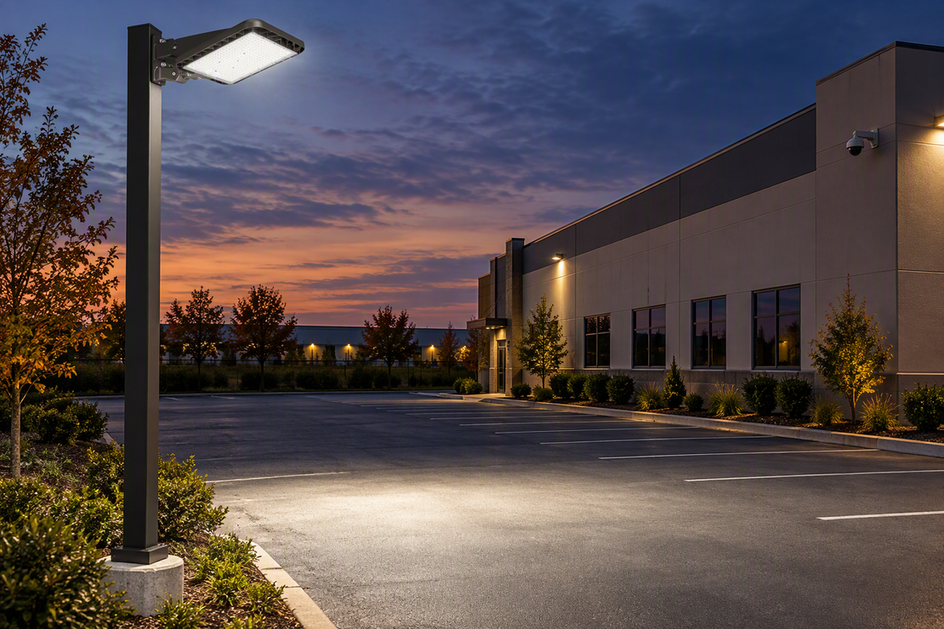

Balanced perimeter security lighting means coordinating fixture placement with what security cameras and people on-site actually need to see, not maximizing brightness. A property can look well-lit to a passerby while a bright fixture inside the camera's field of view washes out the exact spot where a face or vehicle needs to register. The right question is whether the scene stays usable and continuous from the camera's viewpoint, not whether it looks brighter from the street.
Getting there takes a short sequence: map the perimeter and camera views, match fixture types to each zone, validate spacing and aiming with real photometric data, and verify compatibility before buying. A dedicated boundary section covers when the project needs a licensed electrician or local code review.
Start With the Camera View, Not Maximum Brightness
The design goal is usable illumination inside the camera's field of view and along approach paths, with glare, shadows, backlighting, and spill kept under control. Treating commercial perimeter lighting as one continuous brightness problem misses where the light actually needs to land.
Treat the camera and perimeter as one scene
Start by mapping what each camera must see: doorways, gates, vehicle lanes, and the faces or surfaces that matter for identification. A fixture's position is part of that camera scene, not a separate lighting decision made afterward. Placing security lights without checking the camera's viewing angle can put the source directly in the lens.
Separate useful illumination from visible brightness
A single bright fixture sitting inside or near a camera's field of view can create glare even while nearby ground stays under-lit. According to the U.S. General Services Administration, excessive brightness within the field of view causes glare, and it reduces usable visibility rather than improving it. Reviewing fixture shielding, aiming, and sightlines addresses this more reliably than adding more lumens.
Survey the Perimeter and Camera Coverage Before Choosing Fixtures
Before picking a single fixture, build a zone-and-camera coverage map instead of a shopping list. This map becomes the reference for every later spacing and fixture decision.
Build a zone and camera map
Divide the property into zones with genuinely different lighting needs, such as fence lines, building edges, loading docks, and parking edges, instead of treating the whole perimeter as one lighting problem. For each zone, record:
- Camera direction, mounting height, and field of view
- Subject approach paths (pedestrian, vehicle, or both)
- Existing fixture positions and any retrofit constraints
- Reflective surfaces, obstructions, and known dark corridors
Inspect the scene after dark
A nighttime walk-through catches problems that a floor plan cannot show.
- Walk the site from the relevant pedestrian and vehicle approaches, then view the same areas from representative camera positions.
- Note any bright source sitting inside or near a camera's sightline, uneven transitions between lit and unlit ground, and any face or entrance that a fixture inadvertently hides.
Virginia's Department of Criminal Justice Services training material notes how poor fixture aiming obscures people near doorways and leaves dark spots that demand realignment or redesign. Use this walk-through as a physical check, not as a substitute for photometric planning, which comes next.
Match Fixture Categories to Perimeter Zones
Fixture category should follow the zone's geometry and camera coverage goal, not a single default choice used everywhere. The matrix below is a conditional starting point; every row still depends on photometric confirmation.
| Fixture category | Best perimeter use | Camera consideration | Verify first |
|---|---|---|---|
| Wall-mounted (wall pack) | Building edges, doors, narrow façades | Easy to place inside a nearby camera's field of view if misaimed | Mounting height, distribution pattern, camera sightline overlap |
| Area or parking-lot fixture | Open lots, parking edges, larger boundaries | Wide throw can create spill onto neighboring property or into cameras | Photometric file, pole spacing, glare shielding |
| Adjustable flood or security fixture | Access points, service yards, irregular zones | Aiming flexibility helps but increases misaim risk | Aiming lock, beam angle, current photometric documentation |
Lumen output alone does not decide the category. A high-output area fixture in the wrong position can create more glare for a camera than a smaller, correctly aimed wall-mounted unit. For building edges and entries, our wall pack placement guidance walks through mounting and aiming considerations specific to that fixture type.
Plan Spacing, Mounting, and Aiming From Photometric Data
There is no universal spacing distance, mounting height, or aiming angle that fits every commercial perimeter. Spacing should come out of a photometric layout built around each zone's geometry and camera views, not a fixed rule applied everywhere.
Use geometry to set the starting layout
Before modeling anything, record the inputs that actually drive the layout:
- Mounting height and setback from the boundary or building line
- Boundary shape (straight fence line, corner, irregular yard)
- Camera direction and the specific surfaces or faces that must stay visible
Treat spacing as an output of this geometry, not a fixed input you choose first.
Validate coverage and aiming in the real scene
- Model the proposed fixture layout using current photometric files or manufacturer documentation, checking both ground-level coverage and the vertical surfaces the cameras need to see.
- Review the model against each camera's field of view to confirm no fixture source lands inside the sightline.
- Run a representative nighttime inspection of the proposed layout, then adjust fixture position, distribution, or aiming wherever glare or a dark corridor remains.
This model-inspect-adjust sequence is what our commercial pilot scorecard approach is built around, since a brightness comparison alone will not catch a view-dependent failure like a hidden doorway or a washed-out lens.
Check Camera-Lighting Compatibility Before You Buy
A fixture's listed lumens, IP rating, or voltage range does not by itself prove it fits a specific camera view, electrical circuit, or local project requirement. Confirming that fit before purchase avoids a redesign after installation.
Check the camera and scene
- Confirm each camera's field of view, mounting position, and the subject paths and surfaces that must remain visible.
- Check whether the proposed fixture position introduces glare, backlighting, or reflective hotspots into that same view.
- Note current exposure behavior on existing cameras, since a retrofit that changes lighting can shift how an existing camera exposes the scene.
Check the fixture and project documents
Gather this before ordering:
- Exact SKU and current specification sheet, plus photometric files and distribution type
- Mounting instructions, aiming range, and any shielding or glare-control accessory compatibility
- Controls, voltage, wattage, and total circuit load
- Environmental rating and any local code or permit requirements that apply to the installation
For example, the available product information for the Cobra Series lists 45,000 lumens, 300W, 5000K color temperature, 100 to 277V AC input, Type III distribution, an IP65 rating, ETL listing, an optional photocell, and a 5-year warranty for that specific configuration. Those fields are useful project inputs, but they do not by themselves confirm camera compatibility or wet-location suitability for a given site; verify the current documentation for the exact SKU under consideration. A described glare-control accessory follows the same rule: confirm the compatible fixture, lens, and dimensions before treating it as a fix for a camera-facing glare problem.
Set the Electrical and Code Boundary Before Installation
Photometric planning, electrical design, and code compliance are three separate responsibilities, and each belongs to a different reviewer. Keeping this boundary clear prevents a lighting decision from turning into an unsafe or non-compliant installation.
Assign the right reviewer
- A lighting designer or qualified project professional handles photometric coordination and camera-scene review.
- A licensed electrician handles electrical design, load calculations, and installation.
- The local authority having jurisdiction, or the project's responsible professional, handles permits, code, zoning, light-trespass limits, and hazardous-location classification.
Stop self-directed planning once the project requires circuit design, live electrical work, hazardous-location classification, or a code or permit determination, and hand that decision to the professional or authority responsible for it.
Do not decide compliance from a product page
An IP rating, voltage range, or product description is not a project-specific compliance determination. Confirm the exact documentation for the fixture and the requirements for the specific jurisdiction before installation begins. For a multi-zone site or a retrofit where camera compatibility remains unresolved, our lighting design support can help translate the survey and photometric data from earlier sections into a project-specific layout. Finalize your photometric model and electrical capacity checks with your design team before issuing purchase orders or mounting hardware on-site.
FAQs
Can a camera still produce poor footage when the perimeter looks bright to people?
Yes. Human perception of brightness is not the same as camera-specific usability. A bright fixture near the lens can create glare that a person on-site never notices, while ground coverage still looks adequate to the eye. Reviewing representative nighttime footage for glare, contrast, and subject visibility in the actual camera field of view is the more reliable check.
What information should a contractor or lighting designer receive before quoting a perimeter retrofit?
Provide a scaled site plan, camera locations and viewing directions, mounting heights, zone priorities, existing fixture and electrical information, and any known glare or dark-corridor issues from your nighttime walk-through. This lets the professional separate a layout problem from a product or installation constraint before proposing a design.
How do fixture beam angles and shielding prevent camera lens flare?
Shields and optical distribution patterns restrict raw lamp brightness outside the target coverage zone, preventing high-intensity light from entering the camera lens directly. Keeping direct fixture glare out of the camera's sightline preserves sensor exposure and contrast across critical detection areas.
