A workable pole barn lighting layout comes from a worksheet, not a fixed spacing rule. Start with your bay dimensions, clear mounting height, task zones, fixture distribution, and usable lumens per fixture. Add the truss attachment points you can actually document, then treat the whole result as preliminary until you validate it with a photometric plan or a light-meter reading.
No single spacing number or fixture count works for every pole barn, because open storage, vehicle bays, and workshop areas each need different light levels and layouts. The sections below walk through the inputs, the lumen and wattage math, zone-by-zone spacing, and the truss review that turns a rough sketch into a buildable plan.
Start With a Preliminary Layout, Not a Universal Spacing Rule
The right first output is a completed worksheet, not a shopping cart. Before you compare any specific 8-foot LED shop light or high-bay fixture, record six things: bay dimensions, clear mounting height, task zone, planned fixture distribution, usable delivered lumens, and the truss coordinates you intend to use for mounting.

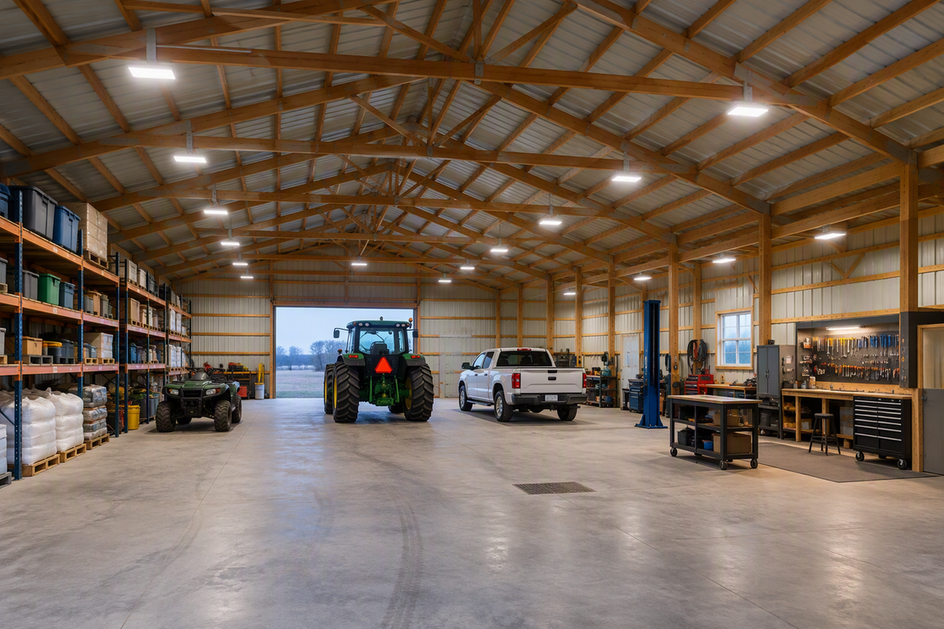

Open storage, vehicle parking or maintenance, and defined workshop areas rarely share one light target. A storage aisle can run dimmer than a workbench, so separate these zones early instead of averaging the whole barn into one number. Whatever count or spacing pattern you land on next should be labeled preliminary, because finished light on a work surface depends on more than the ceiling grid. Our garage lighting layouts by ceiling height guide walks through this same input-first approach for smaller structures if your barn includes an attached garage bay.
Collect the Inputs Before Choosing a Fixture Count
You need eight to ten concrete measurements before any lumen math makes sense: length, width, clear mounting height, truss and obstruction locations, task-surface positions, surface finishes, and the exact fixture's delivered lumens, input watts, and voltage. Skipping the input sheet is why layouts based on "an 8-foot fixture every so many feet" often leave dark corners or overlit aisles.
Measure the Building and Mounting Plane
Record the inside length and width for each bay separately rather than the building's overall footprint. Measure clear fixture mounting height, meaning the actual height where the fixture will hang, not the ridge height at the peak. Map every truss, obstruction, door, piece of equipment, and likely service path, since these change where fixtures can go and how light reaches the floor.
Separate Storage, Vehicle, and Work Zones
Mark storage and circulation areas apart from vehicle maintenance bays and defined workbenches. Shadows from parked equipment, glare near a bench, or the added height of stacked material can all change how much of your calculated lumen output actually reaches the work surface. Choose a separate target basis for each zone instead of averaging the entire structure, since a single number tends to overlight storage while underlighting task areas. Our high bay spacing guide breaks down this zone-splitting logic for taller, open bays where fixture optics dictate coverage.
Calculate Lumens, Fixture Count, and Wattage per Bay
The worksheet math has three steps: multiply zone area by a target foot-candle level for an initial lumen requirement, divide that by usable delivered lumens per fixture for an initial count, then multiply the count by input watts for preliminary connected wattage. Run each zone separately rather than averaging the building.
Calculate the Initial Lumen Requirement
- Measure the zone's square footage (length times width).
- Select an applicable foot-candle target. If you reference OSHA's construction-context benchmarks, label them as such rather than as a universal design number.
- Multiply square footage by the target foot-candle level to get initial required lumens.
As a labeled, hypothetical example only: a 2,400-square-foot zone (40 ft by 60 ft) at a construction-context benchmark of 5 foot-candles works out to roughly 12,000 initial lumens needed. This is a worksheet illustration, not a specification for any particular barn.
Convert Lumens to Fixtures and Watts
Divide the initial lumen requirement by the usable delivered lumens of the specific fixture variant you're considering, not a nominal or rounded source rating. Continuing the same hypothetical example, 12,000 lumens divided by a hypothetical 4,000 delivered lumens per fixture points to roughly 3 fixtures. Multiply that count by the fixture's selected input watts (a hypothetical 100 W in this example) for a preliminary connected load of about 300 watts. Round the fixture count up as a planning step only, then confirm placement and performance with a photometric or field check.
Set Fixture Spacing and Distribution by Zone
Spacing is a distribution problem, not a fixed feet-apart number. Use mounting height, beam distribution, and task location together to decide where each fixture actually goes, then validate the result at the work surface rather than trusting the ceiling pattern alone.
Treat Spacing as a Distribution Problem
Compare beam angle and mounting height before comparing fixture length or wattage, since a wide beam at a low mounting height covers ground differently than a narrow beam mounted higher. A manufacturer's photometric file, when available, shows center spacing, row spacing, and edge placement more accurately than a general rule. Keep any vendor-specific spacing example labeled as conditional, since illumination intensity depends on the light source, distance, atmospheric conditions, and the color and sheen of floors, walls, and ceilings, per OSHA illumination guidance.
Adjust the Grid for Shadows and Work Surfaces
Shift emphasis toward the positions people actually use: a workbench, a maintenance bay, a machine's control panel. Stored materials, parked vehicles, open doors, and tall equipment can all block or reflect light, changing the useful result even when the ceiling grid looks even. Because the same OSHA guidance notes that computing illumination intensity at work level involves many variables, the safest validation step is a project-specific calculation or a light-meter reading at the actual work surface rather than relying on a spacing sketch alone.
Plan Truss Mounting Without Assuming Every Member Is an Attachment Point
A visible truss member is not automatically an approved mounting point. Roof trusses use engineered chords, webs, and metal connectors sized for calculated structural loads, as the American Wood Council explains, so any fixture attachment needs its own review against the truss design and the fixture's mounting instructions.
Map the Load Path and Clearance
Identify the documented chord, web, connector, purlin, or approved secondary support shown in your project's structural documents, rather than picking whichever member is closest to the desired fixture location. Check the added weight of the fixture and its mounting hardware, confirm clearance from roofing material and stored equipment, and confirm service access for future maintenance. A convenient location is not proof that the member can carry the load.
Match the Fixture Mount to the Project Documents
Compare the exact fixture variant's approved mounting options, such as wire-rope, pendant, or surface mount, against the support you've identified, using the manufacturer's installation instructions rather than a general assumption. If the attachment point, added load, or electrical design can't be verified against documentation, stop before installing and get a qualified structural or electrical review. When updating older structures, our guide on anchoring high bays to wood beams covers specific attachment steps for aged or weathered timbers.
Use the Ceiling Height × Task × Fixture Type Decision Matrix
Ceiling height and task together point toward a fixture category and a verification step, not a specific model. The matrix below separates lower-ceiling linear planning from high-bay planning and treats storage, vehicle, and workshop tasks as distinct rows.
| Condition | Planning direction | Compare in fixture data | Verify before purchase |
|---|---|---|---|
| Under 15 ft, general storage | Linear or shop-light planning | Delivered lumens, beam spread | Mounting height, distribution |
| Under 15 ft, workshop task zone | Linear planning with added task fixtures | Beam angle, CRI, glare control | Task-surface validation |
| 15 ft or higher, open bay | High-bay planning | Delivered lumens, beam angle, mount type | Photometric file, mounting hardware |
| 15 ft or higher, vehicle maintenance | High-bay planning with zone emphasis | Distribution pattern, controls | Shadow and glare check at bay |
Under Department of Energy guidance, high-bay fixtures are designed for ceiling heights of 15 feet or higher in expansive areas, making 15 feet a practical baseline for switching from low-profile fixtures to high-output luminaires. At any height, compare the complete fixture's delivered lumens, input watts, and distribution rather than a source-only lumen claim, and confirm the fixture's documented mounting options match your truss review.
Verify the Fixture, Code, Controls, and Rebate Details Before Buying
Before you buy or install, separate what the fixture's documentation tells you from what your project and local authorities require. Both tracks matter, and neither substitutes for the other.
Confirm Complete Fixture Data
- Delivered lumens, input watts, and voltage for the exact variant you're buying, not a nominal source rating.
- Beam angle and distribution pattern, matched to your zone's mounting height and task.
- Selectable wattage or CCT settings, and which setting your worksheet assumed.
- Mounting options and any dimming, motion-sensor, or control compatibility.
As documented examples only, the HPLH01 Series linear high bay record lists 60,000 lumens with selectable 400/320/240/160 W configurations, a 110-degree beam angle, and steel wire-rope, pendant, or surface mounting options. The HPHB01 Series UFO high bay record lists 24,000 lumens with selectable 150/120/90/60 W configurations, a 90-degree beam angle, 120-277V input, an IP65 rating, and optional motion sensors. These fields describe the specific products; they don't establish fit for any particular bay, and an IP65 rating is not the same as project-specific code compliance. Our high bay light collection lists current fixture variants if you want to compare documented specs directly.
Confirm Project and Program Requirements
- Have total connected load and control wiring reviewed by the appropriate qualified electrician; this article does not provide circuit design or wiring steps.
- Check current local code and permit requirements with your building department or project professional.
- Verify utility rebate eligibility, qualified-product-list status, and required paperwork directly with your local utility before assuming a fixture qualifies.
Decide Whether a Simple Estimate Is Enough
A simple worksheet estimate is reasonable when your inputs are clear: known bay dimensions, a defined task per zone, documented fixture data, and a truss attachment point you can verify against project drawings. Once any of those pieces gets uncertain, the estimate stops being defensible on its own.
Escalate to a project-specific photometric plan or a qualified structural and electrical review when zones are mixed-use, ceilings are tall or irregular, obstructions are substantial, the fixture's delivered output is unclear, or the truss condition is unusual, such as an older or retrofit structure. The next action is straightforward: assemble your measured input sheet and request the review that matches what's uncertain. Our free lighting design service can turn that input sheet into a project-specific photometric plan when a rough estimate isn't enough.
FAQs
Can I copy the fixture spacing from a nearby pole barn?
Not reliably. Two barns rarely share the same mounting height, fixture distribution, task use, and obstructions, and finished light also depends on surface color and reflectance. Reuse only the verified inputs from your own building, then run the worksheet for your specific zones.
How should I light a pole barn with both storage and workshop areas?
Split the building into separate zones instead of averaging one target across the whole space. Calculate lumens, fixture count, and spacing for the storage zone and the workshop zone independently, then validate each zone at its own work surface.
Can I attach an LED fixture directly to a roof truss?
Not automatically. Truss chords, webs, and connectors are engineered for specific calculated loads, so the fixture and its mounting hardware need to match a documented attachment point and the manufacturer's mounting instructions, confirmed by a qualified structural review before installation.
What information is needed for a pole-barn photometric plan?
Provide the building's dimensions, clear mounting height, the exact fixture variant and its photometric file, the location of each task zone, known obstructions, surface finishes, and the controls you plan to use. This lets a photometric plan validate placement instead of relying on a rough sketch.
