A garage lighting layout works best when you start with ceiling height and garage dimensions, not fixtures. Once you know the space, you can estimate spacing, choose a pattern, and narrow the right bundle without guessing. For a typical garage lighting layout for a 9-foot ceiling, the goal is even overlap with fewer hot spots, not a universal exact count.
Start With the Garage Dimensions
Before you compare fixtures, measure the ceiling height, garage length, garage width, and bay count. Standard US one-car garages are often about 12x20 to 14x22 feet, two-car garages commonly range from 20x20 feet minimum to 24x24 feet recommended, and three-car garages usually start around 32x22 feet and go up from there, which gives you a standard garage sizes baseline for planning.
Then mark the things that can steal usable ceiling space: door tracks, openers, beams, storage racks, and any sloped or uneven sections. Those obstacles matter because a layout that looks centered on paper can end up crowded in real use.
If you are comparing a bundle, sketch the layout first and treat the fixture list as the last step. That keeps you from buying a set that fits the square footage but not the actual ceiling geometry.
For a quick next step, browse garage lighting options only after you have your measurements. If you still need a brightness refresher, the garage lumens guide is a useful follow-up once the room size is known.
How Ceiling Height Changes Layout
Ceiling height changes how far light spreads, how much overlap you need, and how likely glare becomes. A lower ceiling usually needs tighter spacing because each fixture has less room to spread before the light hits the floor or workbench. A taller ceiling can handle wider spacing, but the layout becomes more sensitive to output and fixture optics.
For a 9-foot ceiling, a practical planning heuristic is to space fixtures at about half the ceiling height, or roughly 4.5 feet apart, with a spacing-to-mounting-height ratio around 1:1 to 1.2:1 so the beams overlap. That half-height spacing for 9-foot ceilings is a starting point, not a universal rule.
In real use, this means you should not let one center row do all the work in a standard two-car garage. If the ceiling is low, fixtures too far apart usually leave dim lanes between cars. If they are too close together, the middle can feel harsh while the walls stay underlit.
For taller garages, the recommendation often flips. You can usually stretch the spacing a bit, but only if the fixture output and beam spread can still cover the floor evenly. That is why ceiling height changes the buying decision as much as the fixture count does.
| Ceiling height band | Practical spacing band | Overlap risk | Best planning use |
|---|---|---|---|
| Lower ceilings | Tighter than 9-foot layouts | Higher if fixtures sit too close to the floor or bench | Use when the ceiling is limited and wall clearance is tight |
| 9-foot ceiling | About half the ceiling height | Moderate if rows are centered and evenly offset | Best as the default planning case for many residential garages |
| Higher ceilings | Wider than 9-foot layouts | Lower only when fixture spread still reaches the floor evenly | Use when mounting height and output both support broader coverage |
Choose a Layout Pattern
A grid is usually the safest default for a standard two-car garage because it helps reduce shadows across both parking lanes and the center work area. A two-row layout often works when the garage is long and rectangular. A perimeter-supported layout can make sense when the center is open or when storage along the walls changes the usable ceiling zone.
| Layout pattern | Best fit garage shape | Ceiling-height fit | Coverage strengths | Common mistake |
|---|---|---|---|---|
| Centered grid | Standard two-car garage | Good for most residential ceilings | Helps balance light across parking and work zones | Crowding all the fixtures into one center line |
| Two-row layout | Long, narrow, or tandem-style garage | Works well when the ceiling is not too low | Spreads light across lanes more evenly | Forgetting to offset rows far enough from each other |
| Perimeter-supported layout | Garages with open center space or wall storage | Better when wall zones need emphasis | Helps the edges and storage areas stay visible | Placing fixtures too close to the walls or door tracks |
| Task-zone emphasis | Workbench or detailing area | Best when one area needs extra light | Adds brightness where you actually stand and work | Treating task lighting as a substitute for whole-garage coverage |
The main trade-off is simple: a grid gives you more uniform coverage, while perimeter-supported placement can solve real-world obstacles. If you have door tracks, beams, or deep storage, the right answer is often a slightly adjusted pattern rather than a perfect geometric one. That is why grid versus perimeter layout is a better question than "How many lights fit?"
If you want a browsing path after you map the room, check garage light styles only after the layout is clear. The style should match the pattern, not the other way around.
Estimate Fixture Count by Garage Size
A fixture-count estimate should come from square footage and use case, then be checked against ceiling height and fixture spread. For general residential garage lighting, 30–50 lumens per square foot is a common planning baseline, while workshop or detailing areas may need more, according to the lumens per square foot baseline.
Use this sequence before you buy:
- Measure the garage area and note the bay count.
- Mark the usable ceiling zones around openers, beams, storage, and tracks.
- Pick a layout pattern, such as grid, two-row, or perimeter-supported.
- Estimate a starting fixture count from the room size and intended use.
- Check the sketch for dark corners, dead zones, or overlap gaps.
For a typical two-car garage, that means the count is a starting estimate, not a fixed answer. A compact 20x20-foot space can call for a different plan than a larger 24x24-foot garage even if both are called "two-car" spaces, because the shape and ceiling height change how light spreads.
One useful rule is to think in terms of coverage zones instead of total fixture count alone. If a garage has a front parking lane, a back work lane, and a side storage zone, the plan usually improves when each zone gets some overlap instead of trying to make one fixture do everything.
If you want a sizing reference for stronger overhead fixtures, the high-bay sizing chart can help once you know the area and mounting height. For a product-side check, the white Hero Series high bay is best treated as a navigation path to compare specs against your layout sketch, not as proof that any one count fits every garage.
Match the Layout to the Fixture Type
Fixture type should follow the layout you already sketched. For ceilings above roughly 10 to 12 feet, high bay fixtures are often a better fit because they can push light farther down to the floor. For lower ceilings, linear fixtures and hex-style layouts are often easier to place without creating glare or bulky visual clutter, as shown in the fixture type by ceiling height guidance.
Linear Fixtures for Even Runs
Linear fixtures are a strong fit for long, narrow, or two-row garage layouts because their shape supports even runs over parking lanes and work areas. They are usually easier to plan when the garage has a clear rectangular footprint and you want the light to follow the room rather than sit in a few isolated points.
That does not make them universal. If your ceiling has a lot of interruptions or the layout depends on a central work zone, a different fixture shape can be easier to place. The useful question is not whether linear fixtures are "better," but whether their shape matches your usable ceiling space.
High Bays for Taller or Open Garages
High bays are usually the more logical choice when the ceiling is higher and the floor area is open enough to benefit from broader overhead coverage. They make more sense when mounting height is part of the problem, not just fixture brightness.
If your garage is standard height and the ceiling is already low, a high bay can feel excessive. In that case, you are usually better off with a lower-profile option that spreads light evenly without dominating the ceiling visually.

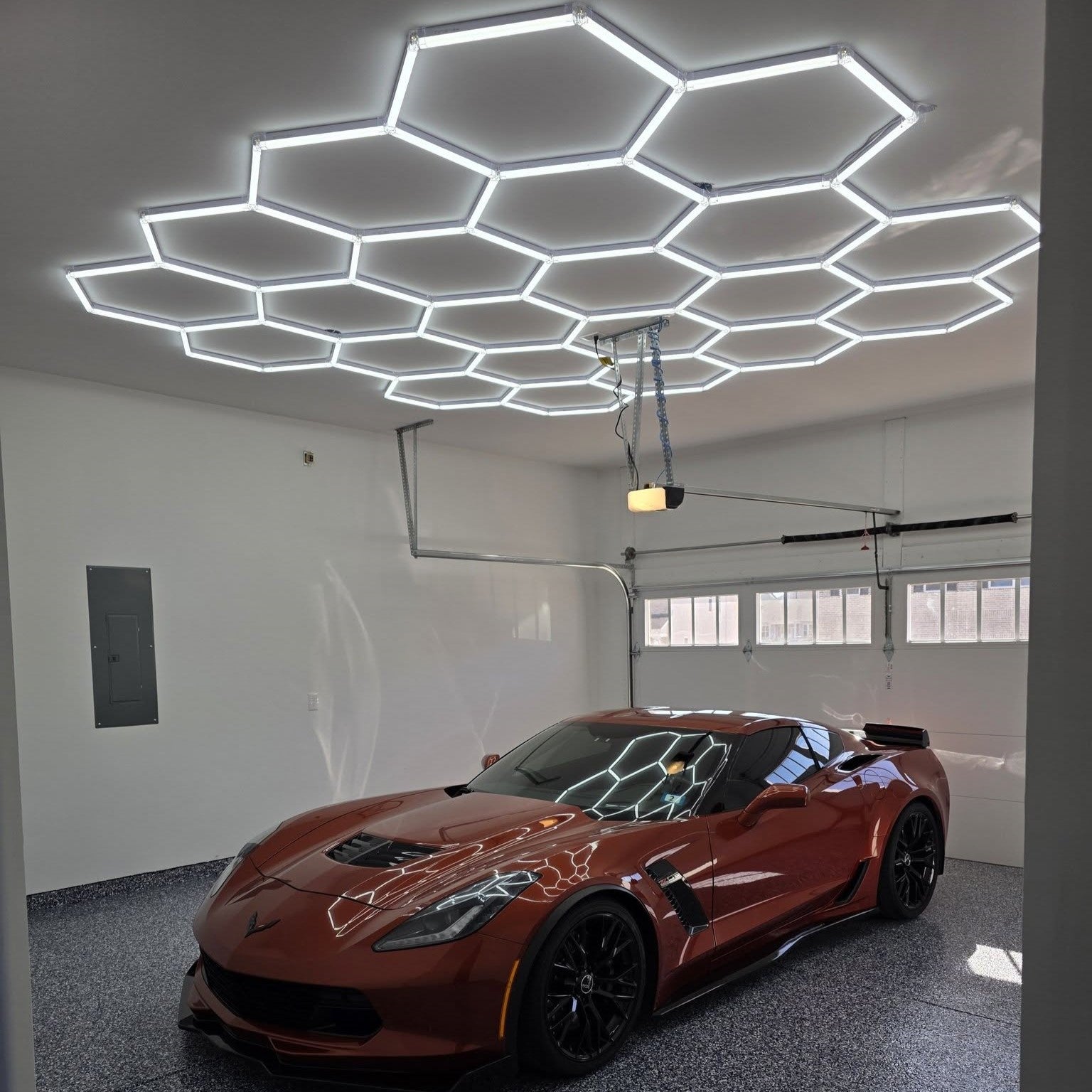

Hexagon Panels for Visual Coverage
Hexagon garage lights are a good fit when the buyer wants a bold ceiling pattern and broad visual coverage in a home garage or detail space. They can look especially clean in a square or nearly square bay, but they still need enough uninterrupted ceiling area to make sense. If you are comparing a specific panel kit, the Hyperlite Hexagon Garage Lights Gen 2 - 15 Grid (15.9 x 8 ft) can serve as a layout-style reference for ceiling coverage, not a universal fit for every garage.
Before buying, check the footprint against the ceiling plan. If the garage has beams, tracks, or a tight opener zone, the panel shape may be harder to place cleanly than a simpler linear run.
What to Check Before You Buy
Match the fixture family to the layout sketch, then check mounting space, voltage, and controls. If the specific fixture does not fit the ceiling height, the shape of the garage, or the available obstruction-free zone, it is the wrong choice even if the specs look strong on paper.
A browse path can help at this stage. High-bay options are useful when you already know a taller or more open garage needs broader overhead coverage, while a hexagon garage light is more of a layout-style check for a visible ceiling pattern than a universal answer.
Final Takeaway
The best garage lighting plan starts with measurements, then moves from ceiling height to spacing, then to fixture count, and only after that to product choice. For most buyers, the safest path is a centered grid or two-row plan, with a 9-foot ceiling treated as a separate planning case. If your garage has a different shape, let the geometry decide the fixture family. Shop the garage lighting layout, not just the light.
FAQs
How Many Lights Do I Need for a 2-Car Garage?
The answer depends on the ceiling height, the garage shape, and the fixture output. A two-car garage is the most common planning case, but it is still better to start with the room dimensions and a spacing sketch than to pick a universal number.
How Far Apart Should Garage Ceiling Lights Be Spaced?
Spacing changes with ceiling height and fixture spread. A useful first pass is to aim for even overlap and avoid both wall crowding and large dead zones between fixtures. For a 9-foot ceiling, the half-height heuristic is a practical starting point.
What Is the Best Layout for Garage Ceiling Lights?
A centered grid is the safest default for many two-car garages, but the best layout flips when the room is long, narrow, open in the center, or crowded with storage. The layout should match the bay count and usable ceiling zones before you choose the fixture style.
What Should I Check Before Buying a Garage Lighting Bundle?
Check ceiling height, bay count, obstacle clearance, mounting space, voltage, and whether the bundle matches your chosen layout. If any one of those changes after the sketch is done, re-check the count before you order.
Can I Use the Same Layout for a 9-Foot Ceiling and a Taller Garage?
You can use the same general planning method, but not the same spacing assumptions. A taller garage usually needs different overlap and sometimes a different fixture type, so the ceiling height should change the final layout even if the room shape stays the same.
