If your workshop looks bright but the bench, machine, or aisle is still hard to use, inspect the work position before buying higher-output fixtures. Workshop lighting can fall short because dark backgrounds reduce visual contrast, metal reflects a fixture into your line of sight, machinery blocks the task plane, or general coverage does not reach the work surface from the right direction. Start by classifying the symptom, then test the smallest change that addresses its likely cause.
Start With the Symptom: Adjust, Add, or Rethink Workshop Lighting
Choose the first change based on where the problem occurs. Inspect coverage for room-wide dimness, the light path for shadows or glare in one zone, and localized task lighting when one defined position remains difficult.
| Visible symptom | First cause to inspect | First change to test |
|---|---|---|
| The entire work zone feels dim, especially against dark walls. | Coverage and distribution across the task area, not just brightness at the room center. | Compare the bench, machine, and nearby movement area from normal work positions. Adjust coverage or distribution before buying more output. |
| One bench or machine has a persistent shadow. | The worker, tools, machinery, shelving, or fixture position is blocking the task plane. | Move the light path or test localized task lighting at that position. |
| A metal tool, cabinet, or machine throws a bright reflection. | The fixture is reflecting into the normal viewing angle. | Trace the reflection and test the fixture direction or viewing angle before increasing output. |
| Shelving or an aisle looks uneven while open areas look bright. | Stored materials, tall equipment, and sight-line obstructions are interrupting coverage. | Test the affected aisle or shelf face from the position where you move or retrieve items. |
Lighting design guidance treats surface reflectance, glare, task lighting, and actual use as part of the solution, not just fixture output. Surface reflectance, glare control, and task lighting should therefore be part of the first inspection.
For more context on wall color and shop brightness, use this surface-reflectance guide as further reading, not as a fixed paint-performance promise.
Check How Dark Walls and Surfaces Change Visibility

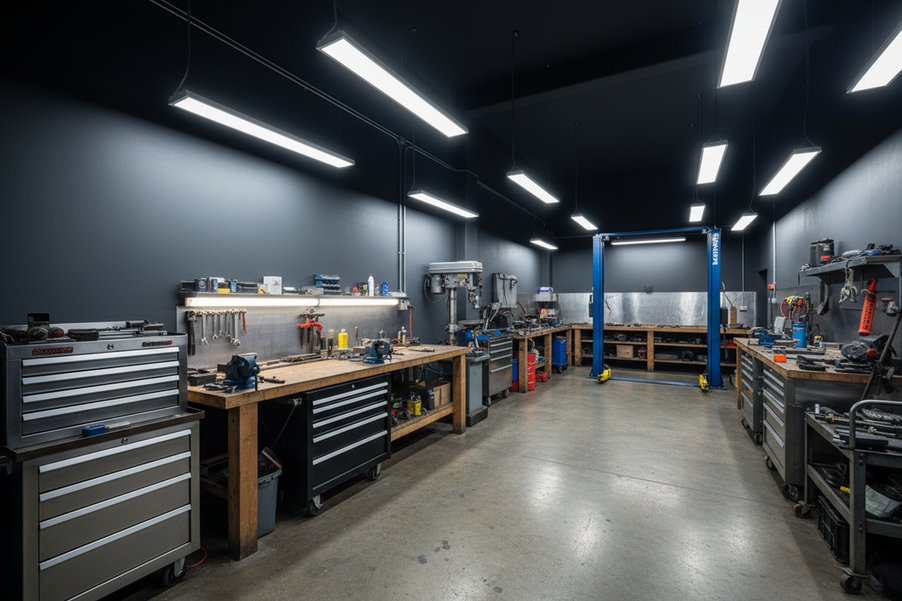

Dark walls do not produce one universal lighting result, but they can make the surrounding area feel less even and increase contrast between a task and its background. Compare the work surface with the wall, ceiling, bench, storage face, or equipment behind it before deciding whether the room needs more light.
Make three comparisons:
- Compare the task with its immediate background. A light-colored part against a very dark wall may be easy to outline but difficult to inspect for subtle surface detail. A reflective background may create a different problem, such as a bright patch or distracting contrast. Identify the specific combination that makes the task harder.
- Compare more than one normal work position. If the same bench is difficult from several positions, the background or general light path deserves attention. If the problem stays at one standing or seated position, test fixture direction or local coverage first.
- Separate the affected surface from the whole room. A wall behind one assembly area, a dark shelf face, or a glossy machine housing may be the actual source of the contrast or reflection problem. A targeted surface adjustment can be more appropriate than repainting the entire workshop when the issue repeatedly follows that surface.
For readers comparing workshop lighting for dark walls, the useful question is not whether one color is universally best. It is whether changing the affected background improves the task from the normal viewpoint without creating a new reflection. If the difficulty remains tied to one position, adjust the light path before treating the surface as the main fix.
Trace Glare and Shadows From Metal, Machinery, and Shelving
Locate glare or a shadow from the normal working position, then trace the light path that creates it. Test the fixture direction or relevant viewing angle before buying a brighter fixture. Judge the result at the task, not from the center of the room.
- Locate the symptom from the normal working position. Stand where you inspect, cut, assemble, service, or retrieve materials. Note the exact metal face, tool edge, shelf face, floor area, or task surface that becomes too bright or too dark.
- Identify what changes the light path. Shift your viewpoint slightly, move your hands, open a cabinet, or account for the height of a machine and stored material. A reflection that follows your viewing angle points toward a glare path. A shadow that follows a machine, shelf, or your body points toward an obstruction or poorly directed light path.
- Test one layout condition and retest nearby surfaces. Adjust the fixture direction or relevant viewing angle only within the limits of the product instructions and safe installation conditions. Then inspect the original task, nearby metal faces, the aisle floor, and the shadow edge. Additional light directions can change reflectivity, glare, and shadows rather than automatically removing them.
Fixture placement and reflected glare deserve a layout test before a brighter-fixture purchase. This is the practical core of workshop lighting for shadows and glare: judge the light where the work happens, not from the center of an otherwise bright room. Do not assume that dimming, a different color temperature, or more output will remove a reflection. The next useful change is the one that alters the light path without creating a new obstruction or hot spot.
If the affected area is a mechanic's bench or tool zone, lighting for mechanic work can provide additional layout context. It does not replace a position-specific inspection.
Aim General and Task Lighting Around the Work Position
Use general lighting to cover the zone, then correct the light path around the actual bench, machine, aisle, or storage position. Task lighting is useful when one defined work area remains difficult after you address sight lines, shadows, and reflections.
- Mark the work positions. Identify where you stand or sit for bench work, where you approach a machine, and where you move along an aisle or reach into storage. Each position can expose a different shadow or reflection.
- Observe the shadow direction. Note whether your body, hands, tools, or machinery block the task surface. A local light should improve the work plane without placing a bright source in the normal line of sight.
- Adjust or supplement the light path. Correct the fixture direction first when the problem affects a broader zone. If only one defined position remains difficult, a localized task light may be a more targeted test than changing every overhead fixture.
- Retest the task and movement area. Look at the work surface, nearby edges, reflective equipment, and the floor where you move. Account for cords, mounting, controls, machinery clearance, voltage, and environmental conditions using the product documentation and applicable local requirements.
Test both shadow direction and glare from the worker's position, as described in this task-light placement and shadow direction guidance.
A conditional example is the portable LED work light. The available information for the Hive Series lists a portable, linkable 7,500-lumen, 5,000K work light with a 10-foot cord, standard 120V plug, UL and cUL certifications, IP65 rating, and a 5-year warranty. Those are model-specific product facts, not proof that it suits every bench, machine, environment, mounting arrangement, or task. It fits the decision only when a localized or temporary light is appropriate and its placement, cord path, power, and conditions match the documentation.
For small-part work, bench lighting for small parts offers related planning context. The key decision remains local: correct the sight line first, then add task lighting when the difficulty stays confined to one work position.
Verify the Lighting Change Before You Buy More Fixtures
Record the unresolved task, make one controlled change, and retest from every normal work position before deciding that brighter or additional fixtures are necessary. Judge success by whether glare and shadows interfere with the actual task, not by whether the room looks bright from a distance.
| Observation to record | Decision it supports |
|---|---|
| Work zones, normal standing or seated positions, and the exact task that remains difficult | Separates a broad coverage problem from a single-position problem. |
| Fixture locations, direction, and the visible shadow edge | Points toward placement or beam-direction testing. |
| Glare location on metal, machinery, shelving, or a glossy surface | Points toward tracing the reflection before adding output. |
| Task orientation, worker viewpoint, and the background behind the work | Shows whether contrast or sight-line conditions are changing the result. |
| Obstructions such as machinery, stored material, shelving, or the worker's body | Shows whether the task plane is being blocked. |
| Mounting, voltage, controls, cord routing, environmental conditions, certifications, and applicable local requirements | Determines whether a particular fixture can be used in that installation. |
After each change, inspect the task surface, nearby edges, reflective equipment, and movement area. If the record shows a room-wide coverage issue, compare suitable general-lighting options. If it shows a single-position issue, prioritize placement or localized task lighting. If product suitability or installation remains unresolved, use the manufacturer's documentation and applicable local requirements before proceeding. Once you have documented a general fixture need, you can browse garage lighting options without treating the collection as proof of fit.
The next action is simple: write down where visibility fails, what blocks or reflects the light, and which one controlled change you will test first. Choose brighter or additional fixtures only when that record shows a broader coverage need that placement, surface, and task-lighting changes do not address.
Frequently Asked Questions
Use these answers to distinguish a surface, light-path, or coverage problem before changing fixtures. The same position-based checks can guide a targeted test without treating brighter output as a universal fix.
Do dark walls make a workshop lighting problem worse?
They can make the surrounding area feel less even and increase contrast between a task and its background. Compare the affected work surface with the wall or equipment behind it from the normal work position. If the same problem follows that background across several positions, test a targeted surface change; if it stays at one position, test light direction first.
How do I stop metal tools or machinery from reflecting workshop lights into my eyes?
Find the bright reflection while standing where you normally work, then test the fixture angle, viewing angle, or beam path that produces it. Retest the original metal surface and nearby equipment after the change, because altering one direction can create another bright spot. More output is not a guaranteed glare fix.
Should I buy brighter workshop lights or add task lighting?
Choose a broader lighting change when coverage is poor across an entire zone. Choose localized task lighting when one defined bench or machine position remains difficult after you correct placement, sight lines, and obstructions. The local option still needs a suitable power source, mounting or placement method, cord path, and documented environmental fit.
Why can LED workshop lights for metal surfaces look bright but leave my workbench hard to see?
The light may be blocked, reflected, poorly aimed, or creating strong contrast between the work surface and its background. Inspect the bench from the normal working position and note whether the problem changes when you move your body, tools, or viewpoint. Correct the light path before replacing fixtures solely because the room appears bright.
