For a long work area, start with linear lighting when the work follows a continuous row, aisle, or production line. Start with point-source fixtures when tasks are separated or irregular and independent placement better matches the work surfaces. Room length alone does not settle the choice. The task surface, work direction, obstructions, mounting height, spacing, glare, and service access can all change the initial preference. Treat the result as a provisional fixture-family choice until the proposed arrangement is reviewed with actual luminaire data.
Choose Linear or Point-Source Lighting by Task Layout
The first question is whether people need light along a continuous task plane or at separate task locations. Identify the horizontal work plane, important vertical surfaces, and their heights before comparing fixture shapes. IES guidance on the actual task surface and work-plane height makes that location the anchor for the comparison.
| Work-area condition | Stronger starting point | Why the distribution changes |
|---|---|---|

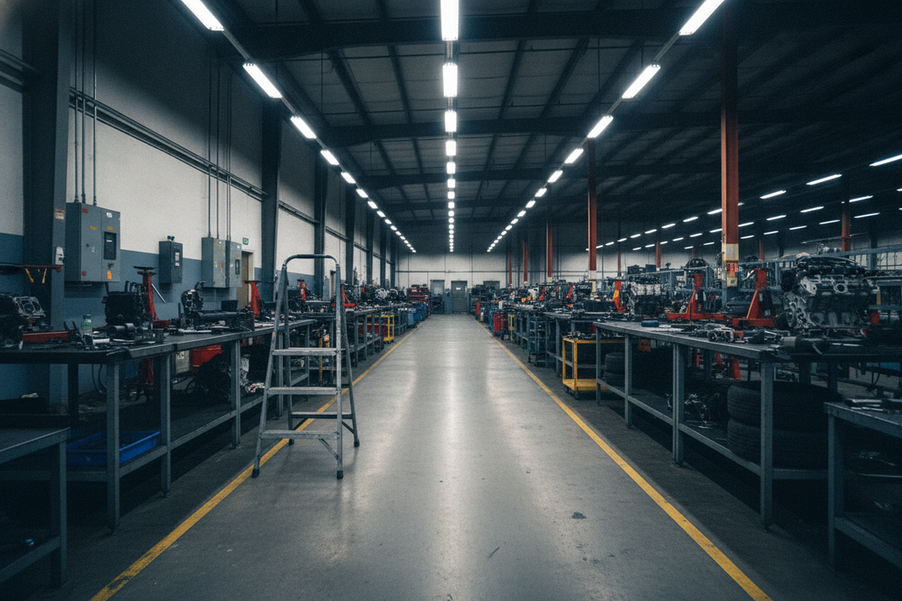

| Continuous tasks run along one row, aisle, or production line | Linear lighting | An elongated distribution follows the dominant task direction and can reduce the need to create coverage with separated light points. |
| Workstations or task zones are separated and irregular | Point-source fixtures | Independent locations can be aimed or positioned around distinct tasks instead of serving unused space between them. |
| Long, narrow room with a repeated task plane | Linear lighting | Room proportions and task direction support a line-based starting hypothesis, provided the row is not blocked and remains serviceable. |
| Broader rectangle with several unrelated task zones | Point-source fixtures may be the better starting point | Separate task areas may need different positions or directions. A broad room does not automatically require point-source lighting, so the work-plane layout still controls. |
| Tasks run across the room rather than along its length | Compare the task direction, not the room length | A long room can still contain crosswise or discrete tasks. The fixture family should follow the surfaces that need light, not the building outline. |
Use distribution and application fit rather than total lumens or efficacy alone. DOE purchasing guidance on comparing application, light distribution, and task needs explains why efficiency comparisons between unlike luminaires can lead to the wrong application choice. If your diagnosis points to a linear starting case, you can browse linear high bay options as a category. The collection is a shopping path, not proof that a particular fixture fits your site.
There is no universal winner for a long work area. Linear lighting is the stronger starting hypothesis for continuous lineal coverage, while point-source lighting remains a valid option for separated or irregular tasks when the layout can serve the required surfaces without unacceptable gaps or glare.
Check Whether Obstructions Will Create Shadow Gaps
Obstructions can overturn an apparently suitable fixture-family choice because they interrupt the path between the luminaire and the surfaces people need to see. Map each obstruction with the affected surface, then retest the proposed arrangement with the specified luminaire rather than assuming a row or point source will prevent shadows.
Use this short diagnostic before settling on a family:
- Racks and shelving: Identify whether the important target is the floor, the rack face, the back of a bay, or all three. A clear aisle plan may still leave vertical storage faces poorly served.
- Ducts, mezzanines, and suspended services: Mark the height and footprint that could block light from reaching the work plane or a vertical surface below it.
- Machinery and equipment: Note whether the task is at the equipment surface, beside it, or behind it. The relevant shadow boundary may move as equipment or production lines change.
- Aisles and workstations: Follow the actual walking or working direction, then identify locations where a fixture row or independently placed source cannot reach the task surface.
- Future changes: Include planned storage, equipment, or partition changes when they could alter the light path or service route.
The useful question is not whether one family “eliminates shadows.” It is whether the proposed distribution reaches the surfaces that matter. A point-by-point layout using actual luminaire data can model the specified luminaire, room surfaces, light-loss factors, and calculation points instead of relying on average lumen output. Repeated dark areas are a reason to retest the arrangement, not automatic proof that the other fixture family will solve the problem.
For aisle-specific background, uneven aisle lighting can help frame the problem. Use the actual rack layout and candidate photometry for the project decision.
Use Mounting Height and Spacing to Test the Choice
Mounting height and spacing must be evaluated together because the distance from the fixture to the work plane changes how distribution reaches, overlaps, and interacts with obstructions. Record the relevant height, then use the candidate fixture’s directional photometry and the project geometry to test the arrangement instead of copying a generic spacing number.
Mounting Height Changes the Distribution Test
Mounting height means the distance from the luminaire to the relevant work plane, not simply the room’s floor-to-ceiling dimension. Record the height that matters for the task and identify important vertical surfaces at that level.
- Record the fixture-to-work-plane height and the ceiling or suspension condition.
- Mark racks, equipment, ducts, and services that interrupt the light path at that height.
- Include vertical surfaces that need visibility, such as rack faces, equipment faces, or workstation surfaces.
A change in ceiling height, work-plane height, or suspension arrangement can change the family hypothesis because it changes the path and spread that the layout must cover. IES defines the spacing criterion relative to mounting height above the work plane, and the criterion can differ by direction. That relationship is a starting check, not a universal ratio for every fixture or room.
For additional distribution context, see linear high bay design, then return to the candidate fixture’s actual photometric information for the installation decision.
Spacing Balances Coverage, Glare, and Fixture Count
Relate proposed center-to-center spacing to mounting height above the work plane and to the luminaire’s directional distribution. A longer fixture does not establish safe or effective spacing by itself, and lumen output alone cannot prove coverage, uniformity, or gap control.
Check likely observer positions and viewing directions for glare. Glare depends on fixture location, room reflectance, observer position, viewing direction, and luminaire properties, so neither fixture family should be treated as inherently low-glare. Compare bright zones, dark gaps, vertical coverage, and service access at the same time. Fixture count is an output of the modeled arrangement, not a reliable first input.
Let Maintenance Access Change the Fixture-Family Decision
Maintenance access can change the practical choice even when both fixture families appear plausible on a plan. Choose the arrangement the site can reach, isolate, service, and replace within its operating constraints, including lifts, rack aisles, production equipment, shutdown windows, suspension, wiring, and replacement logistics.
| Service condition | Selection pressure | Question to answer |
|---|---|---|
| Fixtures sit above racks or active equipment | A distributionally suitable location may be difficult to reach | Can the site bring access equipment to each service point without disrupting operations? |
| A continuous run crosses access routes or wiring paths | Linear placement may conflict with suspension, wiring, or isolation needs | Can the full run be isolated and serviced in practical sections? |
| Many independently placed fixtures are needed | Point-source placement may localize coverage but create more service locations | How many locations require access, and can each be reached safely within the service plan? |
| The project replaces or relocates existing fixtures | New distribution may differ from the existing arrangement | Does the revised layout need a new photometric study, and can the installed fixtures be accessed for cleaning and service? |
Official LED planning guidance on photometric review and maintenance access treats changed fixture distribution and access for service and cleaning as planning considerations. That guidance is a planning principle, not a universal commercial code requirement. If access equipment, shutdowns, or replacement routes make one arrangement impractical, that operational fact can outweigh a preliminary distribution preference.
Know When the Family Choice Requires a Layout Review
Make a provisional choice only after the task direction, obstruction pattern, mounting condition, and service constraints point in the same direction. Move to a project-specific photometric review when any of those conditions could materially change coverage, glare, vertical-surface visibility, uniformity, or access.
- Map the work: Record the horizontal task plane, important vertical surfaces, their heights, and whether work is continuous along a line or separated into distinct zones.
- Mark interruptions: Plot racks, shelving, ducts, mezzanines, equipment, aisles, partitions, and future changes that could block or redirect the light path.
- Record layout constraints: Provide mounting height above the relevant work plane, permitted fixture locations, viewing directions, spacing limits, access equipment, shutdown needs, and wiring constraints.
- Choose provisionally or request review: Start with linear lighting for a continuous lineal task plane when obstruction and access checks remain manageable. Start with point-source fixtures for separated or irregular tasks when independent placement can serve the required surfaces. Request a layout review when the result remains sensitive to height, obstructions, vertical surfaces, glare, changing tasks, or maintenance access.
The review package should include room dimensions, work-plane and vertical-surface requirements, obstruction locations, mounting conditions, access limits, and candidate fixture photometry. Ask for the calculation points and the resulting coverage information that matters to the project instead of accepting fixture shape, length, or lumen output as a fit decision. The official point-by-point photometric method supports using actual luminaire data for this type of complex layout.
If the review supports a linear starting case, explore linear high bay lighting. If the project includes several applications beyond this comparison, warehouse lighting options provides a broader category path. We can help you browse the relevant fixture family, but the site-specific layout remains the basis for final fit.
For a continuous lineal task plane, linear lighting is the better place to start. For separated or irregular tasks, point-source lighting may be the better starting point. Map the work surfaces and site constraints first, then request a layout review before purchase when the result could change with height, obstructions, glare, or access.
Frequently Asked Questions
Are linear lights better for long work areas?
They are usually the stronger starting point when tasks form a continuous row, aisle, or production line. Point-source fixtures may fit better when workstations are separated or irregular. The final choice depends on whether the proposed arrangement reaches the actual horizontal and vertical task surfaces.
What is the practical difference between linear and point-source lighting?
Linear fixtures create an elongated, line-oriented distribution, while point-source fixtures place light from separate locations. Compare each arrangement against the direction and position of the work, including vertical surfaces, rather than judging the fixture family by appearance or total lumens.
How do you prevent dark gaps between lights?
Map the task surfaces and obstructions, align the proposed distribution with the task direction, and test mounting height and spacing with the candidate fixture’s photometry. A generic spacing rule cannot account for every room, fixture distribution, obstruction, or viewing condition.
When should you complete a lighting layout before buying fixtures?
Request a layout before buying when the installation has a high mounting height, racks or equipment, important vertical surfaces, glare-sensitive viewing directions, changing tasks, or difficult service access. Send the reviewer room dimensions, work-plane requirements, obstruction locations, mounting height, access constraints, and candidate fixture data so the proposed family can be tested against the actual site.
