Start with what changed. If the racks and work areas sit about where they did and one spot looks off, check the aim first. If an aisle or pick face now sits in a different place than the fixtures above it, look at whether those fixtures need to move. If the change touches several aisles, the rack geometry, or how fixtures are spread across the floor, ask for a new layout review.
The decision comes from one comparison: the final rack and task-area plan against where your fixtures hang now and how they are aimed. Treat this as early triage, not as proof that the space is lit well or meets code.
Triage the Change: Re-Aim, Evaluate Relocation, or Request a New Layout
Pick the route by matching what you see to the kind of change you made. Use the final rack plan as your basis, not a layout that is still changing.
| Change or symptom | Preliminary route | Next comparison |
|---|---|---|
| One localized dim or glare spot; racks, tasks, and fixtures largely unchanged | Check or evaluate aiming | Affected task area vs. fixture position and documented aim |
| Aisle or task area shifted; fixtures stayed put | Evaluate possible relocation | New task-area location vs. fixed fixture locations |
| Several task areas, rack geometry, or fixture spread changed | Request a fresh layout review | Full revised plan vs. original layout assumptions |
Aiming fits a stable layout. Say a facility manager added one rack bay at the end of an existing row. Pickers report that the top shelf of that bay looks darker, but every other aisle feels the same. Before calling it an aiming issue, compare the affected area with the nearest fixture's position and its documented aim. If the fixture sits over the work area and only the direction looks wrong, an aiming check is a sensible first step. Keep in mind that re-aiming changes where light lands. It does not confirm that the task area now gets enough light.

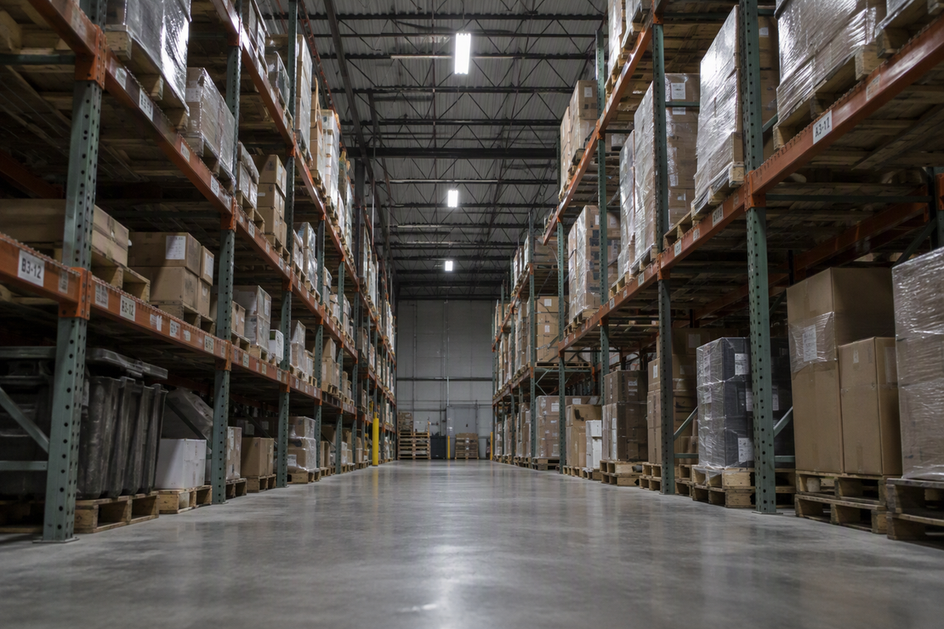

Relocation fits a shifted relationship. When racks move over, a fixture that once lit an aisle may now sit above the rack tops. Tilting it may not fix that. A rack standing between a fixture and a pick face can block light no matter which way the fixture points. Our guide to layouts around tall obstructions covers that planning problem in more depth. At this stage, the job is to evaluate whether relocation is needed, not to move anything.
Physically moving fixtures, changing mounts, or touching wiring is not an aiming adjustment. Under OSHA's guidance on qualified electrical work, only qualified persons may work on electric circuit parts or equipment that have not been deenergized under lockout/tagout provisions, and only qualified persons may perform electrical testing. Route any relocation, mounting, or wiring change to qualified personnel.
A new review fits a changed layout. If you reoriented racks, added or removed whole rows, or changed which areas hold picking, staging, or packing, the old warehouse rack lighting layout was built on assumptions that may no longer describe the space. Fixing one fixture at a time can miss how the changes add up across the floor. In that case, a fresh layout review is the cleaner next step.
What to Gather for a Lighting Layout Review
Assemble a packet that lets the reviewer see what changed, where people work now, and where the concern shows up. You do not need every item. Mark what you have and what is unavailable so the reviewer knows the gaps up front.
- Rack and aisle plans. Include the final rack and aisle plan. Add the previous plan if you have it, and mark what moved, was added, was removed, or was reoriented. Note what stayed the same, too.
- Task areas and affected zones. Mark pick faces, staging lanes, packing stations, and other work areas on the new plan. Highlight the zones the rack change touched.
- Concern locations. Pin each reported problem on the plan or in labeled photos. Note what workers see and when, such as a dark top shelf or glare at an aisle end.
- Existing fixture positions and aim. Record where fixtures hang relative to the new racks and any aiming information already on file. Pull this from drawings, records, or photos taken from the floor. Do not access or adjust fixtures to collect it.
- Fixture records. Note fixture types and quantities. Record whether aisles use linear high bay lights, a continuous LED linear fixture, or round high bay light fixtures, and include any model labels or spec sheets you have.
- Prior lighting data. Attach earlier lighting plans, past light measurements, control details such as sensors or dimming zones, and access notes like lift requirements or restricted hours.
Our lighting survey prep guide explains how to photograph zones and record measurements so the packet is easier to read. If a gap keeps showing up, such as unknown mounting heights or unclear task needs, our article on missing project inputs shows how those gaps can stall a design. When you are ready to ask for a fresh warehouse rack lighting layout, send this packet with your request through our lighting design support page.
FAQs
Does a fixture centered over the new aisle mean the aisle is covered?
Not on its own. Position is only one input. Rack height, what sits between the fixture and the task, and how the light spreads all affect what reaches the shelves. A centered fixture is a reasonable sign that aiming or relocation may not be the issue. Confirming coverage still takes a review of the actual task areas.
Should we wait until the racks are final before asking for a review?
Yes, when possible. The comparison only works against the final rack and task-area plan. A review based on an interim layout may need to be redone once the last racks go in. If work has to continue during the move, note which areas are temporary so the reviewer can treat them separately.
What if we don't have the original lighting plan?
You can still start. A current rack plan, marked task areas, fixture positions recorded from the floor, and labeled photos of the problem spots give a reviewer a working picture. List the missing records clearly so nobody assumes they exist.
Will a new layout review tell us whether we meet code?
A layout review answers a lighting question, not a legal one. Code and permit requirements depend on your jurisdiction, and the local authority makes that call. If compliance matters for your project, ask the authority having jurisdiction or your design professional which rules apply before you finalize changes to warehouse rack lighting.
