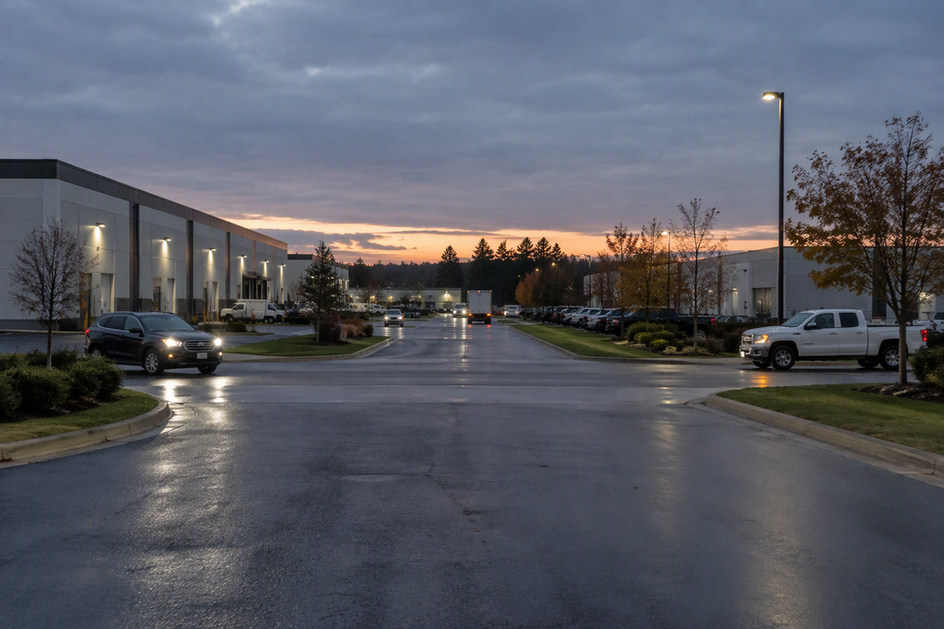

To plan service drive lighting for a long route with cross-traffic, start by mapping the whole drive. Then treat each crossing as its own planning zone. Even lighting along the full length can still leave the busiest crossings hard to judge, so your first deliverable is one annotated site plan that shows the route and every crossing separately.
Next, give each zone a preliminary review label: route-wide, crossing-focused, or both. Send that package for site-specific review before you choose a final layout or fixture. The map is a planning concept. It is not a photometric layout or an installation plan.
Map the Full Drive and Mark Each Crossing
Before anyone talks about fixtures, the plan should show how vehicles and people actually move along and across the drive. Work on one copy of the site plan, or an aerial image printed to scale if you have no drawing, and add these layers in order:
- Draw the full route. Trace the service drive from end to end. Mark where it connects to service, loading, or access areas. Write in the length if you have it.
- Number every crossing. Label each place another vehicle path crosses the drive (C1, C2, C3 and so on). A numbered crossing can be named in a review note, while a dot on a sketch can't.
- Add approach arrows. At each crossing, draw one arrow for every direction traffic arrives from. Use a second arrow style for turning movements, such as trucks swinging into a dock lane.
- Show pedestrian routes where present. Use a dashed line or a different color so a walking path never blends into a vehicle path.
- Mark sightline obstructions. Note curves, gates, buildings, fences, stored equipment, or other structures near each crossing that block a driver's view of the approach.
- Record existing lighting. Mark each current fixture's location, its mounting (pole, wall, or other), and whether it works. Add any spot where existing light already raises a visibility concern.
- Note mounting and service limits. Flag where a mount could not go, areas that are hard to reach for maintenance, and any access you'd need to keep clear.
Write "unknown" or "TBD" on any input you don't have yet. A labeled gap tells the reviewer what to measure. A guessed value hides the problem until later.
Keep the map conceptual. Don't add fixture spacing, counts, or pole positions at this stage, because those come out of the photometric review, not the sketch. If the route itself needs more breakdown, split it into segments as described in our guide to planning a long service drive. Attach labeled photos and measurements to each numbered zone, using the same structure as a commercial lighting project brief, so the reviewer can match every note to a place on the map.
Choose a Preliminary Role for Each Zone
Write one of three labels beside each zone: route-wide, crossing-focused, or both. These labels organize questions for the reviewer. They are not a validated design rule for private sites, and they don't decide what lighting a zone needs.
| What the plan shows | Preliminary label | Flag for review |
|---|---|---|
| Continuity along a route segment is the open question | Route-wide | Segment ends, gaps between existing lights |
| A crossing has its own turn, obstruction, or approach issue | Crossing-focused | Approach arrows, sightline notes |
| A pedestrian route crosses the drive | Crossing-focused | Walking path and vehicle approaches |
| Existing light at a crossing raises a visibility or glare concern | Crossing-focused | Fixture location and the direction it was seen from |
| A route gap and a crossing condition share one zone | Both | Each question listed separately |
The split matters because the two labels ask different questions. A route-wide label asks whether the drive reads as one continuous path. A crossing-focused label asks whether someone approaching that crossing can judge what is coming from each direction. Good coverage along the route does not answer the second question by itself. That is why a crossing stays flagged even when the segment around it looks fine.
Glare means light that makes it harder to see, such as a bright fixture aimed toward an approaching driver. Record glare as an observation: which crossing, which approach direction, and which light. Don't set a threshold for it. The reviewer can then decide whether aim, shielding, placement, or something else needs attention.
A "both" label doesn't mean the zone needs more fixtures. It means the reviewer should answer both questions for that zone instead of assuming one solution covers the other.
Verify the Concept Before a Final Layout or Fixture Choice
Your annotated plan becomes useful when a qualified reviewer turns it into a site-specific design. Do not use the concept map as installation instructions. Get project-specific professional review and confirm local requirements before anything is installed. Use this sequence to move from concept to a final decision:
- Send the annotated inputs for photometric review. A photometric review models how light from specific fixtures will fall on your actual site. Ask the lighting designer or engineer to address each numbered crossing and route segment by its label. Point out every "TBD" so they know which measurements or conditions are still open, and list any assumptions you made, such as expected traffic direction or hours of use.
- Match any fixture under consideration to current documentation. If you are comparing options such as LED area and parking lot lights, check the exact model and configuration against its current spec sheet and label. A product title, category page, or one general rating doesn't show that a fixture fits a specific crossing or mounting location.
- Confirm the local requirements for your site. Lighting-related rules depend on the state, the local jurisdiction, and the project type. Commercial energy-code adoption, for example, varies by state and locality. Confirm what applies with the authority having jurisdiction or a qualified project professional instead of relying on one nationwide rule.
- Close open items before final design. Update the map with the reviewer's answers, measured values, and any code findings. Then finalize the layout and fixture schedule.
Our guide to commercial lighting planning follows the same path from site inputs through documented fixture comparison to purchase. Use it once the review has settled what each zone needs.
FAQs
How should a pedestrian path that crosses the drive appear on the plan?
Draw it as its own line, using a dashed style or a different color, with arrows showing which way people walk. Give that crossing its own number and flag it for focused review. Don't assume the vehicle approach notes cover it. For more on matching fixture types to driveway crossings with walkers, see our guide to driveway pedestrian crossing lighting.
Can I use the concept map to decide how many poles I need?
No. The map records movement, obstructions, and existing conditions, so it shows where questions exist. It doesn't show how many fixtures, what spacing, or what light output a zone needs. Those values come from a photometric review using the specific fixtures under consideration and your measured site conditions.
What if I don't have exact measurements for parts of the drive?
Mark those areas "TBD" and keep going. A complete map with clearly labeled gaps is more useful to a reviewer than a partial map, or one filled with estimates. Photos taken from each approach direction can help the reviewer decide what to measure first.
Should existing lights stay on the plan if we expect to replace them?
Yes. Record their locations, mounting, and condition even if you plan to replace them. Existing poles and wall mounts can affect where new fixtures can go and how the site can be serviced, and any glare or visibility concern you've seen from them helps explain a crossing-focused label.
Who should receive the planning brief?
Send it to whoever will do the site-specific photometric design and anyone who signs off on local requirements, such as a lighting designer, engineer, or licensed electrician working with the authority having jurisdiction. When you plan outdoor lighting for a service drive with crossing traffic, including the numbered crossings and zone labels lets each reviewer answer questions in the same order.
