Effective lighting design for industrial facilities with tall obstructions—such as conveyors, high-speed sorting systems, mezzanine levels, or vertical storage racks—requires moving beyond simple average-lumen calculations. In these complex environments, the primary challenge is not just achieving a target foot-candle (fc) level on the floor, but managing the "shadow envelope" created by physical structures.
For facility managers and contractors, the most critical decision in these spaces is the mounting height and orientation of fixtures relative to the vertical face of the obstruction. A reliable rule of thumb we have observed in numerous warehouse retrofits is to mount fixtures at a height at least twice the height of the tallest obstruction (e.g., for a 10-foot-tall conveyor, mount lights at 20 feet or higher). This leverages the natural light spread to 'wash' over the top and sides of equipment, significantly softening shadow edges and ensuring safety in high-traffic aisles.
The Physics of Obstruction Lighting: Shadow Mitigation
When a light source is placed too close to a vertical obstruction, it creates a deep, "hard" shadow. No amount of additional lumen output can fully eliminate a shadow if the geometry of the layout is flawed. To solve this, specifiers must understand the relationship between beam angle and mounting height.
The 2:1 Mounting Rule
As mentioned, the 2:1 ratio is the industry baseline for preventing "dark zones" behind machinery. This height allows the light from adjacent fixtures to overlap behind the obstruction, a concept known as "inter-reflection." According to the IES RP-7-21 (Lighting Industrial Facilities), achieving vertical illuminance is just as vital as horizontal illuminance in manufacturing environments. High mounting heights facilitate this by narrowing the angle of incidence on vertical surfaces.
Spacing Criterion (SC) and Beam Spread
The spacing criterion of a fixture determines how far apart they can be placed while maintaining uniformity. For linear high bays with a standard 110° to 120° beam angle, the SC typically ranges from 1.2 to 1.5.
| Obstruction Height | Minimum Mounting Height | Recommended Spacing (1.3 SC) |
|---|---|---|
| 8 Feet (Workbenches) | 16 Feet | ~20 Feet |
| 12 Feet (Conveyors) | 24 Feet | ~30 Feet |
| 15 Feet (Medium Racks) | 30 Feet | ~38 Feet |
| 20 Feet (Tall Racks) | 40 Feet | ~50 Feet |
| Note: Values estimated based on common industrial spacing standards and a 1.3 Spacing Criterion. |

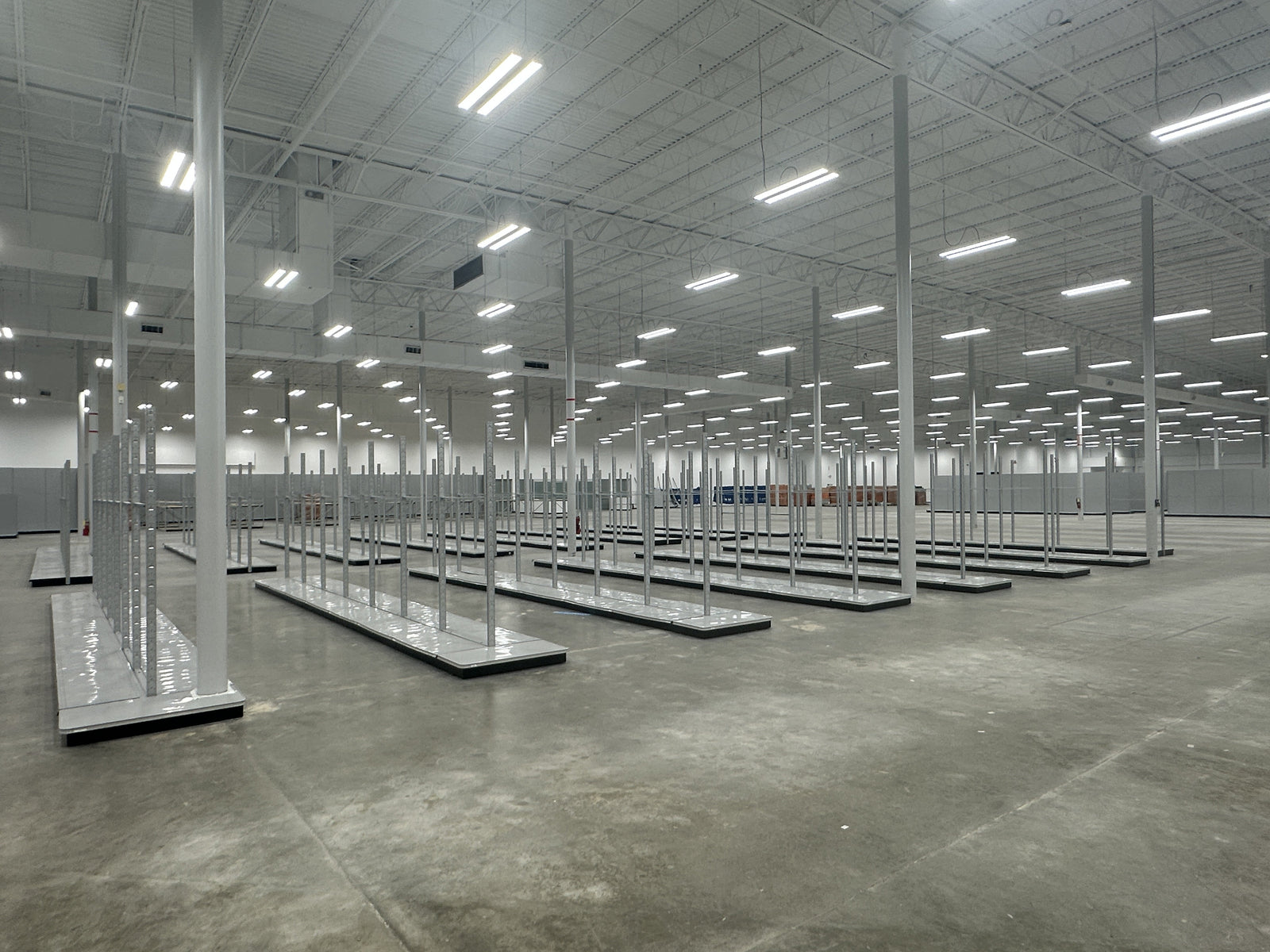

Linear High Bay Strategic Positioning
Linear high bays are the preferred choice for facilities with long, narrow obstructions like conveyors or storage aisles. Their rectangular light distribution pattern is naturally suited to these geometries.
Longitudinal Orientation
A common mistake is orienting the long axis of a linear high bay perpendicular to the length of a conveyor or rack. We have found that orienting the long axis parallel to the obstruction provides more consistent longitudinal illumination. This reduces the "striped" shadow effect that occurs when light is blocked by cross-beams or equipment frames.
Mitigating the "Striped" Shadow Effect
In facilities with overhead HVAC ductwork or cable trays, fixtures should be suspended using steel wire rope or pendant kits to clear these obstructions. According to data from Engineer Fix, a general rule for drop height adjustment is to add 2 to 3 inches of drop per foot of ceiling height exceeding 8 feet. This ensures the fixture's aperture is below the "obstruction zone," allowing the 110° beam angle to clear the edges of nearby ducts.
Compliance and Performance Documentation
Professional specifiers cannot rely on marketing claims alone. For B2B projects, every fixture must be backed by verifiable data that meets North American safety and energy standards.
Safety: UL 1598 and UL 8750
Before any fixture is installed, it must be verified in the UL Solutions Product iQ Database. The standard UL 1598 governs the safety of the luminaire itself, while UL 8750 covers the LED equipment and drivers. These certifications are non-negotiable for building codes, insurance compliance, and electrical inspections.
Performance: LM-79 and TM-21
To accurately model a layout around obstructions, you need the fixture's "performance report card."
- IES LM-79-19: This report provides the total lumens, efficacy (lm/W), and precise photometric distribution. It is the foundation for any simulation in software like AGi32.
- IES LM-80 and TM-21: These documents prove the longevity of the LEDs. While LM-80 measures lumen maintenance over 6,000+ hours, IES TM-21-21 provides the mathematical method to project that data into a long-term lifespan (e.g., L70 at 50,000 hours).
We caution specifiers against "100,000-hour" claims that lack TM-21 documentation. IES standards strictly prohibit projections exceeding six times the actual test duration of the LM-80 report.
The Economics of Controls and Rebates
Designing for tall obstructions often requires a higher fixture count or higher-wattage units to penetrate deep shadows. This increased capital expenditure (CAPEX) can be offset by utility rebates and advanced controls.
DLC 5.1 Premium and Utility Rebates
To qualify for the highest tier of utility rebates, fixtures should be listed on the DesignLights Consortium (DLC) Qualified Products List (QPL). In our simulation of a large-scale warehouse retrofit, we found that using DLC Premium-certified linear high bays could qualify for rebates ranging from $185 to $320 per unit. In some utility jurisdictions, this can reduce the net project cost by over 60%.
Mandatory Controls: ASHRAE 90.1 and IECC
Modern energy codes like ASHRAE Standard 90.1-2022 and IECC 2024 mandate the use of occupancy sensors and daylight harvesting in warehouses.
- Occupancy Sensors: In inactive storage zones, sensors can achieve up to 62.5% energy savings.
- 0-10V Dimming: This allows the facility to adjust light levels based on the specific task or time of day, ensuring that "over-lighting" doesn't lead to wasted energy.
When installing sensors around tall obstructions, placement is critical. A sensor "blind spot" created by a tall conveyor can lead to lights turning off while workers are still in the area. We recommend integrated PIR (Passive Infrared) or microwave sensors on every fixture to ensure localized response.
Advanced Simulation: Why 2D Formulas Fail
A common pitfall in industrial lighting is relying on the "Lumen Method" (a 2D formula) for spaces with obstructions. Our simulations routinely reveal that fixture counts based on open-area formulas fall short by 15-25% when tall obstructions are present.
Photometric Simulation (AGi32/Dialux)
Specifiers must use 3D photometric simulation software to model the actual physical obstructions. By importing IES LM-63-19 (.ies) files, designers can see exactly where shadows will fall.
- Model the Obstruction: Input the height, width, and reflectance of the machinery or racks.
- Calculate Point-by-Point: Instead of an "average" fc, look at the minimum foot-candles in the shadow zones.
- Adjust Mounting/Aiming: If a shadow is too deep, move the fixture or choose a wider beam angle.
HVAC Interactive Effects
Reducing the lighting load from legacy HID (High-Intensity Discharge) to LED does more than save electricity; it reduces the heat load on the facility. In cooling-dominated climates, this can result in significant annual savings on HVAC costs. However, in colder climates, a "heating penalty" may occur as the furnace must work harder to replace the lost heat from the old, inefficient lights. A holistic ROI analysis must account for these seasonal load shifts.
| Metric | Legacy HID (400W) | High-Performance LED (165W) |
|---|---|---|
| Annual Energy Cost | ~$180 | ~$65 |
| Maintenance Cost (5yr) | $150 (Bulbs/Ballasts) | $0 |
| Estimated Rebate | N/A | $150 - $250 |
| Payback Period | N/A | < 1.5 Years |
| Values based on $0.12/kWh and typical industrial utility rates. |
Implementation Checklist for Facility Managers
When specifying lighting for a complex industrial floor, follow this pragmatic workflow to ensure long-term performance and safety:
- Identify the "Critical Height": Determine the tallest obstruction in the path of the light.
- Apply the 2:1 Mounting Ratio: Ensure your mounting height is double the obstruction height whenever possible.
- Verify Compliance: Cross-reference model numbers against the DLC QPL and UL Product iQ.
- Request IES Files: Ensure the manufacturer provides .ies files for AGi32 simulation.
- Check Local Codes: Confirm if California Title 24 or the latest IECC applies to your project, especially regarding mandatory occupancy sensors.
- Plan for Maintenance: In dusty environments, choose fixtures with an IP65 rating (per IEC 60529) to prevent dust ingress from degrading the lumen output over time.
By grounding your layout design in these technical standards and physical principles, you can transform a hazardous, shadow-filled factory floor into a bright, safe, and energy-efficient workspace.
Disclaimer: This article is for informational purposes only and does not constitute professional engineering or electrical advice. Always consult with a licensed electrical contractor and local building authorities to ensure compliance with the National Electrical Code (NEC) and regional safety standards.,cover_image_url:
