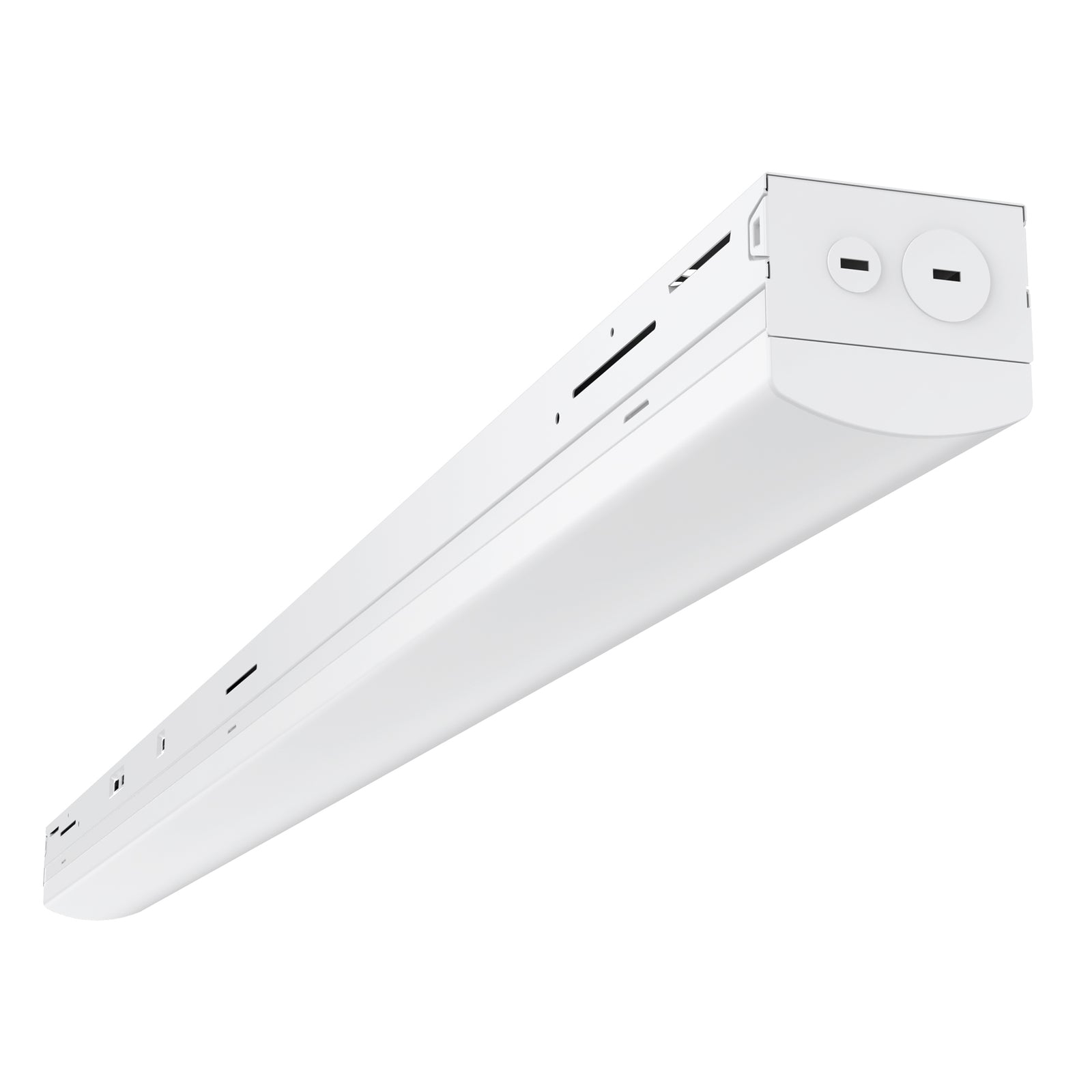

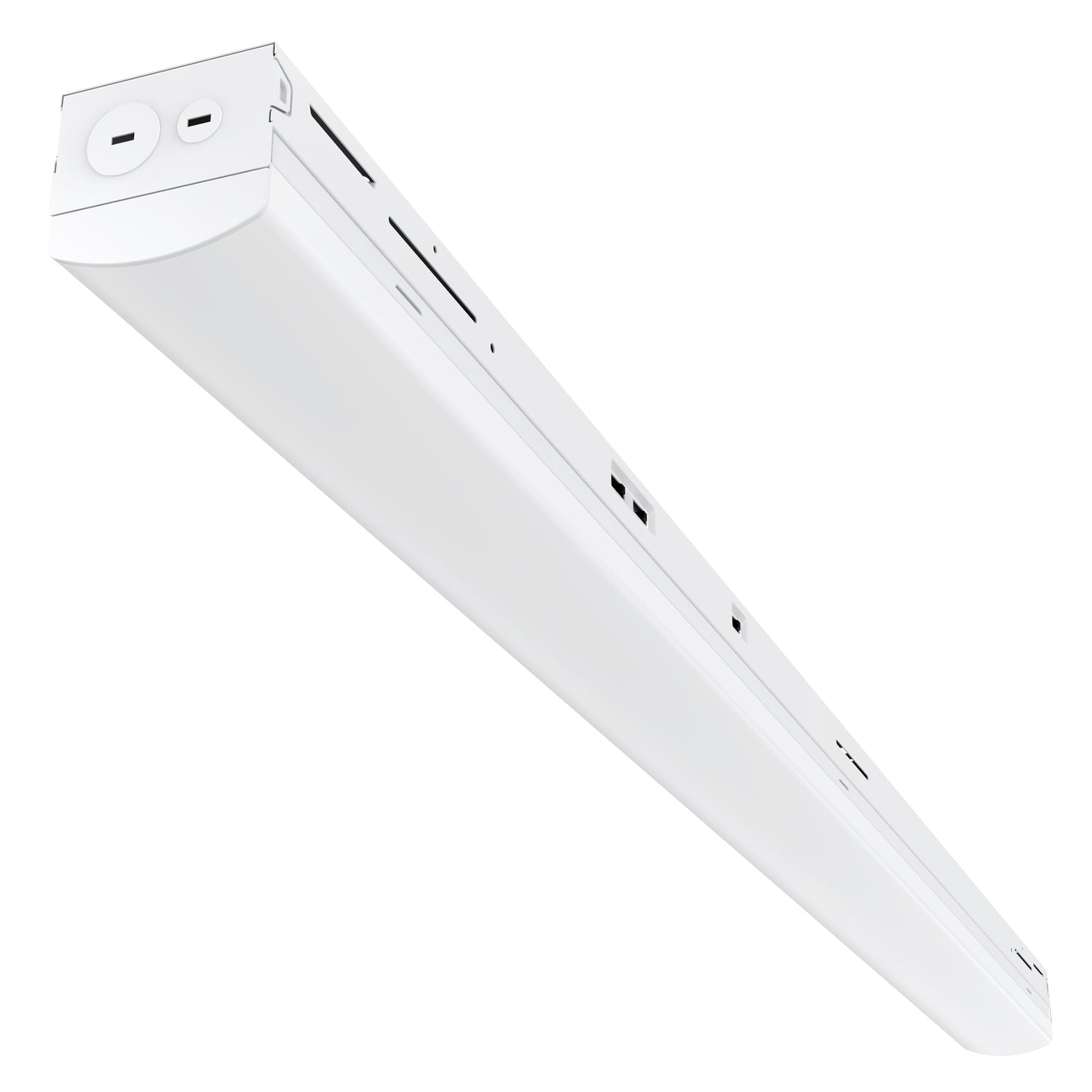

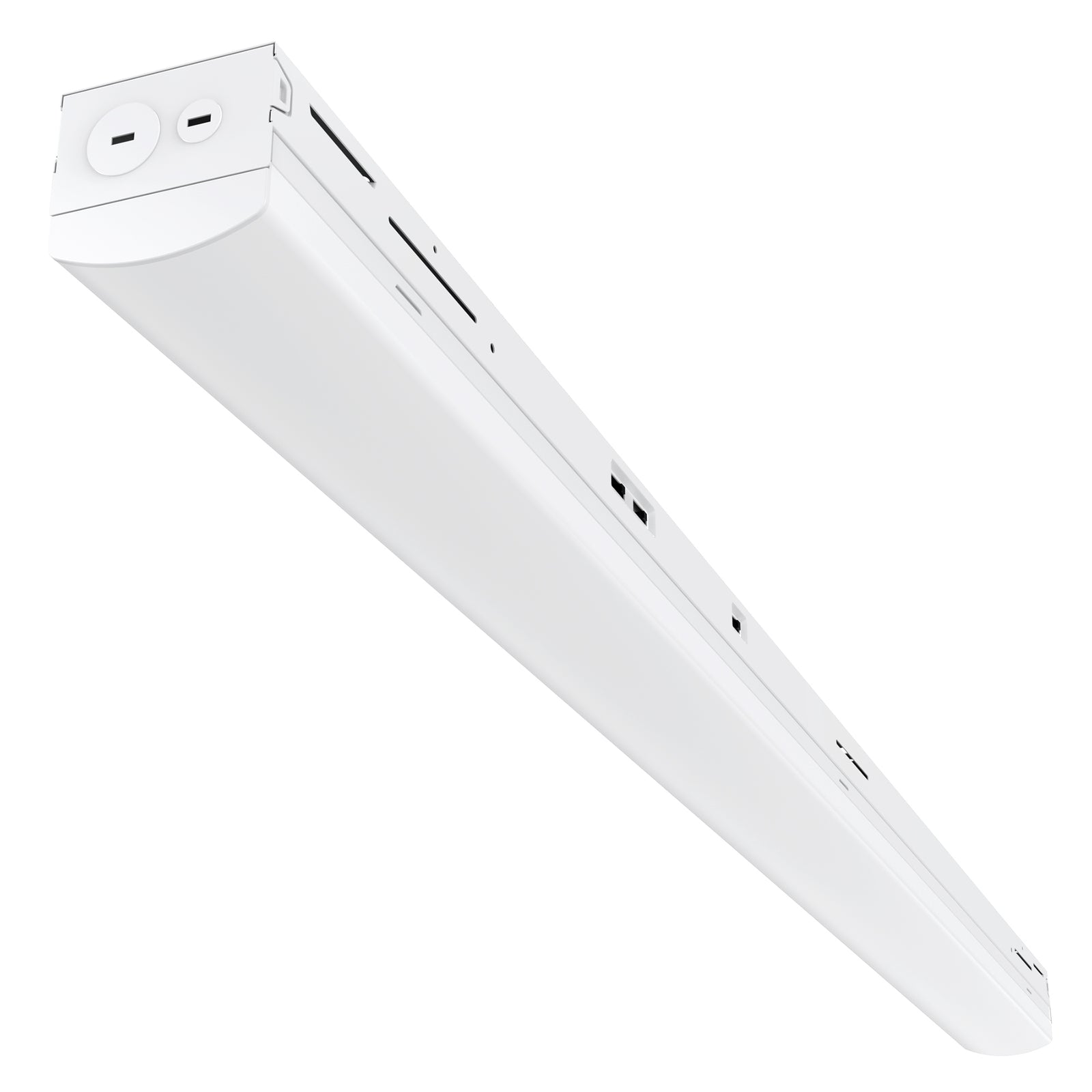

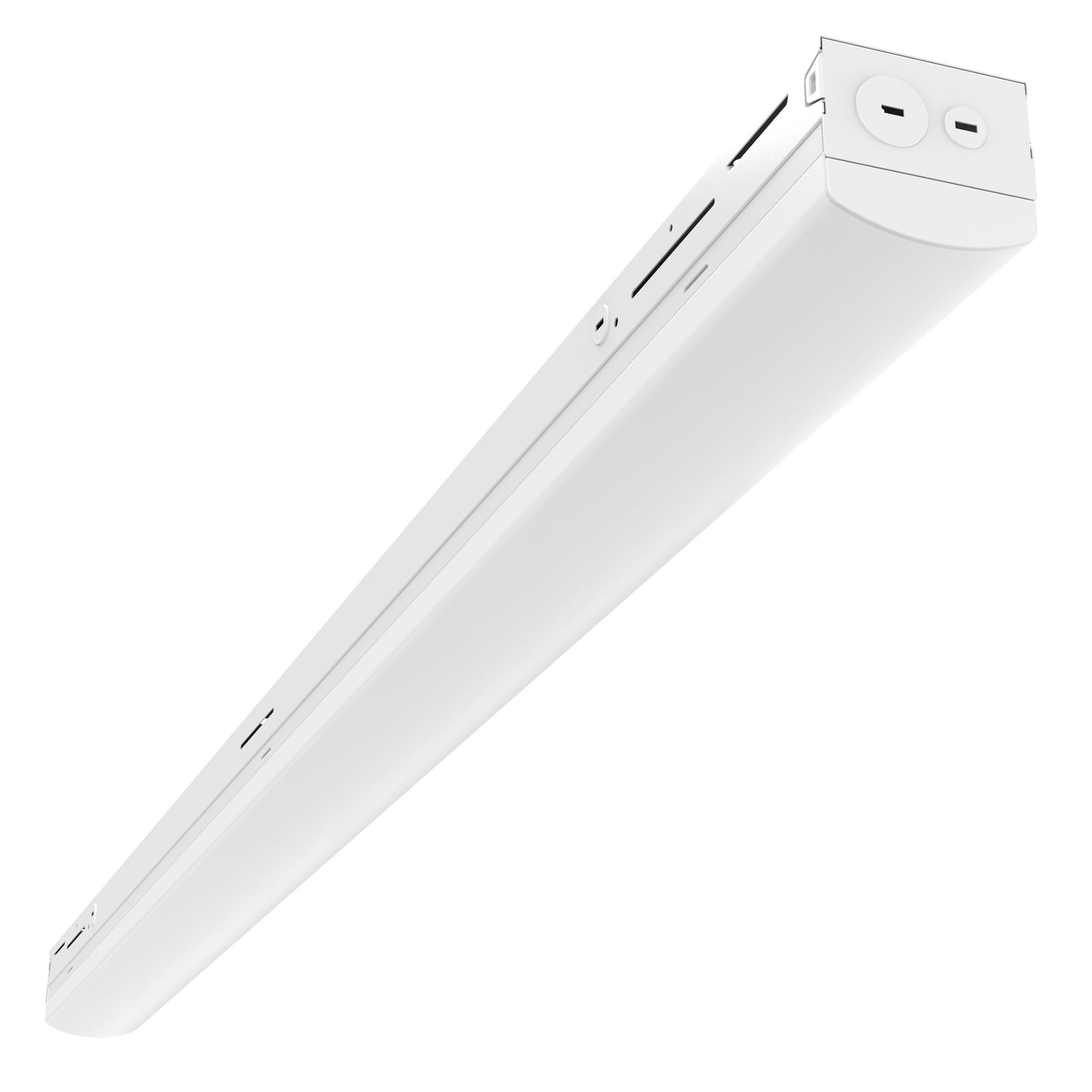

LED Linear Fixture - MLF04 Series, 6000lumens, 4FT, Selectable Wattage & CCT, 120-277V
$59.99 USD
$89.99
33% off
Unit price
/
Unavailable
All Free Shipping. No Extra Taxes.
Watts Guide
Wattage
: 40W
Wattage：
40W
Lumen
: 6000 lumens
Lumen：
6000 lumens
Lifetime
: 50000hrs
Lifetime：
50000hrs
Certification
: UL,cUL
Certification：
UL,cUL
Voltage
: AC 120-277V
Voltage：
AC 120-277V
Warranty
: 5 Years
Warranty：
5 Years
33% off
LED Linear Fixture - MLF04 Series, 6000lumens, 4FT, Selectable Wattage & CCT, 120-277V - 5000K/4000K/3500K/3000K/2700K selectable / AC 120-277V is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
BNPL flexible payment
30 Days no hassle return
2-7 Days delivery
2-5Year Warranty
Description
LED Linear Fixture with selectable wattages and 3CCTs or 5CCTs for maximum flexibility. Available in 2ft, 4ft, and 8ft lengths, including 8ft folding models with connector options for continuous-row installations. Delivers 1,400–20,000 lumens up to 150 lm/W. Supports surface or suspended mounting. UL, cUL certified with a 5-year warranty.
Construction

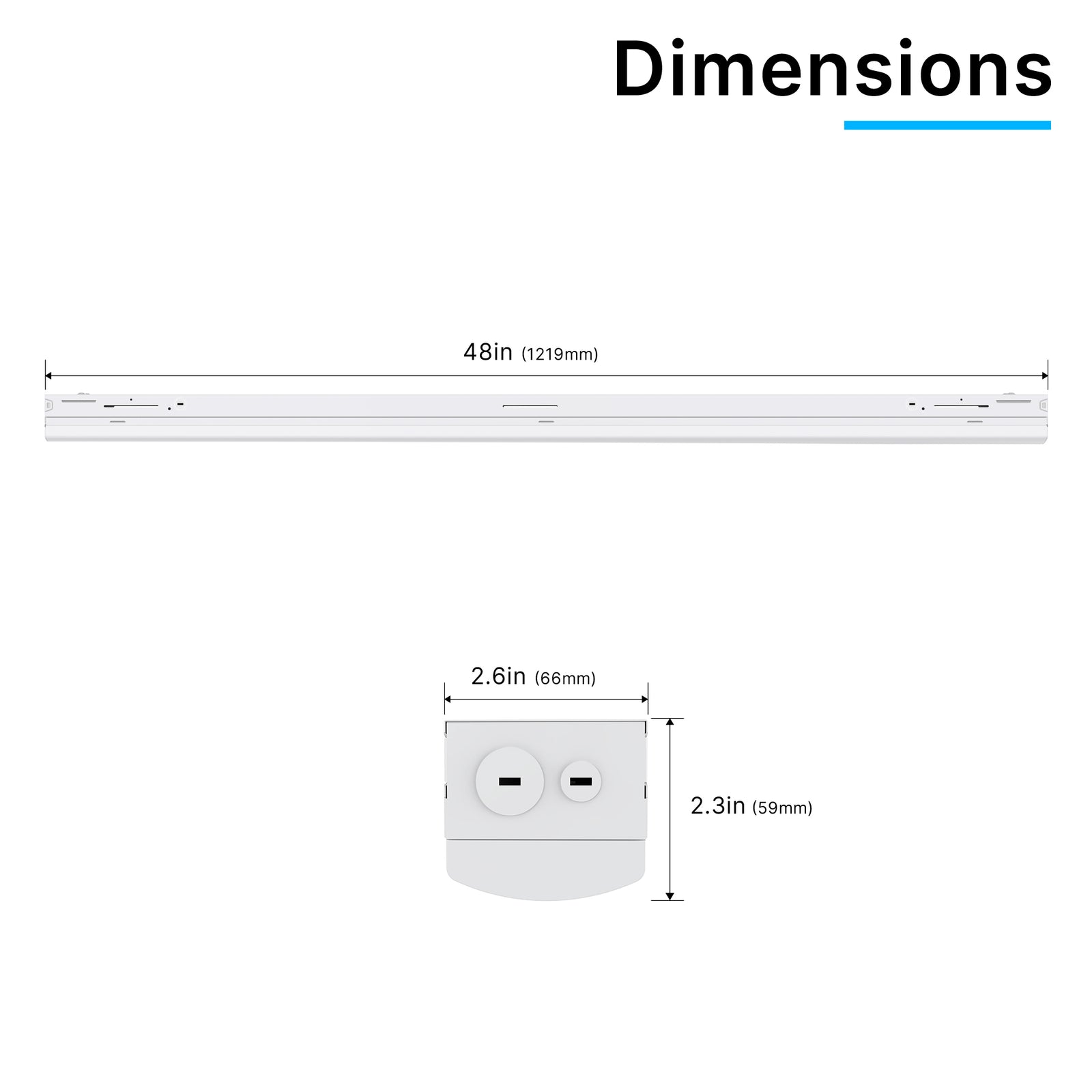

• Standard lengths are 2ft, 4ft, 8ft, and it can be extended via joiner brackets.
• The fixture housing, heatsink, and J-Box cover are constructed from cold-rolled steel.
• Housing components act as a heatsink for LED heat dissipation.

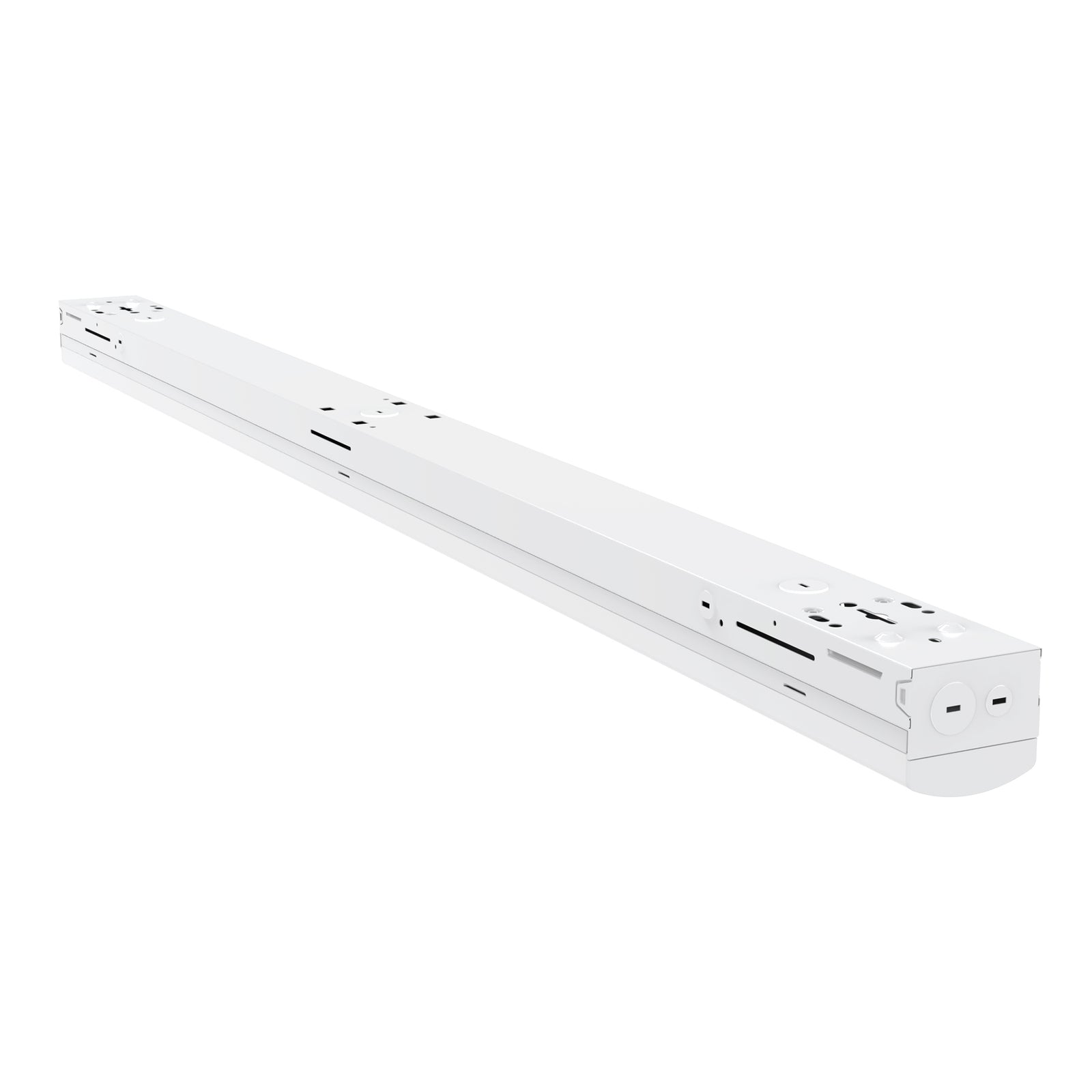

• The fixture can be surface-mounted or pendant-mounted, with appropriate mounting options provided (see accessories).
• The fixture housing, heatsink, and J-Box cover are constructed from cold-rolled steel.
• Housing components act as a heatsink for LED heat dissipation.
• The fixture can be surface-mounted or pendant-mounted, with appropriate mounting options provided (see accessories).
Electrical
• Universal 120-277 VAC input voltage.
• Selectable Wattage Levels: 4 levels.
• 1-10V dimming driver with 10%-100% dimming range.
• PF > 0.9, THD < 20%.
• Operating Temperature Range: -20°C to 40°C (-4˚F - + 104˚F).
Note: Operating temperature range with emergency battery : 10°C to 40°C (+50˚F - +104˚F).
• Selectable Wattage Levels: 4 levels.
• 1-10V dimming driver with 10%-100% dimming range.
• PF > 0.9, THD < 20%.
• Operating Temperature Range: -20°C to 40°C (-4˚F - + 104˚F).
Note: Operating temperature range with emergency battery : 10°C to 40°C (+50˚F - +104˚F).
Optics
• Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K or 3500K,4000K,5000K.
• Scalable lumen packages range from 1,428 to 12,573 lumens, with efficacy up to 160lm/W.
• <5 SDCM color consistency, 80 CRI.
• Features PC lens is designed to shape the light uniformity and comfortable light.
• Scalable lumen packages range from 1,428 to 12,573 lumens, with efficacy up to 160lm/W.
• <5 SDCM color consistency, 80 CRI.
• Features PC lens is designed to shape the light uniformity and comfortable light.
Weight
• 2FT:2.20 lb
• 4FT:3.95 lb
• 8FT:8.05±1 lb
• 4FT:3.95 lb
• 8FT:8.05±1 lb
Model
• LF01-2FT-24W-27VDDK
• LF01-4FT-40W-27VDDK
• LF01-8FT-70W-27VDDK
Note: “27V” represents 120-277VAC
• LF01-4FT-40W-27VDDK
• LF01-8FT-70W-27VDDK
Note: “27V” represents 120-277VAC
Certifications
• UL cUL
Mount
• Surface Mount(Default)
• Chain Installation(Sold Separately)
• Steel Wire Installation(Sold Separately)
• Chain Installation(Sold Separately)
• Steel Wire Installation(Sold Separately)
Application
• Commercial
• Warehouses
• Parking lot
• Corridor
• Retail space
• Warehouses
• Parking lot
• Corridor
• Retail space
Lifespan
• Estimated L70 ≥50,000-hour LED lifespan based on IES TM-21 calculations at 25°C.
Warranty
• 5-year warranty
