Start your garage lighting plan by testing one option on paper: a fixture at the existing ceiling junction box. If light from that one spot can reach the parking and work areas you care about, keep it as your lead option. It still needs to be checked against the exact fixture's instructions and your ceiling before you buy.
If that spot leaves key areas dark or shadowed, look at supplemental lighting that the fixture's instructions and power source support. If the plan only works with a new or moved connection point, the next step is an assessment by a qualified electrician, not a purchase.
Which Lighting Path Should You Investigate First?
Start with the fixture at the existing box, and move on only when a clear trigger shows up. Each row below is a path worth looking into. None of them is a finding that a fixture or connection will work in your garage.
| Path to investigate | When it goes on the plan |
|---|---|
| 1. One fixture at the existing box (start here) | Mapped parking and task areas look reachable from that spot |
| 2. Documented supplemental lighting | Priority areas remain uncovered, and the added fixture's instructions and power source support the route |
| 3. Qualified assessment of an added or relocated connection | The layout only works with a new or moved connection point |
Path 1 stays open while two things hold true. Your map shows the box location can serve the intended areas, and the exact fixture's documentation covers that type of connection and mount. When either one fails, move down the table. Don't try to force the single spot to work.
Path 2 depends on what the supplemental fixture's instructions say about how it gets power. It does not depend on which outlet happens to be closest. Our breakdown of hardwired and plug-in connections explains how that choice affects a fixture decision. Using a cord as a workaround has a firm limit. The Electrical Safety Foundation International says an extension cord is a temporary solution, should not replace permanent wiring, and should not run through ceilings. It also advises having outlets installed where you need them. That advice points you to Path 3.
As you compare our garage lighting options, sort each candidate into Path 1 or Path 2 based on its own installation documents, not on its listing title.
Map Garage Zones Before Choosing Fixture Locations

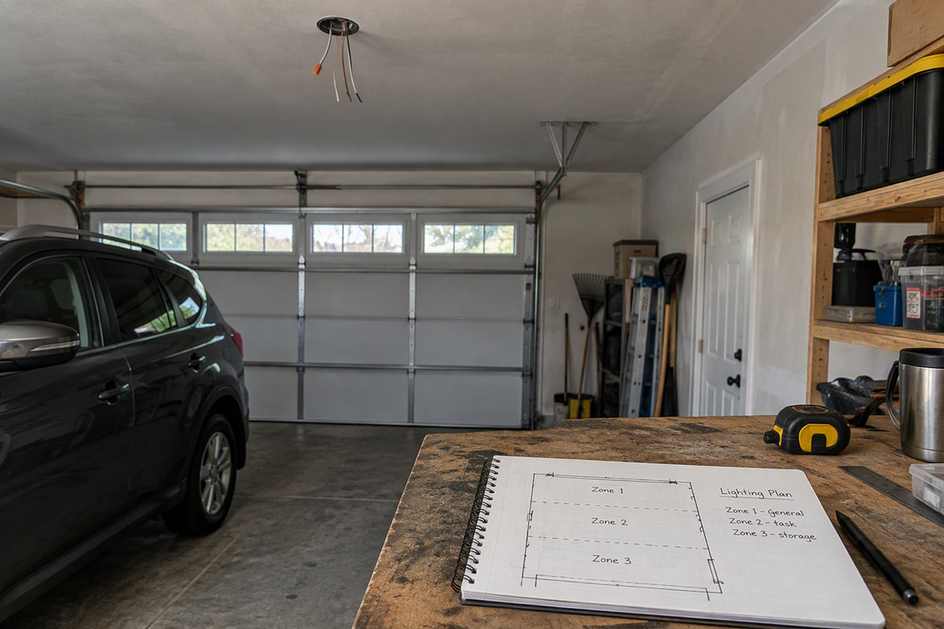

A simple marked sketch of the garage tells you whether the existing box is still a real candidate. Draw it to rough scale on paper, then work through these steps in order:
- Mark the zones. Outline each parking position and each work area, such as a workbench, tool wall, storage shelving, or the spot where you work on a car.
- Add the obstructions. Sketch parked vehicles at their normal size and position. Add tall shelves, the garage door and its track when open, the door opener, beams, and any other ceiling features.
- Record the ceiling and power details. Mark the existing junction box. Note the ceiling type and any visible mounting limits, plus other power locations you can see, such as receptacles. Treat these as facts about location only, not proof of electrical suitability.
- Flag the gaps. Shade any priority area that sits far from the box, behind an obstruction, or on the far side of a vehicle from the light.
Here is an illustrative example. A homeowner's box is centered over one parking bay, and the workbench is on the back wall. With the car parked and the door open, the door and its track sit between the box and the bench. That makes the bench a flagged area. The existing-box candidate may still suit parking, while the bench becomes the reason to look at Path 2.
The finished sketch is a planning map. It is not a photometric design, so it will not tell you light levels or promise even coverage. Its job is to show which areas are uncertain. If your garage has split bays, angled walls, or an L-shaped footprint, our guide to irregular garage layouts helps you break the space into zones. You can also move your sketch into our lighting layout tool to test fixture positions against those zones.
Verify Fixture Fit and Electrical Scope Before Installation
Some checks you can do yourself with documents and a tape measure. Others need a qualified electrician looking at your actual circuit.
Details to Gather Before Fixture Selection
These are things you can collect without opening, testing, or changing any electrical part:
- Exact fixture identity: the model number or SKU, plus the manufacturer's current installation instructions and spec sheet for that exact version.
- Documented connection and supply: the connection type, supply requirements such as voltage, and any stated connection or load limits, written down as the documents give them.
- Documented mounting conditions: the mounting method, required hardware, and any ceiling or location conditions listed in the instructions.
- Visible site details: ceiling construction, the box location from your map, mounting limits, and where other power sources are. Take photos to share.
- Gaps between documents and site: any mismatch or missing item. Each one stays an open question, not an assumption.
Electrical Questions for Qualified Review
Don't make wiring changes, add a connection, or move a connection based on this planning guide. Those decisions need a qualified, site-specific electrical assessment. The ESFI recommends hiring a qualified, licensed electrician for any electrical work in your home. Bring these questions to that review:
- Can the existing box and circuit support the fixture you've documented, including its stated load?
- Would the plan need wiring changes, a new connection point, or a moved one?
- Does a proposed supplemental power source suit the fixture's documented supply needs?
- Which permit, inspection, or code questions apply to this job where you live?
A layout tool, a product listing, a junction box, or a receptacle does not prove a setup is electrically suitable. Only the review answers that. To check credentials, the U.S. Department of Energy notes that most states require electricians to be licensed. It directs readers to check their state electrical licensing board. If you plan to add lights later, say so during the assessment. Our guide to garage lighting system planning covers that longer-term view.
FAQs
Can a layout tool tell me whether a fixture will work with my junction box?
No. A layout tool answers a coverage question: where light is likely to reach from a given spot. Whether a fixture can connect to and mount on your box is a separate question. That one depends on the fixture's documents and a review of your site.
What if the fixture instructions don't cover my ceiling or connection type?
Treat that gap as a reason to wait. Ask the manufacturer for documentation that covers your situation, or look at a different fixture whose instructions do. If the gap involves the circuit or the connection itself, add it to the questions for your electrician.
When does a small change to the plan need another qualified review?
Get another review when the change affects electrical scope. Examples include moving a fixture away from the reviewed box, adding a fixture on the same connection, or changing the power source for supplemental lights. Moving a lamp aim or a shelf usually only means updating your map.
Should I buy fixtures before the electrician looks at the garage?
It usually works better to pick candidate models and gather their documents first. Then share those documents during the assessment. Buying around an assumed connection or coverage can leave you with fixtures that don't fit the setup the review approves.
