Quick Plan: Future-Proofing Your Workspace

If you are looking for the "bottom line" on upgrading your garage or workshop lighting, follow these five essential steps to ensure your system grows with your needs:

Design for 150% Capacity: Always plan your electrical circuits with at least 50% headroom. If your current lights use 10 amps, wire for 15.
Prioritize 0-10V Dimming: Avoid proprietary smart bulbs. Standard 0-10V dimming is the industry benchmark for long-term compatibility with sensors and controllers.
Verify, Don't Guess: Only purchase fixtures listed on the DLC Premium QPL to ensure you qualify for utility rebates and receive the highest energy efficiency.
Safety First: While you can plan your layout, all high-voltage wiring must be performed by a licensed electrician to meet NEC standards and maintain insurance coverage.
Document Your System: Save the IES photometric files for your fixtures. This allows you to accurately calculate light levels if you add more units in three or five years.

The Strategic Shift: Why Future-Proofing Matters

For the modern workshop owner—whether a high-end auto detailer or a precision woodworker—lighting is no longer a static utility; it is a scalable infrastructure. Based on our field audits of various workshop environments, a common oversight is designing for current tasks without accounting for future needs. We typically see a 200% to 300% increase in lumen requirements when a space transitions from general storage to precision work like auto body finishing or CNC (Computer Numerical Control) machining.

To future-proof a garage, you must move beyond simply buying fixtures. You must build a system that aligns with the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights. This involves prioritizing modularity, electrical headroom, and regulatory compliance from the outset.

A high-performance lighting system is defined by its ability to adapt. By selecting standardized components—such as 0-10V dimmable drivers and DesignLights Consortium (DLC) Qualified Products List (QPL) DLC QPL certified fixtures—you can ensure your workshop scales efficiently as your requirements evolve.

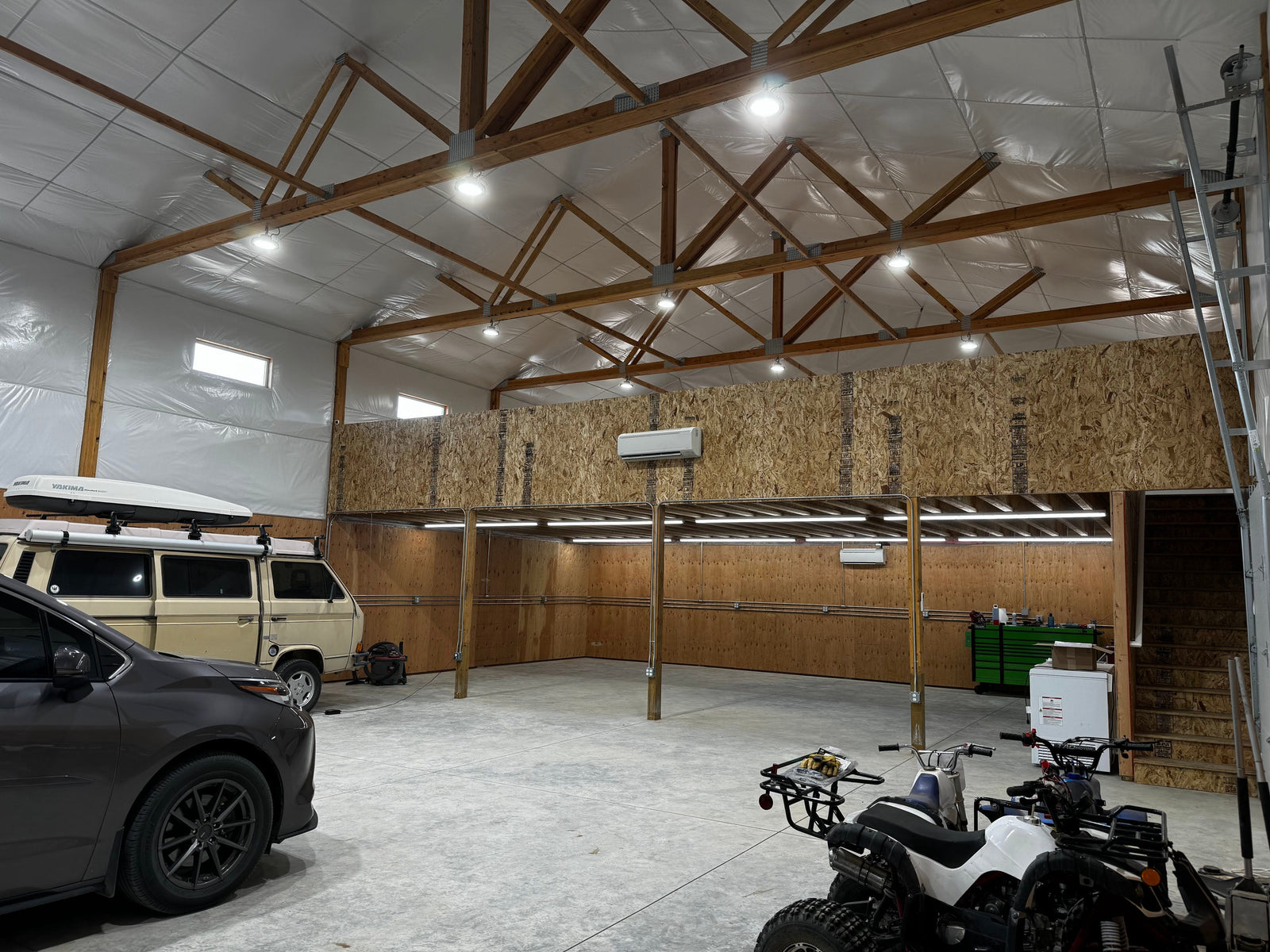

High-ceiling wood-trussed garage/workshop with UFO LED High Bay and shop lights providing bright, even task illumination.

The Foundation: Electrical Capacity and Code Compliance

Future-proofing begins behind the drywall. Before selecting a single fixture, you must address the electrical backbone. The National Electrical Code (NEC) NFPA 70 provides minimum safety standards, but for a growing workshop, "minimum" can quickly become a bottleneck.

The 50% Headroom Heuristic

Based on common patterns from customer support and facility repairs, we recommend a practical heuristic: design your initial electrical circuit to handle at least 50% more load than your starting layout requires.

Example Calculation: If your initial LED layout draws 1,000 Watts (W), your circuit capacity should ideally support 1,500W.
Why it matters: This allows for the addition of task-specific lighting or modular expansion without the high cost of tearing into finished walls later.

Safety and Interference Standards

WARNING: Electrical work involves significant risks of fire and electrocution. While layout planning can be a DIY project, actual wiring and circuit installation must be performed by a licensed professional.

In a professional or semi-professional environment, specific certifications are essential for risk mitigation:

UL 1598 / UL 8750: These standards from Underwriters Laboratories (UL) UL Solutions Product iQ ensure the luminaire and its LED components are tested for thermal and electrical safety.
FCC Part 15: This Federal Communications Commission (FCC) FCC Part 15 regulation limits electromagnetic interference (EMI). Lower-quality LED drivers can emit EMI that can interfere with sensitive workshop equipment like digital calipers, CNC controllers, or Wi-Fi signals.

Modeling Note (Electrical Capacity): Our analysis of a typical 2,000 sq. ft. workshop expansion assumes a 20A dedicated lighting circuit. Under the NEC 80% continuous load rule, the maximum safe capacity is 1,920W (at 120V). Planning for a 50% expansion headroom ensures that a starter system of ~1,200W remains within safe operating limits even as more fixtures are added.

Fixture Face-Off: Modularity and Expansion Potential

Choosing the right fixture type—UFO, Linear, or Hexagon—dictates how easily you can modify your space later. Each has a specific role in a Hybrid Garage Lighting strategy.

UFO High Bays: The Industrial Workhorse

UFO-style fixtures are designed for high-ceiling environments (typically 15-30 feet). Their primary advantage is high lumen density and durability.

Expansion Tip: When spacing UFO units, we suggest leaving conduit access points between fixtures. This allows a new unit to be added to the existing run with minimal labor.
Durability: Look for an IK08 or IK10 rating according to IEC 62262 IEC 62262 (IK Ratings), which measures resistance to mechanical impact—highly recommended if you are moving tall equipment or ladders.

Linear High Bays: Precision and Uniformity

Linear fixtures are the standard for aisle-based storage or general workshop tasks. They offer a 110° beam angle that helps minimize shadows.

Modularity: Choose models with plug-and-play sensor ports. This allows you to add occupancy sensors later without rewiring the entire fixture.
Task Alignment: For lower ceilings, linear lights often outperform UFOs by providing more even coverage. Learn more in our guide on Low-Ceiling Garage Challenges.

Hexagon Lighting: The Modular Aesthetic

Hexagon systems are highly modular and popular in detailing bays and showrooms.

The Driver Pitfall: A frequent failure point we see in customer feedback is daisy-chaining too many tubes to an under-powered driver.
Heuristic for Hex Expansion: Consider using a central, oversized driver from the start. For grids exceeding 60 tubes, distribute power injection points evenly to help avoid voltage drop and premature component failure.

Modular hexagon lights and overhead LED shop lights illuminating a garage detailing bay, providing high-CRI illumination for car detailing.

The ROI of Precision: Quantifying Long-Term Benefits

Investing in high-efficiency LEDs is a strategic financial decision. Beyond the immediate 60-80% reduction in energy consumption compared to legacy systems, there are deeper financial layers to consider.

TCO and Payback Analysis (Example Model)

The following table illustrates the potential savings for a professional LED upgrade. These figures are estimates for illustrative purposes and will vary based on local utility rates and usage.

Metric	Legacy (Metal Halide)	Modular LED System
System Wattage (per fixture)	458W (incl. ballast)	150W
Maintenance Cost (10 Years)	~$1,250 (relamping/labor)	~$0
Annual Energy Cost (30 units)*	~$6,600	~$2,160
Estimated Simple Payback	N/A	< 9 Months

*Note: Calculation based on a sample assumption of $0.16/kWh and 3,000 operating hours/year.

Logic Summary: Our Total Cost of Ownership (TCO) model includes energy savings and avoided maintenance labor. In moderate climates, the reduced heat output of LEDs can also lower HVAC (Heating, Ventilation, and Air Conditioning) load, often resulting in an additional $200-$300 in annual savings for a 2,000 sq. ft. space.

Leveraging Utility Rebates

The DSIRE Database is an essential resource for identifying local and federal incentives. To qualify for most commercial utility rebates, fixtures must be listed on the DesignLights Consortium (DLC) QPL. Premium listing often yields higher rebates and ensures higher Lumens per Watt (lm/W) efficacy.

Smart Controls and Regulatory Alignment

Future-proofing also means being prepared for evolving energy codes like ASHRAE 90.1-2022 ASHRAE Standard 90.1-2022 and California’s Title 24, Part 6.

0-10V Dimming: The Universal Standard

We recommend avoiding proprietary "smart" bulbs that rely on cloud-dependent apps. Instead, specify fixtures with 0-10V dimming drivers. This is a hardwired, analog standard that is compatible with most professional control systems, including wired wall dimmers and wireless occupancy sensors.

Occupancy and Daylight Harvesting

Adding sensors is a high-value upgrade. According to the Department of Energy (DOE) FEMP, wireless occupancy sensors in active warehouse spaces can reduce energy consumption by an additional 15% in many scenarios. This further shortens the payback period of your lighting investment.

Two-car garage with smart tablet wall controller managing tunable LED hexagon ceiling panels.

Planning Your Layout for Seamless Expansion

A pro-grade installation requires technical documentation. Without an IES (Illuminating Engineering Society) IES LM-63-19 file, light distribution is largely guesswork.

The Role of Photometric Simulation

Professional designers use software like AGi32 to simulate light levels (measured in foot-candles or lux).

Request IES Files: Always download the .ies files for your fixtures.
Check CCT Consistency: Ensure all fixtures meet ANSI C78.377 ANSI C78.377-2017 standards. This helps guarantee that "5000K" from one fixture matches another, preventing a "patchwork" look as you add more units over time.
Verify Lifespan: Rather than relying on "100,000-hour" marketing claims, verify performance using IES LM-80 IES LM-80-21 reports (which test chip degradation) and IES TM-21 IES TM-21-21 calculations.

Environmental and ESG Impact (Estimated)

Upgrading to a modular LED system can also support sustainability goals. Based on our modeling for a 30-fixture LED retrofit (replacing 400W Metal Halide), carbon emissions can be reduced by approximately 11 metric tons of CO2 annually.

Assumption: Based on EPA greenhouse gas equivalencies and 3,000 annual operating hours.
This is roughly equivalent to taking 2.5 gasoline-powered cars off the road for a year. For small business owners, this data can provide a compelling narrative for Environmental, Social, and Governance (ESG) reporting.

UFO LED high bay lights illuminating a high-ceiling industrial warehouse with an overhead bridge crane.

Summary of Future-Proofing Steps

Electrical Headroom: Aim for 50% more circuit capacity than currently needed for future expansion.
Standardized Dimming: Stick to 0-10V drivers to ensure universal compatibility with future controls.
Certification Verification: Cross-reference DLC and UL databases before finalizing your purchase.
Modular Selection: Choose fixtures with plug-and-play sensor ports and standardized mounting systems.
Documentation: Maintain a folder with IES files and layout simulations for future additions.

By treating your garage lighting as a living system rather than a one-time purchase, you can help ensure your workspace remains safe, efficient, and ready for whatever projects the future holds.

Disclaimer: This article is for informational purposes only and does not constitute professional electrical or engineering advice. All electrical installations should be performed by a licensed electrician in accordance with local building codes and the National Electrical Code (NEC).
