Quick Decision Summary: Choosing the Right Fixture
Before diving into the technical specifications, use this checklist to identify the best architecture for your workspace:
- High-Dust / High-Heat (Woodworking, Welding): Choose UFO High Bays (IP65+). Their vertical fin design prevents dust insulation and maximizes heat dissipation.
- Aisles / General Assembly (Warehouses, Long Benches): Choose Linear High Bays (IK08+). These provide superior rectangular distribution to minimize shadows.
- Wet / Chemical Exposure (Wash Bays, Food Prep): Choose Vapor Tight Fixtures (IP66). Fully gasketed housings protect internal components from corrosion and moisture.
- Critical Documentation: Always verify DLC Premium 5.1 (for rebates) and UL 1598 (for safety) before purchasing.

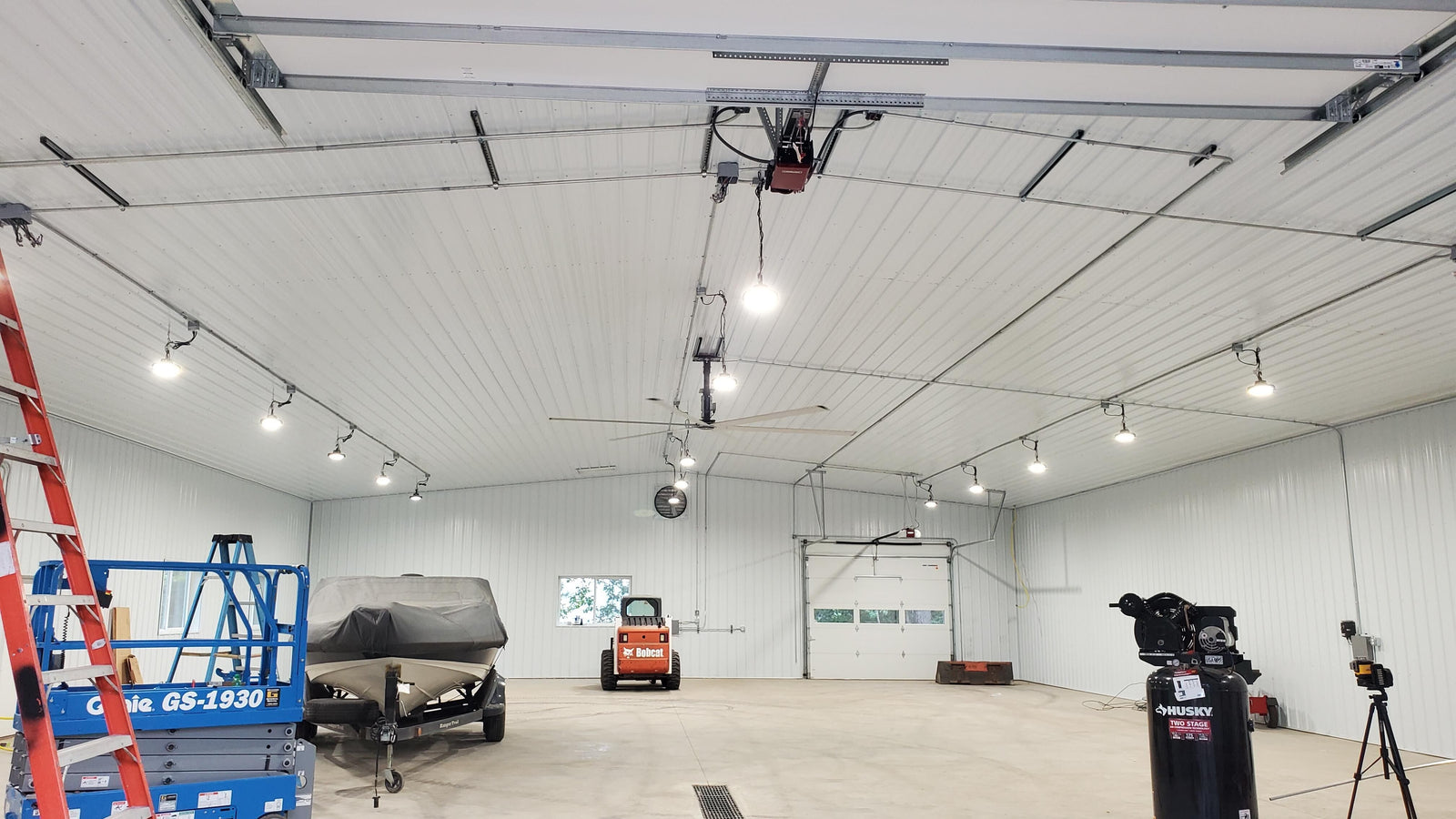

Durability Test: UFO High Bays vs. Linear High Bays vs. Vapor Tight Fixtures
In harsh workshop and garage environments, the choice between UFO high bays, linear high bays, and vapor-tight fixtures is the primary factor determining the system's Mean Time Between Failure (MTBF). For facility managers and workshop owners, the decision should lead with environmental stressors—dust, moisture, and chemical exposure—rather than initial lumen output. While UFO high bays offer efficient thermal management for high-heat spaces, vapor-tight fixtures are the optimized choice for environments where direct moisture or chemical vapors are present.
Modern lighting selection requires a transition from "buying a bulb" to "specifying an industrial system." This involves verifying compliance artifacts such as DesignLights Consortium (DLC) Qualified Products List (QPL) entries for rebate eligibility and UL Solutions Product iQ listings for safety assurance.
The Metrics of Physical Resilience: IP vs. IK Ratings
The durability of a fixture is quantified through two primary international standards: IEC 60529 (Ingress Protection) and IEC 62262 (Impact Protection).
Ingress Protection (IP Ratings)
According to the International Electrotechnical Commission (IEC) 60529 standard, an IP rating consists of two digits. The first represents protection against solids (0–6), and the second against liquids (0–9).
- IP65: Dust-tight and protected against low-pressure water jets. This is considered the standard baseline for professional garages.
- IP66: Protected against high-pressure water jets. Recommended for wash-down bays or areas where direct hose-down occurs.
Practitioners note that a common mistake is installing a fixture with a lower IP rating in a ceiling corner where condensation drips directly onto the housing. In environments with intermittent moisture, IP65 is a minimum; however, if the ceiling is uninsulated and prone to heavy condensation, an IP66 rating provides a necessary safety margin.
Impact Protection (IK Ratings)
The IEC 62262 standard defines the IK rating, which measures an enclosure's resistance to external mechanical impacts in Joules. In a workshop where forklifts operate or tools are handled near ceiling height, the IK rating is often more critical than the IP rating.
| IK Rating | Impact Energy (Joules) | Practical Equivalent |
|---|---|---|
| IK07 | 2.0 J | 0.5kg dropped from 40cm |
| IK08 | 5.0 J | 1.7kg dropped from 30cm |
| IK10 | 20.0 J | 5.0kg dropped from 40cm |
Methodology Note: These impact thresholds are derived from standardized laboratory pendulum tests. In real-world workshop scenarios, localized stress from a sharp object may cause failure even if the total Joule threshold is not exceeded.
Architecture Face-Off: UFO vs. Linear vs. Vapor Tight
Each fixture architecture is engineered for specific mechanical and thermal challenges.
1. UFO High Bays (Round High Bays)
UFO high bays are characterized by a circular, cold-forged aluminum housing. This design acts as a massive heat sink, utilizing the chimney effect to dissipate heat away from the LED chips and driver.
- Best For: High ceilings (15ft+), dusty environments, and high-ambient temperature shops.
- Durability Factor: The lack of a large flat surface prevents significant dust accumulation, which can otherwise act as an insulator and lead to premature LED failure.
- Quick Take: Best for "set-it-and-forget-it" reliability in dirty, high-heat workshops.
2. Linear High Bays
Linear fixtures provide a wider light distribution, often preferred for aisle lighting or low-ceiling workshops.
- Best For: Aisle-based warehouses and assembly lines.
- Durability Factor: Often constructed from heavy-duty sheet steel. While robust, steel can corrode if the powder coating is scratched in damp environments. Aluminum alloys typically offer better corrosion resistance in high-humidity settings (Source: Coastal Aluminum Industrial Supply - Manufacturer Guide).
- Quick Take: Ideal for precision tasks and aisles where uniform light spread is the priority.
3. Vapor Tight Fixtures
These are fully gasketed and sealed linear fixtures, typically using a polycarbonate or fiberglass housing with a clear or frosted lens.
- Best For: Car washes, chemical storage, and areas with high seasonal humidity.
- Durability Factor: The primary defense is the gasket. Professional-grade units use silicone gaskets, which maintain elasticity during thermal cycling better than foam rubber alternatives.
- Quick Take: The only viable option for direct moisture or corrosive chemical vapor exposure.
The "Silent" Failure Points: Drivers and Seals
In the industrial lighting sector, the primary failure point is rarely the LED chip itself, but rather the internal driver or the integrity of the seals.
Thermal Cycling and Seal Integrity
The JESD22-A104 thermal cycling test standard suggests that repeated expansion and contraction of materials can compromise seal integrity over time. In a garage that swings from sub-zero winter temperatures to high-heat summer days, the gasket material becomes the single point of failure.
Driver Sensitivity and the "10°C Rule"
The LED driver is the most heat-sensitive component. According to the IES LM-80-21 standard, while LED chips are tested for lumen maintenance, driver lifespan is heavily dependent on ambient operating temperature.
Based on the Arrhenius equation—a common heuristic in electronics manufacturing—every 10°C increase in operating temperature can roughly halve the lifespan of electrolytic capacitors within the driver. Therefore, installing a fixture near a furnace or in an uninsulated attic space can significantly reduce driver life due to accelerated capacitor degradation.
Economic Impact Analysis: The ROI of Durability
Upgrading to durable, high-efficiency LED lighting is a capital investment that requires a "Total Cost of Ownership" (TCO) perspective. Below is a reproducible model for a typical small independent auto repair shop.
Modeling Parameters: 5-Bay Auto Repair Shop
- Facility Size: ~2,500 sq ft
- Legacy System: 10 Metal Halide (MH) fixtures (458W total draw per unit)
- Proposed System: 10 Industrial LED High Bays (150W)
- Usage: 4,000 hours/year (10 hrs/day, 5 days/week, 50 weeks/year)
- Electricity Rate: $0.14/kWh (US National Average, EIA 2023)
Step-by-Step ROI Calculation:
-
Annual Energy Savings:
- Formula:
(Watts Saved / 1000) * Hours * Units * Rate - Calculation:
(308W / 1000) * 4,000 * 10 * $0.14= $1,724.80/year
- Formula:
-
Maintenance Savings (Estimated):
- Based on avoiding one MH lamp/ballast service call per year: $540.00/year (Parts + $90/hr labor).
- Total Annual Savings: $1,724.80 + $540.00 = $2,264.80/year
-
Simple Payback Period:
- Formula:
Total Investment / Annual Savings - Calculation:
$2,500 (10 units @ $250 installed) / $2,264.80= ~1.1 Years
- Formula:
| Parameter | Value | Unit | Rationale |
|---|---|---|---|
| Annual Energy Savings | ~$1,725 | $ | Calculated above |
| Maintenance Savings | ~$540 | $ | Industry average for MH upkeep |
| Simple Payback Period | ~1.1 | Years | ROI threshold for most small businesses |
Note: This model assumes a deterministic scenario. Actual payback periods may vary by ~20% depending on local utility rebates and cooling/heating interactive effects.
For a deeper dive into project-ready specifications, refer to the 2026 Commercial & Industrial LED Lighting Outlook.
Selection Framework: Matching Fixture to Environment
To choose the right fixture, practitioners should use the following decision matrix based on environmental "Gotchas."
Scenario A: The High-Dust Woodworking Shop
- Primary Risk: Sawdust accumulation leading to thermal runaway.
- Recommendation: UFO High Bay with an IP65 rating.
- Quick Take: Vertical heat sink fins are less likely to trap dust compared to flat-top linear fixtures. Ensure the unit is UL 1598 listed for luminaires.
Scenario B: The Detail/Wash Bay
- Primary Risk: Direct water spray and high humidity.
- Recommendation: Vapor Tight Linear Fixture with IP66 rating.
- Quick Take: Prioritize stainless steel latches. Plastic latches on budget units can become brittle and snap after 2–3 years of thermal cycling.
Scenario C: High-Traffic Commercial Garage
- Primary Risk: Mechanical impact (forklifts, ladders).
- Recommendation: Linear High Bay with an IK08+ rating.
- Quick Take: Add a wire guard accessory. Verify the IES LM-79 report to ensure the guard doesn't create obstructive shadows.
Compliance and Documentation: The "Pro-Grade" Standard
Documentation is the bridge between a marketing claim and a verifiable specification. Before purchasing, verify the following:
- DLC Premium 5.1: This is the highest tier of energy efficiency. Many utilities require DLC Premium status for rebates, which can cover 30–70% of project costs. Check the DSIRE Database for local incentives.
- IES Files (.ies): Professional manufacturers provide IES LM-63-19 compliant files for lighting simulation software.
- L70 Lifetime Projection: Based on IES TM-21-21. Exercise caution with brands claiming "100,000 hours" without a TM-21 report to back the claim.
Installation Best Practices for Maximum Durability
- Gasket Torque: For vapor-tight fixtures, over-tightening screws can warp the gasket. Use the "snug plus a quarter turn" shop heuristic unless a specific torque is provided.
- Drip Loops: Always include a drip loop in the power cord to prevent condensation from traveling into the fixture entry point.
- Thermal Clearance: Maintain at least 12 inches of clearance from heat sources (furnaces, exhaust). High ambient heat is a leading cause of premature driver failure.
Summary of Durability Factors
When evaluating UFO vs. Linear vs. Vapor Tight, the "best" fixture is the one that matches your specific environment. UFOs excel in thermal management and dust resistance; Vapor-tights excel in moisture protection; Linears excel in light distribution for aisles.
By prioritizing IP/IK ratings and verifiable DLC/UL documentation, you ensure that your workshop lighting remains a functional asset rather than a maintenance liability.
YMYL Disclaimer: This article is for informational purposes only and does not constitute professional electrical or engineering advice. Always consult a licensed electrician and adhere to the National Electrical Code (NEC) and local building codes for all lighting installations.
