A poorly lit garage is more than just an inconvenience; it’s a barrier to productivity and safety. One-size-fits-all lighting often leaves you with harsh glare in some spots and deep shadows in others, making detailed work like vehicle maintenance or woodworking frustrating and imprecise. Using only a single type of fixture fails to address the distinct needs of overall room illumination versus focused, hands-on tasks.
Discover how to combine the powerful ambient light of UFO high bays with the detailed task lighting of hexagon kits. This guide provides layout blueprints for creating a perfectly illuminated garage that balances broad, even coverage with brilliant, shadow-free task zones. This hybrid approach transforms your garage from a dimly lit storage space into a high-performance workshop.
Understanding the Two Layers of Light
Creating a truly functional garage lighting system requires a layered strategy. Instead of relying on a single fixture type, the hybrid model uses two distinct types of lighting—ambient and task—to cover all your bases. UFO high bays provide the broad, foundational light, while hexagon grids deliver the focused, high-intensity light needed for detail work.
Ambient Lighting: The Foundation with UFO High Bays
Ambient light is the general, overall illumination that fills the entire space. It’s the base layer that ensures you can safely navigate the garage, find tools, and park your car without running into things. For most garages, especially those with ceilings 10 feet or higher, UFO-style LED high bays are the premier choice for this layer.
I learned this the hard way after trying to light my 14-foot ceiling workshop with standard shop lights; the floor remained dim and the light felt weak. Switching to a pair of UFO high bays was a complete game-changer, casting a powerful, wide blanket of light across the entire floor. These fixtures are engineered to project a high volume of lumens efficiently from a height, providing wall-to-wall brightness. An excellent example of a fixture designed for this purpose is the Hyperlite LED High Bay Light - Black Hero Series, 21750lumens, Selectable Wattage&CCT, AC 120-277V, which offers the power and durability needed for a garage environment.
Task Lighting: The Detail Zone with Hexagon Kits
Task lighting provides concentrated, high-intensity light in specific areas where you perform detailed work. This is crucial for workbenches, vehicle detailing bays, welding stations, or any place where precision is key. While ambient light fills the room, task lighting eliminates shadows cast by your own body or equipment, which can obscure your view.

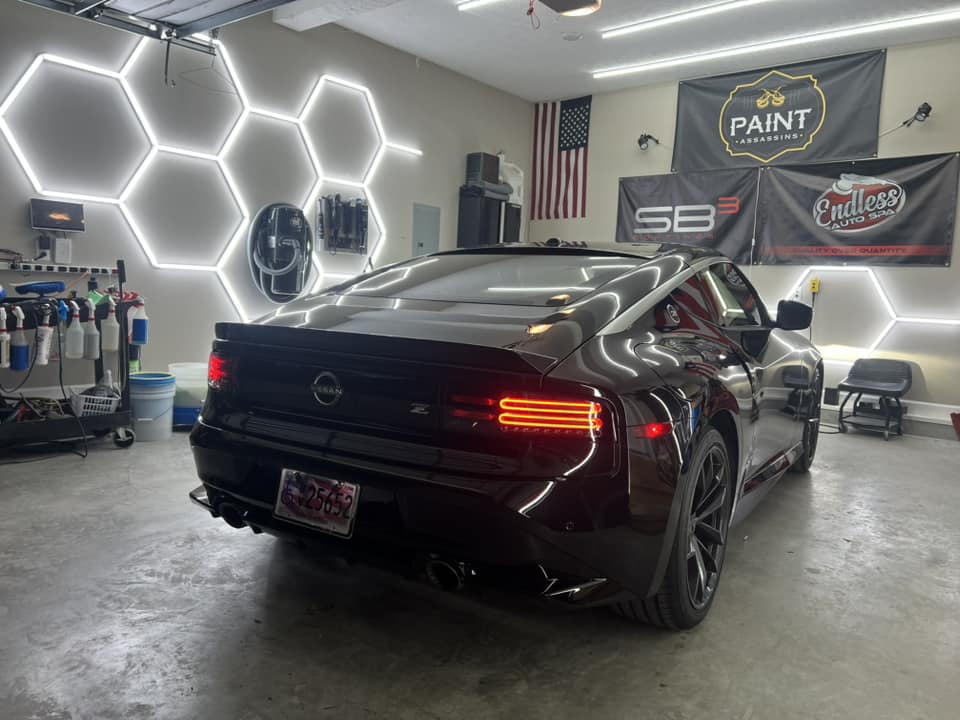

This is where modular LED hexagon grids shine. Their unique honeycomb structure delivers light from multiple angles simultaneously, creating a virtually shadowless work zone. I installed a hexagon grid directly over my main workbench, and the difference was night and day. Tasks that used to require a headlamp, like soldering electronics or cleaning small engine parts, are now bathed in clear, even light. The high Color Rendering Index (CRI) of these lights also means that paint colors and wire insulation appear true-to-life, not washed out. For this application, a system like the Dimmable Hexagon Garage Lights Gen 2 - 22 Grid (12.5 x 11.6 ft) provides an all-in-one solution for a large task area.
UFO High Bays vs. Hexagon Kits: A Quick Comparison
To understand why both are necessary, here’s a breakdown of their primary roles:
| Feature | UFO High Bay Lights | LED Hexagon Kits |
|---|---|---|
| Primary Role | Ambient (General) Lighting | Task & Accent Lighting |
| Best For | Illuminating large, open floor areas | Shadow-free light over workbenches, lifts, and detailing bays |
| Light Distribution | Wide, powerful beam from a single point | Multi-directional, even light from a large surface area |
| Mounting | Suspended from high ceilings (12-18 ft) | Surface-mounted directly over task zones (lower ceilings okay) |
| Shadow Profile | Can create shadows when working underneath | Minimizes shadows cast by your body and equipment |
Designing Your Hybrid Layout: A Step-by-Step Blueprint
Planning your layout prevents costly mistakes and ensures optimal performance. Follow these steps to design a system tailored to your specific garage.
Step 1: Assess Your Space and Needs
First, grab a tape measure and notepad. Document the following:
- Dimensions: Length, width, and ceiling height.
- Key Zones: Sketch a floor plan and mark the primary areas: where you park cars, your main workbench, any vehicle lifts, tool storage, and detailing spaces.
- Electrical Access: Note the locations of existing outlets and light fixtures. Decide if you will need to run new wiring or junction boxes.
Step 2: Plan the Ambient Layer (UFO High Bays)
With your dimensions, you can map out the UFO high bay placement. The goal is even, overlapping coverage.
- Mounting Height: For optimal performance, UFO high bays should be mounted 12 to 18 feet above the floor. This allows their beam to spread out effectively.
- Spacing: A reliable rule of thumb is to space the fixtures at a distance of 0.8 to 1.2 times the mounting height. For a 15-foot ceiling, this means spacing your lights 12 to 18 feet apart for uniform coverage. A common mistake is spacing them too far apart, which creates dark aisles between bright pools of light.
- Target Brightness: For general ambient lighting in a garage or workshop, the IES recommends a target of 50–70 lux (a measure of illuminance at a surface). A free online lighting calculator can help you estimate the number of lumens needed to achieve this based on your room size and fixture efficiency.
Step 3: Plan the Task Layer (Hexagon Kits)
Now, focus on your critical work zones.
- Placement: Position the hexagon grid directly above the task plane. For a workbench, this means centering it over the bench surface. For a detailing bay, it should be centered over where the car will be parked.
- Target Brightness: Task areas require significantly more light. Aim for 300–500 lux on the work surface. This intense illumination is what allows for high-precision work without eye strain.
- Electrical Planning: Pay close attention to the manufacturer's specifications. A common limitation is the number of light tubes that can be powered by a single electrical feed. For example, some systems specify a maximum of 62 tubes (around 440W) per feed. If your design exceeds this, you must plan for multiple power drops to distribute the load safely. Always control task lighting on a separate switch or circuit from your ambient lights for maximum flexibility.
Key Technical Specifications to Get Right
Beyond layout, a few key technical specs will make or break your garage lighting project. Paying attention to these ensures a professional-quality result.
Color Temperature (CCT)
Color Temperature, measured in Kelvin (K), describes how "warm" or "cool" the light appears. For a garage or workshop, the ideal range is typically between 4000K and 5000K.
- 4000K (Neutral White): Provides a balanced, clean white light that is comfortable for long periods. It’s a great all-purpose choice.
- 5000K (Cool White/Daylight): This light is crisper and more bluish, closely mimicking natural daylight. It enhances contrast and detail, making it a favorite for intricate mechanical work or paint correction. A common mistake is mixing CCTs in the same zone, which can be visually jarring and affect color perception. For color consistency, look for products that comply with the ANSI C78.377-2017 standard.
Color Rendering Index (CRI)
CRI is a scale from 0 to 100 that measures how accurately a light source reveals the true colors of an object. For general use, a CRI of 80+ is adequate. However, for a workshop, a CRI of 90 or higher is strongly recommended.
I once tried to touch up paint on a car under low-CRI lights. The color match looked perfect in the garage, but in the sunlight, it was a clear mismatch. A high-CRI light source would have revealed the true color, saving me hours of rework. This is especially critical for auto detailing, painting, and even organizing color-coded wires. For more on this, see our guide to High-CRI UFO High Bays for Factory Quality Control Areas.
Durability and Safety Ratings
A garage can be a harsh environment with dust, moisture, and the risk of impacts. Look for these certifications:
- UL/ETL Listing: This indicates the fixture has been tested by a Nationally Recognized Testing Laboratory and meets North American safety standards. It’s a critical mark of a safe, well-made product. You can verify a product's certification in the UL Solutions Product iQ Database.
- IP Rating: The Ingress Protection rating defines a fixture's resistance to solids and liquids. According to the International Electrotechnical Commission (IEC 60529), a rating of IP65 is common for high bays, meaning it is dust-tight and protected against water jets. This is ideal for dusty workshops or areas that may be hosed down.
- IK Rating: This measures resistance to mechanical impact. An IK08 rating, for example, means the fixture can withstand a 5-joule impact, protecting it from accidental bumps with equipment or ladders.
Wrapping Up: Your Blueprint for Perfect Garage Lighting
By abandoning the single-fixture approach and embracing a layered, hybrid strategy, you can build a garage lighting system that is supremely functional and visually stunning. The combination of powerful, widespread ambient light from UFO high bays and shadow-destroying task light from hexagon grids creates a workspace that adapts to your every need.
Remember the core principles for success:
- Layer Your Light: Use UFO high bays for broad, ambient coverage and hexagon grids for intense, focused task lighting.
- Plan Your Layout: Assess your space, calculate your ambient lighting needs based on ceiling height and spacing, and place task lighting directly over critical work zones.
- Prioritize Key Specs: Choose a CCT of 4000K-5000K, demand a CRI of 90+ for accurate color work, and verify safety and durability with UL, IP65, and IK ratings.
This methodical approach ensures you invest in a system that eliminates shadows, reduces eye strain, and transforms your garage into a truly high-performance environment.
Frequently Asked Questions (FAQ)
How many lumens do I need for a two-car garage? For general ambient lighting in a typical two-car garage (approx. 20x20 ft) with a 10-12 ft ceiling, a common target is 20,000 to 30,000 total lumens from your high bay fixtures. However, this depends on ceiling height; higher ceilings require more lumens to achieve the same brightness at floor level.
Should I choose 4000K or 5000K for my garage? This is largely a personal preference. 5000K offers a crisp, high-contrast light ideal for detailed mechanical work. 4000K is a neutral white that many find more comfortable for general use and longer sessions. It’s best to use a single CCT throughout the main workspace for visual consistency.
Can I put all my lights on one switch? While possible, it is not recommended. For maximum flexibility, you should control your ambient (UFO high bays) and task (hexagon grids) lighting on separate circuits or switches. This allows you to only use the intense task lighting when needed, saving energy and creating a more comfortable environment for general use.
Are hexagon lights difficult to install? Most hexagon light kits are designed for DIY installation. They typically come with connectors and a plug-in power cord. The main challenges are assembling the grid on the ground and then safely lifting and mounting it to the ceiling, which often requires a helper. Always follow the manufacturer’s instructions, especially regarding the maximum number of tubes per power supply.
