Split-bay and irregular garages need a different garage lighting layout because walls, offsets, and storage break the simple rectangular grid. The practical move is to plan by zones first, then decide where extra coverage is needed for dark corners, shelves, and work areas. If a garage has a partial wall or a recessed bay, one centered row often looks tidy on paper but leaves dim edges in real use.
Why Irregular Garages Need a Different Layout
In a standard rectangle, light can spread in a predictable pattern. In a split-bay or oddly shaped garage, that pattern gets interrupted. Partial walls, offset bays, and tall storage all block the path of light, so the center may feel bright while the sides stay underlit.
That is why the best garage lighting layout starts with shape, not fixture count. Treat the garage as a few connected zones instead of one uniform room. If you want a reference point for a typical garage shape before adapting it, the hexagon garage layout guide is a useful comparison.
The goal is not to make every square foot identical. It is to avoid shadow pockets where you park, walk, or work. Once you see where the light path is broken, you can decide whether the answer is more fixtures, better spacing, or simply a smarter offset.
Map the Space Before You Count Fixtures
Start by sketching the garage as it really functions, not as a perfect rectangle. Mark the open parking span, the storage wall, any recessed corner, and the workbench area. Then note where light will have to travel farther because a wall, shelf run, or divider blocks the ceiling pattern.

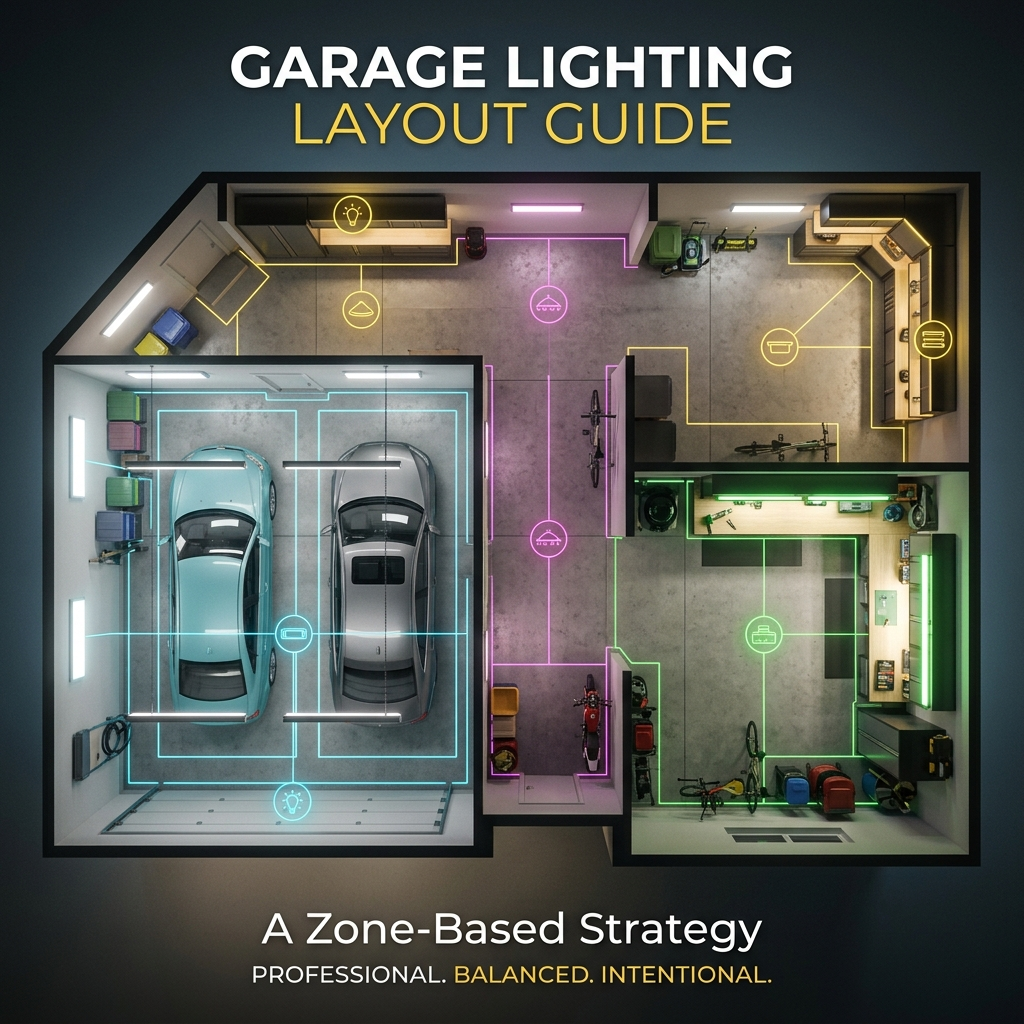

For irregular or split-bay garages, treat each section as a separate lighting zone. That keeps you from counting only the square footage and missing the way the room actually behaves. A useful planning habit is to mark the places that stay dim when the center already looks bright. Those are usually the first spots that need perimeter coverage or a shifted fixture.
Shadow-free workbench placement matters most when one side of the garage is doing real work and the other side is mostly parking or storage. That split is common in storage-heavy workshops, and it changes the lighting decision more than the room size alone.
Mark Open Areas and Blocked Runs
Identify the longest uninterrupted ceiling runs first. Those are the easiest places to place fixtures because one light can serve more floor area. Then mark where a beam, wall, or garage door track breaks the path.
Once you see the broken runs, it becomes easier to tell which areas can share light and which need their own fixture. That simple map often explains why a centered grid looks balanced but still misses the side pocket.
Separate Storage Zones From Task Zones
Storage walls, cabinets, and shelving should be treated as coverage blockers, not just background clutter. If the garage includes a bench or tool area, that zone deserves its own light logic.
Use the same sketch to separate parking, storage, and task paths. That way, your garage lighting layout does not over-serve the open middle while leaving the work wall in shadow.
Find the Corners That Lose Light First
Look for recessed corners, narrow returns, and side bays that sit behind a car or shelf line. These are the places most likely to feel dim even when the rest of the garage looks bright enough.
If a corner is the first area to disappear visually, it usually needs either a perimeter fixture or an offset from the main row. That is a layout fix, not just a brightness problem.
Estimate Fixture Count for the Shape
For fixture count, start with the use of each zone instead of the total floor area alone. The Illuminating Engineering Society's foot-candle guidance separates general parking and storage areas from task-heavy workbench zones, which is exactly what irregular garages need. General parking and storage areas are much lower than task areas, so a single whole-garage target can miss the real need.
A practical starting point is to think in terms of coverage roles. Open parking or storage areas usually need fewer light demands than a workbench, detailing bay, or repair zone. That means a split-bay garage may need one fixture pattern for the parking side and another for the task side, even if the total square footage looks modest.
The half-ceiling-height spacing rule is a common starting heuristic for even coverage, but it is only a baseline. In larger or more open setups, wider spacing can work; in blocked or irregular layouts, tighter or offset spacing often makes more sense. The point is to use the rule as a check, not as a command.
| Layout pattern | Planning signal | Fixture-count tendency | Caution note |
|---|---|---|---|
| Split-bay garage | One side is open, one side has a wall, shelf run, or work zone | Often needs separate zone coverage rather than one centered row | Do not assume both sides can share the same spacing |
| Three-car garage with blocked corners | The middle feels bright, but one outer corner stays dim | May need perimeter help or an offset fixture near the dead zone | A center grid can miss the recessed edge |
| Wall-and-shelf-heavy workshop | Storage blocks the wall wash and shadows the floor edge | Count may rise because light has to work around obstructions | Add fixtures for shadow control, not just more brightness |
| Open irregular shape | Ceiling lines are uneven, but the room is mostly open | Often starts near a standard count, then adjusts for the broken edges | Check ceiling height before changing spacing |
This table is only a planning map, not a fixture-count calculator. It shows where the layout is simple and where it becomes zone-driven. If you want a broader spacing reference for shop-style ceilings, the UFO spacing guide is a helpful next step.
Place Lights Around Walls and Obstacles
Once the zones are mapped, move fixtures away from the things that block light. Tall shelving, cabinets, and partial walls can stop a ceiling fixture from washing the room evenly. In storage-heavy garages, that often means offset placement works better than a clean centerline.
A practical shadow-reduction heuristic is to shift fixtures about 2 to 3 feet off tall storage so the light reaches the shelf faces and the floor in front of them. That offset is a planning rule, not a universal measurement, but it helps avoid the common mistake of placing lights directly over blocked wall sections. The same idea is covered in this shadow-free workbench placement guide, which shows how fixture position changes the way shadows fall.
The common spacing rule of thumb is still useful here: roughly half the ceiling height is a familiar starting point for even coverage, with wider spacing sometimes used for higher-output fixtures. In an irregular garage, though, you use that as a check against the sketch, not as a fixed answer.
Offset Fixtures From Tall Storage
If the wall line is crowded with cabinets or shelving, do not center the fixture over the obstruction. Put the light where it can spill into the aisle and the adjacent floor area.
That usually gives a better result than adding another fixture in the middle. In real use, the goal is less shadow, not just more lumens.
Use Perimeter Coverage to Fill Edges
Side bays, wall returns, and narrow corners often need help from the perimeter. A center row can brighten the middle and still leave the borders looking dull.
Perimeter coverage is especially helpful when the garage has one side devoted to storage and another side used for parking. It keeps the room from feeling bright in the center and flat at the edges.
Keep Work Paths and Vehicle Paths Clear
Placement should also respect doors, ladders, and parked vehicles. You want the fixtures in a place that supports movement without creating glare or a collision point.
If a path is the most-used route through the garage, keep the overhead line clear and let the fixtures support that path instead of fighting it. That matters as much as the output number.
Choose Fixture Types for the Layout
- For broad coverage in open bays, start with a fixture style that spreads light widely and can cover more floor area from a few mounting points.
- For task-focused zones, choose a fixture type that makes it easier to aim coverage at a bench, detailing area, or repair spot.
- For edge filling, look for a shape or distribution pattern that helps light reach the wall line and not just the center of the room.
- For taller ceilings, pick a category that matches the mounting height so the beam does not feel too narrow or too diffused.
- For storage-heavy garages, favor a layout-friendly fixture that can work around cabinets and shelf runs instead of assuming a blank ceiling grid.
If you are comparing categories, start with high bay lights for broad overhead coverage, then look at linear high bays when the layout needs a longer spread across a bay or work aisle. For visual zones and wider ceiling patterns, hexagon garage lights are another browsing path to check.
The right fixture family follows the room shape. That means ceiling height, obstruction pattern, and desired coverage style should come before brand preference. If you want a product path that is built for a more visual garage layout, this hexagon garage light is worth checking against your sketch, but only if the size and mounting style match your zone plan.
For taller or more utility-driven garages, a high bay option may fit better than a decorative layout, but verify the mounting height and coverage style before buying. The point is not to chase the brightest spec. It is to pick the fixture family that fits the broken geometry of the room.
Lock in the Final Layout
- Confirm the zones on your sketch, including the open parking area, storage wall, and any task zone.
- Mark the obstructions that block light, such as partial walls, shelves, cabinet runs, or recessed corners.
- Choose a starting fixture-count range for each zone instead of forcing one count across the whole garage.
- Match the fixture shape and mounting plan to the room, then verify product dimensions, ceiling height, and clearances before you buy.
If you still need a cross-check, compare your sketch with a layout guide or browse a category that matches the space, not just the product style. A good garage lighting layout should make the center, edges, and corners work together instead of making one area carry the whole room.
FAQs
How Do You Light a Split-Bay Garage Evenly?
Use zone-based placement instead of one centered row. Split-bay garages usually need separate attention for the open span and the blocked span, especially when a partial wall or storage run interrupts the light path. The best result is usually a layout that covers both zones without forcing them to share one identical spacing pattern.
What Is the Best Fixture Layout for a Garage With Shelves Along the Walls?
Shelves often call for offset or perimeter placement so the storage does not block the light wash. If the cabinets are tall, placing fixtures directly over them can leave the floor edge and the shelf faces dim. The fix is usually to move the fixtures a bit away from the wall line and let the light spill inward.
Can One Lighting Plan Work for a Three-Car Garage With Odd Corners?
Sometimes, but only if the plan adapts to the actual shape. A standard three-car pattern can miss a recessed corner or side bay, so you may need extra edge coverage or a shifted fixture. If the middle is bright but the corner still feels dead, the plan needs adjustment rather than just more output.
How Do You Estimate the Number of Lights for an Irregular Garage Shape?
Divide the garage into zones first, then estimate each zone separately. Parking and storage areas need a different baseline than a workbench or repair zone, and blocked corners may need their own coverage. That approach keeps you from overbuying in the center while still leaving the edges dim.
Why Do Garage Corners Stay Dark Even When the Center Is Bright?
Corners are farther from the main fixture path and are often blocked by walls, shelves, or parked vehicles. That distance and obstruction can leave the border areas underlit even when the middle feels fine. In practice, that usually means you need a perimeter fixture, a shift in spacing, or a second look at the zone plan.
