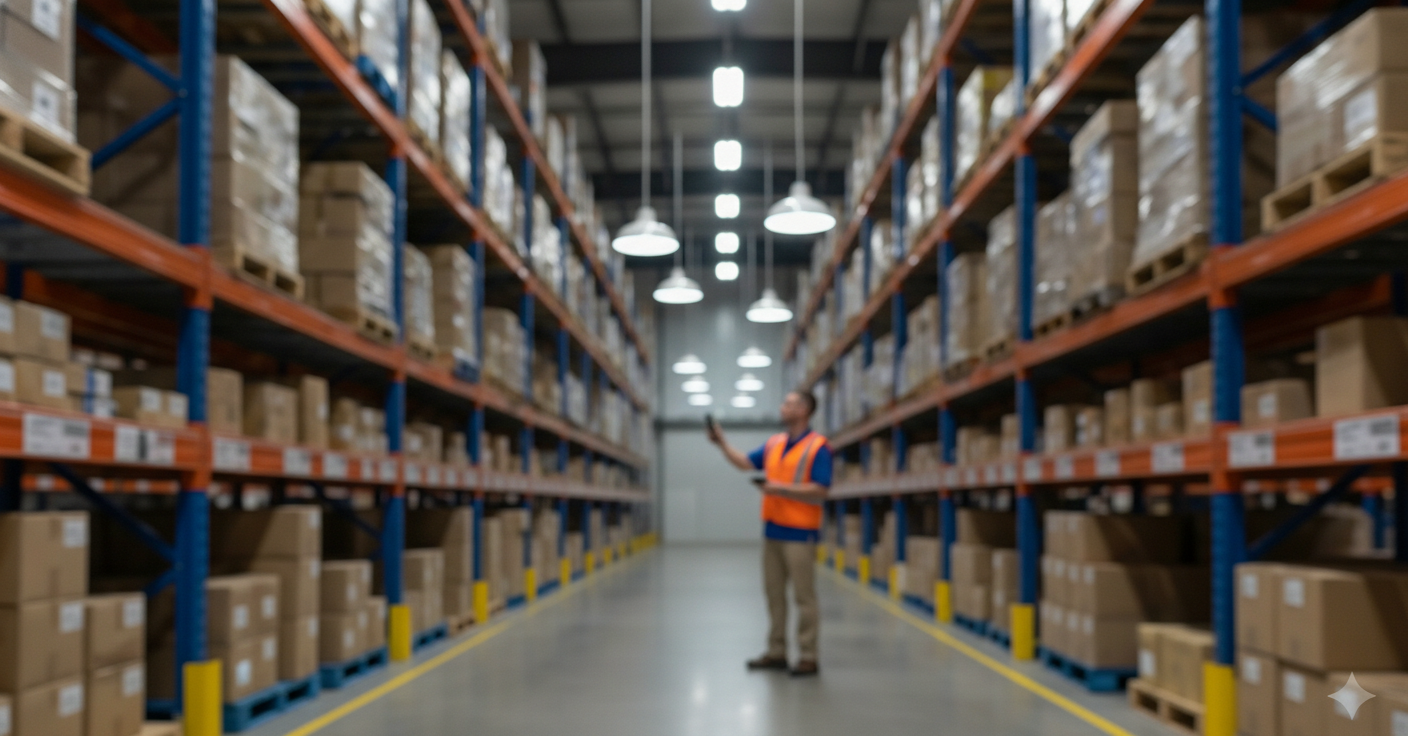

The Critical Role of CRI 80+ in Aisle Identification
In high-density warehouse environments, the difference between a successful fulfillment and a costly picking error often comes down to a single point of data: the Color Rendering Index (CRI) of the overhead lighting. For facility managers and lighting designers, specifying CRI 80+ is no longer a luxury—it is a pragmatic requirement for ensuring vertical barcode legibility and worker safety.
The core conclusion for any B2B specification is clear: high-lumen output alone cannot compensate for poor color fidelity. While horizontal foot-candles (fc) ensure safe floor navigation, vertical illuminance ($E_v$) paired with a high CRI is what allows a picker to distinguish between a "dark navy" and "black" box on a 30-foot rack. According to the authoritative industry white paper 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, project-ready fixtures must balance spectral quality with energy efficiency to meet modern logistical demands.
Vertical Illuminance: The Prerequisite for Identification
Before addressing color quality, we must establish the baseline of vertical illuminance. Conventional wisdom often prioritizes floor brightness, but in an aisle, the "work plane" is the vertical face of the rack.
According to the IES RP-7-21 Recommended Practice for Lighting Industrial Facilities, minimum maintained illuminance levels must be met for specific tasks. Without sufficient vertical lux, even a CRI 100 light source will fail to make labels legible. We have observed in field measurements that vertical illuminance and CRI are interdependent; a high CRI fixture with poor vertical distribution—common in standard wide-beam optics—will not solve the identification problem at the highest rack levels.
Logic Summary: Our analysis of aisle lighting performance assumes a 30-foot ceiling height and a 4-foot wide aisle. We prioritize the $E_v$ at the 20-25 foot mark on the rack face, as this is where light loss is most significant due to the angle of incidence.
| Metric | Target Value | Unit | Rationale |
|---|---|---|---|
| Vertical Illuminance ($E_v$) | 15–30 | Lux | Minimum for label recognition (IES RP-7) |
| Horizontal Illuminance ($E_h$) | 20–50 | Lux | Floor safety and navigation |
| Uniformity Ratio (Max:Min) | 3:1 | Ratio | Prevents "hot spots" and deep shadows |
| CRI (Color Rendering Index) | 80+ | Ra | Accurate color distinction |
| R9 (Saturated Red) | 10+ | - | Critical for barcode and safety label clarity |
Why CRI 80+ Matters: Beyond the Average
CRI is an average of the first eight color samples (R1 through R8). However, for industrial applications, the "hidden" values—specifically R9 through R15—provide the true measure of performance.
The R9 Factor and Barcode Scannability
The R9 value represents saturated red. In our experience with customer technical support, we have found that fixtures listed as CRI 80+ but with an R9 value below 50 cause persistent issues. Red-laser barcodes and red-colored warning labels often appear brown or pink under poor R9 lighting, reducing the "first-time read rate" of handheld scanners.
To ensure performance, designers should insist on seeing the full R1-R15 values from an IES LM-79-19 report, rather than just the average CRI. A reliable heuristic is to verify that the R9 value is positive and ideally above 10 for any environment requiring rapid identification of safety signage.
Spectral Stability and Dimming
A common "gotcha" in B2B projects is CRI degradation during dimming. Many LED drivers, when paired with certain 0-10V dimming protocols, can cause a spectral shift. A fixture specified at CRI 80+ at full output might drop below that threshold when dimmed to 20% for energy savings. This negates the benefit of high-quality lighting during partial-occupancy shifts, leading to increased errors during late-night or low-traffic hours.
Quantifying the ROI of Visual Accuracy
Investing in CRI 80+ lighting is a financial decision as much as a technical one. The business outcome is a direct reduction in picking errors and an increase in throughput.
The 15% Error Reduction Benchmark
Based on a study of warehouse picking areas, increasing illuminance from 20 to 35 lux resulted in a 15% drop in picking errors. While that study focused on light quantity, the synergy between quantity (lux) and quality (CRI) is undeniable. If a picker spends an extra 3 seconds per item verifying a label due to poor color contrast, a facility processing 10,000 items a day loses over 8 hours of productivity daily.
Modeling the Impact
Methodology Note: This ROI model is a hypothetical estimate based on industry averages for labor costs and error correction.
- Assumptions: Labor cost of $25/hr; error correction cost (re-shipping + labor) of $50 per error; 1% baseline error rate.
| Scenario | Lighting Quality | Error Rate | Annual Correction Cost (Est.) |
|---|---|---|---|
| Legacy HID/Low CRI | CRI < 70, Low Lux | 1.2% | $150,000 |
| Standard LED | CRI 70, High Lux | 1.0% | $125,000 |
| Optimized LED | CRI 80+, High Lux | 0.85% | $106,250 |
By moving from a standard 70 CRI setup to an optimized 80+ CRI system, a large-scale facility can potentially save nearly $20,000 annually in error-related costs alone, effectively paying for the lighting upgrade within the first 18-24 months. For more on how to structure these layouts, see our guide on Achieving Uniform Light on High Warehouse Racks.
Compliance and Technical Verification
For B2B specifying, "trust but verify" is the rule. Every performance claim must be backed by compliance artifacts.
- DLC Premium Qualification: To qualify for utility rebates, fixtures should be listed on the DesignLights Consortium (DLC) QPL. DLC 5.1 standards now include specific requirements for spectral quality and dimming capability.
- Safety Listings: Ensure the product carries a UL 1598 listing for luminaires. This is the first verification point for building codes and insurance inspections.
- IES Files for Modeling: Lighting designers should use IES (.ies) files in software like AGi32 to simulate vertical illuminance before purchasing. This prevents the "dark rack" syndrome after installation.
Navigating the "Document Gap"
One of the most frequent frustrations for contractors is a manufacturer that provides a spec sheet but no supporting data. A "Pro-Grade" manufacturer should provide:
- LM-79 Reports: To verify CRI, R9, and efficacy (lm/W).
- LM-80 and TM-21 Reports: To prove the L70 lifetime projection (e.g., 60,000+ hours).
- IP Ratings: For warehouses with dust or moisture, an IP65 rating is essential for long-term maintenance.
Implementation: Optics and Placement
Choosing the right fixture is only half the battle; placement determines the actual vertical identification success.
Linear vs. Round High Bays
For deep aisles, Linear High Bays often outperform round "UFO" style fixtures. Linear optics are designed to throw light along the length of the aisle, maximizing the light hitting the rack faces rather than wasting lumens on the top of the racks. However, modern high-performance round fixtures with aisle-specific reflectors can also achieve high uniformity if the spacing-to-mounting height ratio is calculated correctly.
Color Temperature Consistency
While CRI measures color accuracy, Correlated Color Temperature (CCT) affects the "feel" and alertness of the space. For warehouses, 5000K (Daylight) is the industry standard, but 4000K is often preferred for retail-facing warehouses to reduce glare. Regardless of the choice, ensure the fixtures follow ANSI C78.377 standards to maintain visual consistency across the entire facility.
Summary Checklist for Specifiers
When evaluating your next warehouse lighting project, use this checklist to ensure the vertical identification needs are met:
- [ ] CRI 80+ Verified: Does the LM-79 report show an average CRI above 80 and a positive R9 value?
- [ ] Vertical Lux Targets: Does the photometric model show at least 15 lux on the highest rack levels?
- [ ] Rebate Eligibility: Is the fixture listed as DLC Premium to maximize ROI through utility subsidies?
- [ ] Thermal Management: Are the LED chips tested under LM-80 standards to ensure color stability over 50,000+ hours?
- [ ] Optic Optimization: Are you using aisle-specific beam angles to minimize light waste?
By bridging the gap between light quantity and spectral quality, facility managers can create an environment that is not just "bright," but optimized for the high-stakes accuracy of modern logistics.
Disclaimer: This article is for informational purposes only and does not constitute professional engineering or electrical advice. Always consult with a licensed electrical contractor or lighting professional for site-specific installations.
