In low-clearance industrial environments—such as automotive repair shops, retail backrooms, and small-scale manufacturing units with ceilings between 10 and 15 feet—lighting selection is often a game of inches. Unlike high-bay warehouses where vertical space is abundant, low-clearance facilities face a "glare trap": installing a fixture with too much raw power too close to the work surface results in excessive brightness, harsh shadows, and worker eye strain.
For facility managers and contractors, the objective is to achieve professional-grade performance (50–75 foot-candles) while maintaining a compact dimensional footprint. Success depends on prioritizing fixture depth, lumen density, and precise optical control over simple wattage. According to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the shift toward slimmer, high-efficacy linear fixtures is driven by the need to resolve the tension between industrial-grade output and space-constrained environments.

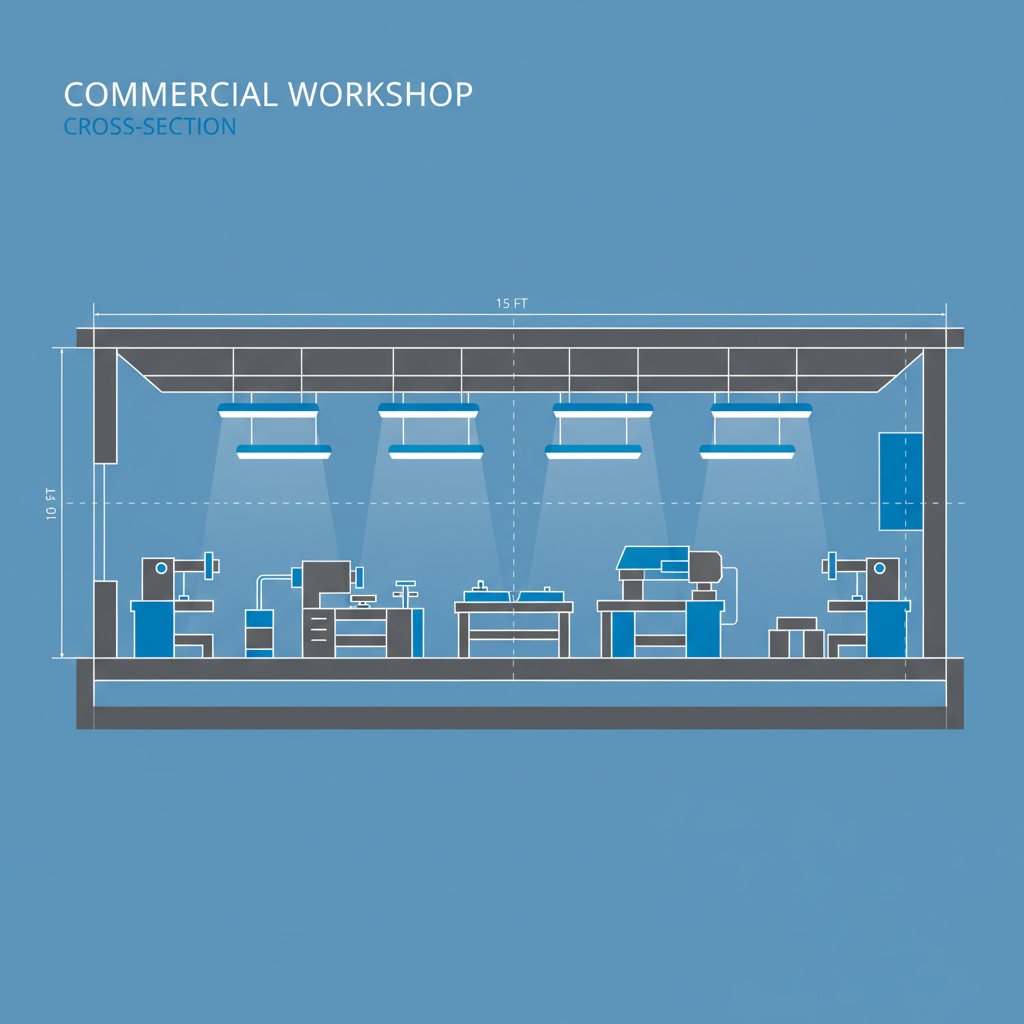

The 12-18 Inch Rule: Establishing Vertical Clearance
The most common mistake in low-clearance retrofits is ignoring the "plenum gap." Professional installers follow a proven heuristic: maintain a minimum clearance of 12–18 inches between the bottom of the lighting fixture and any obstruction, such as HVAC ductwork, fire sprinkler lines, or overhead storage racks.
This clearance serves two critical functions:
- Thermal Management: Even high-efficiency LEDs generate heat. In confined ceiling cavities, air circulation is vital to prevent heat buildup, which is a frequent cause of premature driver failure.
- Service Access: Providing a 12-inch buffer ensures that technicians can access junction boxes and mounting hardware without dismantling adjacent infrastructure.
When working in low-clearance zones, contractors often specify fixtures with a total depth of under 6 inches. This slim profile allows for surface mounting or short-pendant mounting without encroaching on the "headroom" required for equipment like vehicle lifts or forklifts.
Managing the "Glare Trap" in Low Ceilings
In a 12-foot shop, the light source is significantly closer to the human eye than in a 30-foot warehouse. This proximity amplifies the Unified Glare Rating (UGR). A UGR greater than 22 is generally considered uncomfortable for detailed tasks, leading to headaches and reduced productivity.
To mitigate this, the ANSI/IES RP-7-21 Recommended Practice for Lighting Industrial Facilities emphasizes the importance of light distribution and shielding. For mounting heights below 12 feet, using a prismatic diffuser or a micro-prismatic lens is critical. These optics soften the point-source intensity of the LED chips, spreading the light more evenly and reducing direct-view glare.
Dimensional Strategy: Aisle vs. Open Area Layouts
The physical dimensions of the fixture should dictate the layout pattern. For narrow aisles (under 12 feet wide), a common expert practice is to orient 4-foot linear fixtures lengthwise along the aisle rather than across it. This longitudinal alignment provides more uniform light on vertical task surfaces (like shelving) with fewer shadows cast by the worker.
For open work areas, the Spacing-to-Mounting Height (S/H) ratio is the primary calculation tool. For linear high bays with a standard 110° beam angle, a ratio of 0.6 to 0.9 is typically recommended to ensure overlapping light patterns that eliminate "dark spots."
| Ceiling Height (ft) | Recommended Fixture Length | Target Lumen Output | Typical S/H Ratio |
|---|---|---|---|
| 10 ft | 2 ft or 4 ft (Slim) | 10,000 – 13,000 lm | 0.6 - 0.7 |
| 12 ft | 4 ft | 13,000 – 18,000 lm | 0.7 - 0.8 |
| 15 ft | 4 ft | 18,000 – 24,000 lm | 0.8 - 0.9 |
Note: Values are estimated ranges based on common professional practices for general-purpose workshops.
The Financials of Efficiency: ROI and Rebate Potential
In B2B environments, dimensional fit must be backed by a clear financial case. High-efficacy fixtures (measured in lumens per watt, or lm/W) are particularly valuable in tight spaces because they deliver the required illuminance with lower wattage, thereby reducing heat output.
Based on a simulated upgrade of 30 legacy 400W metal halide fixtures to 150W LED linear high bays in a 12-foot shop (operating 2,000 hours/year), the financial impact is substantial.
The "Glass Box" Logic: Upgrade Simulation
- Energy Savings: Switching to LED yields an estimated annual energy saving of $5,174.
- Maintenance Avoidance: Eliminating the need for frequent relamping in hard-to-reach areas saves approximately $1,170 annually in labor and bulb costs.
- HVAC Cooling Credit: Reducing the lighting heat load by over 9,000W saves an estimated $267 in annual cooling costs.
- Rebate Impact: By selecting fixtures listed on the DesignLights Consortium (DLC) Qualified Products List, projects often qualify for utility rebates ranging from $130 to $275 per fixture.
In this scenario, with a mid-range rebate of $6,000, the simple payback period is approximately 4.3 months. This rapid ROI allows small business owners to redirect capital into other facility improvements quickly.
Verification and Compliance Artifacts
For professional contractors, "trust but verify" is the mantra. Every lighting claim must be supported by data-driven artifacts.
- LM-79 Reports: This is the product's "performance report card." According to the IES LM-79-19 Standard, these reports provide verified measurements of total lumens, efficacy, and color rendering. Always request the LM-79 file to ensure the fixture meets the project's specific requirements.
- L70 and TM-21 Calculations: To validate the "50,000-hour lifespan" claim, professionals look at the IES TM-21-21 Standard, which uses LM-80 data to project long-term lumen maintenance.
- Safety Certifications: In commercial settings, UL or ETL listing is non-negotiable for insurance and building code compliance. These marks, governed by standards like UL 1598 for Luminaires, ensure the fixture is electrically safe for permanent installation.
Addressing Regional Energy Codes
When planning a low-clearance project, local energy codes may impose additional requirements:
- California Title 24, Part 6: This is among the strictest codes in the U.S., often requiring multi-level dimming and occupancy sensors for almost all commercial lighting retrofits.
- ASHRAE 90.1 & IECC 2024: These standards set maximum Lighting Power Density (LPD) limits. Using high-efficacy linear high bays (typically >150 lm/W) makes it significantly easier to meet these watts-per-square-foot requirements without sacrificing visibility.
Implementation Checklist for Low-Clearance Shops
Before finalizing a purchase, walk the shop floor with this checklist to ensure a "project-ready" installation:
- [ ] Measure the "Lowest Obstruction": Determine the mounting height based on the lowest pipe or duct, not the roof deck.
- [ ] Confirm Fixture Depth: Ensure the chosen linear high bay is under 6 inches thick to preserve headroom.
- [ ] Check Dimming Compatibility: Ensure the 0-10V dimming leads are compatible with existing or planned sensors to meet IECC or Title 24 codes.
- [ ] Verify DLC Status: Check the DLC QPL for the specific model number to secure utility rebates.
- [ ] Select the Right CCT: For detailed mechanical work or product photography, 5000K (Daylight) is often preferred, whereas 4000K (Neutral White) is standard for general retail or storage.
By focusing on dimensional precision and verified performance data, facility managers can transform cramped, dimly lit shops into high-productivity environments that are both energy-efficient and compliant with modern safety standards.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical or engineering advice. Always consult with a licensed electrical contractor and review local building codes before beginning any lighting installation or retrofit project.
