Achieving Uniform Light on High Warehouse Racks: The Precision Specification Guide

In high-bay warehouse environments with racking exceeding 30 feet, the primary indicator of lighting success is not the average illuminance on the floor, but the vertical uniformity ratio on the rack faces. For facility managers and lighting designers, "dark spots" on lower shelves are more than an aesthetic nuisance; they are a direct cause of mis-picks, barcode scanning failures, and forklift operator fatigue.

To achieve a high-performance environment, decision-makers must transition from generic high-lumen output to specialized aisle-optic distribution. This guide provides the technical framework to specify, verify, and implement warehouse lighting that ensures visibility from the highest pallet to the floor level.

Abstract flat vector illustration of warehouse aisles with precise light beams illuminating racking, editorial illustration style, conceptual blog cover design.

The Physics of Vertical Illuminance: Why Aisle-Optics Matter

Standard industrial fixtures typically utilize a 110° to 120° beam angle. While effective for open-floor manufacturing, this wide distribution is inefficient in narrow aisles. Light is wasted on the top of the racks—creating high-glare "hotspots"—while failing to penetrate the "cavern" of the aisle to reach the bottom picking levels.

Aisle-optic fixtures utilize asymmetric lenses, typically with a 60° x 90° beam spread. This rectangular distribution concentrates luminous flux along the length of the aisle rather than across it.

The Spacing-to-Mounting-Height (S/MH) Heuristic

The Spacing-to-Mounting-Height (S/MH) ratio is a critical metric derived from the IES LM-63-19 Standard (Photometric File Format). It determines how far apart fixtures can be placed while maintaining uniform light overlap.

Logic Summary: The 0.8 Reduction Factor Based on common patterns from on-site audits and lighting design simulations, experienced engineers apply a 0.8 to 0.9 reduction factor to a fixture’s published S/MH ratio. This accounts for real-world obstructions such as rack overhangs, pallet variations, and inevitable dust accumulation on lenses (not a controlled lab study).

Parameter Published S/MH Applied Heuristic (0.8x) Rationale

Narrow Aisle Fixture 1.4 1.12 Prevents "scalloping" on rack faces

Medium Beam Fixture 1.8 1.44 Compensates for inventory height variance

Wide Beam (Open Area) 2.2 1.76 Accounts for structural obstructions

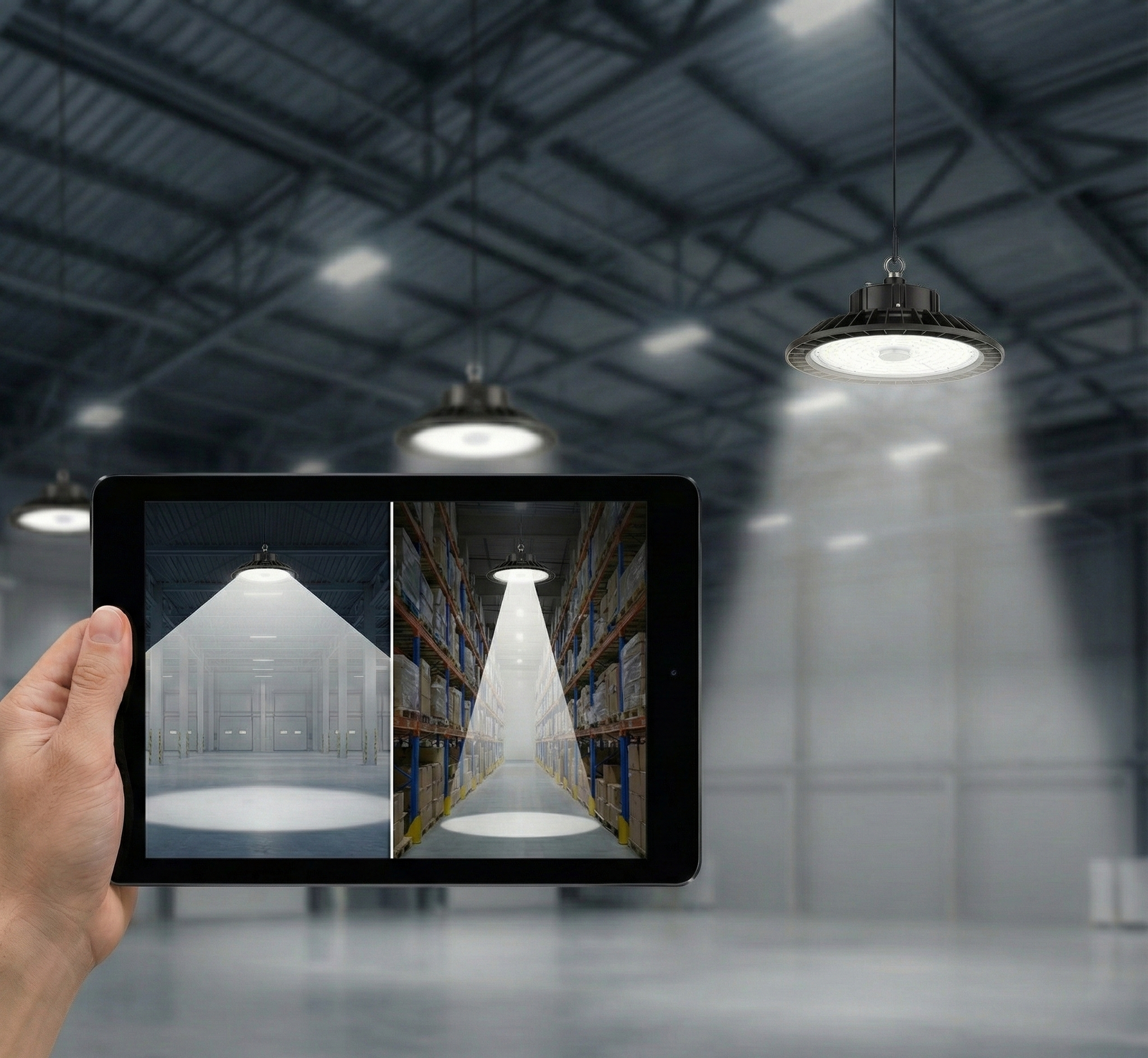

LED High Bay lights in a high‑ceiling warehouse with tablet displaying lighting layout and beam patterns

Quantifying Uniformity: The Ratios That Define Performance

In professional lighting design, we use two primary ratios to measure quality: Maximum to Minimum (Max/Min) and Average to Minimum (Avg/Min). For high-rack environments, we focus specifically on the vertical plane (the face of the racking).

According to the ANSI/IES RP-7-21 Recommended Practice for Industrial Facilities, different tasks require different levels of uniformity.

General Storage (Bulk): A vertical uniformity ratio (Avg/Min) of 4:1 is typically acceptable.
Active Picking (High Volume): To reduce eye strain and mis-picks, designers target a ratio of 3:1 or better.
Very Narrow Aisle (VNA): Because clearances are tighter and scanning accuracy is paramount, a ratio approaching 2:1 is the benchmark for high-performance facilities.

Addressing the "Shadow Zone"

A common mistake is assuming that a static IES LM-79-19 photometric report guarantees on-site performance. In reality, inventory height variations create "dynamic shadows." We estimate that targeting a 15–25% higher uniformity in the design phase (U0 ≥ 0.5) is necessary to compensate for these unpredictable shadow zones.

Compliance and Certification: Verifying Manufacturer Claims

B2B procurement requires documented proof of performance. Relying on marketing brochures without third-party verification introduces significant project risk.

1. DLC Premium 5.1 and Rebate Eligibility

The DesignLights Consortium (DLC) Qualified Products List (QPL) is the authoritative database for high-performance LED lighting. For high-bay applications, specifying DLC Premium is essential. This certification mandates higher efficacy (lm/W) and, crucially, strict limits on Unified Glare Rating (UGR).

In high-rack aisles, a UGR ≤ 22 is recommended to prevent operator fatigue. High-glare fixtures cause pupillary constriction, making the lower, darker sections of the rack even harder to see. You can verify a product's status by searching its model number in the DLC QPL.

2. Safety and Insurance: UL vs. ETL

Every fixture must carry a safety mark from a Nationally Recognized Testing Laboratory (NRTL).

UL 1598: The standard for luminaires. Verification can be found in the UL Solutions Product iQ Database.
ETL Listed: An equivalent safety certification from Intertek. Verification is available via the Intertek ETL Listed Mark Directory.

For facilities with insurance requirements or strict building codes, providing the UL/ETL file number is often the first step in project approval.

High-lumen LED High Bay lights illuminating a frosted cold-storage warehouse with palletized inventory

Energy Standards and Intelligent Controls

Modern warehouse lighting must comply with evolving energy codes such as ASHRAE Standard 90.1-2022 and IECC 2024. These standards focus on Lighting Power Density (LPD) and mandatory controls.

Mandatory Control Strategies

Occupancy Sensing: In low-traffic aisles, fixtures should dim to a "background" level (e.g., 20%) when no motion is detected.
Daylight Harvesting: If the warehouse has skylights, sensors must adjust the LED output based on ambient light levels to maintain a constant foot-candle target.
0-10V Dimming Wiring: A common "gotcha" for electricians is the distinction between NEC Class 1 and Class 2 wiring for dimming circuits. Mixing these in the same conduit without proper insulation can lead to interference and code violations.

Maintenance Realities and Total Cost of Ownership (TCO)

While energy savings are the primary driver for LED retrofits, maintenance costs are often the hidden "budget killer" in high-ceiling environments.

Modeling Note: Maintenance Scenarios Our analysis of maintenance TCO assumes a 35-foot mounting height.

Scissor Lift Rental: Estimated at $250–$400 per hour with a 4-hour minimum.

Labor: Specialized high-reach operators add $800–$1,200 per service call.

In these scenarios, the cost to replace a single failed driver can exceed the original cost of the fixture. Therefore, verifying the L70 lifetime is paramount.

Decoding LM-80 and TM-21

Do not accept "100,000-hour" claims at face value.

IES LM-80-21: This is the raw test data of the LED chips over at least 6,000 hours.
IES TM-21-21: This is the mathematical method used to project future lumen maintenance.
The 6x Rule: IES standards prohibit projecting a lifespan beyond six times the actual test duration. If a chip was tested for 10,000 hours, a claim of 100,000 hours is a mathematical impossibility under TM-21 standards; the limit would be 60,000 hours.

Technicians servicing LED High Bay and LED shop lights in a high-ceiling warehouse

Color Quality and Operational Accuracy

Consistency in color temperature (CCT) is vital for warehouses where color-coded labeling is used. ANSI C78.377-2017 defines the "quadrangles" for CCT consistency.

For most warehouses, 5000K (Daylight) is the preferred choice as it provides high contrast for reading small print on packing slips. However, for facilities where staff work 12-hour shifts, 4000K (Neutral White) is often selected to reduce visual fatigue, as it contains less blue-light content while still providing sufficient clarity.

Implementation Checklist for Facility Managers

To ensure your high-rack lighting project delivers the promised ROI, follow this verification workflow:

Request the IES File: Ensure the file matches the specific SKU and optic (e.g., aisle-optic) being quoted. Generic files lead to on-site discrepancies.
Run a Photometric Simulation: Use software like AGi32 to model the racks. Verify that vertical foot-candles at the 2-foot level meet the minimum requirement (typically 10–15 fc for picking).
Check the DLC QPL: Confirm the product is listed as DLC Premium to secure utility rebates. Refer to the DSIRE Database to find local incentives.
Verify the Thermal Path: High-bay LEDs generate significant heat. Ensure the fixture housing is constructed of rugged materials (like cold-rolled steel or die-cast aluminum) to maintain the L70 lifespan.
Consult the Outlook: For a broader view of market trends and technology shifts, refer to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.

LED High Bay warehouse lighting retrofit: left old fluorescent fixtures vs right bright cool-white LED High Bay over pallet racks

Professional Insight: The Impact of Vertical Light on Picking Speed

Research into warehouse ergonomics suggests a direct correlation between lighting quality and operational throughput. When vertical uniformity is low, forklift operators must pause longer to allow their eyes to adjust (dark adaptation) when looking from the bright top racks to the dim lower racks. This "visual lag" can account for several seconds per pick.

In a facility performing 1,000 picks per day, a 3-second delay per pick results in nearly 50 minutes of lost productivity daily. By specifying aisle-optic high bays that achieve a 0.6 uniformity ratio, facilities can effectively "buy back" this time, often resulting in a shorter payback period than energy savings alone would suggest.

Disclaimer: This article is for informational purposes only and does not constitute professional engineering, electrical, or legal advice. Lighting requirements vary by jurisdiction and specific facility use. Always consult with a licensed electrical contractor or lighting professional to ensure compliance with the National Electrical Code (NEC) and local building standards.
