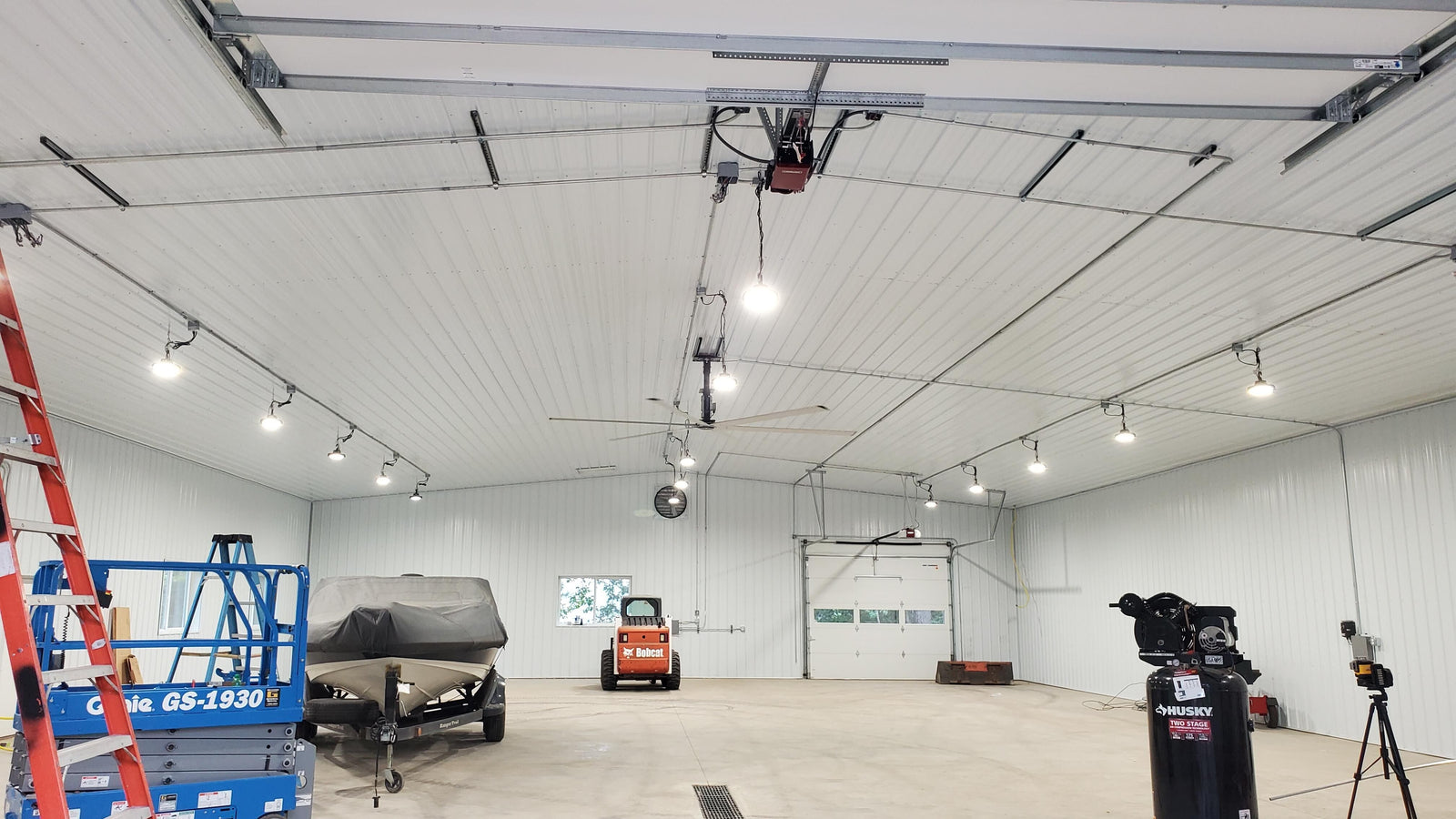

Beyond Brightness: Why Lighting Uniformity is a Critical Warehouse Metric
Walk into any modern warehouse, and you'll likely see bright LED high bay lights. But brightness alone doesn't guarantee a safe or efficient environment. I've been in facilities where the floor directly under a fixture is intensely bright, but the spaces in between or the vertical faces of racking are lost in shadow. These dark zones are where mistakes and accidents happen—a misread label sends a pallet to the wrong city, a forklift operator doesn't see a team member in a dim aisle, or someone trips on an unseen object.
Go beyond simply asking "how bright?" and start asking "how even?". This is the concept of lighting uniformity. It’s the measure of how evenly light is distributed across a target area. Achieving good uniformity eliminates dangerous shadows, reduces eye strain for employees, and directly supports higher productivity and accuracy. It is a fundamental aspect of a professional lighting plan, and as we will explore, it is more about intelligent design than just raw power. Moving from a mindset of just lumens to one of calculated distribution is the first step in creating a truly high-performance facility.
Understanding Lighting Uniformity and Its Impact
Lighting uniformity is a quantitative measure, not a subjective feeling. It is typically expressed as a ratio of illuminance levels, measured in foot-candles (fc) or lux. The most critical metrics for a warehouse are the maximum-to-minimum ratio (Max/Min) and sometimes the average-to-minimum ratio (Avg/Min).
- Max/Min Ratio: This compares the brightest point in an area to the dimmest point. A lower ratio is better. For example, a ratio of 1.5:1 means the brightest spot is only 50% brighter than the dimmest.
- Avg/Min Ratio: This compares the average illuminance across the entire area to the dimmest point. It gives a good sense of the overall feel but can sometimes hide problematic hot spots or dark spots.
For most industrial facilities, a well-designed layout should aim for a Max/Min ratio between 1.5:1 and 3.0:1. The more detailed the task, the more critical a low ratio becomes. According to the Illuminating Engineering Society's recommended practices for industrial facilities (ANSI/IES RP-7), appropriate light levels and uniformity are key to performance and safety.
Why Uniformity is Non-Negotiable
- Enhanced Safety: Even lighting eliminates shadows where hazards can hide. It improves visibility for forklift operators and pedestrians, reducing the risk of collisions. A well-lit space is a core component of a comprehensive warehouse safety plan.
- Increased Productivity: When the eye has to constantly adapt between bright and dark areas, it causes strain and fatigue. Uniform light allows workers to see clearly and comfortably, whether they are picking items from a bin, reading a packing slip, or operating machinery. This leads to faster, more accurate work.
- Improved Quality Control: For inspection tasks, color consistency and detail recognition are vital. Shadows and low-light areas can cause defects to be missed. Uniform illumination ensures that products and labels look the same regardless of where they are in the facility.
Common Causes of Poor Uniformity (And How to Fix Them)
Achieving excellent uniformity requires sidestepping common pitfalls. Many facilities suffer from poor lighting not because of underpowered fixtures, but because of a flawed layout design.
Debunking a Common Myth: More Fixtures Don't Always Mean Better Light
A frequent mistake I see is trying to solve dark spots by simply adding more fixtures or choosing the highest-lumen option available. This often just creates more "hot spots" directly under the new lights, worsens the uniformity ratio, and can introduce significant problems with glare. True uniformity comes from correct placement and beam control.
Cause #1: Incorrect Fixture Spacing
The distance between fixtures relative to their height is the single most important factor in achieving uniform coverage. This is quantified by the Spacing-to-Mounting-Height (S/MH) ratio. Every high bay fixture has a manufacturer-specified S/MH ratio that tells you how far apart they can be placed.
As a rule of thumb based on extensive field experience, you can use the following heuristics:
| Warehouse Zone | Recommended S/MH Ratio | Typical Optic Type |
|---|---|---|
| General Storage / Open Areas | 0.8 – 1.2 | Wide (e.g., 90°-120°) |
| Picking Aisles | 0.6 – 0.8 | Aisle / Narrow |
Exceeding the recommended S/MH ratio is the primary cause of dark spots between fixtures. Always start your design by calculating the maximum allowable spacing based on your mounting height.
Cause #2: The Wrong Optic for the Job
Not all high bays are created equal. The fixture's lens, or optic, shapes how light is distributed. Using the wrong optic is like using a garden hose without a nozzle—you get water everywhere, but not where you need it most.
- Round (UFO) High Bays: These typically have wide beam angles (90° or 120°) that are excellent for open areas like bulk storage, staging zones, and workshops. They distribute light in a broad, circular pattern.
- Linear High Bays with Aisle Optics: For spaces dominated by tall racking, a wide distribution is wasteful. Much of the light spills onto the top of the racks instead of down into the aisle where it's needed. Aisle-optic fixtures create a long, rectangular pattern that pushes light down the vertical faces of the racks and onto the floor, dramatically improving uniformity and visibility for picking operations. Using these specialized fixtures is often the key to solving uneven light in warehouse aisles.
How to Plan for Uniformity with Professional Tools
Moving from guesswork to a predictable, high-performance lighting system requires a professional approach based on photometric planning.
The Power of IES Files
Every reputable commercial lighting manufacturer provides IES files for their products. An IES file, defined by the IES LM-63-19 standard, is a digital fingerprint of a light fixture. It contains thousands of data points describing exactly how the fixture emits light in every direction.
This file allows a lighting designer to simulate a fixture's real-world performance in software. It is the essential bridge between a product's lumen specification and the actual foot-candles that will land on a surface.
Planning for Light Loss Over Time
A brand-new installation will always be brighter than it will be a few years later. Two factors contribute to this light loss:
- Lumen Depreciation: Over thousands of hours of operation, the light output of an LED chip slowly decreases. The rate of this decay is tested and documented using standards like IES LM-80-21.
- Dirt Depreciation: Dust and grime accumulate on fixtures, blocking light from escaping.
Professional designers account for this by applying a Light Loss Factor (LLF), also called a maintenance factor, during the planning phase. For a typical warehouse, a maintenance factor of 0.70 to 0.85 is common. This means the initial design targets a light level that is 15-30% higher than the minimum required level to ensure performance throughout the fixture's life.
A Practical Framework for a Uniform Layout
Designing a layout from scratch involves a clear, repeatable process that relies on a combination of established standards and photometric simulation.
Target Illuminance Levels by Warehouse Task
First, define the lighting needs for each area. Different tasks require different light levels. These targets are for maintained illuminance, meaning the level after light loss is factored in.
| Task Area | Maintained Illuminance | Primary Goal |
|---|---|---|
| Bulk Storage / Staging | 10–20 fc (100–215 lux) | Safe navigation |
| Order-Picking / Packing | 30–50 fc (320–540 lux) | Accuracy and speed |
| Inspection / Quality Control | 75–100 fc (800–1,075 lux) | High detail visibility |
Step-by-Step Design Checklist
- Define Requirements: Map your facility and assign a target foot-candle level to each zone based on the tasks performed.
- Select Fixture & Optic: Choose a fixture type (e.g., UFO or linear) and an optic (e.g., wide or aisle) that matches the geometry of the space.
- Obtain IES Files: Download the specific IES file for the chosen fixture directly from the manufacturer.
- Model the Space: Using lighting design software (like AGi32 or equivalent), create a 3D model of your warehouse, including ceiling height, rack dimensions, and surface reflectances.
- Simulate & Analyze: Place the fixtures in the model based on the S/MH ratio. Run the calculation to generate a point-by-point illuminance grid and check the Max/Min uniformity ratio.
- Iterate and Refine: If uniformity is poor, don't just add more lights. Adjust spacing, change to a different optic, or try a different wattage. Re-run the simulation until the targets are met.
- Verify Post-Installation: Once installed, use a calibrated light meter to take as-built measurements and confirm the design was successful. These records are invaluable for validating the project and for utility rebate applications.
Key Takeaways
Achieving superior lighting in a warehouse is a science. Moving beyond a simple focus on brightness and embracing the principles of uniformity will deliver significant returns in safety, productivity, and operational accuracy.
The core principles are straightforward:
- Measure Uniformity: Use the Max/Min ratio as your key performance indicator, aiming for a value under 3.0:1 for most areas.
- Choose the Right Tool: Match the fixture's optic (e.g., wide vs. aisle-optic) to the specific area you are illuminating.
- Plan with Data: Never guess. Use the manufacturer's IES files and photometric software to model your layout and verify performance before purchasing a single fixture.
By following a structured design process, you can create a lighting system that is not only bright but also consistently and effectively illuminates every corner of your facility.
Frequently Asked Questions (FAQ)
What is a good lighting uniformity ratio for a warehouse?
For general areas like bulk storage, a maximum-to-minimum ratio of 3.0:1 is acceptable. For more active areas like picking aisles or packing stations, a ratio of 2.0:1 or even 1.5:1 is preferable to reduce eye strain and improve accuracy.
How do I fix dark spots between my high bay lights?
The most common cause is that the fixtures are spaced too far apart for their mounting height. Check the fixture’s specified Spacing-to-Mounting-Height (S/MH) ratio. Reducing the distance between fixtures or switching to a fixture with a wider beam angle can solve the problem. Do not assume adding more lights is the answer, as this can worsen uniformity and create glare.
Do I need software to plan my warehouse lighting?
For any space larger than a small workshop, using photometric layout software is highly recommended. It is the only way to accurately predict illuminance levels and uniformity before installation. Many lighting manufacturers and distributors offer layout assistance services using these tools.
How does mounting height affect uniformity?
Mounting height is a critical variable. The higher the fixture, the wider the light spreads on the floor, which can help improve uniformity if the fixtures have enough power. However, mounting height directly impacts the maximum allowable spacing (via the S/MH ratio) and the number of fixtures required. It is a key input for any lighting calculation.
Disclaimer: This article is for informational purposes only. Lighting design for commercial and industrial facilities should be performed by a qualified professional. All electrical work must comply with the National Electrical Code (NEC) and all applicable local building and safety codes. Consult a licensed electrician for all installations.
