The Vertical Illuminance Mandate: Why Floor Lux is a Deceptive Metric

In high-density warehousing, the most expensive mistake a facility manager can make is specifying a lighting layout based solely on average horizontal foot-candles (fc) at the floor level. While a floor might be bathed in a bright 50 fc, the vertical faces of the racking—where barcodes are scanned and labels are read—often suffer from severe "light starvation."

The core objective of industrial lighting design is not to illuminate the concrete, but to provide visual acuity across the entire vertical gradient of the storage system. According to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the industry is shifting toward "Aisle-Centric" metrics. Practitioners find that starting with a target of 30–40 foot-candles at the lowest rack level and maintaining a maximum 2:1 ratio from the top shelf to the floor prevents the shadowing and mis-picks that plague generic lighting setups.

In this technical guide, we analyze how to use Illuminating Engineering Society (IES) data and specialized aisle optics to balance lux levels from the top shelf to the floor, ensuring safety, compliance, and operational efficiency.

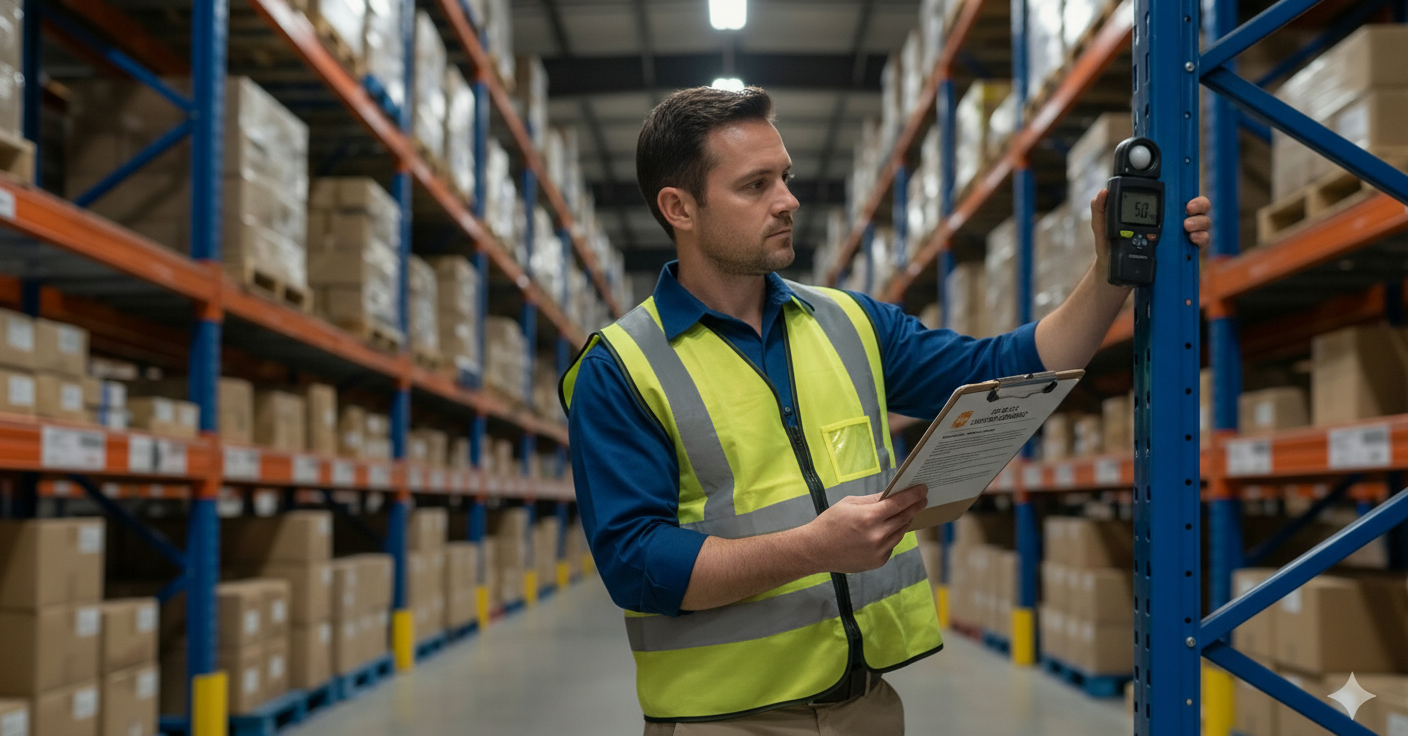

A warehouse facility manager using a light meter to verify vertical illuminance on rack faces, ensuring compliance with IES RP-7 standards.

Vertical Lux Targets: The 2:1 Uniformity Rule

The Illuminating Engineering Society (IES) provides the foundational framework for industrial lighting in ANSI/IES RP-7-21, Lighting Industrial Facilities. However, a common pitfall is ignoring the "Vertical-to-Horizontal" (V:H) ratio.

For high-activity picking environments, we typically recommend the following targets based on common patterns from project audits and facility feedback (not a controlled lab study):

Recommended Illuminance Targets for Racking Systems

Location	Target Illuminance (Foot-candles)	Target Illuminance (Lux)	Rationale
Top Shelf	60–80 fc	645–860 lux	High proximity to light source; requires glare control.
Mid-Level	40–50 fc	430–540 lux	Optimal range for standard barcode scanning.
Floor Level (Lowest Rack)	30–40 fc	320–430 lux	Minimum threshold to prevent "cave effect" and mis-picks.
Aisle Floor	20–30 fc	215–320 lux	Sufficient for safe forklift and pedestrian transit.

Logic Summary: These targets are derived from a heuristic model assuming a standard 30-foot mounting height and 8–10 foot aisle widths. The goal is to maintain a vertical lux ratio of no more than 2:1 between the top and bottom picking faces.

When the ratio exceeds 3:1, the human eye struggles to adapt quickly as a picker moves their gaze from a bright top shelf to a dark bottom shelf. This transient adaptation period increases the risk of errors and slows down cycle times. Achieving Uniform Light on High Warehouse Racks requires a departure from standard symmetric high bays toward aisle-specific distributions.

The Physics of Aisle Optics: Type V Asymmetric Distribution

Standard industrial fixtures typically feature a circular, symmetric beam pattern. While effective for open-area manufacturing, these fixtures waste significant lumen output on the top of the racks (where light isn't needed) while failing to penetrate the deep "canyon" of a narrow aisle.

To solve this, we specify Aisle-Optic (Type V Asymmetric) distributions. These optics utilize a 60°x90° or 30°x70° beam spread.

Lateral Projection: The optics "stretch" the light along the length of the aisle rather than wasting it in a circle.
Vertical Punch: By narrowing the beam across the aisle, more light is directed onto the rack faces rather than being absorbed by the dark tops of palletized goods.
Glare Reduction: Specialized optics often include shielding to reduce high-angle glare, which is critical for forklift operators looking upward toward the top shelves.

In practice, mounting fixtures centered on the aisle, not directly over racks, is critical. We often see installations where fixtures are placed over the racking to "save space," but this results in heavy shadowing on the picking face and creates a hazardous environment for maintenance personnel. For more on fixture placement, see our guide on Managing Rack Shadows: UFO Placement for High-Density Warehousing.

Compliance and ROI: Navigating DLC 5.1 and ASHRAE 90.1

Specifying high-performance lighting isn't just about visibility; it’s about meeting the stringent energy codes that govern modern B2B projects.

DLC Premium and Utility Rebates

The DesignLights Consortium (DLC) Qualified Products List (QPL) is the primary gatekeeper for utility rebates. To qualify for "Premium" status, a fixture must demonstrate high efficacy (typically >140 lm/W) and meet strict requirements for ANSI C78.377-2017 chromaticity consistency.

Using a DLC Premium fixture can often cover 30–70% of the initial hardware cost through local utility incentives. You can verify local programs via the DSIRE Database.

Energy Standards: ASHRAE and IECC

For new construction or major retrofits, compliance with ASHRAE Standard 90.1-2022 or IECC 2024 is mandatory in most US jurisdictions. These codes limit the Lighting Power Density (LPD)—the number of watts allowed per square foot.

Methodology Note: Our LPD modeling assumes a warehouse "storage" classification. Under ASHRAE 90.1, the allowed LPD has decreased significantly over the last decade. High-efficacy LED fixtures with integrated controls (occupancy and daylight harvesting) are the only viable way to meet these targets while maintaining the 30–40 fc vertical lux requirement.

Validation: IES Files and Field Measurement

A common mistake is trusting a "rule of thumb" spacing without verifying it through simulation. Lighting designers should always request the IES LM-63-19 photometric data files (commonly known as .ies files) for every fixture considered.

Modeling vs. Reality

Software like AGi32 allows for a digital twin of the warehouse. However, simulations often overestimate performance because they assume a "clean" environment. In our experience, facility managers should apply a Light Loss Factor (LLF) of at least 0.85 to account for:

Lamp Lumen Depreciation (LLD): Based on IES TM-21-21 projections.
Luminaire Dirt Depreciation (LDD): Dust accumulation on the lens, especially in non-IP65 rated fixtures.
Rack Obstructions: Pallet overhangs that aren't factored into basic box-model simulations.

The Vertical Lux Audit

Once the installation is complete, a field audit is essential. Use a calibrated lux meter and measure on a vertical target (like a white card) at the following heights:

Level 1: 2 feet above finished floor (AFF).
Level 2: 10 feet AFF.
Level 3: 20 feet AFF.
Level 4: Top shelf level.

If the Level 1 measurement is below 30 fc while the Top Shelf is above 100 fc, the distribution is too wide, and the aisle will suffer from poor picking accuracy at the bottom. For a deeper look at safety standards, refer to Designing a High Bay Layout for Warehouse Safety.

Durability and Safety Standards: UL 1598 and IP65

In warehouse environments, fixtures are subject to vibration, dust, and occasionally, moisture.

UL 1598 / ETL Listed: This is the baseline safety requirement for luminaires in North America. It ensures the fixture won't cause an electrical fire or structural failure under standard use. Always verify certificates via the UL Product iQ Database.
IP65 Rating: Defined by IEC 60529, an IP65 rating means the fixture is "dust-tight" and protected against water jets. In a warehouse, this prevents the "chimney effect" where heat draws dust into the fixture, coating the LEDs and reducing output over time.
IK08/IK10 Rating: For aisles where forklifts operate in tight quarters, an IK mechanical impact rating is recommended to ensure the housing can withstand accidental strikes.

Scenario Analysis: Standard Warehouse vs. High-Density Cold Storage

To demonstrate how these principles apply in different environments, we have modeled two common B2B scenarios.

Scenario A: Standard Dry Distribution Center

Ceiling Height: 35 feet.
Aisle Width: 10 feet.
Requirement: High-speed picking, barcode scanning at all levels.
Solution: Linear aisle-optic fixtures with a 60°x90° distribution.
Result: Maintains ~35 fc at the bottom rack with an LPD of 0.45 W/sq.ft, well within IECC 2024 limits.

Scenario B: High-Density Cold Storage

Ceiling Height: 45 feet.
Aisle Width: 8 feet (Narrow Aisle).
Requirement: Instant-on at -20°F, extreme vertical uniformity.
Solution: High-lumen output fixtures with narrow 30°x70° optics.
Result: The narrow optics "punch" through the cold-storage mist to provide 40 fc at the floor level. The fixtures must be IP65-rated to handle condensation during defrost cycles.

Logic Summary: These scenarios assume a 0.90 reflectance for walls and 0.20 for floors. In real-world applications, dark pallet racking or dusty floors will require a ~10-15% increase in lumen output to achieve the same results.

Final Decision Framework for Facility Managers

When planning your next warehouse lighting project, prioritize the vertical picking face over the floor. A successful design follows this pragmatic checklist:

Define the Activity Gradient: Is picking happening at all levels, or is the top for bulk storage only?
Target the Bottom: Aim for 30–40 fc at the lowest rack shelf.
Control the Ratio: Ensure the top-to-bottom vertical lux ratio is less than 2:1.
Demand IES Data: Never purchase a fixture for a warehouse project without reviewing its .ies file in a simulation tool like AGi32.
Verify Compliance: Ensure the fixtures are DLC Premium for rebate eligibility and UL/ETL listed for insurance and building code compliance.

By focusing on vertical illuminance and aisle-specific optics, you transition from simply "buying lights" to "engineering a productivity tool." For more technical insights on fitting fixtures into specialized spaces, see our guide on Fitting Linear High Bays in Low-Clearance Shops.

Disclaimer: This article is for informational purposes only and does not constitute professional engineering, electrical, or legal advice. Always consult with a licensed electrical contractor and local building authorities to ensure your lighting design meets the specific safety and energy codes of your jurisdiction.
