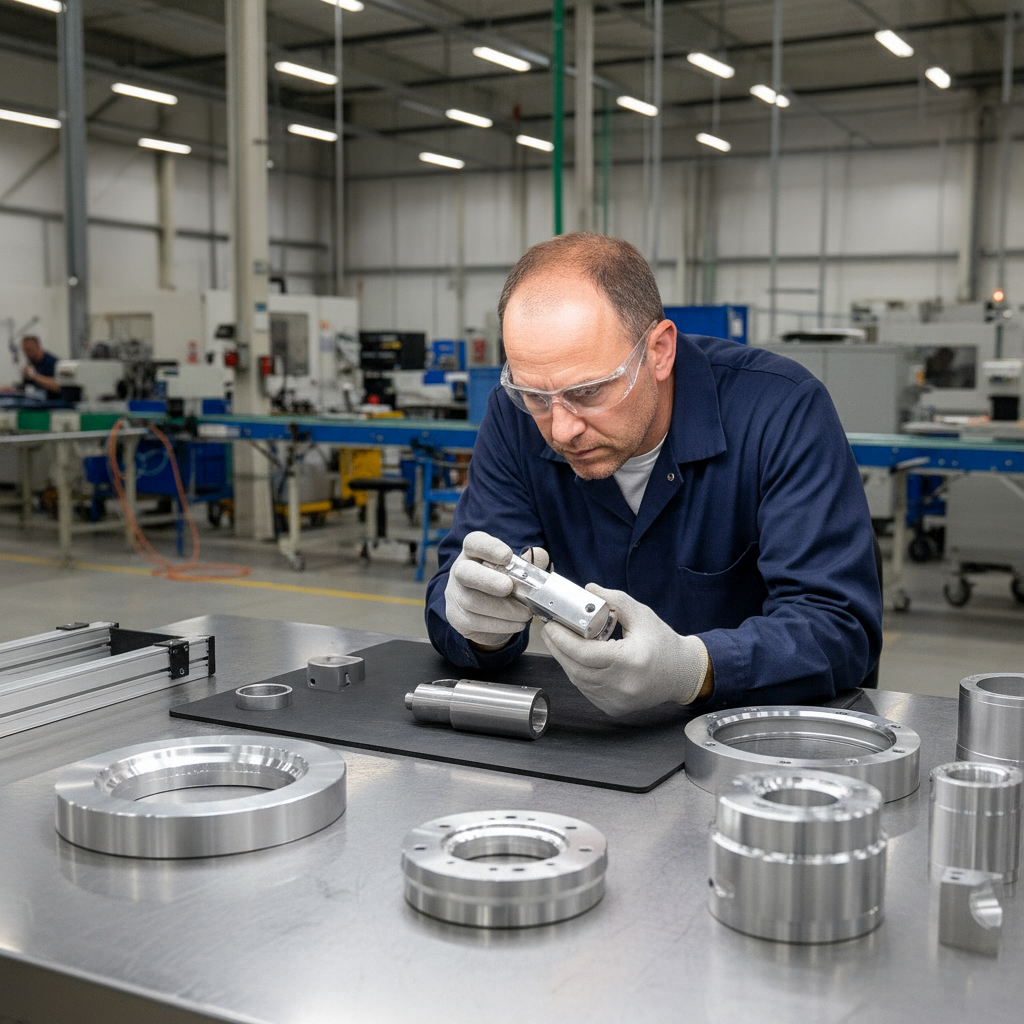

The Criticality of Visual Acuity in Quality Control
In high-precision manufacturing and quality control (QC) environments, the margin for error is often measured in microns or subtle color variances. For facility managers and lighting designers, providing "enough light" is no longer the benchmark. The objective has shifted toward optimizing visual acuity—the ability of the human eye to discern fine detail and contrast without fatigue.
According to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the integration of task-specific lighting metrics is the primary driver of operational efficiency in modern industrial sectors. Two metrics stand at the forefront of this evolution: Unified Glare Rating (UGR) and Color Rendering Index (CRI). While a standard warehouse might function adequately with generic high-lumen output, a QC area requires a sophisticated balance of low glare and high color fidelity to prevent the cognitive load associated with visual strain.
Understanding UGR (Unified Glare Rating) in Industrial Contexts
Unified Glare Rating (UGR) is an approximate model of the psychological sensation of discomfort glare produced by luminaires in an indoor environment. Unlike lumens (total light output) or foot-candles (light falling on a surface), UGR is a room-based metric. It factors in the luminance of the light source, the background luminance, and the position of the viewer.
The UGR <19 Benchmark
For precision tasks, industrial standards such as ANSI/IES RP-7-21: Lighting Industrial Facilities recommend a UGR of 19 or lower. In extremely sensitive environments, such as electronics inspection or paint matching, expert consensus often pushes this target even lower, to UGR <16, to achieve "Good Glare Control."
Methodology Note: UGR Modeling Assumptions Our analysis of UGR effectiveness in QC zones assumes a standard rectangular room with the following parameters:
Parameter Value / Range Unit Rationale Ceiling Height 20 Feet Standard mid-bay industrial height Reflectance (Ceiling/Wall/Floor) 70/50/20 % Typical clean-room or QC finish Viewer Position 4 Feet Seated or standing task height Fixture Spacing 12–15 Feet Aligned with 1.2–1.5 Spacing-to-Height ratio Background Luminance 300–500 Lux Ambient fill light requirements Boundary Conditions: This model may not hold in spaces with highly polished stainless steel floors or glass partitions, where secondary reflections can bypass the fixture's primary glare control.
The Mechanism of Glare Control
Achieving a low UGR is not simply about dimming the light. It requires "intelligently controlled light." High-performance industrial fixtures utilize deep reflectors or micro-prismatic lenses to shield the light source from the viewer's direct line of sight. This reduces the "source luminance"—the intensity of the light at the point of origin—while maintaining high "illuminance" on the work surface.
The CRI/UGR Interdependence: Balancing Accuracy and Comfort
A common mistake in industrial specification is treating CRI and UGR as independent variables. In reality, they are coupled through the physics of LED phosphor blends.
Why CRI 90+ is Non-Negotiable
Color Rendering Index (CRI) measures how accurately a light source reveals the true colors of an object compared to natural sunlight. For QC tasks involving color-coded wiring, circuit board soldering, or automotive finish inspection, a CRI of 90+ is essential. A lower CRI (e.g., 80) can "muddy" subtle color differences, leading to inspection failures.
However, increasing CRI typically requires a denser phosphor coating on the LED chips, which can reduce the overall luminous efficacy (lumens per watt). To compensate and reach the required lux levels for precision work (often 750–1000 lux), specifiers might be tempted to use higher-wattage fixtures. If these fixtures lack superior optical control, the increased brightness can negatively impact the UGR, creating a "bright but blinding" environment.
Scenario Analysis: Standard Warehouse vs. Precision QC
- Scenario A (The Standard Warehouse): Focuses on high-lumen output and broad distribution. UGR 22–25 is often tolerated because workers are mobile and looking at large objects (pallets).
- Scenario B (The Precision QC Station): Focuses on visual comfort. High-output fixtures are paired with prismatic diffusers to achieve UGR <19. High CRI (90+) is prioritized to ensure that technicians can identify micro-cracks or color deviations instantly.
As noted in A Specifier’s Guide to Low-UGR High Bay Lighting, the synergy between these two metrics directly correlates to a reduction in "re-work" rates in manufacturing.
Design Heuristics for High-Precision Zones
When laying out a QC area, designers should follow established "rules of thumb" derived from practical field experience and patterns observed in facility audits.
The 1.2–1.5 Spacing-to-Height Ratio
To maintain uniformity while controlling glare, aim for a spacing-to-height (S/H) ratio of 1.2 to 1.5. For a 20-foot mounting height, fixtures should be spaced approximately 24 to 30 feet apart. Spacing fixtures too far apart creates "hot spots" and deep shadows, which forces the eye to constantly readjust its pupil size—a leading cause of ocular fatigue.
Zoned Control and Dimming
Precision work often requires different light levels depending on the specific task. Implementing 0-10V dimming, compliant with NEMA SSL 7A, allows technicians to calibrate their environment.
Checklist: QC Lighting Self-Audit
- Verify LM-79 Reports: Ensure the fixture's performance is backed by an IES LM-79-19 report, which validates the actual lumen output and color temperature.
- Check DLC Premium Status: Cross-reference the DesignLights Consortium (DLC) QPL to ensure the fixture meets the highest efficacy standards.
- Confirm Safety Compliance: Look for the UL 1598 mark for general luminaire safety and FCC Part 15 to prevent electromagnetic interference with sensitive QC equipment.
- Assess Uniformity: Use a light meter to ensure the ratio between the brightest and darkest spots on the workbench does not exceed 3:1.
Compliance and Rebate Strategy
For B2B professionals, lighting is an investment that must be justified through Return on Investment (ROI). Compliance with energy codes like ASHRAE Standard 90.1-2022 or California Title 24 is the baseline.
Leveraging Utility Rebates
High-performance lighting that meets "DLC Premium" requirements often qualifies for substantial utility rebates. According to the DSIRE Database, many utility companies offer incentives ranging from $40 to $80 per fixture for LED retrofits that exceed 140 lumens per watt and include integrated controls. In a facility with 100 fixtures, this can represent a $6,000–$8,000 reduction in upfront costs, significantly shortening the payback period.
ROI and Productivity Analysis
The financial impact of task-specific UGR lighting extends beyond energy savings. In a QC environment, the "cost of quality" is the most significant variable.
Impact of Visual Comfort on Error Rates
While exact percentages vary by industry, research indicates that optimized lighting conditions enhance attention focus and cognitive performance (ScienceDirect). By reducing glare (UGR <19), a facility can mitigate the "after-image" effect and headaches that plague technicians working under unshielded LEDs.
Logic Summary: The Productivity Multiplier We estimate the impact of low-UGR lighting based on common patterns from customer support and warranty feedback (not a controlled lab study). If a QC technician processes 200 units per shift and the error rate drops from 2% to 1.5% due to better visual acuity, the facility saves 1 unit of re-work per day. Over a 250-day work year, this equates to 250 units of saved material and labor costs.
Long-Term Reliability
When selecting fixtures for a high-intensity QC zone, durability is paramount. Ensure that the LED chips have a documented IES LM-80 report and that the projected lifetime ($L_{70}$) is calculated using the IES TM-21 method. A fixture rated for 50,000+ hours ensures that the light quality (CCT and CRI) remains stable over several years, preventing the "color shift" that can compromise inspection standards.
For more on the economic benefits, see The ROI of Low-UGR Lighting in Warehouse Operations.
Frequently Asked Questions
Can I achieve UGR <19 with standard high bay lights? In most cases, standard "bare-chip" high bays will have a UGR of 22–25. To reach UGR <19, you typically need to add a prismatic reflector or select a fixture specifically designed with deep-recessed optics.
Is 5000K or 4000K better for QC areas? 5000K (Daylight) is generally preferred for QC and detail-oriented tasks as it provides higher contrast. However, ensure the CCT is consistent across all fixtures by checking for ANSI C78.377 compliance.
How do I verify the UGR of a fixture before buying? Request the IES file (.ies) from the manufacturer. Professional lighting designers use software like AGi32 to calculate the UGR based on your specific room dimensions.
What is the difference between UL Listed and UL Recognized? A "UL Listed" fixture is certified as a complete, safe product ready for installation. "UL Recognized" usually applies to internal components like the LED driver. For building code compliance, always prioritize UL Listed fixtures.
YMYL Disclaimer: This article is for informational purposes only and does not constitute professional engineering, electrical, or safety advice. Lighting requirements vary significantly based on local building codes and specific industrial hazards. Always consult with a licensed electrical contractor or lighting professional before implementing a new lighting layout or retrofit.
