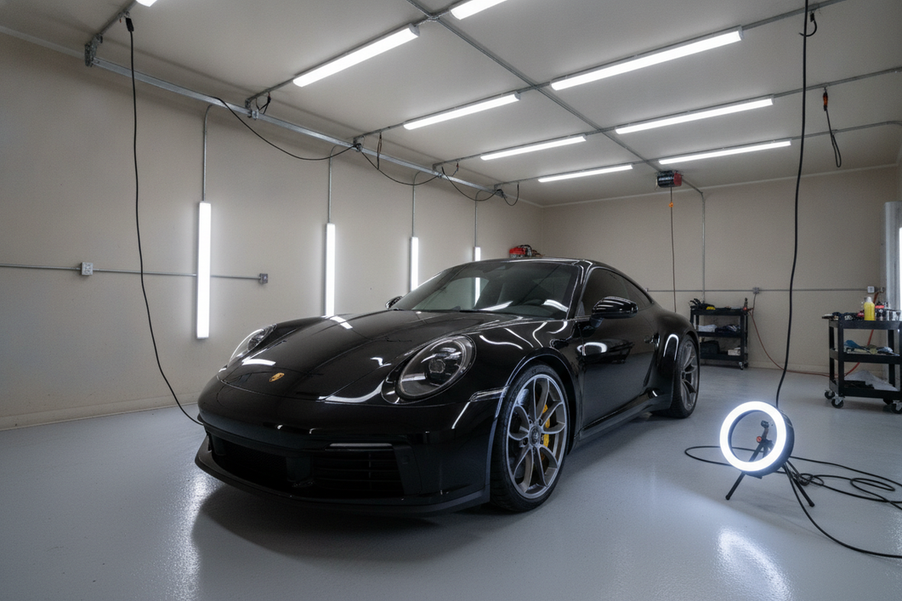

A useful detailing bay lighting setup has three jobs: broad overhead coverage for routine work, side lighting that changes the reflection on vertical and curved panels, and a portable light for close confirmation. This layered approach makes swirls, haze, texture changes, and residue easier to assess without treating one bright reflection as proof that the finish is clean.
Start by mapping those roles around the vehicle, then test the actual panels. There is no reliable universal spacing, lumen target, color setting, or fixture count for every garage and finish. The right layout depends on the vehicle, bay dimensions, panel curvature, ambient reflections, and the viewing path available. That vehicle-specific check matters more than copying a generic detailing bay light layout.
Build a Three-Zone Lighting Layout Around the Panel You Need to Inspect
Use overhead light as the working baseline, side light to create a different readable reflection, and handheld light to confirm areas that remain ambiguous. The source, glossy panel, and observer create changing geometry, so moving either the source or the viewer changes the reflected image, as described in the IES explanation of specular angle.
| Bay zone | Primary role | Placement decision |
|---|---|---|
| Overhead working zone | Broad, repeatable visibility across the vehicle and work area | Keep the normal work path readable while watching upper panels for a reflected image that washes out detail. |
| Side-panel inspection zone | A changed reflection on doors, fenders, curves, and other vertical surfaces | Place the source where the observer can see a different panel condition, not where one fixture reflection fills the surface. |
| Viewer and handheld path | Close confirmation of shadowed, recessed, curved, or suspected areas | Leave a clear route for changing your viewing position and bringing a portable source to the area without making it the only inspection condition. |
Use Overhead Light as the Working Baseline
Overhead lighting gives the bay a repeatable starting condition for washing, correction, coating preparation, and post-service checks. It should make the work area usable across the vehicle, but brightness alone does not show that glossy paint is free of defects. On a hood or roof, look for a reflected fixture image that dominates the panel and reduces useful contrast around it.
One fixed example is the 3-grid garage light layout. The available information for this specified model lists a 3-grid layout measuring 5.1 × 5.0 feet, 105 watts, 10,500 lumens, 6500K CCT, and power-switch dimming at 100%, 60%, and 30%. Those details describe that configuration only. They do not establish a universal bay layout or guarantee defect visibility.
Use Side Light to Move the Panel Reflection
Side lighting earns its place when the overhead condition leaves a door, fender, rocker panel, or curved section difficult to read. Move the source or the observer until the panel shows a different reflection. Wall color, nearby fixtures, panel curvature, and bay openings can all change what appears on the paint, so side-light placement is specific to the vehicle and site.
For a multi-bay shop, the multi-bay lighting planning guide is a relevant follow-up for organizing a larger installation. It is a planning resource, not an exact prescription for fixture count or spacing.
Use Handheld Light for Confirmation
Use a portable or handheld source after the fixed arrangement identifies a suspicious swirl, haze, texture change, residue area, or shadowed section. Its job is to create a close, movable confirmation condition. Compare what you see with the normal bay view so a narrow beam or unusually close reflection does not become the sole basis for accepting or rejecting the finish.
Change the Reflection Path Before Increasing Brightness
When a glossy panel is dominated by a bright reflected source, change the relationship between the source and observer before adding more output. IES defines reflected glare from high-luminance reflections in polished or glossy surfaces as a viewing problem, and a bright reflected image can interfere with the detail you are trying to inspect.
The same issue can appear as veiling reflection. A reflected bright image can reduce contrast and obscure surface detail, so a hotspot should not be treated as evidence that the paint beneath it is clean. Diagnose it in this order:
- Move your viewing position and see whether the apparent defect or bright patch changes with the reflected image.
- Reposition the relevant source, or change its direction, so the fixture no longer dominates the panel.
- If the source remains useful but too intense, try the fixture's supported dimming or diffusion options. Control competing ambient reflections where practical.
- Recheck the area under another readable condition. If the surface still looks different, use a handheld light for close confirmation.
The high-bay glare fixes resource covers general glare-management concepts such as lenses, diffusers, and dimming. Apply those ideas to the visibility problem without assuming that a particular control will solve every vehicle, panel curve, or bay.
Choose Fixed or Portable Lighting by the Inspection Task
Choose fixed lighting when you need a repeatable bay condition, portable lighting when you need to investigate a specific area from a new position, and both when broad coverage and close confirmation are part of the same workflow. Let the inspection task drive the choice, not a brightness contest.
| Lighting role | Best inspection task | Limitation or check |
|---|---|---|
| Fixed overhead | Normal work coverage and a consistent starting condition across the vehicle | A fixture reflected in a hood or roof can wash out detail. Test upper panels from more than one position. |
| Fixed side | Creating an alternate reflection on doors, fenders, curves, and vertical panels | Its useful position changes with the vehicle, wall reflections, bay width, and observer path. |
| Portable or handheld | Close confirmation of recessed, curved, shadowed, or suspected areas | It is a confirmation layer, not the only basis for judging the finish. Compare it with the normal bay condition. |
Features matter only when they change that task. Dimming can help reduce a dominant source when the fixture remains useful. A controllable side position can create a second readable condition. Portability helps when the fixed sources cannot reach a recess or when the observer needs to change the reflection path. For a starting point when comparing a shop LED light, browse LED garage light options, then match the specific fixture's documented details to the role you need rather than assuming collection-level inspection performance.
Run an Angle-Change Inspection Before Accepting the Finish
Use the same short workflow whenever you install, move, or dim lighting. It is a practical inspection method, not a validated performance standard, and it does not prove perfect color judgment or guarantee that every defect will be found.
- Inspect representative areas of the hood, roof, and side panels under the normal overhead arrangement. Include the finish and panel shapes that matter in your work, such as a glossy clearcoat or coated surface.
- Change your viewing angle and note whether the fixture reflection moves, expands, or masks the detail you were trying to see. Changing the source or observer changes the reflected image because the three positions are related.
- Reposition or dim the relevant source, then repeat the view. A readable panel should remain interpretable under more than one useful condition, rather than only at one carefully chosen angle.
- Bring in handheld light to confirm a suspected swirl, haze, texture change, or residue area. Use it to investigate the finding, not to replace the normal bay view.
- Recheck a corrected or coated panel under the normal arrangement. Stop and correct the setup before accepting the result when direct glare, mixed reflections, an unreadable panel, an obstructed walkway, or unsafe temporary wiring prevents a reliable view.
The practical answer is to build the bay around changing reflection conditions, not maximum brightness: overhead for repeatable coverage, side lighting for a different panel view, and handheld light for confirmation. Test that arrangement on the actual vehicle before committing to a larger installation or fixture pattern.
FAQs About Detailing Bay Lighting
These questions cover the practical choices behind a detailing bay lighting setup, including fixture roles, hotspot diagnosis, and adapting the layout to a small garage.
What lights do detailers use to see paint defects?
Detailers may combine broad fixed coverage, a side or directional condition, and a portable light for spot confirmation. The useful choice depends on the panel and reflection path, so a fixture that looks effective on one finish or bay may need a different position on another.
How do you see swirls and haze on glossy car paint under lights?
View the panel from more than one position, change the dominant reflection, and then use a portable source to confirm a suspected area. If the apparent defect changes only when the fixture reflection moves, solve the viewing condition before treating it as a paint finding.
Why do detailing lights create reflections and hotspots?
Glossy paint reflects the fixture and surrounding bay. Direct alignment, panel curvature, source position, and observer angle can make that reflected image dominate the surface, reducing contrast and making detail harder to read.
How do I choose lighting for a small detailing garage?
Map the three roles to the vehicle and the viewing path you actually have. In a tight garage, begin with one repeatable overhead condition, add a movable side or handheld source, and test the hood, roof, and side panels instead of copying a fixture pattern designed for another space.
