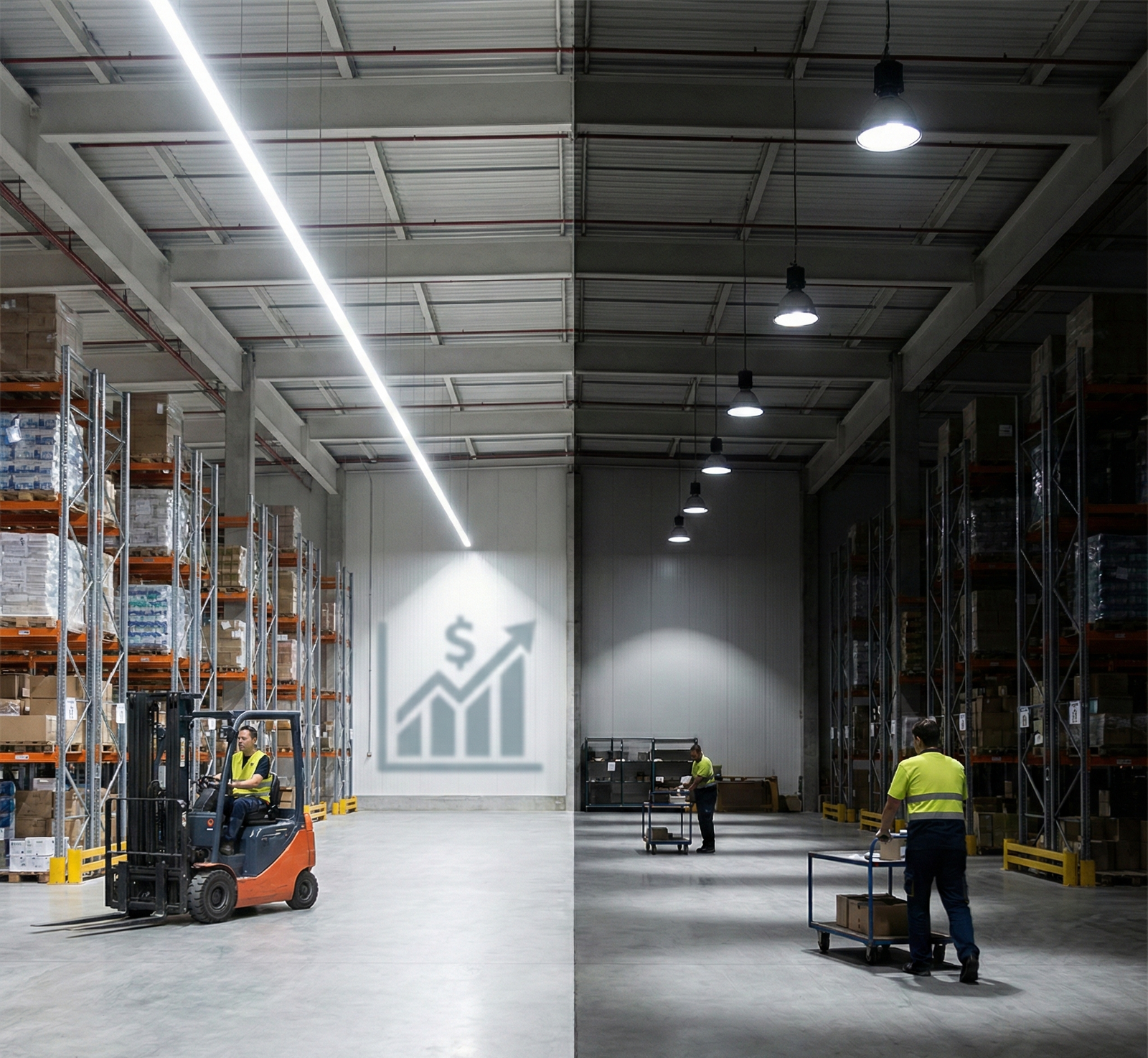

The Critical Role of Vertical Illuminance in Industrial Safety
In the high-stakes environment of a modern warehouse, safety is often measured by the light on the floor. Facilities managers frequently point to high horizontal footcandle (fc) readings—the amount of light hitting the ground—as proof of a well-lit space. However, for a forklift operator attempting to identify a pallet 20 feet up a racking system or a picker scanning a barcode on a vertical face, horizontal light is secondary.
The true benchmark for safety and operational efficiency in storage environments is vertical footcandles. This metric measures the light falling on vertical surfaces, such as rack faces, signage, and machinery. Neglecting this dimension does more than just slow down operations; it creates a "regulatory blind spot" that can lead to OSHA citations and increased workplace accidents.
As detailed in the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, professional-grade lighting design has shifted from "volume of light" to "precision of delivery." This article examines the technical necessity of vertical illuminance, the mechanisms of aisle-optic design, and how to maintain compliance through rigorous photometric modeling.
Vertical Footcandles and the OSHA General Duty Clause
A common misconception among facility operators is that because the Occupational Safety and Health Administration (OSHA) does not provide a specific numeric vertical footcandle mandate for every industrial task, it is not a requirement. In reality, OSHA enforcement often relies on the "General Duty Clause."
The Regulatory Mechanism: Section 5(a)(1)
According to OSHA Standard 1910.22 - Walking-Working Surfaces, employers must ensure that all walking-working surfaces are maintained in a clean, orderly, and sanitary condition. While this sounds like a housekeeping rule, OSHA inspectors frequently cite this section following incidents where poor vertical illumination contributed to a hazard.
If a worker cannot clearly see a protruding object on a rack or a spill on a vertical shelf due to deep shadows, the employer has failed to provide a space "free from recognized hazards." Furthermore, OSHA 1910.22(a)(2) mandates that surfaces be maintained to prevent hazards. In a warehouse context, a poorly lit vertical rack face that obscures safety signage or load-limit labels is a recognized hazard.
The Liability Gap
When an incident occurs—such as a mis-pick leading to a falling object or a forklift collision in a dark aisle—inspectors look for evidence of due diligence. A documented photometric plan that includes vertical illuminance calculations serves as "unimpeachable evidence" that the facility was designed to industry best practices. Without this, a facility relies on "good enough" lighting that may not hold up under legal or insurance scrutiny.
Logic Summary: Our analysis of OSHA compliance assumes that while specific numbers are absent in the 1910.22 text, the General Duty Clause effectively mandates vertical visibility for hazard identification. We base this on common patterns from customer support and safety auditor feedback regarding post-incident inspections.
Technical Standards: The IES RP-7-21 Framework
To bridge the gap between vague regulations and actionable engineering, lighting specifiers turn to the Illuminating Engineering Society (IES). Specifically, ANSI/IES RP-7-21: Lighting Industrial Facilities provides the definitive vertical illuminance recommendations for storage aisles.
Recommended Light Levels
For medium-duty rack storage, where item picking and label reading are the primary tasks, RP-7-21 suggests a maintained vertical illuminance ($E_v$) on the face of the racks.
| Storage Task Category | Recommended Vertical Footcandles (fc) | Recommended Horizontal Footcandles (fc) |
|---|---|---|
| Bulk Storage (Inactive) | 2–5 fc | 5–10 fc |
| Large Item Picking | 5–10 fc | 10–20 fc |
| Small Item Picking / Barcode Scanning | 10–30 fc | 20–50 fc |
| High-Speed Sorting | 30+ fc | 50+ fc |
Note: Values are estimated based on IES RP-7-21 guidelines for industrial safety and productivity.
The 15:10 Rule of Thumb
In our experience handling large-scale warehouse retrofits, we often suggest a practical heuristic: target a minimum 15:10 vertical-to-horizontal footcandle ratio in storage aisles. This ensures that if you have 30 footcandles on the floor (horizontal), you have at least 15 footcandles at the highest picking level (vertical). This ratio is critical for ensuring that barcode labels are readable from a distance of 10 feet, even with the glare of a handheld scanner.
The Aisle-Optic Advantage: Correcting the "Symmetric Waste"
The most frequent mistake in warehouse lighting is the use of standard symmetric "UFO" high bays over narrow aisles. While these fixtures are excellent for open areas, they are inefficient in racking environments.
The 40% Waste Factor
A standard symmetric fixture (Type V distribution) throws light in a perfect circle. In a 10-foot wide aisle with 30-foot racks, over 40% of the light output is wasted on the top of the racks or absorbed by the floor, rather than hitting the rack face. This creates "hot spots" directly under the fixture and "dark zones" between fixtures where vertical visibility drops significantly.
Asymmetric Beam Distributions
Advanced optical designs, often referred to as "aisle optics," utilize asymmetric beam angles (e.g., Type III or specialized linear distributions). These are engineered to "stretch" the light along the length of the aisle and "punch" it down the vertical face of the racks. According to research into asymmetric beam angles, these distributions can deliver up to twice the light to the vertical shelves compared to symmetric fixtures with the same lumen output.
Methodology Note: This 40% waste estimate is derived from scenario modeling comparing a standard 120° beam angle against a 60°x120° aisle-optic linear fixture in a simulated 12-foot aisle. Results may vary based on rack reflectivity and ceiling height.
Verifying Performance: LM-79, LM-80, and IES Files
For B2B professionals, a manufacturer's claim of "high performance" is insufficient. Authoritative verification requires a deep dive into the "performance report card" of the fixture.
- IES LM-79-19 Reports: This IES LM-79-19 standard defines how to measure total lumens, efficacy (lm/W), and color rendering. It is the basis for all photometric simulations.
- IES LM-80 and TM-21: To verify the "Solid" reliability of a fixture, look for LM-80 results, which test the LED chip's lumen maintenance over time. The TM-21 calculation then uses that data to project the $L_{70}$ lifespan (e.g., 60,000 hours).
- IES Files (.ies): These are the digital blueprints of the light's distribution. Lighting designers use these files in software like AGi32 to create a photometric layout.
Without an IES file, it is impossible to predict vertical footcandles. If a supplier cannot provide a .ies file for their aisle-optic fixture, they are asking you to guess at your OSHA compliance.
Implementation Strategies: Staggered vs. Centered Layouts
Even with the correct aisle-optic fixtures, placement determines the final safety outcome.
Avoiding the "Shadow Gap"
In a centered layout, fixtures are placed directly in the middle of the aisle. While this is simple to install, it often leaves the lower 5 feet of the racking—precisely where barcode labels and safety pins are located—in deep shadow.
The Staggered Approach
A more effective strategy for deep aisles is a staggered layout. By offsetting the fixtures slightly or using linear fixtures that overlap their beam patterns, you create a more uniform vertical wash. This reduces the "scalloping" effect where light brightens the top of one rack but leaves the adjacent rack face dark.
Post-Retrofit Verification
Verification should never stop at the floor. According to Access Fixtures, professional verification requires measuring both planes. A light meter must be held vertically against the rack face at multiple heights (e.g., 5ft, 10ft, 15ft) to ensure the 15:10 ratio is maintained throughout the aisle.
Energy Compliance and Controls: ASHRAE and Title 24
High vertical footcandles do not have to come at the cost of energy efficiency. Modern B2B projects must adhere to strict energy codes like ASHRAE Standard 90.1-2022 or California Title 24, Part 6.
Mandatory Lighting Controls
These standards often mandate:
- Occupancy Sensing: Lights must dim or turn off when aisles are vacant.
- Daylight Harvesting: In warehouses with skylights, fixtures near the roof must adjust based on ambient light.
- 0-10V Dimming: This allows for precise tuning of light levels to meet the IES RP-7-21 recommendations without over-lighting and wasting energy.
Using fixtures that are DLC Premium certified ensures that the product meets high efficacy standards (lm/W), making it easier to comply with Lighting Power Density (LPD) limits while also qualifying for utility rebates.
Risk Mitigation Through Precision
Investing in vertical illuminance is an investment in risk mitigation. By moving beyond horizontal benchmarks and embracing aisle-optic technology, facility managers can:
- Reduce Errors: Clearer visibility on rack faces leads to fewer mis-picks and faster barcode scanning.
- Enhance Safety: Eliminating shadows on the lower rack levels prevents collisions and trip hazards, aligning with OSHA 1910.22.
- Ensure Compliance: Documented photometric plans based on IES files provide a legal and insurance safeguard.
When specifying your next lighting project, ask for the .ies files and the vertical footcandle projections. If the plan only shows light on the floor, the job isn't finished.
YMYL Disclaimer: This article is for informational purposes only and does not constitute professional legal, safety, or engineering advice. OSHA compliance requirements can vary by jurisdiction and specific workplace hazards. Always consult with a qualified safety officer, lighting engineer, or legal professional before implementing lighting changes in an industrial environment.
