This guide is for electricians, contractors, and facility managers who specify industrial lighting. It moves beyond simple lumen counts to provide a practical framework for assessing glare, explaining its benefits to clients, and selecting compliant, low-glare high bay fixtures that enhance workplace safety and productivity. We will outline how to read photometric reports, apply key metrics like UGR, and avoid common installation mistakes that can undermine even the best fixtures.
The Hidden Cost of Glare in Industrial Spaces

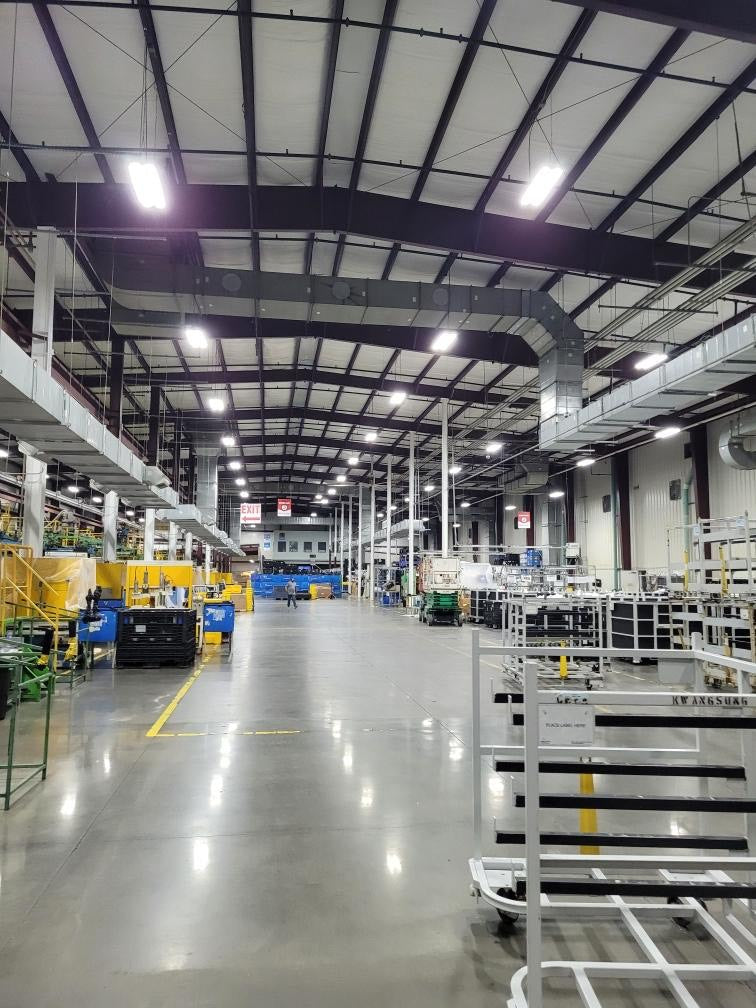

When upgrading or designing lighting for a warehouse, workshop, or factory, the primary focus is often on achieving a target brightness level, measured in foot-candles or lux. However, simply flooding a space with high-lumen fixtures can create a new set of problems centered around glare. Uncontrolled glare is a significant factor in visual comfort and operational safety, and understanding its impact is crucial for any professional specifier.
More Than Just Brightness: Defining Glare
Glare is the visual discomfort or impairment experienced when a bright light source is in one's field of view. It generally falls into two categories:
- Discomfort Glare: This is the more common type in industrial settings. It doesn't prevent you from seeing but causes an instinctive desire to look away from the light source, leading to eye strain, fatigue, and headaches over a work shift.
- Disability Glare: This is a more severe form that reduces the ability to see objects and details, similar to the effect of oncoming headlights at night. In a warehouse, this can momentarily blind a forklift operator or someone working near machinery, creating a direct safety hazard.
To quantify and standardize the measurement of discomfort glare from interior lighting, the lighting industry uses the Unified Glare Rating (UGR) system. UGR is a dimensionless value calculated based on the luminance of the fixtures, the background luminance of the room, and the position and viewing angle of the observer. A lower UGR value indicates better visual comfort.
The Impact of Glare on Workplace Safety and Productivity
High-glare environments have tangible consequences that directly affect a business's bottom line. For contractors and electricians, explaining these impacts to a client makes the case for investing in higher-quality, low-glare lighting solutions.
- Increased Risk of Accidents: In environments with moving vehicles like forklifts or overhead cranes, disability glare can obscure hazards or other personnel. According to the IES Recommended Practice for Lighting Industrial Facilities (RP-7), proper illumination is a cornerstone of preventing accidents, and glare control is a key component of that illumination quality.
- Reduced Productivity and Accuracy: Discomfort glare forces the eye to work harder, leading to fatigue. In tasks requiring high levels of concentration or visual inspection, this can slow down work and increase error rates. A worker who is constantly squinting or repositioning to avoid a bright reflection is not working at peak efficiency.
- Employee Fatigue and Complaints: Poor lighting is a frequent source of employee complaints. Chronic exposure to glare can lead to physical symptoms like headaches and eye strain, potentially contributing to absenteeism and lower morale.
Common Misconception: "More Lumens is Always Better"
A pervasive myth in LED retrofits is that the fixture with the highest lumen output is the best choice. This is a dangerous oversimplification. While sufficient lumens are necessary, the quality of light distribution is far more important than the raw quantity. A high-bay fixture with 30,000 lumens but poor optical control can create intense hot spots and severe glare, rendering a space less safe and comfortable than a well-distributed layout using 22,000-lumen fixtures with a low-UGR design. The goal is not just bright light, but the right light, delivered precisely where it's needed without causing visual discomfort.
Decoding Photometrics: How to Identify Low-UGR Fixtures
The specification sheet and associated photometric files are a specifier's most powerful tools for evaluating a fixture's performance before purchase. Knowing what to look for allows you to separate well-engineered luminaires from commodity-grade products.
Finding UGR in IES Files and Spec Sheets
A reputable manufacturer will provide UGR values directly on the product specification sheet. Often, this is presented in a table showing the UGR value for various room sizes and reflectance values. If this data is missing, it should be considered a red flag regarding the fixture's optical engineering.
For more detailed analysis, lighting designers use photometric data files, typically in the format defined by the IES LM-63-19 standard. These .ies files can be imported into lighting design software (like AGi32) to create a precise simulation of a space, calculating the UGR at any point in the room.
Understanding UGR Values and Application Targets
The UGR scale typically runs from 10 to 30, where lower numbers are better. The following table provides a practical guide for targeting appropriate UGR levels in different industrial settings, based on common industry best practices.
| UGR Value Range | Perceived Glare Level | Recommended Applications |
|---|---|---|
| UGR ≤ 19 | Imperceptible to Just Perceptible | Precision assembly, electronics workshops, inspection areas, technical drawing rooms. |
| UGR ≤ 22 | Perceptible | General warehousing, open factory floors, light industrial, receiving/shipping areas. |
| UGR ≤ 25 | Acceptable but Uncomfortable | Heavy industrial, foundries, circulation areas, and storage racks with infrequent traffic. |
| UGR > 25 | Very Uncomfortable | Should not be used in regularly occupied work areas. May be suitable for unoccupied high-ceiling voids. |
As a field-tested heuristic, I always aim for UGR ≤ 22 for general industrial and warehouse spaces. For any area where detailed tasks are performed, targeting UGR ≤ 19 is a worthwhile investment in quality and productivity.
Beyond UGR: Analyzing Candela Distribution
While UGR is a critical summary metric, the candela distribution plot in a photometric report tells a deeper story. This polar graph shows the intensity of light (in candelas) emitted in each direction from the fixture.
A fixture with excellent glare control will typically have a smooth, "batwing" or wide distribution curve. This indicates the light is spread evenly across a broad area rather than being concentrated in a harsh, narrow beam directly below the fixture. Conversely, a fixture with a sharp, intense spike at the 0° angle (straight down) is more likely to create high-contrast "hot spots" on the floor and produce glare for anyone looking up. Don't trust lumens alone; the shape of the candela distribution curve is a key indicator of visual comfort.
Practical Specification and Installation for Glare Control
Selecting a low-UGR fixture is only half the battle. Proper layout and installation are critical to achieving the desired results in the field. A great fixture installed incorrectly can still create a poor lighting environment.
Spacing-to-Mounting-Height (S/MH) Ratio
The S/MH ratio is a guideline provided by the manufacturer to determine the maximum distance fixtures can be spaced apart relative to their mounting height above the work plane. Exceeding this ratio leads to dark spots, while spacing them too closely can create excessive overlap and potential glare. A common mistake is using a single S/MH for an entire facility. The optimal ratio depends on the application:
- Open-Floor Areas: For general manufacturing or open warehouses, a typical S/MH ratio of 1.0 to 1.5 is effective.
- Racked Aisles: For narrow aisles, a much lower S/MH ratio of 0.6 to 0.8 is often necessary to drive light down into the aisle without causing glare for forklift operators.
The Role of Optics and Accessories
Modern LED high bays are not one-size-fits-all. Many are available with specialized optics to control the light distribution for specific applications.
- Aisle Optics: These lenses create a long, narrow, elliptical beam pattern, perfect for illuminating warehouse racking from top to bottom while minimizing light trespass into the racks or upward glare.
- Diffusers: For lower mounting heights or sensitive areas, a frosted or prismatic diffuser can be added to soften the light source and further reduce direct glare, though it may slightly reduce the total lumen output.
Environmental Factors: Ceilings, Walls, and Reflectances
The physical characteristics of the space play a significant role in perceived glare. A specification that works well in a new facility with high ceilings and white-painted walls may perform poorly in an older building with low, dark, exposed-truss ceilings. Dark surfaces absorb light, which increases the contrast between the bright fixture and its dark background, making glare more pronounced. When faced with such an environment, raising the mounting height or specifying fixtures with a wider distribution can help mitigate this effect.
Controls and Dimming for Glare Management
Integrating lighting controls is not just about saving energy; it's also an effective tool for managing glare. By specifying fixtures with reliable 0-10V or DALI drivers, you give the end-user the ability to adjust light levels to suit the task at hand. For example, a facility can set a lower background light level for general circulation and then use occupancy or task-specific controls to raise the light level in active work cells. As defined by NEMA's LSD 64 - Lighting Controls Terminology, a properly commissioned dimming system provides ultimate flexibility. Always check the LM-79 report to verify the driver's dimming curve and ensure it provides smooth, flicker-free dimming down to the required minimum level.
Verifying Performance and Building Client Trust
As a professional, your reputation is built on delivering reliable, high-quality results. Using third-party certifications and on-site validation helps ensure that the specified performance is the delivered performance.
The Importance of Third-Party Certifications
Independent certifications provide assurance that a luminaire meets established safety and performance standards.
- Safety Certification (UL/ETL): A listing from a Nationally Recognized Testing Laboratory (NRTL) like UL or Intertek (ETL) certifies that the fixture complies with safety standards such as UL 1598 for Luminaires. This is a non-negotiable requirement for commercial and industrial projects.
- Performance Certification (DLC): A listing on the DesignLights Consortium (DLC) Qualified Products List (QPL) verifies that a product meets high standards for energy efficacy, longevity, and other quality attributes. While DLC does not yet have a specific UGR requirement for all categories, products on the QPL have undergone rigorous testing, and their photometric data is more likely to be accurate and reliable.
On-Site Validation: The Power of a Mock-Up
The single most effective way to ensure client satisfaction and verify a lighting design is to perform an on-site mock-up. Before committing to a full-scale installation, install one or two sample fixtures in a representative area of the facility. This allows you and the client to perform a subjective glare check from critical viewing positions and take light meter readings to validate your calculations. This small step demonstrates professionalism, builds immense trust, and prevents costly rework or client dissatisfaction down the line.
Key Takeaways
Specifying low-glare high bay lighting requires moving beyond a simple lumens-per-watt calculation. By focusing on the quality of light distribution, professionals can deliver systems that are not only bright and efficient but also safe, comfortable, and conducive to productivity.
- Prioritize UGR: Use Unified Glare Rating as your primary metric for visual comfort, targeting UGR ≤ 22 for general areas and UGR ≤ 19 for task-intensive zones.
- Analyze Photometrics: Look beyond the numbers to analyze the candela distribution curve on the photometric report. A smooth, wide curve is preferable to a sharp, intense spike.
- Design for the Space: Tailor your fixture spacing, mounting height, and optical package to the specific application, whether it's an open floor or a narrow aisle.
- Verify and Validate: Rely on trusted third-party certifications like UL and DLC to ensure product quality, and always conduct an on-site mock-up to confirm performance and gain client approval before a full installation.
Frequently Asked Questions (FAQ)
What is a good UGR rating for a warehouse?
For general storage and transit areas in a warehouse, a UGR of 22 or less is a widely accepted target. For areas where tasks like packing, shipping, or inspection occur, a more stringent target of UGR 19 or less is recommended for better visual comfort and accuracy.
Do I need special software to check a fixture's UGR?
While specialized software like AGi32 is used to create accurate simulations for an entire space, you can find basic UGR information directly on the manufacturer's specification sheet. Reputable manufacturers provide a UGR table that shows the expected value for typical room sizes and surface reflectances.
Can I fix glare from existing high bay lights?
In some cases, glare from existing fixtures can be mitigated by adding accessory diffusers, adjusting the mounting height, or changing the layout to avoid direct lines of sight. However, these are often compromises. The most effective and economical solution is to select a fixture with a low-UGR optical design from the start.
Does a DLC Premium listing guarantee a low UGR?
Not directly. The DLC's primary focus has been on energy efficiency and lumen maintenance. However, the rigorous testing and higher engineering standards required for a Premium listing mean these products often have superior optical control and are more likely to offer low UGR values. The DesignLights Consortium is actively working on incorporating glare metrics into its technical requirements, but for now, you must always verify the UGR value on the fixture's individual spec sheet.
