To check whether a lighting plan covers work areas outside its main calculation zone, compare the boundary the calculation actually used with every place where people work, drive, load, or walk. A strong result inside the modeled zone describes that zone only. It tells you nothing about a truck apron, storage row, or walkway that sits outside the line.
Sort each area into one of three statuses: represented in the calculation, intentionally outside the stated scope, or unresolved. Every unresolved area becomes a specific question for the plan author before you treat the plan as covering the whole site.

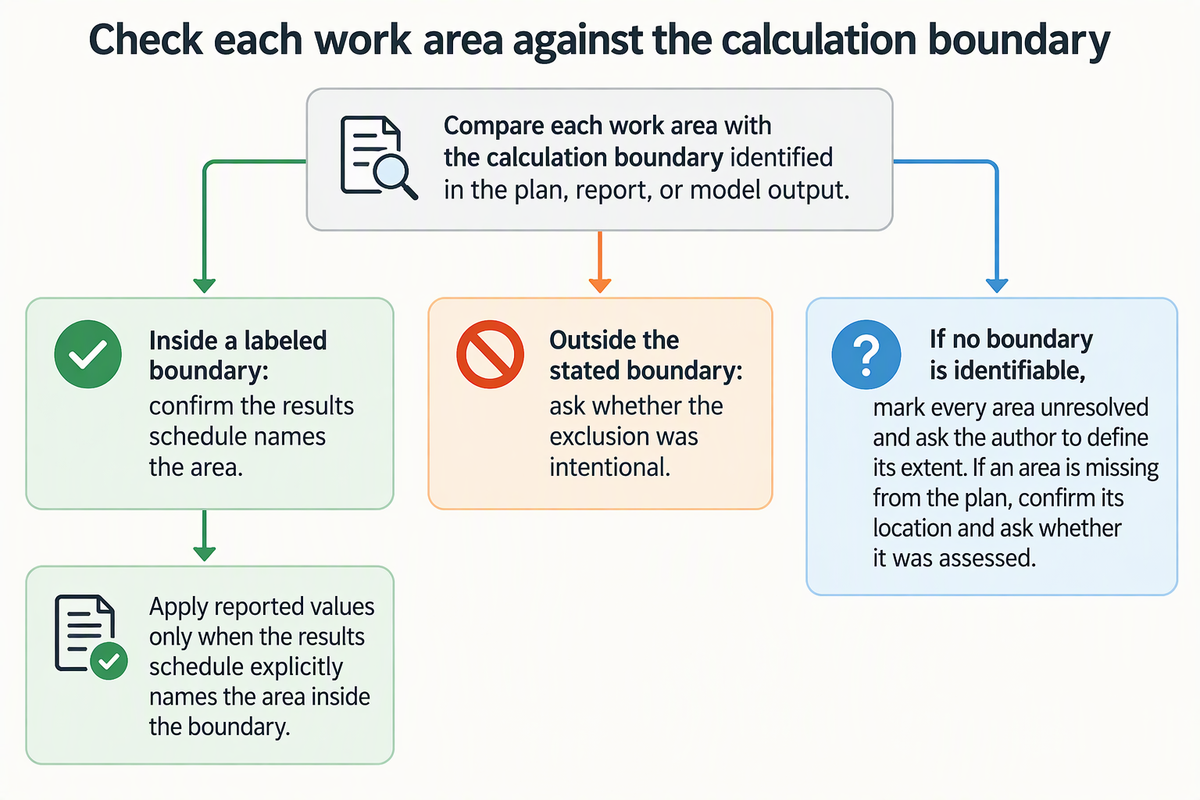

Compare the Calculation Boundary With Actual Site Activities
Start with what the documents say the calculation covers. Then lay real site activity over it. An area counts as represented only when a supplied document places it inside a calculated boundary.
Look for the boundary in three places: labeled outlines or notes on the plan, the calculation summary or schedule in the report, and any model output that shows where calculation points were placed. Write down each boundary's name and extent exactly as the documents state them. If none of them identifies a boundary, record it as unresolved. Do not guess the limits from where fixtures happen to be drawn.
One software example shows why that matters. In Design Master's documented workflow, the user draws the calculation area by specifying points or tracing an existing polyline. The software then calculates point illuminance within that boundary outline. In that workflow, the calculation only produces results inside the drawn outline, even when the site plan shows another area right next to it. Other tools and plan formats may show the boundary differently, so go by what your own documents identify.
Next, list where work actually happens. Use the site plan, an operations map, or a walk of the site. Include loading and staging spots, pedestrian routes, equipment parking, outdoor storage, building entries, and areas shown elsewhere on the drawing that the main plan view may crop out. For yards with mixed uses, our guide to outdoor equipment yard lighting helps you split one big footprint into separate task areas.
For each area, note three things: its name or task, where it falls relative to the stated boundary, and which document sets its status. If no document does, the status stays unresolved. Then use this table to assign the status and the next check.
| Site area or task | Represented in the calculation? | Next check |
|---|---|---|
| Inside a labeled boundary in the report | Unverified until results confirmed | Confirm the results schedule names this area |
| Shown on the site plan, outside the boundary | No, outside stated scope | Ask if the exclusion was intentional |
| Fixtures drawn, but no calculation outline | Unresolved | Ask for the boundary or calculation output |
| Missing from the plan entirely | Unresolved | Confirm location, then ask if it was assessed |
| No boundary identifiable in any document | Unresolved for every area | Ask the author to define the extent |
Only when the calculation results schedule explicitly names the area inside that boundary can you treat the reported values as applying to it. Once that match is confirmed, our article on reading photometric layout reports explains how to interpret its foot-candle, average, and max/min figures. For every other row, the review shows a scope gap only. It does not tell you how bright the area is or whether it meets any requirement.
Request Clarification or an Expanded Calculation
Turn each out-of-scope or unresolved area into a short, named question for the person who prepared the layout. Ask about inclusion and intent, not about compliance or a target light level, since the right scope depends on the project.
- Name the area and its task. Give its location on the plan and what happens there, such as "north apron, trailer staging."
- State what you found. Say whether it sits outside the stated boundary, has no boundary shown, or does not appear on the plan.
- Ask for its status. Request confirmation of whether it was included in the calculation or left out on purpose.
- Ask for the reason behind any exclusion. A confirmed scope limit is a different finding from an area nobody checked, so keep the two separate in your notes.
- Request an added calculation if the area should be assessed. Ask that the new calculation show the area's boundary and report its results on their own.
An illustrative request might read:
The current layout's calculation boundary appears to cover the main warehouse floor. Our site also uses the north truck apron for trailer staging and the east walkway for shift changes. Please confirm whether each area was included in the calculation. If either was excluded on purpose, please note why. If they should be assessed, please add a calculation that shows each area's boundary and lists its results separately.
If the author asks for more site information to add those areas, our checklist of layout measurements to collect covers the dimensions and labeled photos to send. If we prepared your plan through our free lighting design service, send the same named-area request to us so the revised layout spells out each boundary.
FAQs
Can this review determine whether a layout meets code?
No. Checking lighting calculation zones against site activity tells you what the calculation covered. It does not show whether the design meets a code, standard, or local rule. That depends on the facility type and the requirements adopted where the project is located. A lighting designer, engineer, or the local authority makes that call.
Does showing fixtures or an area on the site plan prove it was calculated?
No. A drawing can show fixtures, paving, or a labeled yard that sits outside every calculated boundary. While software workflows like Design Master let an author define an explicit calculation boundary, other formats may only provide clues such as a labeled outline, a report schedule, or point grids that need verification with the author. Without clear scope documentation, treat the area as unresolved.
What if the calculation boundary or report is not provided?
Treat every area's status as unresolved instead of assuming the whole site was assessed. Ask the plan author to identify each boundary and its extent, and to confirm which work areas fall inside it. Until those documents arrive, the layout shows proposed fixture locations, not a confirmed scope of calculated results.
Does a good result inside the zone say anything about nearby areas?
Not by itself. A calculation reports values for the points inside its boundary, so an area just past the line has no reported value at all. Light may still reach it, but the plan gives you no number to rely on. If that nearby area matters to operations, ask for it to be added to the calculation.
