Before requesting a commercial lighting layout, collect information by zone—not just a building-wide estimate. Start with each area’s length and width, ceiling and mounting conditions, existing fixture locations and quantity, relevant work height, major obstructions, and labeled photos. Then add operating patterns, controls, access limits, and the scope you want priced. Mark estimates and unknowns instead of filling gaps with assumptions; a reviewer can then see what may change the fixture type, distribution, quantity, mounting, controls, or installation scope.
Collect the Measurements That Set the Layout
A useful preliminary layout starts with a zone-by-zone record of the space and its existing conditions. The list below is practical planning guidance, not a universal minimum. Separate any area where the task, ceiling, mounting, access, or operating pattern changes.
| Site Input | What To Record | Layout Decision It Can Affect |
|---|---|---|
| Zone dimensions | Length and width for each room, aisle, work area, or open section; note irregular shapes | Fixture quantity, distribution, and whether one area needs more than one layout assumption |
| Ceiling and mounting height | Floor-to-ceiling height and the approximate height or location where fixtures could mount; note sloped or stepped ceilings | Fixture type, distribution, mounting method, access needs, and installation scope |
| Activity height, when relevant | The height of work surfaces, storage, equipment, or other activity that matters in the zone | Distribution, fixture placement, and the review questions for different tasks |
| Existing fixture inventory | Count, approximate location, type or shape, dimensions when visible, and whether each fixture stays, is removed, or is replaced | Quantity, replacement scope, reuse assumptions, and possible control or mounting questions |
| Major obstructions | Beams, ducts, sprinklers, cranes, shelving, equipment, doors, partitions, signs, and areas that must remain clear | Fixture placement, distribution, mounting access, and installation effort |
Use a marked-up plan or simple sketch to show where each fixture and obstruction sits. If dimensions conflict, label both the source and the uncertainty—for example, “plan shows 42 feet; field estimate is about 40 feet”—rather than silently averaging them. Existing fixture counts and operating information are especially useful when organized by distinct area instead of treated as one building-wide average. DOE lighting evaluation guidance supports that area-by-area documentation approach.
For a warehouse or other large open space, use a high bay layout checklist when you need prompts for organizing the request, but still provide site-specific measurements and request a review.
Add Conditions That Change Fixture Selection and Installation
Dimensions show the shape of the space; operating and physical constraints show whether a proposed layout fits how the space is actually used. Record these details by zone so the reviewer can distinguish a straightforward replacement from a project involving controls, access, ceiling work, or other installation questions.
Describe the Space, Tasks, and Operating Pattern
Describe what happens in each zone and when it happens. A room used for storage, inspection, assembly, vehicle movement, or detailed work may prompt different fixture-placement and control questions even when its dimensions match another room.
Record the primary task, where people work or move, whether storage or equipment positions change, normal operating hours, shifts, occupancy patterns, and exceptions such as cleaning, seasonal, or holiday schedules. Note areas that may need separate control consideration. If a schedule is estimated, label it as an estimate for review rather than presenting it as a verified condition. DOE controls guidance treats operating schedules and changing facility conditions as useful project inputs, not details to assume. Review the controls documentation for the general documentation principle.
Note Mounting, Access, and Existing Equipment Constraints
A layout also needs to account for how fixtures can be reached, supported, maintained, and coordinated with equipment already in place. Use this concise checklist for each zone:
- Mounting: Record the visible mounting surface, approximate mounting method, sloped or unusual ceiling conditions, and clearance constraints. Do not infer structural capacity from a photograph.
- Access: Note whether lifts, ladders, shutdown windows, aisle closures, or other access limits may affect installation or maintenance planning.
- Existing equipment: Identify fixture type, approximate dimensions, condition, labels or model information when visible, and whether equipment will remain, be removed, or be replaced.
- Electrical and controls: Record visible voltage labels, control locations, control wiring, sensors, panels, and emergency-lighting interfaces without opening equipment or treating a label as proof of compatibility.
These observations help narrow the questions a designer or installer must answer, but they do not establish product compatibility, a final control design, structural suitability, or code compliance. For larger existing-building projects, available plans, exit or egress features, ceiling work, mounted devices, and existing control systems may also affect scope; treat them as project context to review rather than as a nationwide checklist. A public university lighting-design document illustrates why larger projects may need this broader context.
Photograph the Conditions a Drawing Cannot Show
Take labeled photos that connect each zone to its ceiling, fixtures, controls, access conditions, and unusual obstructions. Photos supplement measurements and plans; they do not replace them, and there is no universal photo count, angle, resolution, or file format for every commercial lighting quote request.

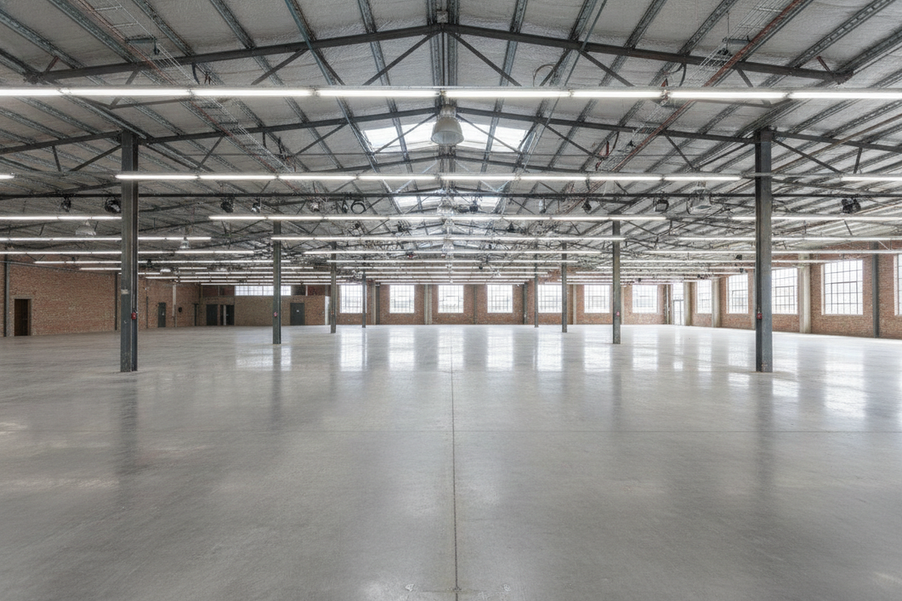

- Capture orientation. Start with a wide view that identifies the building area, entrance, aisle, room, or other reference point. Label the image with the zone name and direction or viewpoint.
- Show each zone from accessible viewpoints. Take wide shots that reveal the relationship between walls, work areas, fixtures, equipment, and circulation paths. If a zone changes from one end to the other, document those differences rather than relying on one representative view.
- Show the ceiling and mounting conditions. Photograph beams, ducts, shelves, ceiling changes, mounting points, clearances, and obstructions that may not appear on a plan. Pair the image with the measurement or sketch reference it illustrates.
- Document existing fixtures and controls. Include close-ups of fixtures, labels, control locations, panels, sensors, and visible connections without opening equipment, removing covers, or entering an unsafe area. A label or photo can prompt verification; it does not by itself prove compatibility.
- Record unusual conditions. Photograph damaged areas, tight access, unusual equipment, openings, partitions, exposed constraints, or anything likely to affect mounting or installation scope. Add a short note explaining why the image matters.
Use filenames or an index that a reviewer can follow, such as Zone-A looking-east ceiling-obstruction or Office-2 existing-fixture-label. The goal is traceability: a reviewer should be able to identify where the image was taken and what condition it documents without guessing. Official lighting documentation guidance supports using photos and sketches to preserve site context, while the specific image set remains project-dependent. See the DOE documentation example.
Package a Commercial Lighting Request So Each Zone Can Be Reviewed
Send one organized packet that pairs every zone’s measurements, photos, existing conditions, requested work, and unresolved assumptions. State whether you want a preliminary layout, fixture recommendations, a quote, installation pricing, or a combination so the recipient does not have to infer the assignment.
Create a Zone-by-Zone File Set
A zone-based file set makes discrepancies visible and keeps a photo or note from becoming detached from the space it describes.
| Packet Item | Zone-Level Content | Why the Reviewer Needs It |
|---|---|---|
| Zone schedule | Zone name, use, dimensions, ceiling and mounting notes, existing fixture count, and known exceptions | Establishes the basic comparison between areas and highlights missing inputs |
| Marked-up plan or sketch | Zone boundaries, fixture locations, obstructions, access points, and reference directions | Shows relationships that isolated measurements may miss |
| Photo index | Filename, zone, direction or reference point, and one-line description | Lets the reviewer find the condition behind each image quickly |
| Existing-condition notes | Fixture labels or dimensions when visible, controls, access, ceiling work, and keep/remove/replace status | Connects the proposed scope to what is already installed |
| Goals and scope request | Desired layout, supply, installation pricing, controls, schedule, budget, lead time, or other priorities | Defines what the response should address without assuming a product or approval |
| Assumptions and open questions | Estimated dimensions, conflicting plans, unknown voltage or controls, unclear boundaries, and items needing verification | Prevents uncertain information from being mistaken for a confirmed design input |
Keep a contact name, site address, walkthrough date, desired timing, and available drawings with the packet. If the plan and field condition disagree, include the original plan, mark the discrepancy directly, add the current observation, and flag which item needs verification. A general field-measurement guide supports this discipline of checking relationships, labels, and missing or conflicting measurements.
State the Requested Scope and Decision Criteria
Be explicit about the response you want: a preliminary layout, fixture-category discussion, fixture recommendation, material quote, installation price, or combined design-and-pricing review. Then list the priorities that will affect the decision, such as appearance, maintenance access, controls, schedule, budget, lead time, or documentation for a utility conversation. Mention rebate documentation as a project goal only; eligibility must be checked against the specific program, product, and project conditions.
If different zones have different priorities, say so. For example, a production area may prioritize access and control behavior, while an office may prioritize appearance and minimal disruption. This gives the reviewer a decision framework without turning the packet into a final design or installation authorization.
Confirm Open Questions Before Design and Pricing
Before relying on quantities, mounting assumptions, controls, or pricing, ask the reviewer to:
- Identify missing or conflicting dimensions, fixture locations, ceiling details, access limits, and operating information.
- Resolve assumptions that could change fixture quantity, distribution, mounting, controls, product selection, ceiling work, or installation access.
- Confirm whether the deliverable is a layout, fixture schedule, controls discussion, material quote, installation scope, or preliminary review.
- Obtain qualified, site-specific review of electrical, structural, emergency-lighting, accessibility, and applicable local-code questions before ordering or scheduling work.
Send the labeled packet and open-questions log to our Free Lighting Design or project assistance team. We can help clarify the next review step, but the packet is not a final design, approval, compliance determination, or installation authorization.
FAQs
Can I Request a Commercial Lighting Layout Without Exact Measurements?
Yes, you can start an initial conversation with preliminary dimensions, but label every estimate and identify what is missing. Do not rely on fixture quantities, mounting assumptions, or installation pricing until the reviewer confirms which dimensions and conditions need field verification.
What If the Existing Floor Plan Does Not Match the Site?
Send the available plan rather than discarding it, then mark the discrepancies directly and add current measurements, labeled photos, and an assumptions list. Ask the reviewer to identify which conflicts affect the layout and whether a site visit or updated drawing is needed before pricing.
Should I Include Fixture Model Numbers in the Quote Request?
Include a model number when it is clearly visible on a label, record, or specification sheet, but do not guess one. Photos, fixture dimensions, mounting details, condition, control information, and whether the fixture will be reused or replaced are more useful than an unsupported replacement model.
Who Should Confirm Electrical and Code-Related Site Details?
You can provide visible labels, control locations, project context, and photos taken from accessible locations. Qualified design or electrical professionals should confirm site-specific electrical, structural, emergency-lighting, accessibility, and code-related decisions; local requirements and project responsibility can change what must be reviewed before work is ordered or scheduled.
