Bright pools beneath parking lot fixtures with dark areas between poles usually call for a distribution and layout diagnosis before you buy brighter led parking lot lights. The useful question is not simply “How bright is it under the pole?” It’s whether drive lanes, walking routes, parking areas, and property edges are covered consistently without creating a new glare problem.
Start by mapping the pattern across several poles, then compare pole location, aiming, overlap, and mounting context. A controlled adjustment may be reasonable when the geometry is suitable. If the same gaps remain—or boundaries, obstructions, permitting, or local requirements are involved—document the site and request a project-specific photometric or qualified design review.
Diagnose the Bright-Spot and Dark-Edge Pattern

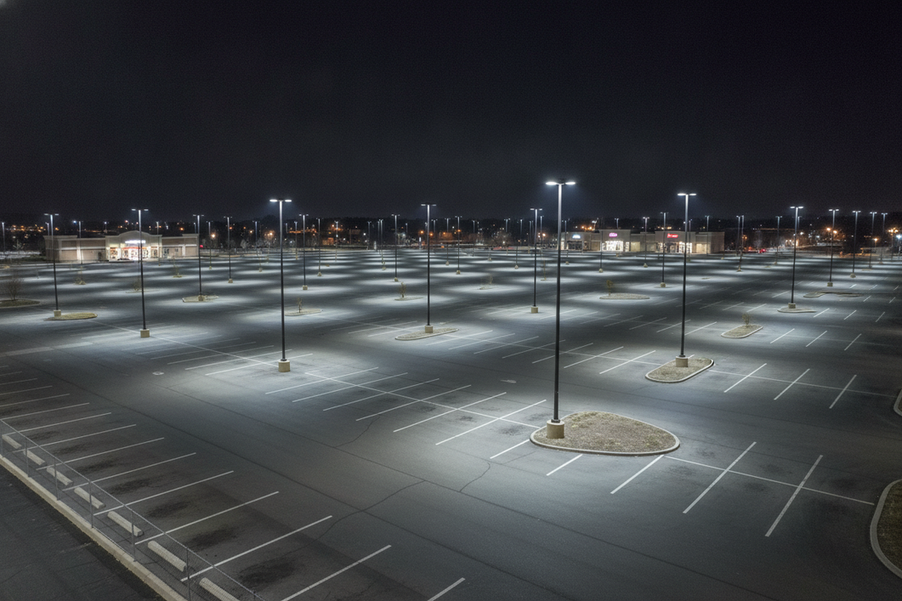

A bright area directly below a fixture and a dark band farther away can reflect where the luminaire sends light, how neighboring patterns overlap, or how the site is arranged. It does not, by itself, prove that the fixture needs higher output or that replacing it will solve the problem. The FEMP parking-lot lighting guide treats distribution, spacing, uniformity, obstructions, and site conditions as related design questions rather than a brightness contest.
Map the lot from the paths people actually use. Mark each pole, the brightest pools, dark areas between poles, glare seen from drive lanes or sidewalks, covered and uncovered edges, trees or structures, and any area where a driver or pedestrian needs a clear view. The map does not need to produce a lighting calculation; its purpose is to show whether the symptom repeats and where it matters.
If a similar dark band appears between several neighboring poles, the pattern favors a geometry, distribution, or overlap review over an isolated fixture repair. If only one area is weak, inspect that fixture’s condition, controls, orientation, and nearby obstruction first. Neither pattern proves a specific failure, but repeatability helps determine whether to investigate one location or the layout as a whole.
Also separate average brightness from uniformity. Uniformity describes how evenly light is distributed across a defined calculation or review area. A useful photometric review should identify the reviewed area and show minimum and uniformity results, not only an average value; the FHWA Lighting Handbook explains uniformity in terms of values across a defined area. Do not treat one ratio from a roadway or another jurisdiction as a universal parking-lot requirement.
For broader installation and maintenance context after you document the symptom, see our parking lot lighting basics. Use that as background, not as a substitute for site-specific measurements or local review.
Compare the Four Physical Checks Behind Uneven Coverage
There is no reliable universal pole-spacing rule for every lot. Compare spacing with mounting height, fixture distribution, aiming, overlap, obstructions, site geometry, and applicable local criteria. Check adjacent poles and deficient areas—not just the pavement immediately below one fixture—before choosing an adjustment.
| Check | Pattern It Can Explain | What to Verify |
|---|---|---|
| Pole location | Dark lanes, corners, sidewalks, or edges that fall outside the useful reach of the existing geometry | Whether poles serve the actual drive lanes, stalls, walking routes, corners, and property boundaries; note areas that remain uncovered even when fixtures aim correctly |
| Aiming | A bright pool shifted toward one side, a new hotspot, or glare along a driver or pedestrian path | Fixture orientation, arm direction, adjustment range, visible glare, spill beyond the property, and the result of a small controlled change |
| Overlap | Repeating dark bands between poles even though each area beneath a fixture is bright | Whether neighboring distributions meet across the deficient area, using actual photometric data rather than a spacing assumption |
| Mounting context | Coverage that changes with pole height, arm position, tree canopy, structures, terrain, or nearby buildings | Mounting height, arm orientation, obstructions, tilt, surrounding surfaces, and the relation between the fixture and each boundary or user path |
The table is a diagnostic framework, not a promise that one adjustment will fix the lot. Moving light farther down a drive lane may reduce a hotspot under the pole but create direct view or spill at the edge. Adding output to a fixture in the same location may intensify the pool without filling the repeated gap. WSDOT illumination guidance illustrates why illumination, spacing, mounting, obstructions, and local criteria should be evaluated together; use its method, not its requirements, as a nationwide rule.
Sidewalks, drive lanes, and property edges deserve separate attention from the central parking area. The California nonresidential compliance manual offers a jurisdiction-specific example of how hardscape coverage, shielding, lighting zones, and boundary conditions can vary. Check the rules that apply to the actual property instead of treating a lumen label, optic name, or shielding accessory as proof of compliance.
Choose an Adjustment, Verification, or Layout Review
Use a staged path: adjust only a suitable existing installation, document what changed, verify the result from real user paths, and escalate when the pattern remains. This avoids untracked trial and error and gives a lighting professional useful information if the lot needs a redesign.
Adjust the Existing Aiming
A controlled aiming test is most appropriate when pole locations and mounting conditions already appear capable of serving the affected area. Change one fixture—or a small group with the same geometry—toward the deficient zone. Record the original orientation, the adjustment, the time and conditions, and what happened to the bright pool.
The test is not successful merely because the dark patch looks brighter from one viewpoint. Check whether it creates a new hotspot, direct glare along a drive lane or sidewalk, spill toward a neighboring property, or a darker area elsewhere. If the fixture cannot be adjusted safely or the mounting hardware is damaged, do not improvise a repair; follow the manufacturer’s instructions and use qualified electrical or lighting support as appropriate.
Verify Coverage From the User Paths
Review the changed area from the driver’s position, pedestrian routes, parking stalls, entrances, and property boundaries. Compare the adjusted fixture with neighboring fixtures under consistent nighttime conditions, because changing the viewing location or ambient conditions can make an uneven pattern appear better or worse.
Document the pole locations, mounting conditions, fixture condition, controls, affected zones, obstructions, glare observations, and adjustment results. A practical follow-up is our installation and maintenance guidance, but a guide cannot determine the correct calculation area or local criteria for your property.
If a formal review is needed, ask what fixture data, mounting assumptions, calculation area, minimum result, uniformity result, glare or obtrusive-light concerns, and boundary conditions will be included. The current IES parking-facility resource identifies parking facilities, field measurements, obtrusive light, computer applications, and maintained-illuminance calculation procedures within its scope. The full document and the criteria applicable to your project still need to be checked.
Redesign When the Pattern Repeats
Persistent gaps after a controlled aiming check suggest that layout, distribution, mounting, overlap, obstruction, or fixture condition deserves a closer review. Repeated dark bands between several poles are especially poor candidates for repeated one-fixture adjustments, because moving one hotspot may not change the underlying geometry.
Escalate to qualified lighting or design support when deficient areas affect important drive or walking paths, property boundaries, permitting questions, a broad retrofit, or a local requirement. A municipal guide can illustrate a documentation workflow, but it does not establish a nationwide legal requirement. The goal is to obtain a current, project-specific review—not to claim that a generic fixture arrangement guarantees safety or compliance.
Decide Whether led parking lot lights Need a Fixture Change
Evaluate replacement only after documenting that the existing equipment—not the pole geometry, aiming, mounting, overlap, or obstruction—is the limiting factor. A one-for-one swap can preserve the same locations and boundary conditions, so it may reproduce the original bright-spot and dark-edge pattern. If you research LED lights for parking lots, compare the requirements below before comparing lumen counts.
Match the Distribution to the Mounting Context
Start with the site inputs: pole position, mounting height, arm orientation, drive lanes, sidewalks, parking stalls, edges, structures, trees, controls, and available fixture data. Then verify the proposed fixture’s distribution and mounting options against those inputs. A product page can describe a configuration, but it cannot establish how that configuration will perform on your lot without project-specific photometric information.
Before ordering parking lot light fixtures, verify the following in the current manufacturer documentation and project review:
- Input voltage and total electrical load, including control and sensor requirements.
- Distribution, mounting pattern, bracket or arm compatibility, and adjustment range.
- CCT and output settings when those choices are relevant to the project brief.
- Fixture condition and replacement scope, including whether controls or wiring changes are also needed.
- Photometric files or calculations that address the actual poles, boundaries, and review areas.
For conditional research only, the available information for the 56,000-lumen parking lot light lists 56,000 lumens, 5,000K, 120–277V input, and a dusk-to-dawn photocell sensor. Those listed specifications do not establish uniformity, compatibility with your existing arm, glare performance, safety, or compliance. A model with the right headline output can still be the wrong fit if its distribution or mounting context does not match the lot.
The available information for a selectable-output parking lot light lists selectable wattage and CCT and 120–277V input for the specified series. Treat those as details to confirm for the exact SKU and configuration—not as proof that a setting will fill dark gaps or meet local criteria. A selectable setting changes the buying options; it does not replace a distribution review.
Control Glare Without Hiding a Layout Problem
Glare and weak coverage are related symptoms but separate decisions. A bright source in a driver’s or pedestrian’s view can affect adaptation, contrast, and visual comfort, while reducing direct view or spill may leave the dark area between poles unchanged. FHWA guidance supports reviewing glare and placement as visibility considerations, but it does not make a particular shield, optic, tilt, or CCT a guaranteed fix.
Consider aiming, optical control, mounting changes, or a compatible shield only after identifying the glare path. Recheck both effects: did the change reduce direct view or spill, and did it preserve or worsen coverage in the drive lane, sidewalk, stalls, and edge? Our parking lot glare shields are a navigation option for reviewing accessory compatibility; the accessory page alone does not establish that a shield will solve your site’s coverage pattern.
Document the pattern first, verify the physical checks, and request project-specific lighting support when repeated gaps or boundary concerns remain. Once the requirements are clear, we can help you browse relevant led parking lot lights and accessories without treating a product label as proof that the layout will work.
FAQs
These questions focus on decisions that come after mapping the lot: whether the symptom points to a local failure, how to compare unevenly mounted poles, and what to record before making a change.
Could a Fixture Failure Cause Bright Spots and Dark Edges at the Same Time?
A local failure can contribute to one weak area while nearby fixtures remain bright. If the dark band repeats across several poles, compare adjacent fixtures and investigate geometry and distribution before assuming one failure.
How Should Pole Spacing Be Evaluated When Mounting Heights Differ?
Compare spacing with mounting height, distribution, aiming, overlap, terrain, obstructions, and the areas that must be reviewed. Use those inputs in a project-specific photometric review instead of applying a universal spacing rule.
Can a Glare Shield Fix Dark Areas Between Parking Lot Poles?
A compatible shield is evaluated for direct view or light spill, not to add light to a dark gap. Confirm compatibility, then reassess glare and coverage as separate results.
What Should Be Documented Before Ordering Replacement Parking Lot Fixtures?
Record pole locations, mounting conditions, fixture condition and controls, bright and dark zones, user paths, property edges, obstructions, glare viewpoints, and any aiming-test results. Add the proposed fixture’s voltage, distribution, mounting, CCT, output, and control details for review.
