Plan commercial outdoor lighting as a five-zone problem before choosing a fixture: storage rows, access lanes, loading or staging points, security-sensitive edges, and neighboring-property boundaries. First map equipment height, row direction, vehicle movement, mounting opportunities, and sensitive viewpoints. Then compare area, flood, wall-mounted, pole-mounted, post-top, or combined roles based on the task in each zone. This creates a clear layout request without assuming that one fixture type guarantees coverage, security, or code compliance.
Map Storage Rows, Access Lanes, Loading Points, and Edges First

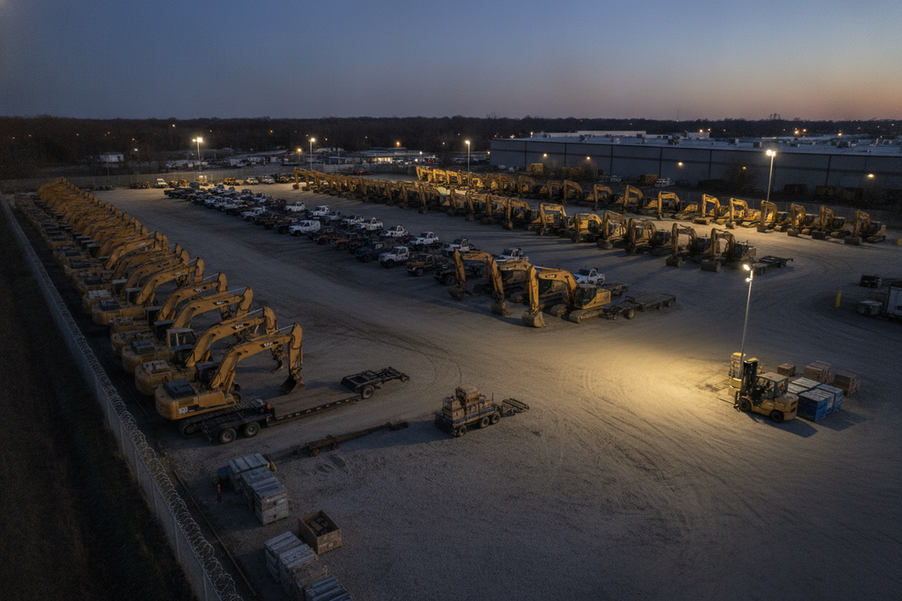

Start with a site sketch that separates the yard’s five operating zones: storage rows, access lanes, loading or staging points, security-sensitive edges, and neighboring-property boundaries. Record equipment footprints, approximate heights, row and lane directions, buildings, roads, property lines, likely mounting points, maintenance paths, and sensitive viewpoints before comparing fixtures.
Use the map to define the questions a later layout must answer; it does not establish fixture count, spacing, coverage, uniformity, or compliance. The IES planning process treats planning, calculations, obtrusive-light review, controls, and maintenance as parts of the broader design process.
| Yard zone | Primary visibility or movement task | Planning implication |
|---|---|---|
| Storage rows | See between and around stored equipment while accounting for tall or irregular shapes | Show equipment height, row direction, shadowed faces, gaps, and row ends before comparing broad distributions |
| Access lanes | Support vehicle movement and sightlines along approaches and internal paths | Map travel direction, turning areas, lane approaches, and places where perimeter lighting may not reach |
| Loading or staging points | Provide an oriented view of a loading face, corner, approach, or work area | Compare task-directed aiming with broader area coverage and identify driver or worker glare angles |
| Security-sensitive edges | Maintain useful awareness at selected property boundaries or vulnerable approaches | Review aiming, shielding, dark-edge risk, and viewpoints from workers, drivers, roads, and neighbors |
| Neighboring-property boundaries | Limit unwanted spill and glare toward homes, businesses, roads, or other sensitive locations | Mark boundaries and ask for boundary-light documentation instead of applying a universal limit |
The zone map should show where a fixture might be mounted and how it could be serviced without disrupting yard operations. A pole serving an open lane may not address a shadowed row face, while a building-mounted fixture may help a loading approach but leave an internal lane unresolved. Keep those as layout questions until distribution and aiming have been reviewed.
Choose Commercial Outdoor Lighting Roles by Zone
Treat each fixture category as a conditional role, not an automatic recommendation. For organized rows and circulation, compare area or pole-mounted distribution when mounting locations, equipment geometry, service access, and the intended distribution support it. Use directional flood or wall-mounted roles for defined tasks or boundaries, and consider combinations when zone conditions differ.
Use Area or Pole-Mounted Coverage for Rows and Lanes
Compare area or pole-mounted roles when the plan needs organized open-yard coverage across rows or vehicle paths and suitable, maintainable mounting points can serve those areas. The choice still depends on actual distribution and aiming, not the category name.
Check whether stored equipment blocks light between rows, whether row ends and lane approaches remain visible, and whether the proposed controls and service points are practical. A broad fixture arrangement should not be treated as proof that internal movement paths or equipment faces will receive the intended visibility.
For category navigation only, review LED area-light options. Use current product documentation and the site layout to evaluate the actual option; the collection does not establish suitability for a particular yard.
Post-top fixtures belong in the same conditional comparison when freestanding mounting locations match the plan and their distribution can serve the intended zone. They should not substitute for analyzing row shadows, lane direction, or boundary viewpoints.
Use Flood or Wall-Mounted Coverage for Tasks and Boundaries
Compare flood lighting for a localized loading face, corner, equipment face, or selected edge when controlled aiming is more useful than broad distribution. The key question is whether the beam can address the task without creating avoidable glare for drivers, workers, road users, or neighbors. Review LED flood-light options as a category path, not as evidence of site fit.
Wall-mounted lighting can support an approach, door, loading face, or perimeter task when a building facade provides a suitable mounting opportunity. Freestanding pole or post-top placement may fit better when the task is separated from a building. A general discussion of pole or facade mounting can help frame that comparison, but the yard plan must determine which mounting opportunity is available.
Before adding output or more fixtures, compare aiming, shielding, spill, glare, controls, and service access. If rows need broad coverage but loading points and boundaries need directional control, consider a combined plan rather than forcing every zone into one category.
Stress-Test Shadows, Glare, Boundaries, and Maintenance Access
Before approving the selected roles, test the layout from the viewpoints that matter in use. Tall equipment, blocked sightlines, row ends, vehicle approaches, boundary spill, glare, controls, and service access can change the decision even when the fixture categories initially appear reasonable.
Review storage rows from internal access paths and from the approaches used by workers or drivers. Look for equipment faces hidden behind taller units, gaps that remain visually weak, and row ends that are not addressed by the same distribution as the row interior. Do not rely on a perimeter fixture as the only source for an internal lane or task area when the map shows a different orientation.
Review access lanes in the direction vehicles travel, including turns and approaches to loading areas. Then view loading points toward the work face and identify angles where a fixture could shine toward a driver or worker. State the task orientation in the layout request rather than inferring it from a fixture label.
For security-sensitive edges, inspect the plan from worker, driver, road-user, and neighboring-property positions. Mark where aiming or shielding may reduce spill and glare, while also noting any dark edge created by moving the light away from a boundary. An official boundary spill-light review illustrates why property lines and vertical boundary conditions can be documented in a lighting review. Its example limits are specification-specific, not universal US requirements.
Finally, confirm that poles, walls, fixtures, controls, and likely service points can be reached under the site’s operating conditions. If the plan cannot show how it addresses shadows, sightlines, boundary spill, glare, controls, and maintenance access, pause approval and request a revised layout or qualified review. A useful audit of dark edges and glare can support those questions, but it does not replace site-specific analysis.
Turn the Zone Map Into a Comparable Product or Layout Request
Turn the sketch into a request that makes competing recommendations answer the same questions. Send the labeled five-zone map with approximate equipment dimensions or heights, row and lane directions, loading locations, property boundaries, nearby sensitive viewpoints, mounting opportunities, maintenance constraints, operating hours, and known control preferences.
For every zone, ask the supplier or lighting professional to state the proposed role, distribution or aiming approach, mounting assumption, glare and spill treatment, controls, and known shadow or coverage limitations. Keep unresolved assumptions visible so a quote does not appear more certain than the site information allows. The IES review categories provide useful context for asking about calculations, obtrusive light, controls, maintenance, and environmental-rating review, although exact deliverables depend on the project and jurisdiction.
Before purchase or installation, verify current product documentation for voltage compatibility, total load, controls, installation instructions, environmental or location ratings, and maintenance requirements. Hazardous-location classification, electrical installation, permits, and local requirements are project-specific questions for the applicable documentation and qualified professionals. Do not treat a product title, category page, rating, or inventory description as proof that a fixture fits this yard.
Use Hyperlite outdoor-lighting categories to navigate category and current-detail reviews. For a quote comparison, include the same zone labels and open questions in each request; these comparable quote package details can help organize plans, quantities, controls, submittals, shipping details, and timing without turning any one format into a universal requirement.
Your next action is straightforward: mark the five zones, equipment and movement directions, mounting points, maintenance paths, and sensitive boundaries on one sketch. Use it for a commercial outdoor lighting request that asks for a zone-by-zone recommendation or comparable lighting-layout quote with its assumptions stated.
Frequently Asked Questions
These questions focus on conditions that can change a yard-lighting decision after the zone map is drawn.
Can Perimeter Lighting Replace Lighting Inside Storage Rows?
Perimeter lighting should not replace internal-row planning when row direction, equipment height, or access paths create a different lighting orientation. Carry the internal task into the layout request rather than assuming an edge fixture reaches between stored units.
When Should Loading Lighting Be Aimed at a Task Face?
When loading activity is oriented toward a face, corner, or approach, ask for aiming that addresses that work direction and document driver and worker glare angles. A broad row or lane role may not answer the loading task.
What Makes Two Equipment-Yard Lighting Quotes Comparable?
Use the same five zone labels and ask each respondent to state the role, mounting assumption, distribution or aiming approach, controls, and unresolved limitations. Keep quantities and other assumptions visible so different layouts are not compared as if they used the same inputs.
