When access windows are limited, plan a commercial lighting retrofit one work area at a time. For each area, write down four things: the lighting task and goal, the access window or physical limit, and the mounting work new fixtures would need. Then choose fixtures that fit all of those conditions at once, instead of picking a fixture first and working out the installation later.
Short access turns installation sequence into a fixture-selection constraint, so set neither the scope nor the order until both are clear. The work-area record below is a planning aid, not a scheduling formula. It keeps open questions in view so someone owns each one before money is spent.
Map each work area before fixing fixture choices
Start commercial retrofit planning with one row per work area. If part of an area has a different task, access window, or mounting condition, give that part its own row.
| Work area and lighting task | Access and mounting conditions | Lighting goal and check to carry forward |
|---|---|---|
| Area name and what people do there | Window type (after hours, shutdown, occupied) and physical limits | Goal in plain words, plus the open fixture or system question |
| Illustrative: office with fluorescent troffers, desk work | After-hours access only; lay-in ceiling, plenum access unknown | Even light at desks; retrofit kit vs. new fixture on hold |

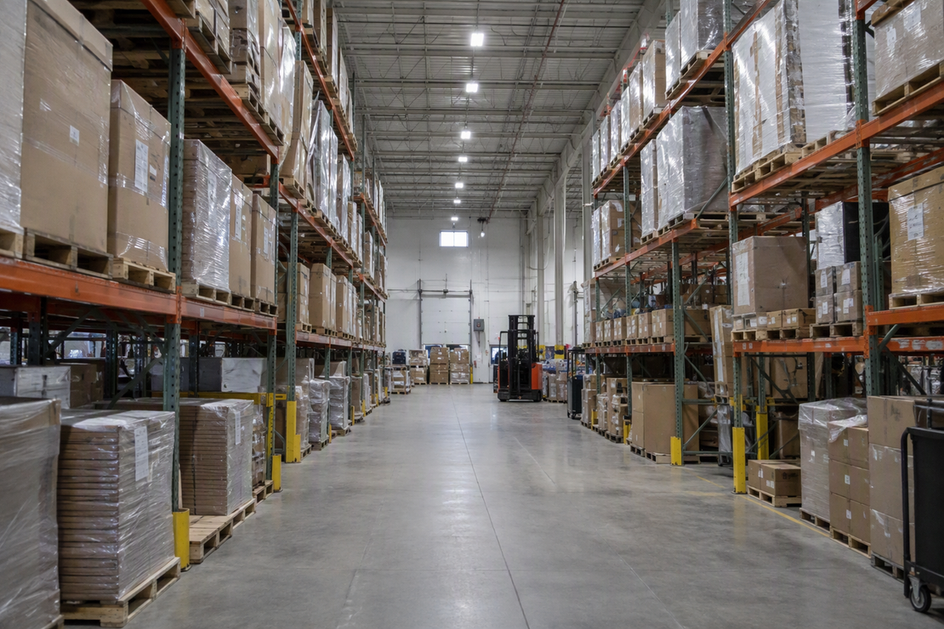

| Illustrative: high-ceiling storage aisle, picking | Weekend shutdown; lift needed; racking in the way | Light on rack faces; mounting method still open |
| Illustrative: entry corridor, wayfinding | Stays occupied; only brief closures | Light stays steady during work; sensor compatibility open |
The sample rows show the kind of entry to make. They are not project data. Keep separate rows even when two areas may end up with similar fixtures. A corridor that must stay open and an aisle that closes for a weekend lead to different packages and sometimes different mounting choices.
When a proposed substitute would change how a fixture hangs or what supports it, review mounting changes before you approve it. Then update that area's row so the change follows the area into sequencing.
Group tasks into access-window work packages
Build packages around shared access conditions, then put them in order based on dependencies your team has actually identified. The result is a proposed sequence. It does not promise that a given package will fit a given window.
- Split packages where access differs. Areas that share a window and the same access setup, such as one lift or one ceiling closure, can be grouped. An area that needs a shutdown gets its own package.
- List prerequisites and handoffs. Write down only the dependencies the team has confirmed, such as ceiling tiles that must come out first, an electrician's circuit review, or a controls handoff.
- Propose an order against the known windows. Match each package to a window the site has confirmed. Leave crew capacity and duration marked as open until the installer estimates them for the actual configuration.
- Label every unknown. Mark unconfirmed scope, duration, and dependencies on the package itself so nobody reads the draft as a schedule.
One public example of staging is the National Park Service's park-facility lighting retrofit workbook. It describes breaking staged retrofit activities into individual actions, dividing work into zones to minimize disturbance, and scheduling around normal operations, including off-hours when needed. The guide also names the tradeoffs: staging can stretch out the period of facility disturbance and add time spent setting up and breaking down the job site. Its scope is park facilities, so treat it as a reference point, not a ready-made commercial sequence.
The order should change when the inputs change. If a window shrinks, or a new prerequisite turns up during a site walk, reopen that package and any package that depends on it. If the installation method itself is still undecided, our comparison of hook-and-plug versus hardwired installation covers the labor side of that choice.
Choose lighting for the task and installation conditions
Select fixtures from each area's own record. The task defines what the fixture has to do, and the mounting and access conditions narrow which options can actually be installed.
- Task and lighting goal. Write down what the light must achieve in that area before comparing fixtures. If fixture count or spacing is still unknown, start with area lighting calculation steps.
- Mounting and access fit. Treat ceiling height, obstructions, and hanging method as selection inputs from the start. For high ceilings or tight clearances, the guide on warehouse mounting constraints shows how to screen options. Compare our LED high bay lights only after that row is filled in.
- Existing fluorescent troffers. For LED retrofits of existing fluorescent troffers, the FEMP troffer retrofit decision tree asks whether you have access to the ceiling plenum and whether there are known hazards in the ceiling before you settle on a retrofit option. If the answer is unknown, that area's choice between options stays open.
- Existing system and controls. Record the questions for each area: supply voltage, fixture wattage and total load, control type, sensors, and 0-10V dimming compatibility. Parts such as sensors or mounts from our indoor lighting accessories belong on the list only after those answers match the exact documents.
- Unresolved checks. If any check above is still open, hold the selection for that area. Don't assume a match from a product title or a category page.
If an area needs a photometric layout before its window, we offer lighting design support for that step.
Assign unresolved checks before scope or ordering
Before the scope or order is locked, give every open item an owner and one status: confirmed, still open, or excluded from scope. Electrical design and code decisions stay with qualified professionals, not with the planning record.
- Project electrician: circuit, load, and control constraints for the proposed configuration in each area.
- Lighting designer or engineer: whether the proposed layout meets each area's lighting goal and any project-specific design requirements.
- Local authority having jurisdiction: code, permit, and inspection questions. Requirements depend on the state and local jurisdiction, so confirm them for the project's location.
- Project team or purchaser: the current spec sheet, installation instructions, and label information for the exact SKU, checked against the mounting details in the area record.
- Utility program contact, if a rebate is involved: the current qualified products list and that program's own terms.
When an area still has an open item as its window approaches, take that area out of the package rather than ordering around the gap. The completed record then shows which areas are ready to order and which stay on hold, along with the owner of each remaining question.
FAQs
Can one fixture type cover every area in the retrofit?
Only if the area records show the same task, mounting condition, access setup, and existing-system answers. When any of those differ, keep a separate selection decision for that area, even if the same fixture family ends up on the shortlist.
Does a product listing or status guarantee local project approval?
No. A product listing or status does not decide overall project compliance, which is determined by the local authority having jurisdiction for that specific project location.
Should the plan assume a set installation time per fixture?
No. Labor time depends on the actual fixture, mounting method, access equipment, and site conditions. Leave duration open on each package until the installer gives an estimate for the configuration that will really be installed.
