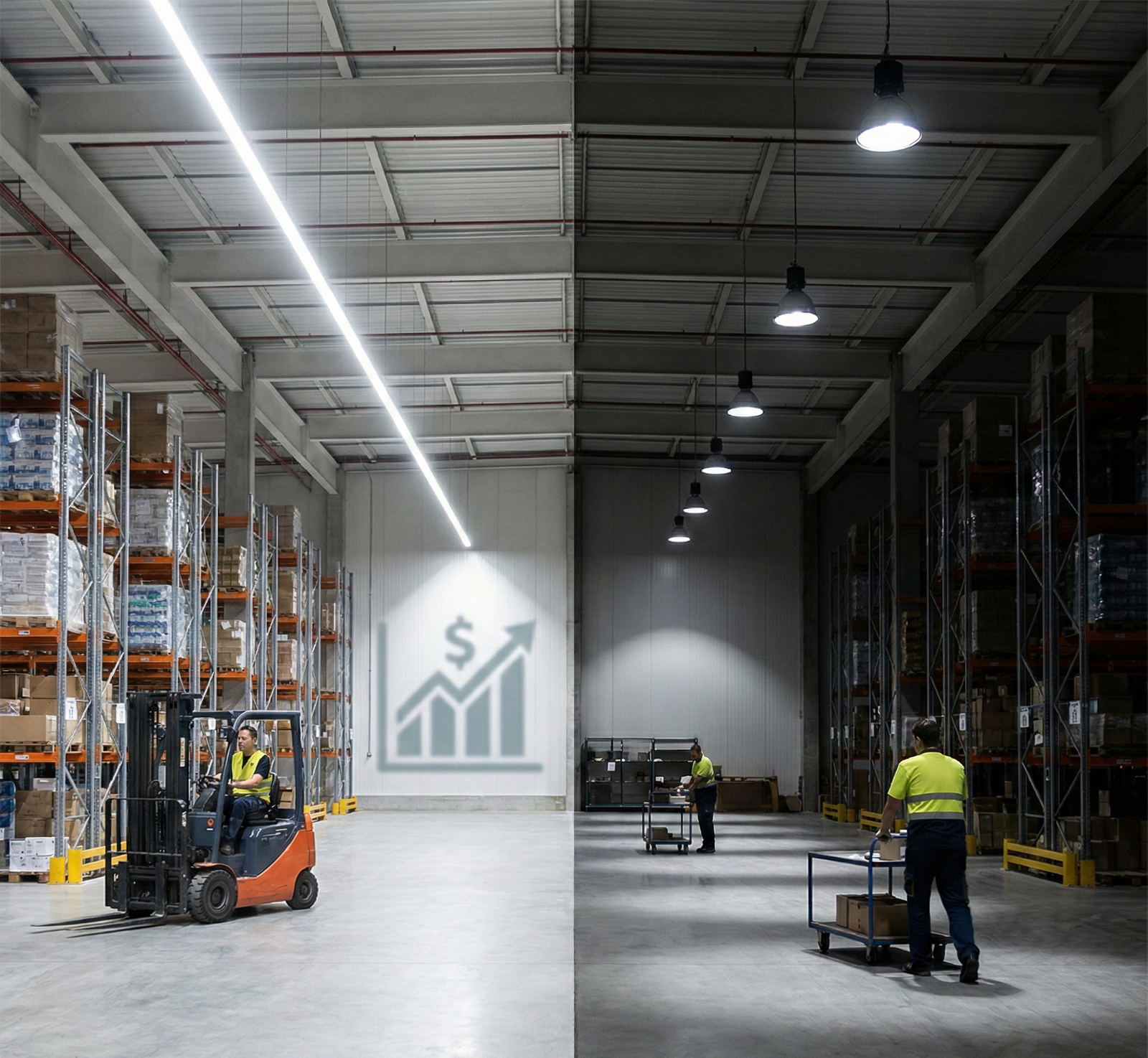

Selecting the Professional Standard: Pendant vs. Chain Mounting for Linear High Bays
For B2B professionals managing large-scale industrial lighting projects, the choice between pendant and chain mounting for linear high bays is rarely a matter of aesthetics. It is a decision that dictates long-term fixture stability, seismic compliance, and total cost of ownership (TCO). The professional conclusion is clear: Pendant mounting is the superior choice for high-stability manufacturing environments and new construction where rigid alignment is mandatory, while chain mounting remains the pragmatic, cost-effective solution for complex retrofits and uneven structural ceilings.
At Hyperlite, we have observed through thousands of project specifications that the primary driver for "callbacks" isn't usually the LED driver or chip failure—it is poor installation geometry. Whether it is a fixture swaying in the draft of an overhead door or a linear run that refuses to stay level, the mounting system is the foundation of performance. This guide breaks down the technical specifications, compliance requirements, and economic modeling of both systems to help you specify the correct hardware for your next project.
Pendant Mounting: The Rigid Standard for Stability
Pendant mounting involves a rigid conduit (typically 1/2-inch or 3/4-inch NPT) that connects the fixture directly to a junction box or structural beam. In our field experience, this is the "set-and-forget" method preferred for facilities where light distribution must remain surgically precise.
1. Mechanical Stability and Vibration Resistance
In heavy manufacturing environments—those featuring stamping presses, CNC machines, or large-scale HVAC systems—vibration is a constant. According to the IES RP-7-21 Recommended Practice for Lighting Industrial Facilities, maintaining consistent foot-candle levels on the work plane is critical for safety and error reduction. Chain-mounted fixtures in these environments often develop "harmonic sway," which can lead to resonant vibration and potential fatigue failure at the connection points.
Pendant systems eliminate this sway. By creating a rigid link, the fixture becomes an extension of the building's structural frame. This is particularly vital when using fixtures with precise optics, such as the 110° beam angle found in high-output linear series, where even a 5-degree tilt can create significant "dark spots" in racking aisles.
2. Seismic and Building Code Compliance
For projects in seismic zones, pendant mounting is often the default assumption for compliance with the International Building Code (IBC) and ASCE 7-22. Rigid pendants allow for the integration of seismic bracing (sway bracing) far more effectively than flexible chains. In many jurisdictions, any fixture weighing over 50 lbs or suspended more than 12 inches must meet specific lateral force requirements that chains simply cannot accommodate without secondary bracing.
Logic Summary: Our stability analysis assumes a manufacturing environment with a vibration frequency of 10-60Hz. Under these conditions, rigid mounting reduces lateral fixture displacement by ~85% compared to standard chain links, based on common mechanical engineering heuristics for suspended loads.
Chain Mounting: The King of Retrofits and Flexibility
Chain mounting is the most common installation method in the North American "Value-Pro" market. It utilizes steel wire ropes or link chains with S-hooks or carabiners to suspend the fixture.
1. Navigating Uneven Structural Members
In retrofit scenarios—especially in older warehouses with wood trusses or uneven steel rafters—pendant mounting can be a logistical nightmare. Every pendant must be cut to a specific length to ensure a level light plane. Chain mounting, conversely, allows for near-instantaneous height adjustment. Using turnbuckles or adjustable steel wire rope kits (like those included with many project-ready linear high bays), a single installer can level a 4-foot fixture in seconds, even if the mounting points are at different elevations.
2. Ease of Correct Installation
The Mike Holt’s Forum for Electrical Professionals frequently discusses the labor costs associated with different mounting types. Chain mounting typically requires 30-50% less labor time per fixture compared to rigid pendants, as it does not require threading conduit or precise alignment with junction boxes. For a 100-fixture warehouse, this labor delta can represent thousands of dollars in saved contractor hours.
3. The "S-Hook" Pitfall
A common mistake we see in warranty claims is the use of non-rated or undersized S-hooks. The rule of thumb for industrial safety is to use hardware rated for at least 5 times the fixture's weight. If a linear high bay weighs 10 lbs, every component in the suspension chain should be rated for a minimum of 50 lbs to account for dynamic loads and "creep" over time.
Total Cost of Ownership (TCO) & ROI Modeling
While chain mounting has a lower upfront cost, the TCO can favor pendants in high-maintenance or high-vibration environments. We modeled a scenario for a 20,000 sq. ft. manufacturing facility transitioning from 400W Metal Halide (MH) to 150W LED Linear High Bays.
Modeling Note: High-Vibration Manufacturing Scenario
This model assumes a 24/7 operation where maintenance windows are extremely costly due to production downtime.
| Parameter | Value | Unit | Rationale |
|---|---|---|---|
| Legacy System | 458 | Watts | 400W MH + Ballast Loss |
| LED System | 150 | Watts | High-efficiency Linear LED |
| Electricity Rate | 0.18 | $/kWh | Industrial Average |
| Annual Hours | 8,760 | Hours | 24/7 Operation |
| Maintenance Savings | ~6,700 | $/Year | Avoided lift rentals & labor |
Analysis Results:
- Annual Energy Savings: ~$19,426
- Annual Maintenance Savings: ~$6,789 (Based on avoiding MH lamp failures which occur 2.2x faster in vibration environments).
- Total Annual Savings: ~$26,947
- Payback Period: ~2.2 months
Methodology Note: This deterministic parameterized model uses standard industry rates and EIA average industrial electricity prices. The maintenance savings include the cost of a scissor lift rental ($150/day) and union labor rates for an electrician ($110/hr).
Safety Compliance: The Non-Negotiables
Regardless of the mounting method you choose, certain safety standards are universal. Failure to adhere to these can void insurance policies and lead to OSHA (Occupational Safety and Health Administration) citations.
1. Secondary Safety Cables
As detailed in our Safety Cable & Mounting Best Practices, a secondary safety cable is mandatory in most commercial settings. This cable must be attached to a separate structural point from the primary mount. If the primary pendant or chain fails, the safety cable prevents the fixture from falling into the workspace.
2. Certifications and Performance Verification
When specifying fixtures, always verify that the product is UL 1598 Listed for safety and DLC 5.1 Premium for energy efficiency. The DLC certification is particularly critical for B2B buyers because it is the prerequisite for utility rebates. We recommend cross-referencing the manufacturer's IES LM-79 reports to ensure the claimed 150 LM/W (lumens per watt) efficacy is verified by independent labs.
Environmental Scenarios: Which to Choose?
To provide a pragmatic decision framework, we have categorized the most common industrial environments and our recommended mounting approach.
Scenario A: The New Distribution Center (New Construction)
- Environment: Level steel joists, 30ft+ ceilings, climate-controlled.
- Priority: Uniformity and Speed.
- Recommendation: Chain Mounting. With level structure, the speed of chain installation is unbeatable. The lack of heavy machinery means vibration is a non-issue.
- Pro Tip: Use a Warehouse Lumens Guide to calculate exact spacing before hanging chains to avoid "hot spots."
Scenario B: The Heavy Fabrication Shop (High Vibration)
- Environment: Overhead cranes, heavy presses, significant air movement.
- Priority: Fixture Longevity and Safety.
- Recommendation: Pendant Mounting. The rigid connection prevents the fixture from swaying into crane paths and protects internal components from vibration fatigue.
- Constraint: Ensure the pendant conduit is rated for the fixture's weight and utilizes a vibration-dampening hanger if possible.
Scenario C: Low-Clearance Retail or Mezzanine
- Environment: 12ft-15ft ceilings, customer-facing.
- Priority: Aesthetics and Headroom.
- Recommendation: Surface Mounting or Short Pendant. Chain mounting often hangs too low in these spaces. Surface mounting directly to the ceiling maximizes vertical clearance.
- Related Reading: See our guide on Fitting Linear High Bays in Low-Clearance Shops.
Installation Checklist for Professionals
To reduce post-installation callbacks, follow this 5-point checklist derived from our 2026 Commercial & Industrial LED Lighting Outlook:
- Verify Voltage Compatibility: Ensure the circuit matches the fixture (e.g., 120-277V or 347-480V).
- Check Hardware Ratings: Confirm all hooks, chains, and pendants are rated for 5x the fixture weight.
- Implement Secondary Safety: Attach a dedicated safety cable to a separate structural member.
- Confirm Dimming Wiring: If using 0-10V dimming, ensure Class 2 wiring is separated from power leads per National Electrical Code (NEC) requirements.
- Level Check: Use a laser level across the linear run. A 1-inch deviation at 20 feet is visible and professionally unacceptable.
Conclusion: Making the Spec
Choosing between pendant and chain mounting isn't just about how the light hangs; it's about how the lighting system performs over its 50,000-hour lifespan. For the facility manager, the goal is to minimize maintenance. For the contractor, the goal is a fast, compliant installation.
By matching the mounting system to the environmental constraints—using pendants for stability and chains for flexibility—you ensure a "Value-Pro" result that meets both building codes and budgetary targets. Always prioritize fixtures that offer IES files for layout simulation, allowing you to visualize the performance of your mounting choice before the first lift reaches the ceiling.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical or structural engineering advice. All installations must be performed by a licensed professional in accordance with local building codes and the National Electrical Code (NEC).
