Selecting the Right Anchoring System for Industrial LED High Bays

Securing high-output LED high bay fixtures to a concrete ceiling is a critical safety operation where the margin for error is zero. In heavy industrial environments, fixtures are subjected to constant tension, thermal expansion, and high-cycle vibration from machinery and HVAC systems. For professional contractors and facility managers, the choice of anchor is not merely a matter of convenience but a fundamental requirement for code compliance and liability mitigation.

According to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the transition to high-efficiency LED systems often involves replacing heavier legacy HID (High-Intensity Discharge) units. While LEDs are generally lighter, the anchoring requirements remain stringent to ensure long-term structural integrity under dynamic loads.

The consensus in the electrical trade is to prioritize torque-controlled expansion anchors—specifically wedge anchors—for solid concrete. However, the specific type of concrete (solid vs. hollow-core) and the presence of reinforcement bars (rebar) significantly dictate the hardware selection.

Comparison of Common Concrete Anchoring Hardware

Anchor Type	Best Use Case	Mechanism	Key Limitation
Wedge Anchor	Solid, structural concrete (3,000+ psi)	Torque-controlled expansion	Cannot be used in brick or block
Sleeve Anchor	Softer concrete or masonry	Expansion over a larger surface area	Lower tension capacity than wedge anchors
Drop-In Anchor	Hollow-core planks or flush mounting	Internal plug expansion	Requires specialized setting tool
Concrete Screw	Light-duty or temporary installs	Threaded mechanical interlock	Susceptible to brittle failure under vibration
Adhesive Anchor	High-vibration or seismic zones	Chemical bond (Epoxy/Resin)	High installation time; requires clean holes

Logic Summary: This selection matrix is based on standard industry heuristics for industrial mounting. The preference for wedge anchors in solid concrete is derived from their predictable performance under constant tension loads, aligned with general engineering principles for overhead fixtures.

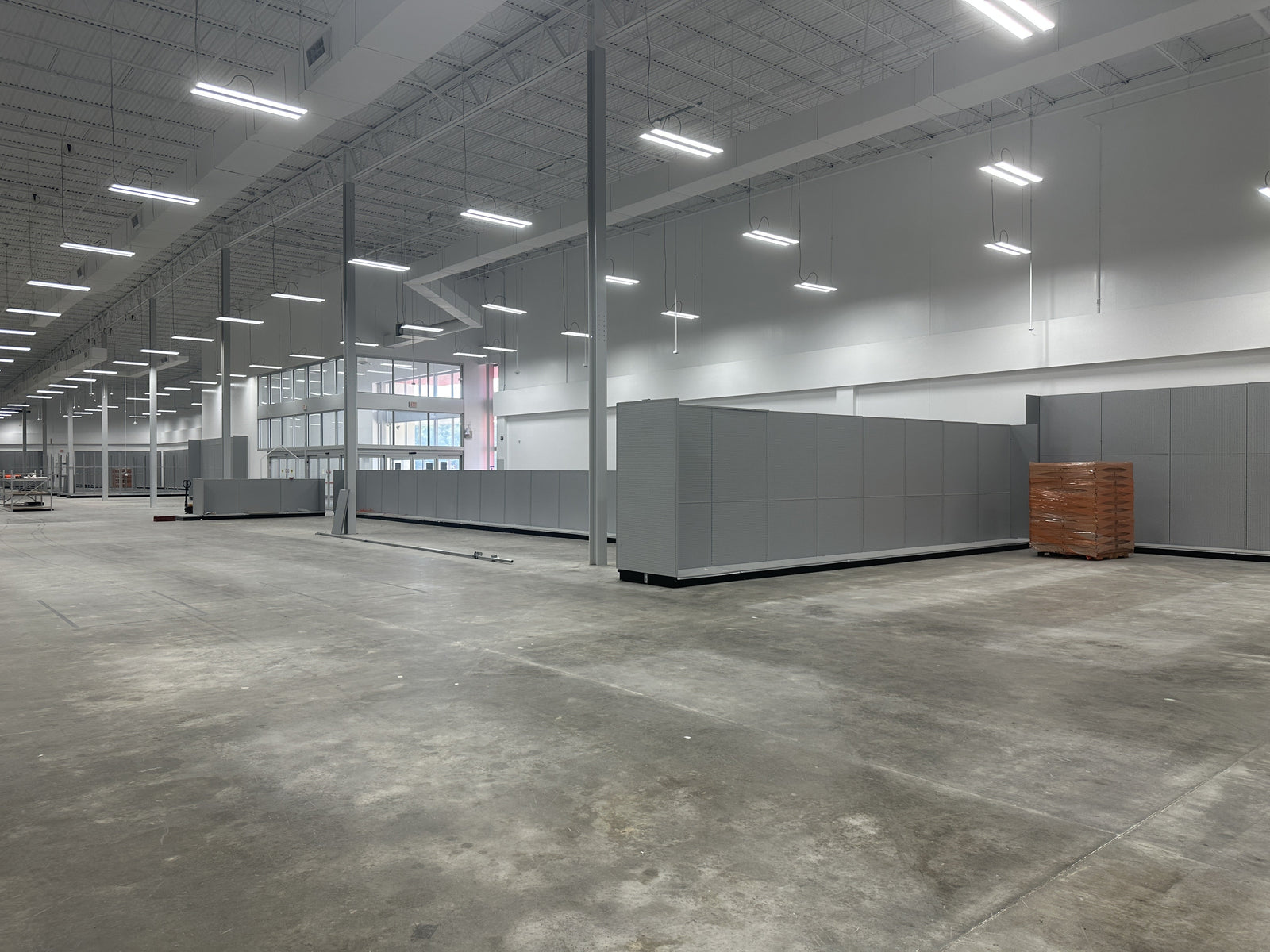

High-ceiling industrial warehouse illuminated by suspended LED High Bay fixtures

Engineering Math: Load Requirements and Safety Factors

In the world of facility management, "good enough" is a dangerous metric. When anchoring overhead, you must distinguish between static load (the weight of the fixture) and dynamic load (weight plus environmental factors like vibration or seismic activity).

Standard load tables provided by manufacturers often suggest a safety factor of 4.0. However, for life-safety applications where a fixture hangs over personnel, experienced engineers advocate for a safety factor of 10 or higher. This is particularly relevant when considering the ACI 318-25 Building Code for Structural Concrete, which provides updated guidelines on load reduction factors for post-installed anchors.

The "Overhead Factor" Calculation

If a high-performance LED fixture weighs 20 lbs, a 4.0 safety factor would require an anchor rated for 80 lbs of tension. However, applying a 10.0 safety factor—which accounts for high-cycle fatigue and potential installation inconsistencies—moves that requirement to 200 lbs.

We estimate that for most industrial high bays, using a 1/4" or 3/8" wedge anchor provides an ultimate pull-out strength far exceeding these requirements, provided the embedment depth is correct.

Methodology Note (Scenario Modeling): Our analysis assumes a 20 lb fixture weight and standard 3,000 psi concrete. These calculations are scenario-based models and should be verified by a structural engineer for specific site conditions.

Embedment Depth Rule: A reliable rule of thumb is a minimum embedment of 4.5 to 5 times the anchor diameter. For a 1/2" anchor, this necessitates a 2.25" to 2.5" embedment.
Dynamic Load Awareness: In facilities with heavy overhead cranes or large-scale manufacturing equipment, vibration can cause "concrete screw" style anchors to fail in a brittle manner. Mechanical expansion anchors or undercut anchors are preferred in these zones due to their superior fatigue resistance.

Step-by-Step Installation Protocol for Concrete Ceilings

The effectiveness of even the highest-quality anchor is halved if the installation protocol is ignored. Data from field audits suggests that improper hole cleaning is the single most common cause of anchor failure.

1. Drilling and Depth Management

Use a hammer drill with a carbide-tipped bit that matches the anchor diameter exactly. Always drill the hole at least 1/2" deeper than the intended embedment. This extra space prevents the anchor from bottoming out on residual dust.

2. The "Triple-Clean" Method

Skipping hole cleaning can reduce an anchor's holding power by up to 50% because the expansion mechanism bites into loose dust rather than the concrete sidewall.

Blow: Use compressed air or a hand pump to remove bulk dust.
Brush: Use a wire hole brush to scrub the sidewalls.
Vacuum: Use a HEPA-filtered vacuum to remove the remaining particulates.

3. Setting the Anchor

For wedge anchors, drive the anchor into the hole until the washer is flush with the fixture bracket (or the ceiling surface if using a hook). Tighten the nut to the manufacturer’s specified torque. Over-torquing can "strip" the concrete or snap the bolt, while under-torquing prevents the expansion clip from engaging.

Practitioner Observation: We often observe installers using impact drivers to set concrete anchors. Based on common patterns from customer support and warranty handling, we recommend using a manual torque wrench to ensure the expansion mechanism is engaged without over-stressing the bolt.

LED High Bay lights and UFO high bay fixtures illuminating a high-ceiling warehouse with storage racks and a forklift

Addressing the "Gotchas": Rebar and Hollow-Core Planks

Industrial facilities rarely feature "perfect" concrete. Two common obstacles can derail an installation: reinforcement steel and pre-stressed hollow-core planks.

The Rebar Strike

Drilling into tension rebar can reduce its structural capacity by up to 75%. If you hit steel while drilling, do not attempt to force the bit through. According to the UL 1598 standard for luminaires, the mounting must remain secure; however, compromising the building's structural integrity to hang a light is a violation of basic building codes. Use a rebar locator or GPR (Ground Penetrating Radar) scan before drilling in critical structural members.

Hollow-Core Challenges

Many modern warehouses use pre-cast hollow-core concrete planks. Using a standard wedge anchor in the "web" (the hollow part) will cause the bottom of the slab to blow out. In these scenarios, use mechanical drop-in anchors designed for short-reach expansion or toggle-style bolts rated for concrete.

For more on weight considerations, see our guide on Fixture Weight & Load: UFO vs. Linear High Bay Specs.

Economic and Strategic Impact: ROI of Proper Installation

For a facility manager, the decision to invest in professional-grade anchoring and high-efficiency LED lighting is a strategic one. Beyond safety, the financial returns of a well-executed retrofit are substantial.

We modeled a scenario for a heavy industrial facility operating 24/7. By replacing 40 legacy 400W metal halide fixtures with 150W LED high bays, the facility realized significant energy and maintenance savings.

Scenario Modeling: 10-Year Industrial Retrofit Impact

Metric	Value	Rationale
Annual Energy Savings	~$19,400	Based on 308W reduction per fixture @ $0.18/kWh
Annual Maintenance Savings	~$11,900	Avoided lamp/ballast replacements and labor
Project Payback Period	~2 Months	After accounting for utility rebates
10-Year CO2 Reduction	~538 Metric Tons	Based on MROW grid factors (1.1 lb/kWh)

Modeling Disclosure: This deterministic parameterized model assumes 24/7 operation and a $0.18/kWh electricity rate. The "anchoring complexity premium" is factored into the initial installation cost. Individual results may vary based on local labor rates and utility rebate availability.

This data demonstrates that while proper anchoring adds a slight premium to the initial labor cost, the long-term ROI of a safe, compliant LED system is undeniable. High-quality installations, verified by DLC Qualified Products List (QPL) standards, ensure that the facility qualifies for maximum rebates, often covering a significant portion of the hardware costs.

Compliance and Quality Assurance

When selecting lighting fixtures for concrete mounting, ensure they carry the necessary certifications for industrial use. UL Solutions Product iQ and the Intertek ETL Directory are the primary databases for verifying that a fixture meets North American safety standards.

Furthermore, performance data should be backed by IES LM-79-19 reports, which provide an "optical performance report card" for the fixture. This ensures that the light levels (foot-candles) predicted in your photometric layout match the real-world output.

Quick Checklist for Concrete Mounting

Verify Concrete PSI: Ensure the concrete is structural grade (typically 3,000+ psi).
Check for Rebar: Use a locator to avoid structural damage.
Select the Correct Anchor: Wedge for solid; Drop-in or Toggle for hollow-core.
Clean the Hole: Blow, brush, and vacuum.
Use a Safety Cable: Always install a secondary safety rope/cable as required by NEC for overhead fixtures.

By adhering to these professional standards, contractors can ensure a "Solid and Reliable" installation that protects both the facility's occupants and its bottom line.

Disclaimer: This article is for informational purposes only and does not constitute professional structural engineering or electrical advice. Always consult with a licensed professional and adhere to the National Electrical Code (NEC) and local building regulations before beginning any installation.
