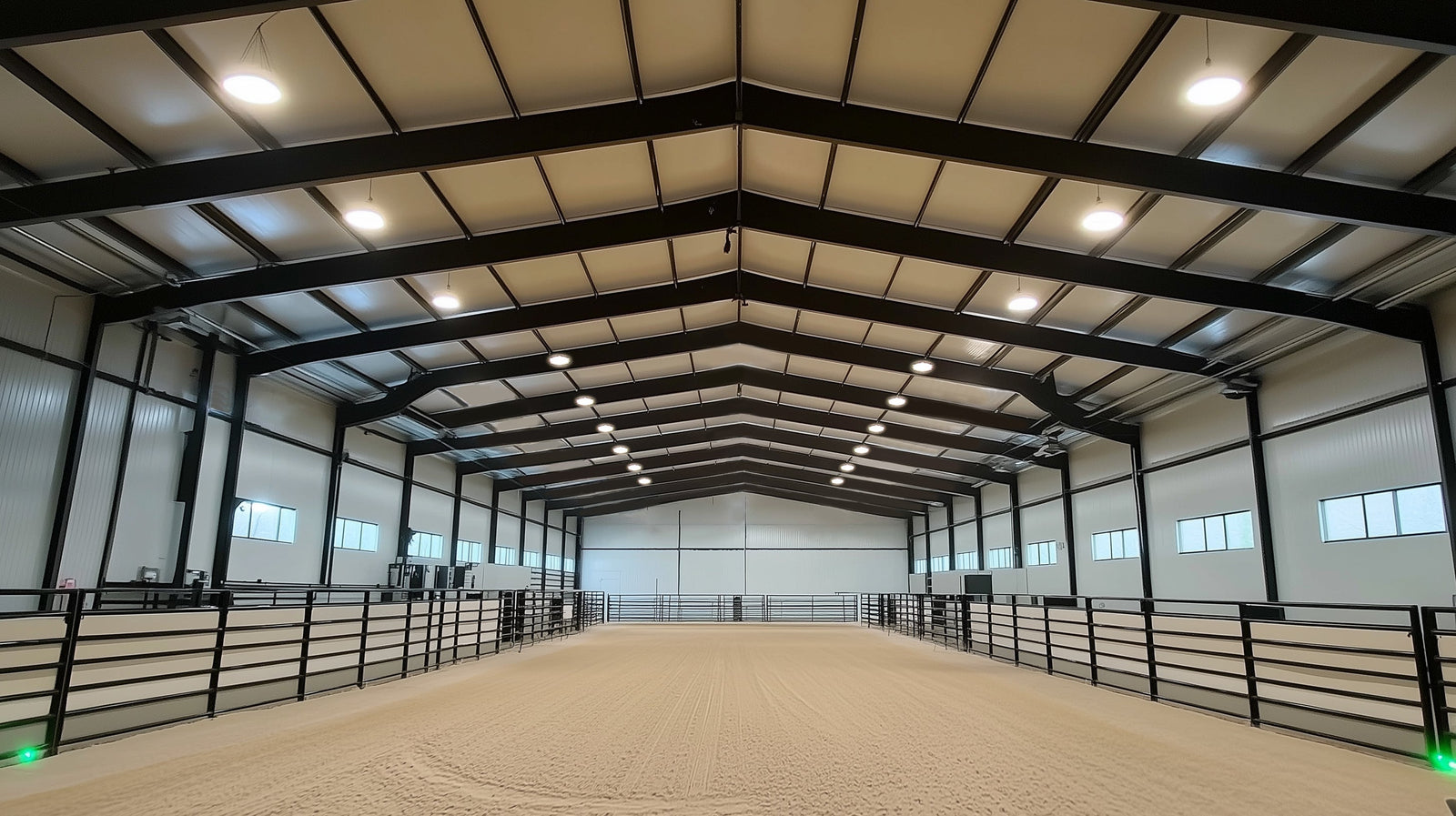

For facility managers and electrical contractors, the choice between round (circular) and linear high bay fixtures is rarely about aesthetics. The decision hinges on achieving a specific uniformity ratio—typically targeting 0.7 or better—to ensure safety, visibility, and operational efficiency in large open-plan spaces. While circular high bays are often the default for their lower unit cost and ease of installation, linear fixtures provide distinct photometric advantages in rectangular layouts and aisle-heavy environments.
The core technical decision is based on the Spacing-to-Height (S/H) ratio. In a standard 25-foot ceiling application, circular fixtures with a 120-degree beam typically require spacing no more than 20 feet apart (an S/H of ~0.8) to prevent dark midpoints. Conversely, linear high bays, with their asymmetric or batwing light distributions, can often be spaced at a ratio of 1.2 to 1.5 along the length of the fixture, potentially reducing the total number of rows required and simplifying the electrical circuit layout.
Photometric Distribution: Radial vs. Elongated Patterns
The fundamental difference between these two form factors lies in how they distribute luminous flux. Circular high bays, often referred to as "point sources" in industrial lighting design, emit a radial beam pattern. This is ideal for square grids or circular areas where light needs to spread equally in all directions. However, in open areas that are predominantly rectangular—such as staging zones, loading docks, or production lines—a radial pattern often leads to excessive light overlap (wasted energy) or "hot spots" directly under the fixture.
Linear high bays are designed with an elongated light engine. This geometry allows for a more controlled distribution of light along a specific axis. According to the Illuminating Engineering Society (IES) RP-7-21 Recommended Practice for Industrial Facilities, achieving uniform horizontal and vertical illuminance is critical for task performance. Linear fixtures excel here by providing a smoother transition of light between fixtures, which is essential for reading labels on pallet faces or identifying small components on a manufacturing floor.
The Uniformity Challenge: Spacing-to-Height (S/H) Ratios
A common mistake in industrial lighting design is spacing fixtures based solely on their maximum beam "throw." This approach frequently results in a "checkerboard" effect—bright pools of light separated by dim zones. To achieve a high-quality environment, designers must calculate the S/H ratio using IES LM-63-19 Photometric Files (.ies).
Comparative Spacing Simulation
In a recent simulation of a 120 ft × 60 ft warehouse with a 25 ft ceiling, we compared 21,000-lumen circular fixtures against linear equivalents.
| Metric | Circular High Bay (120° Beam) | Linear High Bay (Aisle/Wide) |
|---|---|---|
| Optimal S/H Ratio | 0.8 – 1.0 | 1.2 – 1.5 |
| Max Spacing (25' Height) | 20 ft | 30 ft – 37.5 ft (Lengthwise) |
| Uniformity (Min/Avg) | 0.65 (Typical) | 0.75 (Typical) |
| Installation Efficiency | High (Single point mount) | Moderate (Requires alignment) |
| Vertical Illuminance | Moderate | High (Excellent for shelving) |
Note: Values are estimated based on typical industry photometric data and standard warehouse simulations.
The data indicates that while circular fixtures are efficient for general area lighting, linear fixtures provide a "Long-Axis" advantage. By utilizing a wider row spacing, contractors can often reduce the number of conduit runs and junction boxes required, which directly impacts the total project cost.
Information Gain: The "Stripe" Effect vs. Radial Hot Spots
Expert practitioners recognize a nuance often missed in basic lighting software: the "Stripe" effect. While linear fixtures are superior for uniformity when aligned correctly, misaligned or over-spaced linears can create alternating bright and dark bands on the floor. If the S/H ratio exceeds 1.5 for narrow-distribution optics, the minimum-to-average illuminance can drop below 0.6, causing visual fatigue for forklift operators.
Conversely, circular fixtures are more "forgiving" of slight mounting misalignments because their light distribution is symmetrical. However, they are prone to creating "hot spots"—zones of high luminance directly beneath the lens. For tasks requiring high visual acuity, such as quality control or electronics assembly, the diffuse nature of a linear fixture with a prismatic lens is often preferred to minimize glare and veiling reflections.
Glare Control and Human Factors (UGR)
Glare is more than an inconvenience; it is a safety hazard. The Unified Glare Rating (UGR) is the industry standard for quantifying discomfort glare. For industrial spaces, the target is generally UGR < 22–24.
Circular high bays, especially those with high-output LEDs and clear lenses, can present a high "point brilliance" that causes eye strain for workers looking upward (e.g., crane operators). Linear fixtures typically distribute the same amount of light over a larger surface area, which naturally reduces the peak luminance of the fixture. As noted in NEMA LSD 81-2023 regarding glare, selecting fixtures with appropriate shielding or diffusers is essential for maintaining a productive workforce.
Compliance, Rebates, and the ROI of Uniformity
When evaluating fixtures, B2B professionals must look beyond the initial price tag. Compliance with energy and safety standards is the baseline for professional-grade installations.
- DLC Premium Qualification: To qualify for the highest utility rebates, fixtures must be listed on the DesignLights Consortium (DLC) Qualified Products List (QPL). DLC Premium status often requires higher efficacy (lm/W) and better lumen maintenance than standard versions.
- Safety Certifications: All fixtures should be UL 1598 listed for luminaires. This ensures the housing, wiring, and thermal management meet rigorous safety standards.
- Energy Codes: Modern projects must comply with ASHRAE 90.1-2022 or California Title 24, Part 6, which mandate not only high efficiency but also mandatory lighting controls like occupancy sensors and daylight harvesting.
The Economics of an Upgrade
Consider a retrofit of 20 legacy 400W metal halide fixtures (458W total system power) to 150W LED linear high bays.
- Annual Energy Savings: ~$3,450 (at $0.14/kWh, 4000 hours/year).
- Maintenance Savings: ~$780 (elimination of bulb/ballast replacements).
- Rebate Potential: Using the DSIRE Database, a facility might recover $50–$100 per fixture in rebates.
- Payback Period: In many B2B scenarios, the simple payback is achieved in under 6 months when rebates are applied.
Technical Specification Checklist for Decision Makers
To ensure the selected fixture delivers the promised uniformity and longevity, facility managers should verify the following artifacts:
- LM-79 Report: This is the "performance report card" for the fixture. It verifies the total lumens, efficacy, and color temperature (CCT) as measured by an independent lab.
- LM-80 and TM-21 Data: These standards measure and project the lumen maintenance ($L_{70}$ life). According to the IES TM-21-21 standard, projections should not exceed six times the actual test duration. If a manufacturer claims 100,000 hours based on only 6,000 hours of testing, they are violating IES protocols.
- IP and IK Ratings: For dusty or damp environments, an IP65 rating (Ingress Protection) is mandatory. For gyms or facilities with moving equipment, an IK08 or IK10 rating ensures the fixture can withstand mechanical impacts.
- FCC Part 15 Compliance: Essential for preventing electromagnetic interference (EMI) with sensitive electronics or communication equipment.
Strategic Implementation: Choosing the Right Form Factor
Scenario A: The Open Grid (Warehouse Staging, Gymnasiums)
In large, square-ish open areas with no fixed racking, circular high bays are the pragmatist's choice. They offer the lowest cost per lumen and are exceptionally easy to install via a single hook or pendant. To ensure uniformity, maintain an S/H ratio of 1.0 or less and use a 120-degree beam angle.
Scenario B: The Aisle-Based Layout (Distribution Centers, Retail)
In spaces defined by long aisles or rectangular work zones, linear high bays are technically superior. They provide the necessary vertical illuminance for picking tasks and allow for wider spacing between rows, which reduces the total fixture count and installation labor.
Frequently Asked Questions
How do I wire a high bay for 0-10V dimming? Most professional LED high bays use a Class 2 dimming circuit. This requires a separate pair of low-voltage wires (usually purple and gray/pink) to be run from the fixture to the dimmer or sensor. Always refer to NFPA 70 - National Electrical Code (NEC) for proper separation of Class 1 and Class 2 wiring.
Why is my LED high bay flickering? Flicker is often caused by a mismatch between the LED driver and the control system (dimmer or sensor). High-quality drivers compliant with NEMA 410 standards are designed to handle the inrush current and signal noise that cause flickering in cheaper components.
Can I install these myself or do I need an electrician? For "Plug & Play" models with a pre-installed 120V plug, a facility manager can often handle the physical mounting. However, any hard-wiring, 277V/480V installations, or control system integration should be performed by a licensed electrician to ensure compliance with local building codes and insurance requirements.
Disclaimer: This article is for informational purposes only and does not constitute professional engineering, electrical, or legal advice. Always consult with a licensed electrical contractor and local building authorities before beginning a lighting project.
