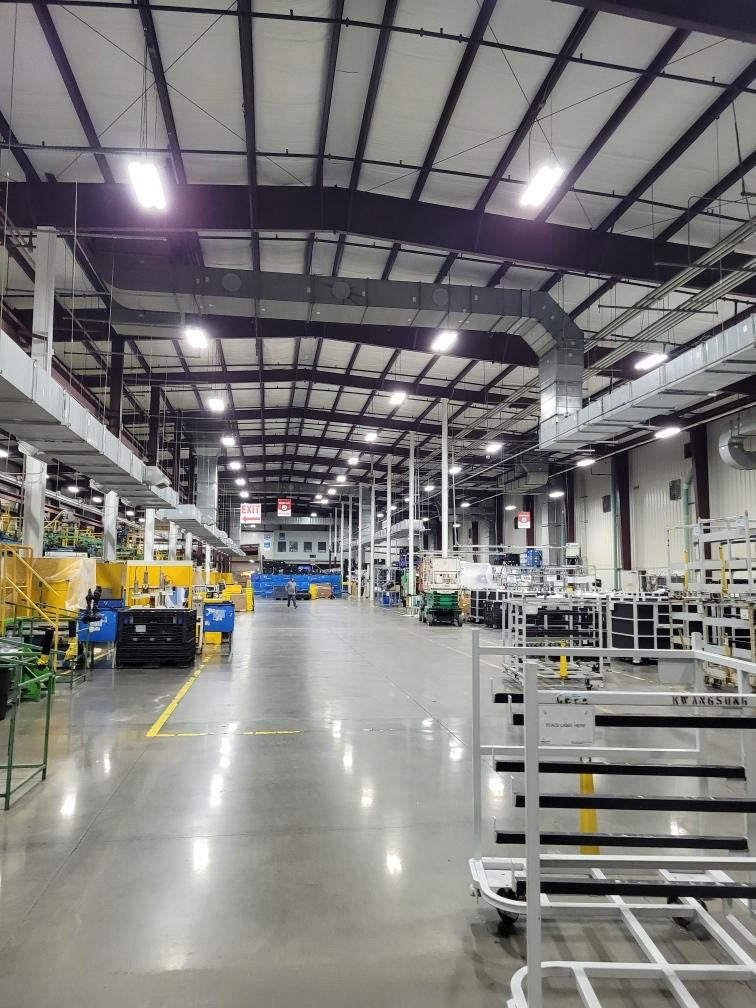

Warehouse Lumens Guide for UFO High Bay Lights

Determining the correct lumen output for a warehouse is a critical decision that directly impacts safety, worker productivity, and operational costs. Moving beyond simple wattage ratings to a lumen-based calculation ensures your facility is lit correctly from day one. This guide provides a clear, data-driven method for selecting the right UFO high bay fixtures by calculating your exact lighting needs based on facility size, ceiling height, and the specific tasks being performed.

Getting this right prevents common issues like under-lit, hazardous zones or over-lit areas that waste energy. By following a professional process, you can create a lighting plan that is both effective and efficient, leveraging industry standards to guarantee performance and unlock potential energy rebates.

Understanding Core Lighting Metrics

Before calculating your needs, it's essential to understand the fundamental terms that define lighting performance. While often used interchangeably, lumens, watts, and footcandles measure distinct aspects of light, and knowing the difference is key to a successful lighting design.

Lumens, Efficacy, and Footcandles

• Lumens (lm): This is the total quantity of visible light emitted by a source. Think of it as the raw output of a fixture. A high bay light with 21,750 lumens produces more light than one with 14,500 lumens.
• Efficacy (lm/W): This measures how efficiently a fixture converts electricity (watts) into light (lumens). A fixture with a higher efficacy, like 145 lm/W, is more energy-efficient than one at 120 lm/W. High-efficacy fixtures are often a requirement for utility rebates, a fact verifiable on resources like the DesignLights Consortium (DLC) Qualified Products List (QPL).
• Footcandles (fc): This is the most critical metric for planning. It measures the amount of light that actually reaches a specific surface, like a workstation or the floor. The goal of a lighting layout is not to maximize raw lumens in the ceiling, but to achieve a target footcandle level on the ground.

The Myth of Raw Lumens

A common mistake is to select fixtures based solely on their lumen rating. This approach fails to account for environmental factors that determine how much light actually reaches the work plane. Two key factors, Light Loss Factor and Coefficient of Utilization, are critical for an accurate calculation.

• Light Loss Factor (LLF): This accounts for the reduction in light output over time due to factors like dirt accumulation on the fixture (Luminaire Dirt Depreciation) and the gradual decline of the LED's output. For modern, well-maintained LED high bays, a practical LLF of 0.75 to 0.85 is a realistic estimate.
• Coefficient of Utilization (CU): This represents the percentage of light that effectively reaches the work surface after accounting for losses within the room itself. Factors include room dimensions, ceiling height, surface reflectances (walls, floor, ceiling), and the fixture's beam angle. In a warehouse with high racks and darker surfaces, the CU might be as low as 0.5, while an open space with light-colored walls could be 0.7 or higher.

Ignoring these factors is like navigating without a map. You might end up with a space that is only half as bright as you intended, compromising safety and productivity.

Determine Your Target Footcandle Level

The required brightness in a warehouse is not uniform; it varies entirely based on the tasks performed in each area. A space used for bulk storage needs far less light than an area dedicated to detailed inspections. The Illuminating Engineering Society (IES) provides recommended practices that serve as an authoritative starting point.

According to ANSI/IES RP-7-21, Lighting Industrial Facilities, different tasks require different illuminance levels for safety and accuracy. The following table provides a practical guide for setting your footcandle targets.

Warehouse Area / Task	Recommended Maintained Footcandles (fc)	Common Activities & Rationale
General Storage (Inactive)	10–20 fc	Bulk pallet storage, long-term holding. Low light is sufficient for occasional access.
Aisles & Passageways	20–30 fc	Forklift and pedestrian traffic. Ensures safe navigation and hazard avoidance.
Picking & Packing Areas	30–50 fc	Manual sorting, reading labels, packing boxes. Higher light reduces errors and improves speed.
Loading Docks	30–50 fc	Reading shipping documents, safe movement of goods between trucks and staging areas.
Assembly & Maintenance	50–70 fc	Detailed mechanical work, parts assembly. Requires good visibility to handle small components.
Inspection & Quality Control	70–100+ fc	High-precision tasks, color verification, identifying product defects. Reduces eye strain.

I often see facilities light their entire space to 50 fc, including bulk storage aisles. This is a significant waste of energy. By adopting a zoned approach based on these IES guidelines, you can reduce upfront fixture costs and long-term operating expenses.

Calculating Total Lumens: A Step-by-Step Example

With a target footcandle level established, you can calculate the total lumens required to properly illuminate your space using a standard industry formula.

The Lumen Method Formula:

Total Lumens Required = (Target Footcandles × Square Footage) / (Coefficient of Utilization × Light Loss Factor)

Let's walk through a real-world example.

Scenario:

• Facility: A warehouse used for picking and packing.
• Area: 12,000 sq. ft. (100 ft. wide x 120 ft. long).
• Ceiling Height: 25 ft.

Step 1: Define Variables

• Target Footcandles: Based on our table, a picking area requires 30–50 fc. Let's aim for 40 fc to ensure excellent visibility.
• Square Footage: 12,000 sq. ft.
• Coefficient of Utilization (CU): For a large, open space with high ceilings and some racking, a CU of 0.6 is a reasonable estimate.
• Light Loss Factor (LLF): We'll use a standard value of 0.80 for modern LEDs.

Step 2: Calculate Total Lumens

Total Lumens = (40 fc × 12,000 sq. ft.) / (0.60 × 0.80) Total Lumens = 480,000 / 0.48 Total Lumens = 1,000,000 lm

So, you need approximately 1,000,000 lumens delivered to the work plane.

Step 3: Determine Number of Fixtures

Now, you can select a fixture and determine how many you need. Let's consider the Hyperlite LED High Bay Light - Black Hero Series, 21750lumens. This fixture is a strong choice for this ceiling height.

Number of Fixtures = Total Lumens Required / Lumens per Fixture Number of Fixtures = 1,000,000 lm / 21,750 lm Number of Fixtures ≈ 46

To properly light this 12,000 sq. ft. picking area, you would need approximately 46 of these 150W high bay fixtures.

Refining Your Layout: Spacing and Controls

Calculating the number of fixtures is only half the battle. Proper spacing is essential to ensure uniform light coverage and avoid dark spots, a critical factor in a safe warehouse layout.

Spacing to Mounting Height Ratio (S/MH)

Every fixture has a recommended Spacing to Mounting Height (S/MH) ratio, which is found in its photometric data. This ratio dictates the maximum distance fixtures can be placed apart while still providing even light. A common S/MH ratio for UFO high bays with a 120° beam angle is around 1.5.

• Formula: Maximum Spacing = S/MH Ratio × (Mounting Height - Work Surface Height)
• Example: With a 25 ft. mounting height and a 3 ft. work surface: Maximum Spacing = 1.5 × (25 ft. - 3 ft.) = 33 ft.

In our 100' x 120' warehouse with 46 fixtures, a 5x9 grid (45 fixtures) would result in a spacing of approximately 20' x 13', well within the 33 ft. maximum. This ensures overlapping beams and uniform illumination. For a more detailed analysis of how beam angle affects placement, a guide on choosing a beam angle for your ceiling height can provide deeper insights.

The Role of Controls and Rebates

Modern lighting design extends beyond static fixtures. Integrating controls is a key requirement of modern energy codes like ASHRAE 90.1 and is essential for maximizing energy savings.

• 0-10V Dimming: This is a standard feature on most commercial-grade high bays, allowing you to adjust light levels. It's a must-have for compliance and operational flexibility.
• Occupancy Sensors: In areas with intermittent traffic, like storage aisles, occupancy sensors can reduce light levels or turn fixtures off when the space is empty, cutting energy waste dramatically.
• Daylight Harvesting: Fixtures near windows or skylights can be equipped with photocells to dim automatically when sufficient natural light is present.

Specifying fixtures that are "controls-ready" with 0-10V dimming drivers is critical. Not only does this save energy, but it is often a prerequisite for securing utility rebates from programs that rely on the DesignLights Consortium (DLC) for qualification.

Key Takeaways

Creating an effective and efficient warehouse lighting plan is a systematic process. By moving past simple wattage and focusing on delivered footcandles, you can ensure your design meets the specific needs of your facility.

1. Define the Task: Start by identifying the required footcandle levels for each area based on IES recommendations.
2. Calculate Total Lumens: Use the lumen method formula, incorporating realistic Light Loss Factors (LLF) and Coefficients of Utilization (CU) for an accurate estimate.
3. Select the Right Fixture: Choose a high-efficacy, DLC-listed UFO high bay with the appropriate lumen output for your ceiling height.
4. Plan Your Layout: Use the Spacing-to-Mounting-Height (S/MH) ratio to ensure uniform coverage without dark spots or excessive overlap.
5. Integrate Controls: Specify 0-10V dimming and sensors to comply with energy codes and maximize your return on investment.

For complex facilities, especially those with extensive racking or varied task areas, these calculations serve as a strong foundation. A final validation with a professional photometric layout using IES files is the industry-standard approach to guarantee performance before purchase.

Frequently Asked Questions (FAQ)

Q1: How many lumens do I need for a 20-foot ceiling warehouse? For a 20-foot ceiling, the process is the same. Determine your target footcandles (e.g., 30 fc for general transit). For a 5,000 sq. ft. area, you'd need approximately (30 fc * 5000 sq. ft.) / (0.6 CU * 0.8 LLF) = 312,500 lumens. Using a 14,500-lumen fixture like the Hyperlite Hero Series 100W, you would need around 21-22 fixtures.

Q2: What is the difference between lumens and watts? Lumens measure the total light output (brightness), while watts measure the energy consumed. A more efficient light (higher lumens-per-watt) will produce the same brightness using less energy. Always compare fixtures based on lumens first, then use efficacy (lm/W) to determine energy efficiency.

Q3: Are these calculations a guaranteed result? These calculations provide a highly accurate estimate for planning and budgeting. However, they are based on standard assumptions for CU and LLF. For a binding specification, especially in complex or regulated environments, a professional photometric analysis is the best practice. This uses software to model the exact light distribution in your specific layout.

Q4: Can I save money by using fewer, more powerful lights? While it might reduce the initial fixture count, it can lead to problems. Using fewer, brighter lights spaced further apart often creates "hot spots" (areas of intense glare) and dark zones. This lack of uniformity can cause eye strain for workers and create safety hazards. A balanced layout with more fixtures at a lower output generally produces a safer and more comfortable visual environment. You can often manage glare by consulting resources like our guide on UGR for high bay lighting.
