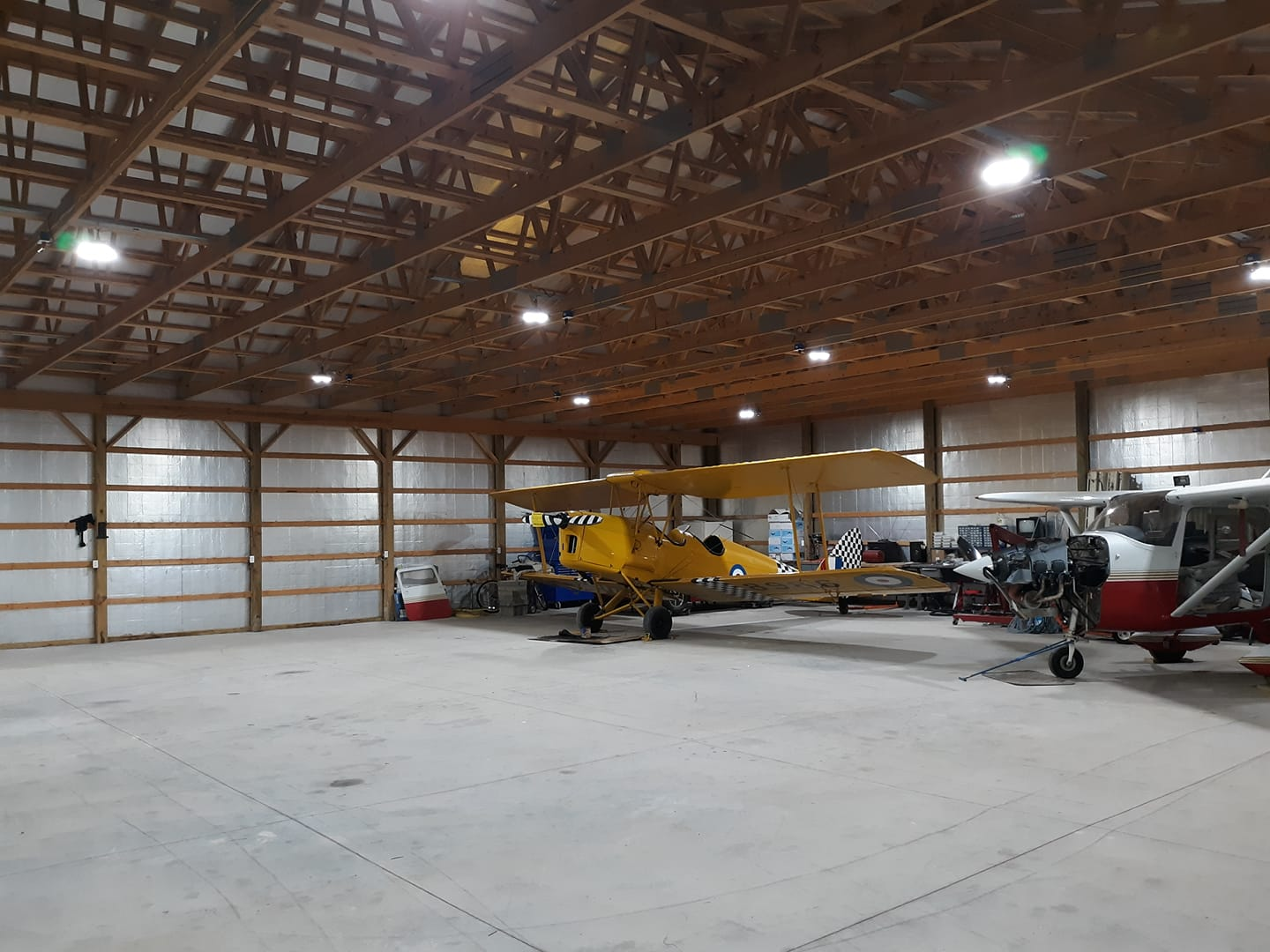

The Critical Link Between Ceiling Height and Light Distribution
Selecting a UFO high bay light based on lumen output alone is a common and costly mistake. While brightness is important, the effectiveness of that light hinges entirely on its beam angle. Choosing the right optics for your ceiling height is a primary factor in achieving uniform, efficient, and safe illumination. An incorrect beam angle can turn a powerful fixture into a source of frustration, creating a workspace plagued by harsh hotspots, deep shadows, and wasted energy.
Based on our experience walking through countless facilities—from brand-new logistics hubs to retrofitted machine shops—lighting often feels "off" because of a mismatch between mounting height and beam spread. This guide provides a practical, experience-based framework to prevent that. We will move beyond simple specs and give you the tools to select the perfect beam angle for any high-ceiling application, ensuring your investment delivers clear, consistent light where you need it most.
What Exactly Is a Beam Angle?
In technical terms, a luminaire's beam angle is the angle of the cone of light it produces, measured in degrees (°). The edge of this cone is defined by the point where the light intensity drops to 50% of its maximum (the center). Think of it like the adjustable nozzle on a hose: you can have a narrow, powerful jet or a wide, gentle spray.
- Narrow Beam Angles (e.g., 60°): These concentrate light into a focused, high-intensity circle. They "punch" light further down, making them essential for very high ceilings.
- Wide Beam Angles (e.g., 120°): These spread light over a much larger area. This provides broader coverage but with less intensity at any single point on the floor.
The goal is to choose an angle that allows the cones of light from adjacent fixtures to overlap correctly at the floor or work surface. Proper overlap creates uniformity; poor overlap creates "zebra striping" (alternating bright and dark zones). Getting this wrong leads to significant issues, including poor visibility for detailed tasks and compromised safety in forklift aisles.
A Framework for Matching Beam Angle to Mounting Height
While a professional lighting layout using photometric software is the gold standard, you can get remarkably close by using these practical rules of thumb. These height-to-angle pairings are based on standard industrial spacing patterns and common target illuminance levels.
| Mounting Height Range | Recommended Beam Angle | Primary Application | Practical Rationale |
|---|---|---|---|
| 15–20 ft (4.5–6 m) | 90° to 120° | Workshops, Garages, Low-Rack Warehouses | At lower heights, a wide beam is essential for light cones to overlap. Using a narrow beam here is a classic mistake that creates intense hot spots and dark bands. |
| 21–30 ft (6.5–9 m) | 60° to 90° | Standard Warehouses, Factories, Gymnasiums | This is the "sweet spot." The beam is focused enough to deliver strong light to the floor but wide enough to ensure smooth coverage with standard 20–25ft spacing. |
| 31–40 ft (9.5–12 m) | 40° to 60° | High-Rack Distribution Centers, Atriums | From these heights, a wide beam dissipates before reaching the floor. A narrow beam is required to maintain target foot-candle levels on the task plane. |
Case Study: 25ft Ceiling Comparison (Simulation Data)
To illustrate the impact, consider a 10,000 sq. ft. warehouse with a 25ft ceiling aiming for 30 foot-candles (fc), using 150W UFO high bays:
- Scenario A (120° Beam): At 25ft spacing, the light spreads too thin. You might measure only 18–22 fc on the floor, with significant light "wasted" hitting the upper walls.
- Scenario B (90° Beam): Using the same fixtures at the same spacing, the light is more concentrated. Measurements typically show 28–32 fc on the floor with much better uniformity.
The Lesson: The 90° lens increases the light delivered to the floor by nearly 40% without increasing energy consumption.
Going Deeper: The Spacing-to-Mounting Height (S/MH) Ratio
For a more technical approach, look at the fixture’s S/MH ratio (often found in the IES report). This ratio helps you calculate the maximum distance between fixtures to maintain uniformity.
The Formula: Maximum Spacing = S/MH Ratio × (Mounting Height - Work Surface Height)
For example, if a fixture has an S/MH ratio of 1.3 and is mounted at 20 feet:
Maximum Spacing = 1.3 × 20 = 26 feet
Field Advice: While the spec sheet gives a maximum, we recommend "tightening" this ratio to 0.9 or 1.0 for critical areas like assembly lines. This ensures the 50% intensity edges of the light cones overlap more deeply, eliminating shadows.
Common Myths and Costly Pitfalls to Avoid
Myth: "The More Lumens, the Better the Light"
Lumens without direction are useless. Imagine trying to light the bottom of a 35-foot-tall silo. A 30,000-lumen fixture with a 120° beam would hit the walls halfway down, leaving the floor dim. A 20,000-lumen fixture with a focused 60° beam would punch all the way down, delivering more foot-candles where they matter.
Pitfall #1: Ignoring Photometric IES Files
Every professional-grade luminaire should have an IES file (standardized by IES LM-63-19). This is the fixture's unique "fingerprint."
- What to look for: Check the "Candela Distribution" plot in the file. It shows exactly where the light goes. If a manufacturer cannot provide this, they likely haven't performed the necessary IES LM-79-19 testing to verify their claims.
Pitfall #2: Forgetting Beam-Shaping Accessories
Many UFO high bays, like the Hyperlite Black Hero Series, offer optional aluminum or polycarbonate reflectors. These can narrow a standard 120° fixture down to 90° or 60°. This allows you to use the same base fixture across a facility with varying ceiling heights, simplifying maintenance.
Your Professional Pre-Purchase Checklist
-
Define Your Target Foot-Candles: Consult ANSI/IES RP-7-21 for industry standards.
- Key Benchmarks: 30 fc for general manufacturing; 10–20 fc for inactive storage/warehousing; 50+ fc for detailed assembly.
- Measure Your Space: Record ceiling height and the height of the task surface (e.g., a 3ft workbench).
- Select a Preliminary Beam Angle: Use our height-to-angle chart as a baseline.
- Run a Simulation: Use the fixture’s IES file in a free tool like DIALux or a manufacturer's calculator. Verify that the "Min/Avg" uniformity ratio is above 0.5 for general areas.
- Test a Sample: Before ordering 100 units, install one. Measure the foot-candles directly underneath and at the midpoint between where the next fixture will be. If the drop-off is more than 50%, consider a wider angle or closer spacing.
Frequently Asked Questions (FAQ)
Q1: What happens if I use a 120° beam angle at 30 feet? The light will spread too wide, resulting in low foot-candle levels at the floor and excessive "wall wash" (light hitting the top of the walls/ceiling), which is an inefficient use of energy.
Q2: Can I use a 60° beam in my 15-foot garage? It is not recommended. You will get "hot spots" of intense light directly under the fixtures and very dark zones in between unless the fixtures are placed extremely close together.
Q3: Do IES files account for shelving or racks? The file itself describes the light leaving the fixture. However, when loaded into simulation software, you can add "blocks" to represent racks to see how they create shadows in aisles.
Disclaimer: This article is for informational purposes only. Electrical work should be performed by a qualified electrician in compliance with local codes. Lighting designs for life-safety applications should be certified by a licensed engineering professional.
