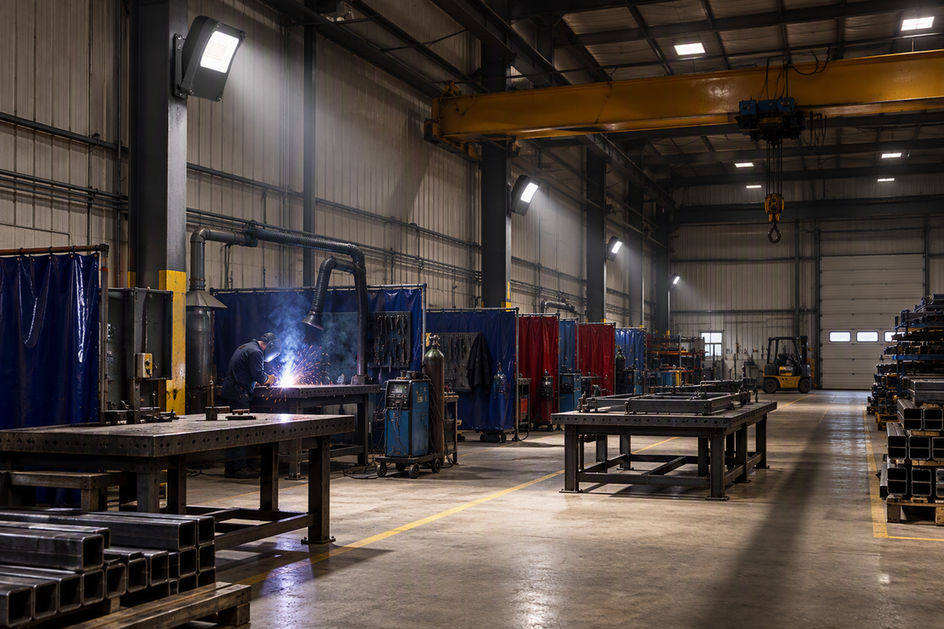

A metal fabrication or welding bay needs a layered lighting plan, not one bright ceiling grid. Combine general overhead coverage with a dedicated task layer at layout tables and weld cells, then add obstruction-aware placement wherever cranes, hoists, or tall stock throw shadows. Fixture selection then comes down to how well the housing, lens, and documented protections hold up against sparks, dust, heat, and repeated impact.
Start with a layered lighting concept for the bay
Sketch the bay before shopping for fixtures. Every layer in the plan should trace back to a specific work zone or obstruction you can point to on the shop floor.
Start with the work surface and obstruction map
Walk the bay and mark where layout tables, fit-up stations, weld cells, cutting and grinding areas, inspection points, and aisles sit. Note crane travel paths, hoist positions, storage racks, and tall stock, since these change shape and location over time. Record where workers actually stand and where a technician will need to reach a fixture for cleaning or replacement. This map, not a ceiling grid drawn in isolation, is the real input for placing light where it matters.
Build three lighting layers
Use general overhead coverage as the base layer for the whole bay, so aisles and open floor stay visible. Add a task or directional layer at layout tables and weld cells, since close markings, seams, and edges often need more contrast than ambient light alone provides. Add a third, obstruction-aware layer, angled or positioned differently, anywhere a crane, hoist, or stack of stock is likely to block the main overhead beam. Readers with complex crane geometry or tall obstructions can work through placement in more depth using our tall-obstruction layouts guide before finalizing fixture positions.
Match the fixture approach to bay height, task, and obstructions
The right fixture form follows the bay's mounting height, task, and obstruction pattern, not a generic high-bay label. Use the table to match common bay conditions to a lighting approach and the detail worth verifying before you buy.
| Bay condition | Visibility problem | Lighting approach | Verify before purchase |
|---|---|---|---|
| General bay coverage | Dim perimeter, uneven floor light | Broad overhead layer | Distribution and mounting fit |
| Close layout or fit-up work | Glare washes out marks, hand shadows | Task or directional layer | Beam angle, glare control |
| Lower mounting condition | Direct view of source, harsher glare | Shielded or diffused fixture | Glare rating, viewing angle |
| Higher mounting condition | Weak light at the work surface | Verified photometry, wider spacing review | IES file or photometric data |
| Crane, hoist, or tall-stock zone | Moving or fixed shadows | Alternate-direction or zoned layer | Obstruction-specific placement |
A single overhead direction rarely serves every position in the same bay. Aisles, layout tables, and crane-obstructed corners often need a different approach even under one roof, so treat the table as a starting split rather than a final layout.
Design for sparks, dust, heat, and impact
Durability selection starts with a zone-by-zone hazard map, not one rating on a spec sheet. Sparks, dust, heat, and impact call for separate checks, and each has its own evidence to request from the manufacturer.
Treat IP as one ingress question
An IP rating describes how well a fixture's enclosure resists dust and liquid intrusion, based on the IEC's IP-rating definition. It says nothing on its own about impact resistance, heat tolerance, spark or slag suitability, hazardous-location approval, or local code compliance. Match the documented ingress claim to the exposure you actually mapped, including how the fixture will be cleaned.
Check impact, lens, and housing evidence separately
Ask for model-specific impact evidence rather than assuming a lens material is automatically durable enough for the zone. Tempered glass and polycarbonate each have tradeoffs in impact resistance, heat exposure, and chemical resistance, and neither is universally superior without the product's full construction and exposure data; our glass versus polycarbonate guide walks through that comparison in more depth. For a broader look at how impact ratings are documented and verified, see our impact-rated fixture guide. Also confirm how the fixture is inspected, cleaned, and replaced, since a fixture that is hard to access will get skipped during maintenance.
Map hot-work paths before final placement
OSHA's hazard-assessment guidance supports starting with a facility walkthrough that records moving equipment, high heat sources, harmful dust, impact hazards, and welding light sources before any fixture is chosen (facility walkthrough hazard assessment). Separately, OSHA's hot-work rule requires that heat, sparks, and slag be confined away from combustible material, and that arc-welding operations be separated from other work by shields, screens, or curtains (OSHA hot-work precautions). Use that mapping to keep fixtures, lenses, and wiring out of direct spark paths, and treat unusual dust or vapor exposure as a reason for project-specific review rather than a guess based on a fixture's category label.
Turn lighting specifications into purchase decisions
Every specification on a spec sheet should answer one practical question: what does it change about visibility, glare, shadow, or maintenance? Lumens, CCT, CRI, and mounting height each answer a different piece of that question.
Use output and photometry together
A lumen figure describes nominal output, not how much usable light actually lands on a layout mark or an inspection face. When spacing, uniformity, or obstruction effects matter, ask for an IES file or equivalent photometric data instead of relying on the lumen number alone. Compare that photometric distribution against the bay's actual mounting height and work surface, not just the catalog listing.
Connect CCT and CRI to the task
Color temperature (CCT) changes how the space looks and feels to the people working in it, so weigh it against existing lighting and worker preference rather than a single "recommended" value. Color rendering (CRI) matters most where workers must distinguish surfaces, weld preparation, or material differences by eye; ask for the current tested specification rather than a marketing phrase, since no single CRI figure is right for every fabrication task.
Control glare and shadow at the working position
Distribution, mounting height, fixture orientation, and where the worker stands all affect direct glare and blocked light. Check the view from layout tables, weld cells, crane paths, and inspection stations before locking in placement, not just from the middle of the aisle. When one overhead direction leaves a critical face or mark in shadow, that is the signal to add the task or alternate-direction layer described earlier rather than simply adding more overhead fixtures.
Verify the fixture and project before purchase
Before ordering or retrofitting, work through a short verification sequence so no core fact is assumed rather than confirmed.
- Record the bay: dimensions, mounting height, work zones, crane and storage obstructions, exposure zones, and maintenance access.
- Request current model- or variant-level documents: datasheets, installation instructions, and photometric (IES) files.
- Verify environmental and durability fields: ingress rating, impact evidence, lens and housing material, and temperature limits.
- Verify electrical and control data: input voltage, wattage, total load, inrush current, control compatibility, and mounting hardware.
- Note any open issue, such as an unresolved exposure question or missing electrical spec, and resolve it through professional or manufacturer review before purchase rather than assuming it will work out.
Treat a collection description or an older blog post as navigation, not proof of a current certification; go back to the specific model's current documentation for anything you plan to rely on.
Know when professional review must take over
Bring in a licensed electrician whenever the plan touches electrical installation, control compatibility, total load, or inrush current, since those are circuit-level decisions outside this guide's scope. Provide that electrician, or a qualified lighting designer or engineer, with your bay plan and current fixture documents whenever the bay is large, crane-obstructed, retrofit-constrained, or dependent on precise task-level visibility.
OSHA's construction illumination rule sets minimum lighting levels for covered construction plant and shops and points other areas toward accepted industrial-lighting practice (OSHA illumination standards); treat that figure as a scope-qualified baseline, not a universal target for every fabrication bay. If unusual dust, flammable vapor, combustible material, or possible hazardous-location classification could apply to your space, get that classification reviewed by the authority having jurisdiction or a qualified professional rather than inferring it from a fixture's rating. Once you have documented your bay dimensions, crane paths, and target tasks, submit your layout sketch to our lighting design support service for photometric modeling and verification before ordering fixtures.
FAQs
What does an IP rating tell me about a welding-bay light?
An IP rating tells you how well the fixture's enclosure resists dust and liquid intrusion, based on the internationally recognized IEC IP scale. It does not by itself confirm impact resistance, heat tolerance, spark or hot-work suitability, hazardous-location approval, or code compliance. Match the documented IP claim to your actual exposure and request separate evidence for the other conditions.
Are outdoor flood light bulbs suitable for a metal fabrication bay?
Outdoor flood light bulbs are not automatically suitable for an indoor fabrication bay just because both are used outside a home setting. The fixture form, distribution, glare control, mounting method, and environmental documentation for an outdoor flood application rarely match the layered coverage, task visibility, and hot-work exposure a welding bay requires. Verify current documentation and photometry for the specific bay zone before assuming an outdoor-rated bulb or fixture will perform the same job indoors.
What should we do if a fixture lens is pitted, cracked, or hard to clean?
Pull that fixture out of active service consideration until it has been inspected, since a damaged lens can no longer be assumed to provide its original ingress or impact protection. Document the damage and the exposure that likely caused it, then follow the manufacturer's current replacement or inspection guidance rather than assuming the fixture is still fit for the zone. This is a maintenance decision, not a one-time judgment call at installation.
When should a metal shop consult an electrician or lighting professional?
Consult a licensed electrician for electrical installation, control compatibility, and total load or inrush review, since those decisions carry safety consequences beyond a lighting layout. Bring in a qualified lighting professional or engineer for complex photometry, crane-obstructed layouts, retrofit constraints, or unusual exposures, and involve the authority having jurisdiction where a special-location or code question applies. Do that review before finalizing placement on a large, obstructed, or otherwise hard-to-verify bay.
