A sharp shadow from a forklift's overhead guard usually means the staging floor is only getting light from one direction. Diffusing that forklift overhead guard shadow means testing overlapping light fields from multiple angles instead of adding more lumens from directly overhead. Exact fixture positions, beam distribution, and spacing still depend on your ceiling height, mounting layout, and obstructions, so treat this guide as a planning framework to verify on your own floor.

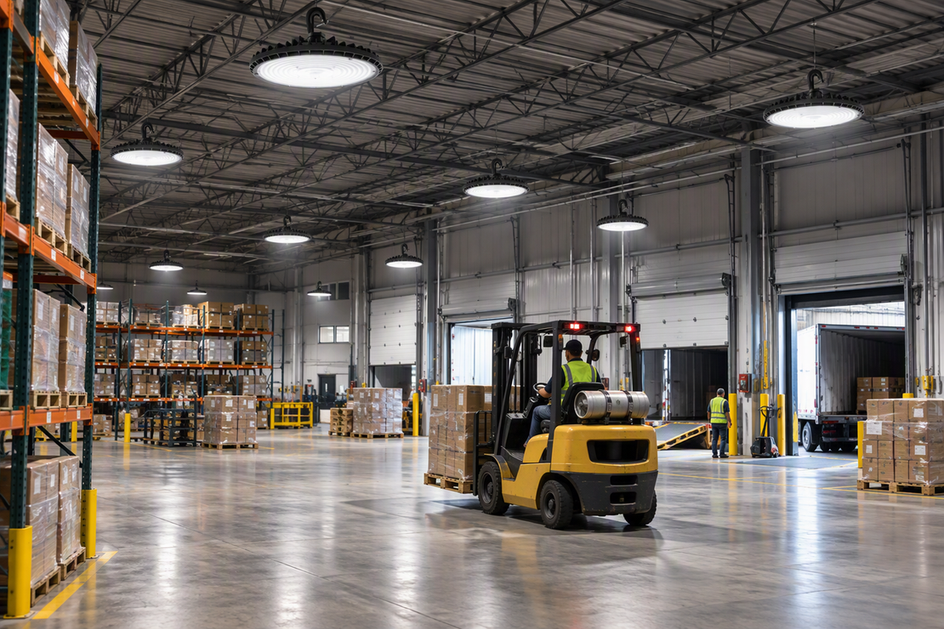

How to Diffuse Forklift Mast Shadows With Multi-Directional High-Bay Lighting
The fix is a layout choice, not a brightness upgrade. Position high-bay fixtures so their light fields cross from different directions, then check the combined result at floor level before locking in spacing.
Why one overhead direction leaves a hard shadow
A forklift's overhead guard is a solid structural obstruction sitting between the light source and the floor. OSHA describes the overhead guard as operator protection that should be part of the daily equipment inspection, which is also a reminder that it's a fixed, physical object you have to design light around. When only one fixture direction reaches that area, the guard blocks light on one side and the shadow sharpens or shifts as the truck changes direction. That moving, hard-edged shadow is the core problem this guide addresses, not general warehouse brightness.
What overlapping light fields change
Positioning fixtures from more than one direction lets a second field fill in the area the guard blocks from the first. This is a layout principle, not a guaranteed result: the actual benefit depends on each fixture's spatial distribution and spacing criteria at your real mounting height, not on lumen output alone. The same review should confirm operators still get clear travel views and marked aisles through the staging zone, since a brighter ceiling doesn't replace clear sightlines or marked pedestrian crossings.
Map the Staging Area Before Choosing Beam Angle or Spacing
Before comparing beam angles or spacing options, map what's actually blocking light and what floor areas need to stay visible. Skipping this step means testing distribution against the wrong obstructions.
Map shadow sources and visibility tasks
Walk the staging floor and mark the forklift guard, mast, typical loads, rack faces, dock doors, and any other object tall enough to interrupt a light field. Then mark where floor markings, debris-prone spots, and pedestrian crossings need to stay visible from an operator's seat. Note whether the shadow moves or sharpens depending on which direction the forklift approaches from, since that tells you which fixture direction is currently missing.
Set mounting and obstruction assumptions
Record your actual ceiling or mounting height, any existing fixture coordinates, and which locations can physically hold a new or repositioned fixture. Separate open floor areas from zones affected by racking or dock structures, since those need obstruction-aware placement rather than a simple grid. Carry your voltage, control type, and retrofit constraints forward as inputs for the verification step below; this planning stage isn't where you decide wiring or circuit details.
Ceiling Height vs. Beam Angle vs. Fixture Spacing
Mounting height changes how a fixture's distribution reaches the floor, but it doesn't produce one universal spacing number. Use the matrix below to decide what to test next, then confirm the result with the selected fixture's actual distribution and spacing data at your mounting height.
| Ceiling or Mounting Condition | Beam-Angle Question | Spacing or Overlap Direction | Layout Decision |
|---|---|---|---|
| Lower mounting height relative to task plane | Does the field reach the floor task area or fall short? | Check overlap between adjacent fixtures | Tighten spacing or add a fixture to close gaps |
| Higher mounting height | Does the wider field still fill the floor footprint? | Confirm fields from opposite directions reach the guard's shadow zone | Model wider spacing, then verify overlap under the guard |
| Obstructed staging zone (racking, dock, loads) | Does the nominal beam angle survive contact with the obstruction? | Offset a fixture or add one beyond the obstruction | Reposition or add fixtures instead of raising total output |
| Retrofit with fixed fixture locations | Can existing optics be swapped without moving fixtures? | Compare achievable overlap at current spacing to the shadow pattern | Swap optics or accept a modeled residual shadow |
Treat this table as a screening step. The selected fixture's own photometric layout, not a generic rule, decides whether the proposed overlap actually closes the gap at the guard.
Troubleshoot Persistent Shadows, Glare, and Uneven Floor Visibility
A shadow or dark spot that remains after a lighting change usually points to a specific, checkable cause rather than insufficient brightness. Work through the symptom list below before buying anything additional.
| Symptom | Likely Cause | Next Check |
|---|---|---|
| Sharp guard shadow that shifts with forklift approach | Single dominant light direction over the guard | Model or test a second field from a different direction |
| Floor markings or debris stay dark | Blocked or unmodeled distribution at that spot | Review obstruction inputs and the layout at that location |
| Glare appears after adding fixtures | Fixture count, intensity, size, or aiming angle relative to the viewer | Review DOE glare factors and controls |
| Shadow persists from only one approach direction | Overlap missing for that specific approach angle | Add or reposition a fixture aimed toward that approach |
| Dark area behind rack, dock, or load | Obstruction left out of the original layout model | Re-survey the obstruction and rerun the layout |
A brighter fixture is not automatically the correct fix for any of these rows. Glare, in particular, can get worse with added output if the fixture count, size, or angle isn't reviewed alongside it.
Verify Fixtures, Controls, and Local Requirements Before Installation
Before buying or installing new fixtures, confirm the documentation and site conditions match your planned layout. This is also where wiring, circuit, and code decisions get routed to the right professionals rather than handled here.
Documentation: Request a current photometric file or layout review that models the combined fixtures at your actual mounting height and obstructions, following the same photometric layout report metrics. Our high bay layout checklist walks through the information a layout request typically needs.
Site and mounting: Confirm usable mounting locations, existing fixture coordinates for retrofits, and whether obstructions like racking or dock structures were included in the model.
Electrical and controls: Verify voltage, fixture wattage, total connected load, and controls compatibility with your current or planned electrical setup. We don't provide high-voltage wiring steps, live testing, circuit design, or breaker or wire sizing in this guide; those decisions belong to a qualified electrician and your local authority.
Visibility: Recheck that the proposed layout still supports clear operator views and marked passageways through the staging zone, not just brighter floor readings. A well-modeled, low-shadow layout can also support general security lighting goals for after-hours staging traffic, though that's a separate review from the shadow-diffusion layout itself.
Approval: Confirm any applicable local, electrical, workplace, or project approval requirements directly with your designer, electrician, or local authority; a fixture's specifications don't establish local compliance on their own.
For large commercial staging areas, obstructed sites, retrofits, or projects needing a documented photometric plan, our lighting design planning path is a reasonable next step before you finalize a purchase.
FAQs
Can adding more high-bay fixtures eliminate forklift mast shadows?
Not automatically. More fixtures can change the shadow's shape and direction, but without modeling the combined fields at your mounting height, extra fixtures can also add glare instead of removing the shadow. Test cross-directional overlap first, then check the installed result at the guard's shadow zone before adding more output.
Is a wider beam angle always better for a high-ceiling staging area?
No. A wider nominal beam angle doesn't guarantee better floor coverage at a taller mounting height. Compare the fixture's actual distribution and spacing criteria at your real ceiling height and task plane instead of choosing by the beam-angle label alone.
What lighting standard or measurement should verify a staging area?
There isn't one universal number this guide can hand you. The applicable criteria should come from your lighting designer, project owner requirements, and any adopted local standards, applied through a project-specific photometric layout rather than a generic foot-candle figure.
Can forklift-mounted safety lights replace a multi-directional high-bay layout?
No. Fixed high-bay lighting and forklift-mounted safety lights address different visibility tasks: one lights the floor and staging zone, the other supports the operator's immediate line of sight from the truck. Correct the fixed-lighting shadow geometry first, and involve a qualified professional if you're combining both approaches on the same floor.
