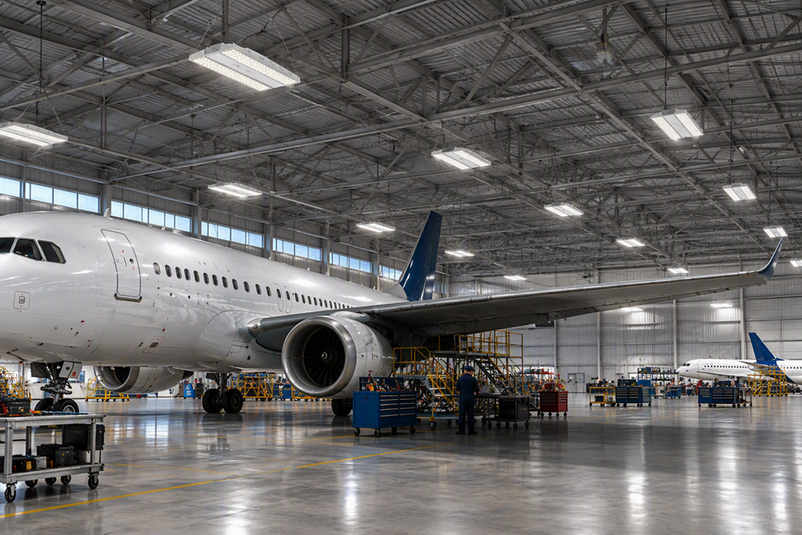

Planning an aircraft hangar high bay lighting layout starts with measured geometry and defined task zones, not a fixture count. Once you know where wings, fuselages, tails, or machine bodies block overhead light, you can plan light from more than one direction or elevation and verify the result with real photometric data.
The sections below walk through that process step by step, from site measurements to the safety and installation checks a qualified reviewer will expect to see.
Start With a Shadow-Aware Hangar Layout
Every shadow-aware layout begins with a dimensioned record of the building, not a lighting spec sheet. Two records matter most: the physical constraints of the space and the task zones where people actually work.
Record the space and mounting constraints
- Measure clear height and mounting height separately, since fixtures rarely sit at the roof deck.
- Mark rafters, cranes, doors, columns, and any obstruction that could block a fixture's beam.
- Note access routes, lift equipment, and existing electrical or control panel locations.
- Record whether the project is new construction or a retrofit, since existing mounting points often limit your options.
Mark task planes, not just floor area
- Separate storage, aircraft movement, maintenance, inspection, detailing, and service zones on the drawing.
- Identify the aircraft or equipment surfaces that must stay visible even when overhead light is blocked, such as wing undersides or tail sections.
- Record where technicians typically stand and which direction they face during inspection or repair work.
This record becomes the reference for every later step. Use the same aircraft or equipment positions in every photometric comparison so the results stay comparable from one layout option to the next.
Map the Shadows Under Wings and Around Equipment
Wings, fuselages, tails, and tall machine bodies block overhead light in predictable ways once you know where they sit relative to the fixtures. Mapping those blocked planes tells you whether an overhead-only layout is enough or whether the design needs light from another direction.
Map the blocked planes
Use the aircraft or equipment in its actual operating and maintenance positions, not an empty floor plan, because the blocked area moves with the wing or machine body. Mark underside, side, tail, and behind-equipment zones separately from the open floor, since each one can need a different light path to stay usable. Also note polished, curved, or reflective surfaces near the work area; these can bounce a bright source back into a technician's line of sight even when the floor reading looks fine.
Choose the light path before the fixture
A straight overhead row often leaves a repeated blocked zone under the same wing section or machine face on every pass. When that happens, an offset or staggered layout, light from a second direction, or a different mounting elevation is worth evaluating before you lock in a fixture choice. Reserve supplemental task lighting for the specific spots a fixed overhead source cannot reach, rather than trying to solve every blocked plane with more overhead output.
| Scenario | Blocked area | Layout approach to evaluate | Verification plane |
|---|---|---|---|
| Wing overhangs work area | Underside of wing | Offset row or second elevation | Wing underside |
| Tail section near back wall | Side and rear of tail | Angled or wall-mounted supplement | Tail side surfaces |
| Machine body blocks aisle | Behind-equipment floor | Staggered overhead placement | Floor behind equipment |
These are starting points to test, not a universal fix. Confirm each approach against the actual blocked plane you marked in the previous step before treating it as resolved.
Turn Lighting Specifications Into Buying Checks
Fixture specifications only matter when you connect each one to a decision about this specific layout. Lumens describe source output, not whether that light actually reaches a blocked work plane.
Use specifications to answer layout questions
| Specification | What it changes | Where it matters most | Verification evidence |
|---|---|---|---|
| Lumen output | Available light at the source | Open floor and unobstructed zones | Photometric file at mounting height |
| Optics/distribution | Where light is sent | Under-wing, side, and vertical surfaces | Beam or distribution data for the exact model |
| CRI and CCT | Color accuracy and visual clarity | Inspection and color-judgment tasks | Manufacturer color data |
| Glare and source position | Comfort and visibility at eye level | Technician viewing positions near reflective surfaces | Layout review from realistic viewpoints |
| Environmental rating, controls, mounting | Fit for the site and access plan | Dusty, humid, or high-traffic bays | Ingress rating, control compatibility, mounting specs |
Glare depends on the source's position, intensity, spectrum, and the background it sits against, not on total lumens alone, so it needs to be checked from where technicians actually stand rather than from a lumen table (DOE glare research). Optics and distribution decide whether output actually lands on a blocked vertical or underside surface, so compare them against your marked task planes rather than the lumen figure alone. Environmental rating, control compatibility, and mounting requirements are fit conditions for your specific bay, not general selling points.
Keep product facts configuration-specific
The available information for our LHBE Series lists selectable output, selectable CCT, selectable optics, 0-10V dimming, and a sensor port as configuration options, along with CRI, UGR, UL and DLC listing status, rated lifetime, and warranty terms tied to the specific configuration. These are useful comparison inputs once you have a measured layout, but they do not by themselves establish hangar suitability, shadow-free coverage, or classified-location approval. Before using any of these facts in a project brief, confirm the exact SKU, current specification sheet, and photometric file, since values can vary by configuration. You can review the High Bay Lights category or the deeper breakdown of high bay specifications to compare terms side by side before narrowing your options.
Verify the Proposed Layout Before Purchase
A proposed aircraft hangar high bay lighting layout is still a guess until you test it against the same geometry and task planes you documented earlier. Verification should check blocked areas directly, not just an average open-floor result.
Run the layout check
- Load the exact fixture, output setting, optics, mounting height, and orientation you are considering.
- Model or measure light at every task plane and blocked zone marked earlier, including undersides, side surfaces, and behind-equipment floor areas.
- Review the result from realistic technician eye positions and check for glare or reflections off polished aircraft or equipment surfaces.
- Confirm the layout still works with your planned controls, sensors, and maintenance access before treating it as final.
Interpret foot-candle readings carefully
Foot-candle readings are useful only when taken at the actual work and walkway planes your task requires, then compared against the requirements that apply to your project. A related OSHA lighting rule for shipyard employment sets specific foot-candle levels for defined work areas and walkways, which is a useful bounded example of how illumination requirements are written, but that table is not a universal aircraft hangar target (1915.82 Lighting). Confirm which requirements actually apply to your hangar and task before treating any single number as the goal.
Safety and Installation Boundaries to Check Locally
Before any layout moves toward purchase, a short set of installation and location checks needs to be resolved, ideally with a qualified electrician or lighting designer. These checks protect the project from a fixture that looks right on paper but is unsuitable for the actual space.
Complete the installation and controls check
- Confirm exact voltage, fixture wattage, total connected load, and inrush current against the manufacturer's instructions.
- Confirm control type, sensor compatibility, and 0-10V dimming compatibility if controls are part of the plan.
- Confirm mounting hardware, structural attachment points, and lift or ladder access for both installation and future cleaning or replacement.
- Review glare from actual eye positions, including any reflective aircraft or equipment surfaces nearby.
Resolve location and approval boundaries
Ask whether the materials or processes present in each relevant area of the hangar could create a hazardous classification issue; OSHA lists aircraft hangars among occupancies where hazardous classifications may apply depending on conditions, and each room, section, or area is considered individually (1910.307 Hazardous (classified) locations). If an area is classified, match the fixture's documented approval and markings to that classification directly; a general industrial rating, UL or DLC listing, or IP rating does not by itself establish suitability for a classified location (equipment approval requirements). If any area may contain flammable or combustible materials or processes, stop the fixture-selection process and get the documented area classification and qualified review before choosing equipment.
Build a Review-Ready Lighting Brief
The practical next step is a review-ready brief, not a universal fixture prescription. Bring these items together before handing the project to a lighting professional, electrician, manufacturer, or local authority:
- The dimensioned floor plan with mounting constraints and existing electrical or control locations.
- The marked task zones and shadow map, including under-wing, side, tail, and behind-equipment planes.
- Candidate fixture photometry and configuration-specific specification sheets for anything you are considering.
- Installation constraints: voltage, load, mounting, controls, sensor compatibility, and access for maintenance.
- Any open question about area classification, local code, insurance, or permit review.
Our commercial lighting planning guide walks through turning these site inputs into a fixture-purchase decision if you want a second pass before finalizing the brief. If any item above is still missing, such as a photometric file, an approval marking, or a mounting detail, treat that as the one unresolved question to close before purchase rather than a reason to guess.
