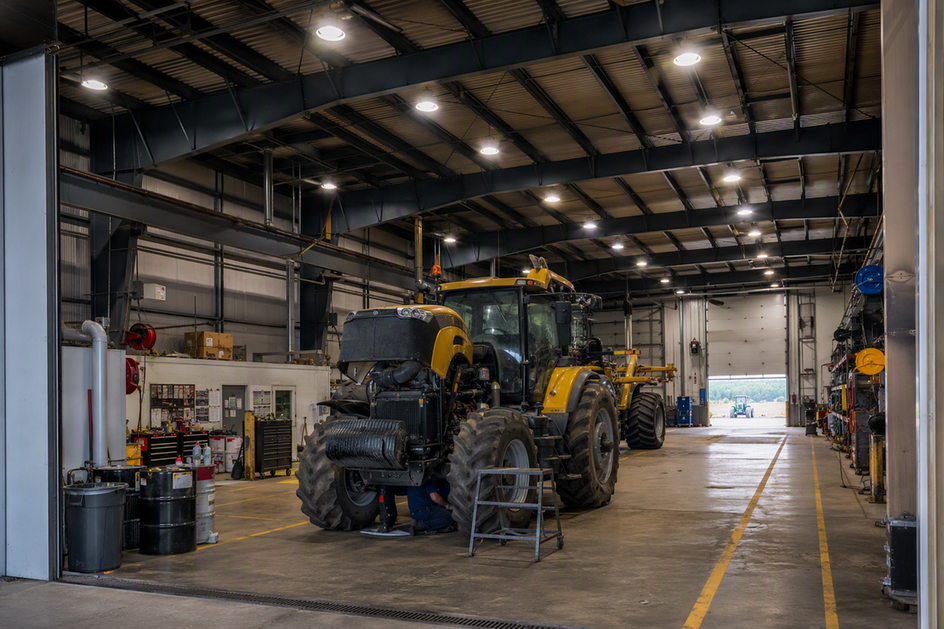

Planning lighting for a heavy equipment repair shop with high ceilings requires evaluating mounting height, task zones, oil mist, vibration, and exact-model documentation rather than relying on a general lumen calculation.
Gather those site conditions first, then verify fixture performance through a project photometric plan and electrical review. This guide covers how harsh operating conditions alter fixture specifications and what to verify before purchase.
Start With the Bay Conditions, Not a Lumen Count
Choosing heavy equipment maintenance bay lighting starts with the bay itself: ceiling clearance, task locations, oil-mist concentration, building vibration, and whether product documentation explicitly matches those factors. A fixture rated for ordinary industrial use is not automatically suitable for severe maintenance bays.
Reference points offer baseline perspective, but they do not replace bay-specific planning. OSHA provides minimum illumination values for active construction areas and shops as a construction-scope illumination reference, which functions as a legal minimum rather than an optimized design target for high-clearance service bays. Target illumination depends directly on mounting geometry, work planes, and photometric modeling.
When ceiling height, task layouts, or exact environmental listings are not yet confirmed, prioritize a technical specification brief over an immediate purchase. Reviewing a linear high bay category helps identify candidate form factors, but exact model documentation must still substantiate actual bay readiness.
What Oil Mist, Vibration, and Height Change in the Fixture Brief
Oil mist, physical vibration, and elevated clearances each alter distinct sections of a lighting specification. Address them as three individual verification criteria rather than a single generic durability rating.
Oil Mist and Deposits
Airborne oil mist affects enclosure integrity, lens clarity, and long-term housing durability. Verify the manufacturer's documented environmental ratings, housing material, gasket composition, and authorized cleaning agents to ensure airborne vapors will not degrade components over time. A generic ingress rating does not confirm resistance to chemical solvents or lubricants. For bays with existing oily buildup, our fixture maintenance inspection guide outlines safe inspection steps before servicing or replacing fixtures.
Vibration and Mounting Movement
Vibration from overhead cranes, impact tools, and idling machinery affects mounting stability rather than light output. Confirm mechanical mounting options, suspension hardware, locking fasteners, and any rated vibration testing documented by the manufacturer. Secure mounting hardware protects personnel and machinery below. If mounting hardware lacks documented tolerance for cyclic movement, avoid installing the fixture in high-vibration bays.
High Clearance and Tall Machine Surfaces
High ceilings create major challenges for vertical illumination, optical distribution, and shadow control. Sizing overhead fixtures purely for horizontal floor lumens often leaves vertical machine surfaces, engine compartments, and chassis recesses dark. Optical layouts must account for beam angles, physical obstructions, and glare at eye level, ensuring technicians can safely see side-mounted components.
Verify the Model Documents Before Calling a Fixture Suitable
A fixture qualifies as suitable only when documentation for that specific model number validates environmental resilience, photometric distribution, mounting security, and electrical ratings. Marketing descriptions and series names are never sufficient.
Photometric Evidence
- An IES photometric file matching the exact model and optical distribution to simulate lighting levels across the bay
- Stated mounting-height assumptions used in photometric data to verify beam angles at actual ceiling height
- Documented lumen-maintenance ratings (such as L70 or L80 hours) to predict long-term performance under sustained operating temperatures
If your team only has a rough fixture estimate without photometric modeling, our photometric fixture count guide explains why area-based estimates lead to uneven illumination and shadowing.
Environmental and Mounting Evidence
- Operating-environment ratings for the exact SKU rather than general marketing claims for the wider product family
- Approved cleaning chemicals and maintenance protocols to ensure service procedures do not degrade gaskets or optics
- Manufacturer-certified mounting hardware and fastening instructions that satisfy industrial building codes
Electrical fixtures must be installed according to labeled instructions, identified for exposure to deteriorating vapors or liquids, and firmly anchored under listed equipment and operating environment rules. Never assume resistance to chemical mist or continuous vibration without explicit documentation.
Electrical and Control Evidence
- Rated input voltage and wattage for the selected SKU
- Total branch circuit load, power factor, and inrush current profile to prevent nuisance tripping
- Controls compatibility, including 0–10V dimming leads, occupancy sensors, or daylight harvesting modules
Electrical branch calculations and wire sizing must always be handled by a qualified electrician. If necessary engineering data is missing, request detailed specification sheets or contact our team for lighting design support before committing to equipment.
Match Task Zones and Mounting Height to the Lighting Approach
Mounting clearance and specific maintenance tasks define optical requirements across each bay section. Use the following matrix to identify key verification questions for your facility before completing a photometric model.
| Bay condition or task zone | Lighting approach to evaluate | Verification question |
|---|---|---|
| General bay circulation | Overhead high-bay fixtures sized to mounting height | Does the photometric file model your actual mounting height? |
| Tall machine sides | Targeted optical distribution aimed toward vertical faces | Does the layout account for shadowing from equipment height? |
| Close inspection zones | Dedicated task-layer luminaires near the work surface | Is illumination checked at the work surface, not just the floor? |
| Persistent oil mist or vibration | Enclosures with documented chemical and mechanical ratings | Does the exact model's documentation cover this exposure? |
Circulation lanes require balanced horizontal foot-candles, whereas heavy engine and chassis work requires directional fill to eliminate under-machine shadows. The environmental row highlights that physical shop hazards dictate housing engineering, not merely lumen output.
Pre-Buying and Pre-Installation Checklist
Verify all facility parameters against manufacturer technical sheets before issuing purchase orders or beginning installation.
- Project inputs: bay dimensions, mounting clear height, machine footprints, task-plane elevations, structural obstructions, and environmental exposure levels
- Fixture specifications: input voltage range, wattage, circuit inrush current, driver specifications, sensor ratings, and 0–10V dimming protocols
- Mounting and housing: structural brackets, safety cables, manufacturer mounting instructions, and tested chemical resistance
- Photometric files: model-specific IES files calculated against realistic ceiling heights and interior surface reflectances
- Compliance review: local electrical codes, permit conditions, and facility safety standards reviewed by a licensed professional
Our pre-install voltage checklist details supply-voltage and circuit verification steps for commercial upgrades. Because standard electrical practice requires following NRTL listing instructions, do not proceed to installation until the exact fixture configuration, manufacturer instructions, mounting method, operating-environment documentation, and applicable project requirements have been reviewed by the responsible qualified electrician or local authority.
FAQs
What should I do if a fixture page does not state oil-mist or vibration suitability?
Treat missing exposure ratings as an immediate stop condition. Request the manufacturer's exact specification sheet, testing reports, and installation instructions, or contact technical support for confirmation. Never assume a fixture can withstand airborne lubricants or building vibration simply because it carries an industrial label.
Can I use an OSHA illumination value as the design target for my repair bay?
OSHA illumination tables establish regulatory minimums for safety on active work sites rather than performance standards for complex mechanical repair. Use regulatory values as a baseline, but calculate actual lighting requirements through a project photometric layout tailored to your mounting height, task planes, and equipment obstructions.
How do tall tractors create shadowing under overhead high-bay fixtures?
Tall equipment blocks downward light, casting deep shadows along side panels, wheel wells, and engine compartments. Solving this issue requires selecting fixtures with broader optical distributions or supplementing overhead high bays with angled perimeter luminaires focused on vertical planes.
