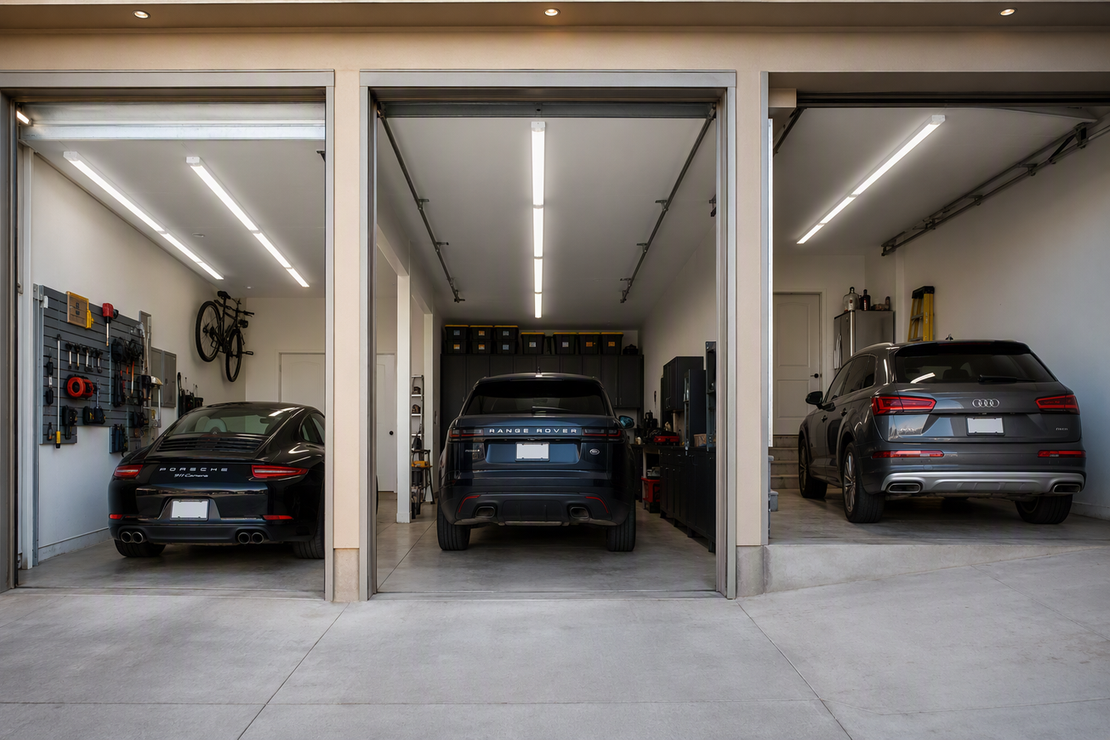

A lighting plan for a three-car tandem or offset garage works best when each bay is treated as its own measured zone instead of copying one fixture grid across the whole space. Unequal bay depths change where light actually lands, so a deep bay and a shallow bay rarely need the same run length, output, or switching. The practical sequence is simple: measure each bay, assign it a dedicated fixture run or run segment, then coordinate the transitions between zones so the finished garage reads as one evenly lit space instead of three mismatched sections.
Start With Separate Lighting Zones for Each Unequal Bay
Unequal bay depths mean the garage does not behave like one rectangular room that a repeated grid can serve. A tandem bay's far end, an offset bay's shifted centerline, and a shallow bay's shorter usable length all change where a fixture run needs to sit and how long it needs to be.
The federal guide to parking-structure lighting design treats a site inventory and lighting-quality check as the first step before any layout decision, not an afterthought layered on after fixtures are chosen. The same logic applies at garage scale: measure first, then zone, then verify.
- Measure each bay's dimensions, ceiling height, and obstructions separately.
- Assign each bay a fixture run or run segment sized to its own geometry and use.
- Verify the finished layout with measured or modeled light levels once the zones are drawn, especially where geometry is not a simple rectangle.
For a broader look at matching light output to floor area, our lumens per square foot guide covers how zoning by use changes the target for ambient versus task areas.
Measure Each Bay Before Choosing Fixtures
Before comparing fixtures, record a short measurement set for every bay rather than one total figure for the whole garage. A single garage-wide number hides the differences that actually drive placement.
For each bay, capture:
- Length and width in feet, measured independently for shallow, deep, tandem, and offset bays.
- Ceiling height and the planned fixture mounting height, since these change usable distribution.
- Beams, garage door tracks, storage racks, and any other obstruction that could block a light path.
- Vehicle parking position, workbench or storage locations, and any task area that needs closer attention.
- Existing fixture and switch locations, plus whether the current setup is ambient-only or mixed with task lighting.
- The illuminance basis you are working from, in foot-candles or lux, when a specific target or modeled result is available for the project.
This bay-by-bay record is the same category of input the federal lighting guide calls for before layout decisions are made. Skipping it is the most common way a plan ends up copying one bay's needs onto another that does not share them.
Place Fixture Runs for Shallow, Deep, Tandem, and Offset Areas
Placement and light distribution matter as much as total output once bay depths differ. A run that works for a deep bay will usually overserve a shallow one and underserve a tandem bay's far end, so each condition needs its own placement logic rather than one extended pattern.
Shallow Bays: Size the Run to the Usable Depth
A shallow bay should get a run sized to its own usable length, not the deep bay's fixture count stretched or compressed to fit. Check the door swing clearance and where vehicles or storage sit in that bay, since a run that is too long for the space wastes light near the door and a run that is too short leaves the back wall dim.
Deep or Tandem Bays: Segment Coverage by Depth and Use
A deep or tandem bay often needs more than one run segment, especially when the far end serves a different purpose than the front, such as storage behind a parked vehicle. Coordinate the boundary between segments carefully; if it lands in the wrong spot, that boundary becomes a visible dark seam rather than a smooth transition.
Offset Bays: Preserve Alignment Without Forcing Symmetry
An offset bay should be lit along its actual centerline and around its real obstructions, not against the garage's outside footprint. Keeping fixture spacing and alignment visually consistent across bays helps the space read as one plan, but only where doing so does not block a light path or leave a gap in coverage. The federal guide's discussion of illuminance uniformity explains why distribution and layout, not just total lumens, determine whether the result looks even. When ceiling height, obstructions, or offsets make the outcome hard to judge by eye, a measured or modeled check is worth requesting before installation.
Use Switching Zones to Keep Transitions Usable
Switching zones should follow how each bay is actually used, not just how it is wired. A bay used mainly for parking, a bay used for regular workshop tasks, and a bay used only occasionally rarely need the same on/off pattern.
- Give a deeper or task-heavy bay its own switch or dimming zone when its use genuinely differs from the rest of the garage.
- Keep a shared or overlapping transition area lit so switching one zone off does not leave the adjacent bay looking abruptly dark.
- Match any sensor or control group to the actual area it illuminates rather than assuming one control setup fits every bay.
- Decide whether ambient light should stay on while a task zone is switched off, without specifying the wiring or circuit itself.
Turning off individual fixtures instead of a coordinated group can make lighting look patchier and increase shadows in the areas that stay lit, a pattern the federal guide notes when discussing controlled lighting groups. That is a reason to plan switching by zone rather than by single fixture.
Verify Fixture Data Against the Garage Plan
Once zones and switching are mapped, the remaining purchase decision comes down to matching exact product documentation to the plan, not to a series name or collection description. The table below lists what each planning condition should prompt you to check in the current spec sheet or installation manual.
| Planning condition | Why it changes the decision | What to verify in current documentation |
|---|---|---|
| Ceiling height & task use | Mounting height changes usable distribution and glare | Rated mounting height, distribution pattern, IES/photometric file |
| Lumens & wattage | Output must match the bay's coverage need, not a total garage average | Exact lumen and wattage figures for the specific configuration |
| CCT & CRI | Affects visual consistency across adjoining bays | Selectable CCT range and CRI rating for that SKU |
| Voltage, driver & controls | Must match planned dimming or zone control | Input voltage range, driver type, dimming compatibility |
| Mounting method | Determines fit against ceiling height and obstructions | Default and supported mounting options |
| IP or location rating | Relevant only if the bay has exposure to moisture or dust | Rated IP or location classification, if applicable |
As one example of the fields worth checking, the current documentation for our MLF04 linear fixture specs lists selectable wattage and CCT, 1-10V dimming, 120-277 VAC input, 80 CRI, and surface mounting as the default for its stated 4-foot configuration, with lumen and wattage figures tied to that specific configuration. Those fields illustrate what to verify; they do not by themselves confirm fit for a particular bay, so confirm the exact SKU and current spec sheet before buying. If you are still comparing categories rather than a specific model, our garage lighting collection is a reasonable starting point for narrowing options before checking individual product documents.
Set the Professional Boundary Before Installation
Finalizing a three-car tandem or offset garage lighting plan requires a clear handoff between layout planning and physical electrical execution. Once the zone sketch, measurements, and candidate fixture documents are ready, high-voltage wiring, circuit design, installation, de-energization verification, and local compliance decisions belong with a qualified electrician.
That boundary exists because a qualified electrician's training and testing covers the equipment knowledge and verification steps hazardous electrical work requires, which a homeowner's measurements and product research cannot substitute for. Your part of the project is the bay sketch, the measurement record, the intended switching zones, and the fixture documentation you have gathered; hand those to the electrician as your project brief rather than attempting the circuit work yourself.
If the uneven geometry, mixed ceiling heights, or obstructions leave you unable to validate uniformity from measurements and spec sheets alone, a photometric or technical review is worth requesting before you finalize the layout. Our lighting design support page is one place to start that conversation when the plan needs a modeled check rather than a visual estimate.
FAQs
When is a photometric layout worth requesting for an uneven garage?
A modeled layout is worth requesting when bay dimensions, ceiling heights, obstructions, or task areas make it hard to judge uniformity by eye or by simple measurement alone. The next step is providing your measured bay sketch and current fixture documentation so the model reflects your actual space rather than an assumed target.
What should I give an electrician before the lighting work begins?
Hand over your bay-by-bay measurements, ceiling and mounting heights, obstruction notes, task-area locations, the fixture SKUs you are considering, your intended switching zones, and any existing electrical conditions. That project brief lets the electrician make circuit, installation, and compliance decisions without needing to re-measure the space themselves.
Do selectable fixture settings solve an uneven-bay layout by themselves?
No. Selectable wattage or CCT gives you configuration flexibility, but it does not confirm a fixture's distribution, photometric performance, or control compatibility for your specific bays. Treat those settings as options to configure only after you have verified the exact product's current documentation against your measured plan.
