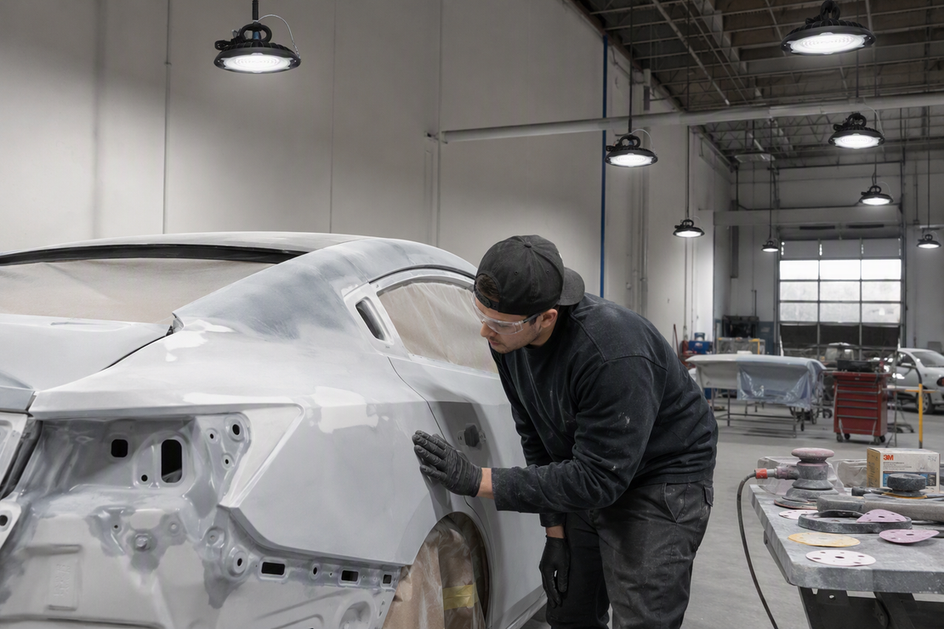

The most reliable starting point for lighting for auto body sanding and primer areas is a layered lighting plan: even ambient light across the whole bay, plus an adjustable low-angle or supplemental light for close inspection. Ambient light alone often flattens shallow filler waves and sanding scratches, while a single narrow beam can leave the rest of the panel too dark to judge.
Once the layout is in place, the exact fixture still has to match the space. Dust, primer residue, and cleaning access change which dust-resistant lighting for a body shop prep bay actually holds up, and that fit has to come from the model's own documentation rather than an unsubstantiated claim.
Start with a layered lighting plan
A single overhead layout forces one fixture to do two different jobs: light the whole bay and reveal fine surface texture. Splitting those jobs into two layers gives more control over both.
Build the ambient layer first
Ambient light's job is even coverage, not defect detection. Spread fixtures so the technician isn't judging a panel against a dark background, and close large unlit gaps in the bay before adding anything more specialized. If part of the room stays dim while the panel sits under a bright spot, contrast reads inconsistently and defects can hide in the shadowed side.
Add adjustable inspection light
A movable or independently switched light is the second layer. Bring it in when the panel shape, the technician's position, or the type of defect changes what angle works best. Treat it as an inspection aid you reposition on the fly, not a replacement for the ambient layer. Fixed ambient fixtures give consistency; a portable or articulating fixture gives the flexibility to chase where the light is actually needed on any given panel.
Tune light direction for waves, scratches, and shadows
Direction matters more than raw output. Light that grazes across a panel at a low angle tends to expose shallow waves and scratches that flat, overhead light hides, but the right angle depends on the panel's shape and where the technician is standing.
Use direction to reveal shallow variation
Compare the same section of panel under broad overhead light and under light traveling across the surface at a shallower angle. Shallow filler waves and fine sanding scratches usually become easier to read as raking light crosses them, since the texture casts small shadows the eye can catch. Watch for the opposite problem too: if the angle creates a bright reflected strip across the defect, that glare can mask exactly the area you're trying to check. When that happens, shift the light source rather than assuming the surface is fine.
Check color and glare together
Glare depends on where the light sits relative to the panel and where the technician is standing, not just on how bright the fixture is. The Department of Energy's technical work on glare notes that it depends on source brightness, size, position, background, and viewing direction together, so a fixture that looks fine from one spot can throw a distracting hotspot from another. Check the setup from the technician's normal working position, not just from across the room.
Color rendering matters here too, but one CRI number does not tell the whole story. The DOE's TM-30 color-rendition framework was built specifically because a single CRI figure can't capture how a light source renders color across different surfaces; reviewing the fuller data set for the exact model gives a more complete picture before you commit to a fixture. Color temperature also changes how a surface looks under inspection light, and our garage color temperature guide walks through how to choose between common CCT options for a workshop setting.
Screen fixtures for dust, cleaning, and environmental exposure
A fixture that handles occasional dust is not automatically right for a sanding bay running daily. The real question is whether the exact model's documented ingress rating, enclosure, and cleaning instructions match the actual exposure in your shop.
Match the enclosure to the exposure
Start by naming the exposure honestly: dry sanding dust behaves differently than primer overspray, solvent wipe-downs, or periodic washdown, and heat from adjacent equipment adds another variable. Once you know the exposure, read the exact model's documentation for its ingress rating, enclosure material, lens construction, and ambient-temperature limits. A general "sealed" or "shop-grade" claim on a listing page is not the same as a documented rating for your specific conditions, so pull the spec sheet before assuming fit.
Plan cleaning and maintenance access
Check how the manufacturer says to clean the lens and housing, and confirm the installed position can actually be reached safely for that cleaning. A smooth, accessible exterior tends to be easier to keep clear, but don't assume a material or cleaning method the documentation doesn't state. Dust and residue on a lens change the light that actually reaches the panel, so a maintenance routine is part of keeping inspection light consistent, not just part of keeping the fixture looking clean. Our guide on dusty light maintenance covers practical cleaning and upkeep habits for fixtures running in dust-heavy spaces.
Separate dust ingress from hazardous-location and code decisions
An IP rating tells you about dust and moisture ingress. It does not tell you whether a fixture is approved for a hazardous location or whether your installation meets local code, and those are separate questions that need their own answers.
Know when the scene changes
Dry sanding and filler inspection is a different scene than an active spray operation. Primer, solvents, overspray patterns, and ventilation setup can all change what equipment review is appropriate, and a bay that's adjacent to spraying may need to be evaluated differently than one used only for sanding. OSHA's autobody repair guidance on collision-repair work confirms that sanding dust, solvents, and refinishing hazards are typical features of this kind of shop, but that doesn't mean every prep bay is automatically a spray area.
Keep ratings and approvals separate
An IP claim, a general "dust resistant" description, or a brand-level statement is not a hazardous-location approval, and it's not a determination that your installation meets local code. OSHA's rule for spray finishing sets additional conditions for lighting and electrical equipment specifically in covered spray-finishing areas, and separate hazardous-location requirements call for equipment that's approved and marked for the specific hazard present. Neither of those determinations can be made from a product listing alone. If the area may contain flammable vapors, mists, combustible residues, or another classified hazard, don't choose a fixture from an IP claim by itself; get a qualified electrician, lighting professional, or the authority having jurisdiction to review the site before you install anything.
Use visible symptoms to adjust the lighting
When scratches, waves, glare, or shadows are still hard to read, the fix is usually a lighting adjustment rather than a new fixture. Use the table below to match what you're seeing to a likely cause and a safe next check.
| Visible symptom or task | Likely lighting cause | Safe next check or adjustment |
|---|---|---|
| Scratches disappear under normal light | Light is too broad or angled straight on | Add a low-angle source and reposition it across the scratch direction |
| Harsh shadow lines on the panel | Source placed too close or with no fill light | Add ambient fill or shift the supplemental source's angle |
| Bright reflected hotspot hides the area | Glare from source position or viewing angle | Move, dim, or diffuse the source; check from the technician's actual position |
| Inspection results vary panel to panel | Lens deposits or inconsistent fixture output | Clean the lens per documentation and recheck under the same conditions |
Verify the exact fixture before purchase or installation
Before buying or installing anything, confirm these details in the exact model's documentation rather than from a listing description alone.
- Photometric data: Check the beam pattern and distribution files so you know how light actually falls across the panel and work area.
- CRI and color-rendition data: Look past one CRI number to whatever broader color-rendition data the manufacturer provides, then confirm the appearance on an actual panel.
- Glare and shadow behavior: Verify the fixture from the technician's normal working position, not just from a straight-on view.
- Ingress rating and cleaning documentation: Confirm the ingress rating, enclosure and lens materials, cleaning method, and ambient-temperature limit against your actual exposure.
- Electrical and control compatibility: Check voltage, wattage, total load, and whether the fixture is compatible with any dimming or sensor controls you plan to use.
- Mounting and maintenance access: Confirm mounting clearances and that the installed position allows safe access for cleaning per the manufacturer's instructions.
- Labeling and professional review: Check for exact-model listing marks, and involve a qualified electrician, lighting professional, or authority having jurisdiction whenever the space touches spraying, retrofit wiring, or a potentially classified location.
If your project needs full photometric planning or complex retrofit support beyond this checklist, our lighting design support resource can help work through the layout in more detail.
FAQs
When does a portable inspection light make more sense than another fixed fixture?
A portable or adjustable light is useful for local checks and for panels that change position, since it lets you chase the exact angle a defect needs. It doesn't replace consistent ambient lighting for the bay, and it doesn't confirm suitability for a spray or classified area on its own. Compare it from the technician's normal viewing position and check its documentation before relying on it.
Is a high CRI or a specific color temperature enough for sanding inspection?
No single CRI or CCT number guarantees you'll see every surface defect. Review the available color-rendition data for the exact model, check glare behavior from the working position, and confirm the panel's actual appearance under that fixture before deciding.
Can an IP rating tell me whether a light is safe for a paint or primer area?
An IP rating is an ingress-protection data point, not proof of hazardous-location approval, spray-area suitability, or code compliance. Identify what's actually happening in that space, pull the exact fixture's documentation, and get qualified review if spraying or combustible materials are involved.
When should a lighting professional or qualified electrician review the project?
Bring in a professional when the layout is a retrofit, the space sits next to spray operations, control compatibility is complicated, or the site might be a classified location. Give them room dimensions, the fixture's documentation, a description of the process, and any local requirements so they can make an informed call.
