The Financial and Operational Logic of Daylight Harvesting

In modern industrial facilities, lighting accounts for approximately 25–40% of total energy consumption. For a 50,000-square-foot distribution center, integrating a daylight harvesting system is not merely a "green" initiative; it is a high-yield capital investment. By leveraging ambient light sensors to modulate high-output LED fixtures, facility managers can achieve energy savings of 20–60% beyond a standard LED retrofit.

The primary decision point for specifiers is the transition from "static" lighting to "adaptive" systems. According to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, project readiness now requires fixtures that are pre-configured for 0-10V dimming and external sensor integration. Under a typical two-shift operational model (5,000 annual hours) at a commercial rate of $0.16/kWh, a properly commissioned system can reach a simple payback in under one year when accounting for utility rebates and maintenance avoidance.

Logic Summary: Our ROI analysis assumes a 150W LED fixture replacing a 458W metal halide (including ballast losses). The rapid payback is driven by high operational hours and the inclusion of HVAC cooling credits, as reduced lighting heat lowers the load on rooftop cooling units.

System Anatomy: The Three Pillars of Control

A daylight harvesting system consists of three fundamental components that must communicate seamlessly to maintain a "target illuminance" (constant light level) on the work plane.

1. The Photosensor (The "Eye")

The photosensor measures ambient light levels. In industrial settings, these are typically ceiling-mounted and utilize a photodiode to convert light energy into an electrical signal.

Open-Loop Systems: The sensor faces the window or skylight, measuring only the incoming natural light. This is simpler to calibrate but less precise for task-level accuracy.
Closed-Loop Systems: The sensor faces the floor or work surface, measuring the combined contribution of natural and artificial light. This allows for "constant lux" control but is more susceptible to interference from moving equipment or changing floor reflectivity.

2. The Controller (The "Brain")

The controller processes the sensor's signal against a programmed setpoint. It determines whether to dim the lights, brighten them, or maintain the current state. In many modern Adaptive Lighting setups, the controller is integrated directly into the fixture or a local wireless node to avoid the signal corruption common in heavy industrial EMI (Electromagnetic Interference) environments.

3. The Dimmable Driver (The "Muscle")

The LED driver must support 0-10V or DALI (Digital Addressable Lighting Interface) protocols. For industrial high bays, 0-10V is the pragmatic standard. It is critical to select drivers with a dimming range that reaches at least 10%. Low-cost drivers that only dim to 20% or 30% significantly erode potential savings during peak daylight hours.

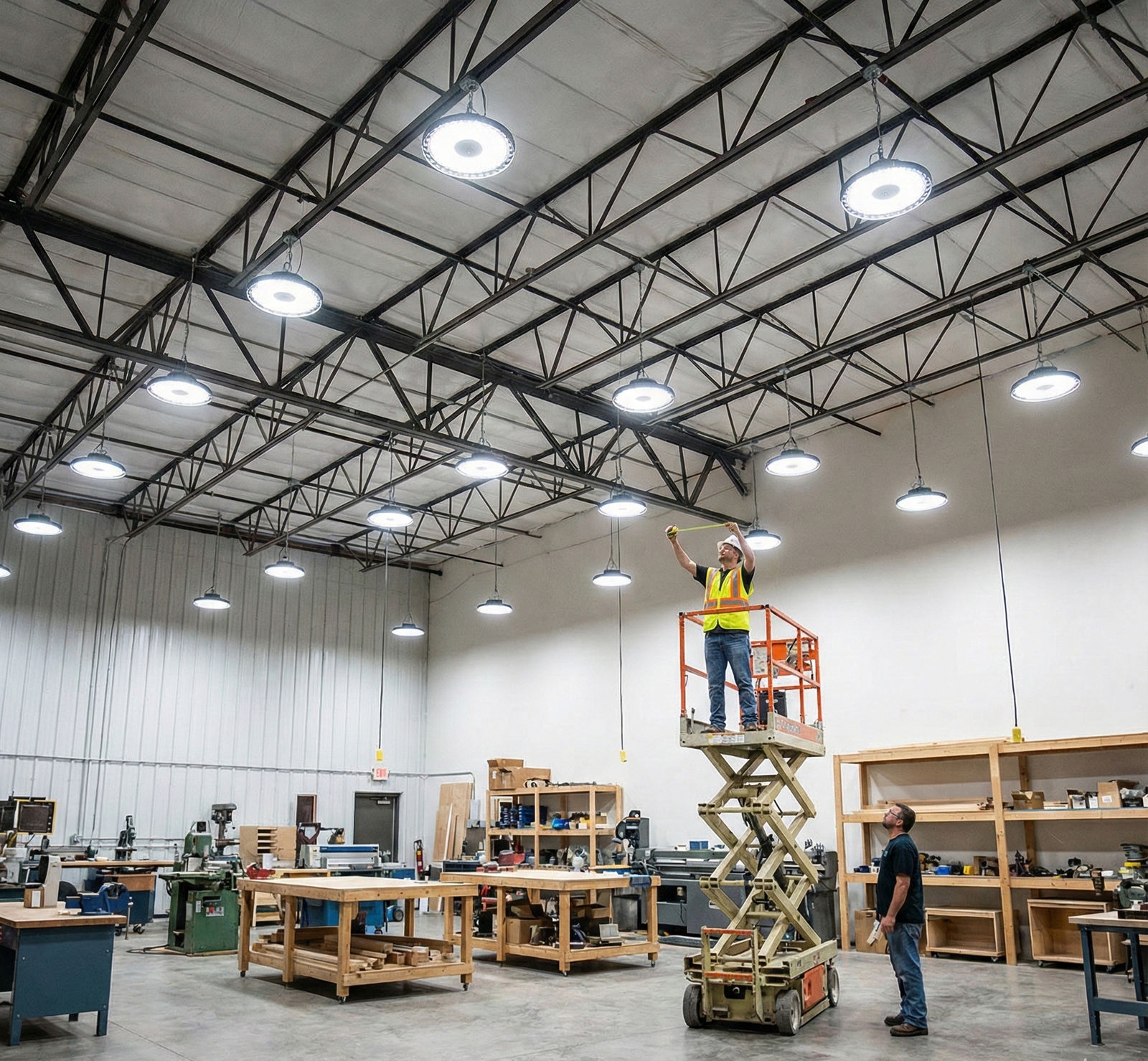

Worker installing LED High Bay lights (LED shop lights) in a high-ceiling industrial workshop from a scissor lift

Technical Deep Dive: Spectral Physics and Sensor Placement

The effectiveness of a daylight harvesting system is governed by how closely the sensor's spectral response matches the human eye (Photopic Vision).

The Photopic Match

According to the IES LM-79-19 Standard, optical measurements must account for the total luminous flux and efficacy. Cheap sensors often have a high sensitivity to infrared (IR) or ultraviolet (UV) light, which the human eye cannot see. This leads to "ghost dimming," where the system dims the lights because it detects IR heat from machinery, even though the visible light level is insufficient for workers.

Placement Heuristics

A common mistake in large warehouses is placing sensors where they are shaded by racking or structural beams. Based on patterns observed in facility audits and commissioning reports (not a controlled lab study), we recommend the following Practical Placement Rules:

Density: One sensor per 2,500–3,000 square feet in primary daylight zones.
Zone Separation: Separate the "Primary Sidelit Zone" (areas within 1x the window height) from "Secondary Sidelit Zones" (areas between 1x and 2x window height).
Height Calibration: Sensors mounted above 20 feet require a narrower "field of view" (FOV) to prevent averaging light from too wide an area, which reduces localized accuracy.

Parameter	Recommended Value	Rationale
Target Illuminance	30–50 Footcandles	Standard for picking/packing aisles (IES RP-7)
Deadband Range	10–15%	Prevents "hunting" (rapid flickering)
Fade Rate	30–60 Seconds	Subtle transitions to avoid distracting workers
Sensor FOV	60°–90°	Balances coverage with localized accuracy

Compliance and the Regulatory Landscape

For B2B projects, compliance is a non-negotiable threshold for both legal permits and financial incentives.

DLC Premium and Utility Rebates

The DesignLights Consortium (DLC) Qualified Products List (QPL) is the gatekeeper for utility rebates. To maximize ROI, fixtures should be DLC Premium certified. This designation requires higher efficacy (lm/W) and integrated controls capability. In many jurisdictions, adding daylight harvesting controls can increase the per-fixture rebate by 20–40%, effectively subsidizing the cost of the sensors.

Energy Codes: ASHRAE 90.1 and IECC

Modern codes like ASHRAE Standard 90.1-2022 and IECC 2024 mandate daylight-responsive controls in any space where the total daylight zone exceeds 2,500 square feet. Furthermore, California Title 24, Part 6 requires "multi-level lighting," meaning the system must be able to dim smoothly rather than just switching on/off.

Safety and Interference

All industrial drivers must comply with FCC Part 15 to ensure they do not emit EMI that interferes with sensitive facility equipment, such as CNC machines or hospital diagnostic tools. Additionally, verification of UL 1598 (standard for luminaires) is the first checkpoint for building inspectors and insurance providers.

Hyperlite LED High Bay Light - Black Hero Series, 14500lumens, Selectable Wattage&CCT, AC 120-277V

Implementation Pitfalls: The "Maintenance Trap"

The most significant threat to a daylight harvesting system's performance is not electronic failure, but environmental degradation.

The Dust Factor

In dusty industrial environments, photosensors can lose up to 40% accuracy within six months without maintenance. This "accuracy drift" causes the system to over-illuminate (wasting energy) or under-illuminate (creating safety hazards).

Mitigation: Establish a 6-month cleaning cycle for sensor lenses using non-abrasive, anti-static wipes.
Calibration Drift: Electronic components age. Use a handheld light meter to verify that the light levels at the floor match the sensor's reported levels annually.

Shadow Management

In high-density warehousing, the movement of stock can create temporary "dark zones." If a sensor is placed directly over a high-traffic aisle, the presence of a tall forklift can trigger the lights to brighten unnecessarily. Managing Rack Shadows requires a layout that averages light levels across multiple aisles or utilizes wireless group-dimming to maintain Lighting Uniformity.

Modeling the Impact: A 50,000 Sq Ft Case Study

To demonstrate the tangible impact of these systems, we modeled a distribution center retrofit using deterministic parameters based on standard Northeast US commercial rates.

Method & Assumptions

Modeling Type: Deterministic TCO (Total Cost of Ownership) sensitivity analysis.
Scope Limits: Results assume a 2-shift operation; facilities with 24/7 constant activity may see lower incremental gains from occupancy sensors but consistent gains from daylight harvesting.

Parameter	Value	Unit	Source Category
Legacy System	458	Watts	400W Metal Halide + Ballast
LED System	150	Watts	High-Output Dimmable LED
Annual Hours	5,000	Hours	2-Shift Operation
Electricity Rate	$0.16	$/kWh	Northeast US Average
Rebate	$100	$/Fixture	DLC Premium + Controls Bonus

Quantitative Results

Annual Energy Savings: ~$24,640
Annual Maintenance Savings: ~$4,125 (Based on avoiding 12,000-hour MH lamp changes)
Annual Carbon Reduction: ~54 Metric Tons CO2e (Using NYUP grid factors)
Equivalency: Equivalent to planting approximately 900 tree seedlings.

Practitioner Observation: We often see facility managers overlook the HVAC interactive factor. In our modeling, the reduction in lighting heat contributed an additional ~$472 in annual cooling savings. While small, this represents a 2% "bonus" ROI that helps justify the higher upfront cost of dimmable systems.

Strategic Implementation Checklist

Before finalizing a daylight harvesting specification, contractors and facility managers should verify the following "Pro-Grade" requirements:

Dimming Curve: Request the IES LM-79 report to verify the driver's dimming curve. Is it linear or logarithmic? Linear curves are generally easier to calibrate for daylight harvesting.
IP and IK Ratings: For harsh environments, ensure the fixture is IP65 rated (dust/waterproof) and has an IK08 or higher rating for impact resistance.
IES Files: Ensure the manufacturer provides .ies files for use in AGi32 software. Without these, accurate Lighting Layouts are impossible to simulate.
Warranty and Support: Confirm a 5-year warranty and a clear return policy. In industrial projects, "dead on arrival" (DOA) units can stall a project; having a 30-day return window is a critical safety net for contractors.

Daylight harvesting is a sophisticated interplay of physics, electronics, and regulatory compliance. When executed with the precision described above, it transforms a facility's lighting from a fixed overhead cost into a dynamic, energy-saving asset.

Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering or financial advice. Lighting requirements vary significantly by facility type, local building codes, and operational needs. Always consult with a licensed electrical contractor or certified lighting professional before initiating a retrofit project. Energy savings and ROI estimates are based on specific scenario models and are not guaranteed for all applications.
