Why IK-Rated Lights Matter in High-Traffic Barns

Farm barns are some of the toughest lighting environments you can design for. Tractors swing loaders close to ceilings, livestock rub against fixtures, and tools get knocked around in tight alleys. In these spaces, impact resistance is just as critical as light output or waterproofing.

IK ratings give you a standardized way to select fixtures that survive this abuse. While IP ratings (from IEC 60529) tell you how well a fixture resists dust and water, IK ratings (from IEC 62262) tell you how much mechanical impact energy the enclosure can handle.

In high-traffic barns, choosing the right IK rating reduces three big headaches:

Unexpected lamp failures from low-level bumps and kicks
Glass or plastic debris falling into stalls or feed areas
Constant lift rentals and labor to replace broken fixtures

This guide breaks down IK ratings in plain language, then walks through a step-by-step process to match IK levels, materials, and mounting methods to real barn conditions.

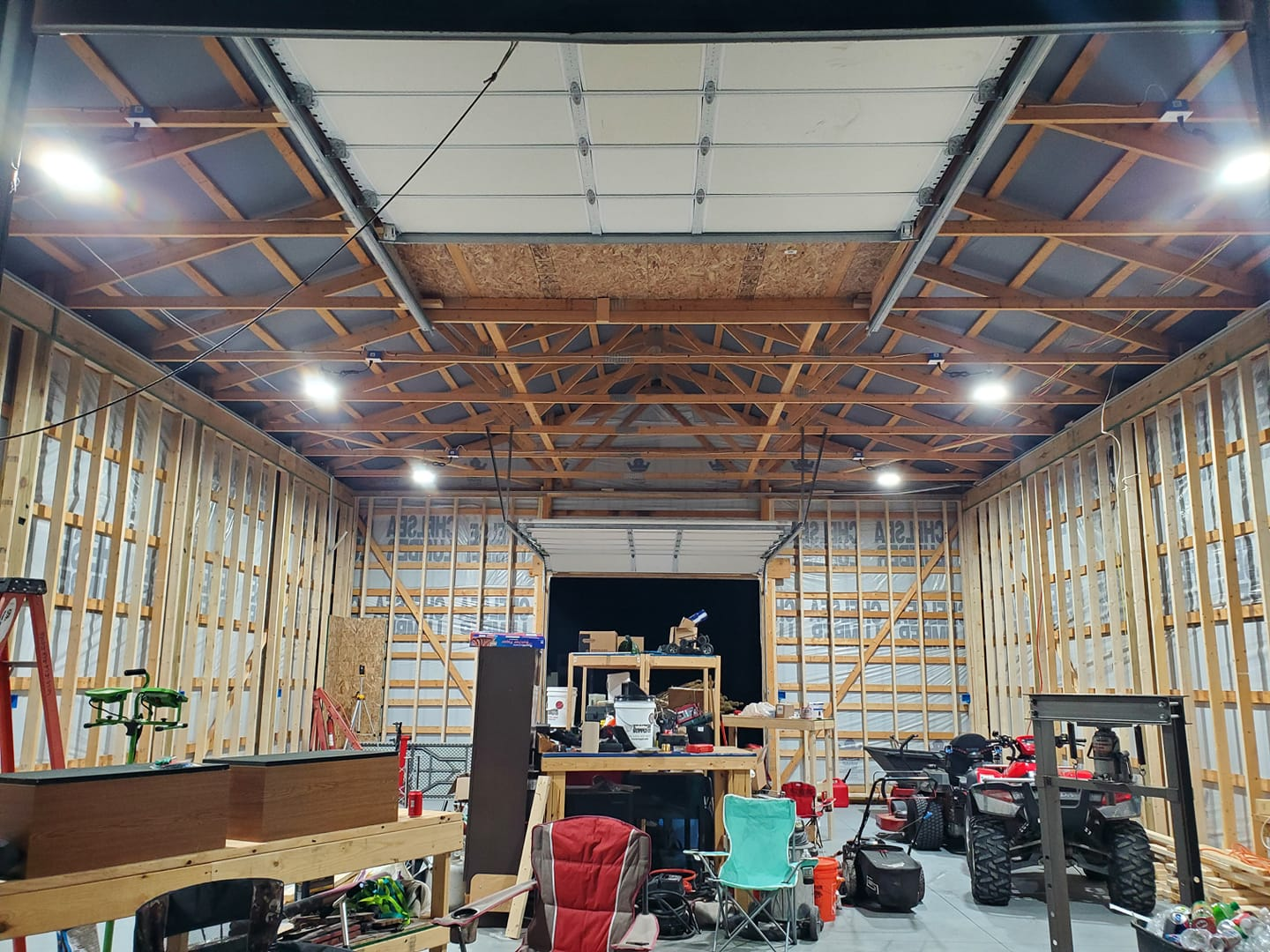

UFO LED High Bay shop lights in a high-ceiling pole-barn workshop illuminating workbenches and ATVs

IK Ratings 101: What They Actually Mean on the Farm

How the IK scale works

The IK scale ranges from IK00 (no protection) to IK10 (high protection). Under IEC 62262, fixtures are hit with a calibrated impact (in joules) using a standardized hammer. The rating reflects the energy level the enclosure can withstand without unsafe damage.

Practical barn-relevant points on the scale:

IK Rating	Impact Energy (J)	Typical Real-World Event
IK05	0.7 J	Light bump from a hand tool or small object
IK07	2 J	Accidental tap from a broom handle or gate latch
IK08	5 J	Direct hit from a thrown tool or hard livestock contact
IK09	10 J	Strong impact, e.g., boot or boot-on-tool kick
IK10	20 J	Heavy impact such as slow-moving equipment or hard kick

Field experience in agricultural barns shows that most failures are not from extreme hits but from repeated moderate impacts: gate hardware, feeders, livestock backs and heads, or a scraper catching a guard. That is why IK08 is a solid baseline for barns, with IK10 preferred in alleys and equipment paths.

IK vs. IP: Different protections, both required

A common misconception is that “a high IP rating means the fixture is rugged overall.” In reality, IP and IK measure different risks:

IP (Ingress Protection) – dust and water resistance, defined in IEC 60529
IK (Impact Protection) – mechanical shock resistance, defined in IEC 62262

A fixture can be IP65 (dust-tight and water jet resistant) yet have no tested impact resistance beyond a very light knock. In barns, this gap is a frequent cause of early failures.

For a deeper breakdown of how IP and IK interact, including water and dust protection requirements for farm buildings, see the guide on IP vs. IK Ratings: Water, Dust, and Impact Protection.

Why IK ratings matter for safety and compliance

IK ratings are not building codes by themselves, but they link directly to:

Electrical safety standards such as UL 1598 for luminaires, which require enclosures to remain safe and protect live parts
Insurance and inspection expectations that require “suitable for the environment” equipment in barns and industrial spaces
Maintenance access risk: the more often fixtures get broken, the more often personnel need lifts or ladders in tight areas with livestock and wet floors

A fixture destroyed by a minor hit may still appear intact but have compromised insulation or loose components. Tested IK ratings, supported by lab reports, give you evidence the enclosure can handle real barn impacts while maintaining safety.

Step 1 – Map Your Barn Risk Zones

Before you look at product brochures, walk the barn and sort each area into impact risk zones. This mirrors how ANSI/IES RP‑7 for industrial facilities recommends analyzing tasks and hazards before selecting equipment.

Define three practical zones

Use this framework:

Low-impact zones
Examples: overhead storage lofts, closed equipment rooms, high ceilings above center aisles with no machinery reach.
- Occasional tool bumps only
- No direct livestock contact
- No forklifts or loaders running close to fixtures
Moderate-impact zones
Examples: stall rows, perimeter walls where animals rub, milking parlors, low truss spaces above animal traffic.
- Frequent contact from animals and equipment handles
- Some hand-tool impacts and hose contact
- Occasional mis-throws (pitchfork, shovel, latch)
High-impact zones
Examples: feed alleys, equipment corridors, loading areas, doors where tractors or skid-steers operate, feed bunks with overhead fixtures.
- Regular pass-bys of tractors, skid-steers, or telehandlers
- Livestock crowding and jostling
- High chance of swings, kicks, or loader arms getting close

Match IK baselines to each zone

From field data in barns and workshops, a pragmatic target is:

Barn Zone	Typical Hazards	Recommended IK Baseline
Low-impact	Tools, light contact	IK07 or higher
Moderate-impact	Livestock rubbing, small equipment, hoses	IK08 or higher
High-impact	Feed alleys, loader arms, vehicle paths, gates	IK10 preferred

This is a starting point, not a regulatory rule. Always align with your local electrical inspector and safety requirements.

Do not forget mounting height and reach

Even with high IK ratings, mounting height is your first line of defense. As a rule of thumb for barns with animals:

Keep fixtures 2–3 ft (0.6–0.9 m) above the tallest animal’s reach
In feed alleys, increase that clearance where loader buckets or grapples operate

Installers report that simply raising fixtures one joist bay (around 16–24 in) above gate hardware drastically reduces contact incidents, even before changing fixture type.

Step 2 – Choose Lens and Housing Materials for Real Barn Abuse

IK ratings tell you how much impact a fixture can withstand in lab tests. The materials behind that rating determine how it behaves in real farm conditions: ammonia, washing, dust, and UV.

Glass vs. polycarbonate vs. acrylic lenses

Common lens choices and their behavior in barns:

Lens Material	Impact Resistance	Chemical/Ammonia Resistance	Typical Issues in Barns
Standard glass	Brittle, low impact	Excellent	Shatters on impact, dangerous shards
Tempered glass	Stronger, higher impact	Excellent	Can still break, but crumbles into small blunt pieces
Polycarbonate	Very high impact	Moderate (can yellow/craze)	Yellows or hazes under ammonia and UV over several years
Acrylic (PMMA)	Moderate impact	Better optical stability	Cracks more easily, less preferred where animals contact

Real-world barn experience shows that polycarbonate lenses survive impacts best, but uncoated polycarbonate tends to yellow and haze over time in high-ammonia and UV-exposed areas. Tempered glass retains clarity but needs protection from direct blows.

For most high-traffic barns:

Use tempered glass with external guards or coated polycarbonate in washdown zones and parlors
Use thick polycarbonate or guarded tempered glass in feed alleys and low-bay installations

Guards and cages: cheap insurance for fixtures and animals

Mechanical guards (wire cages, formed steel guards) are not glamorous, but they are proven. Across retrofit projects in livestock barns and workshops, adding guards and safety cables typically reduces fixture breakage and replacements by around 50–65% over two years.

Where to prioritize guards:

Above feed bunks and mangers, where animals stretch toward fixtures
Along narrow alleys where buckets, forks, and feed carts pass close to lights
Near gates and doorways that swing upwards or sideways into fixtures

A guard does not replace a high IK rating, but it absorbs the first impact, protecting both the lens and the driver housing. When you review spec sheets, check that:

Guards are listed as compatible accessories for that exact model
Fixing points do not compromise IP or IK performance
Safety cables are provided or supported for overhead fixtures

Housing and heat management

Aluminum housings with deep fins handle barn dust and manure vapor better than thin, flat shells. According to the LED luminaire performance standard IES LM‑79‑19, accurate optical and electrical measurement assumes fixtures operate within their rated thermal envelope. In barns, dust buildup and ammonia accelerate corrosion and heat retention.

When comparing housings, look for:

Thick, corrosion-resistant aluminum with robust powder coating
Smooth edges and drain paths so manure slurry and wash water do not pool
IK ratings tested with the actual housing and lens configuration, not just a generic enclosure

Step 3 – Verify IK and IP Together (Documentation Checklist)

A frequent failure in barn projects is specifying the IP rating correctly but never verifying IK. Install teams then discover that fixtures crack or shatter within the first winter.

To avoid this, treat impact resistance as a first-class spec, just like lumens and voltage.

What documentation you should demand

For each fixture under consideration, request the following from the manufacturer or distributor:

IK test report
- Referenced to IEC 62262
- Shows test energy (in joules) and final rating (e.g., IK08, IK10)
- Performed on the exact model (including lens, guard, and mounting configuration if relevant)
IP test report
- Referenced to IEC 60529
- Especially important in barns where you hose down stalls or parlors
- For washdown and windy barns, IP65 or higher is commonly used; see the IP overview in IP6X: Why Dust-Tight Lights Are Key for Shops & Barns
Photometric (.ies) files
- In the IES LM‑63 file format, as described in IES LM‑63‑19
- Required if you or your electrician intend to run layouts in tools like AGi32 to ensure correct lux levels
Performance and safety reports
- LM‑79 reports for lumens and efficiency
- LM‑80 and TM‑21 projections for LED lifetime
- UL or ETL listing evidence against luminaire standards such as UL 1598 and LED component standards such as UL 8750

Contractors consistently report that projects stall or get downgraded when IK/IP test reports or IES files are not available. Having this documentation ready simplifies permitting, inspections, and rebate applications.

How to read an IK test report quickly

When you receive a report:

Confirm standard reference – it should state IEC 62262 or equivalent.
Check test configuration – was the test on a surface-mounted unit, suspended high-bay, or a variant with a guard? It should match your planned installation.
Locate impact energy and locations – good reports indicate where the hammer struck (lens, housing edge, mounting points).
Note post-test condition – “no cracking,” “no access to live parts,” or “no functional loss” are what you want to see.

If any of these are missing or vague, request clarification before you commit to a bulk order.

Step 4 – Match Fixture Types and IK Levels to Barn Applications

Different barn tasks call for different fixture geometries. The best IK strategy is to pair the right fixture type with the right zone, then choose an IK rating that fits the actual hazards around it.

High-bay and low-bay fixtures for open barns and arenas

In large machinery barns, riding arenas, and tall storage spaces, compact high-bay fixtures mounted high between trusses are usually out of direct impact range. Here, impact risk often comes from occasional tool strikes during maintenance or an unexpected loader arm swing.

Practical approach:

Mount fixtures as high as practical while still meeting your target lux levels
For clearances above tractors and animals by more than 4–5 ft, IK07–IK08 can be acceptable
In end bays where equipment turns and loaders tilt, specify IK08–IK10 and consider guards

For guidance on achieving even illumination in large interiors, pair impact selection with the layout techniques discussed in Achieving Lighting Uniformity in a Warehouse Layout.

Linear fixtures and vapor tights along stalls and alleys

Linear and vapor-tight fixtures are popular in barns because they spread light evenly over alleys and headlocks. However, they are closer to animals and equipment, so their IK requirement is usually higher.

Best practices from farm retrofits:

Along stall fronts and feedlines:
- Aim for IK08 minimum with a robust lens and sealed end caps
- Add wire guards where animals can reach or where gates can swing upward
In scraper alleys and equipment paths:
- Treat as high-impact zones and target IK10 when fixtures are below 10–12 ft mounting height
- Use wall-mounted or offset brackets to keep fixtures clear of loader arms

Additionally, because these fixtures are frequently washed, combine impact specs with IP65 or higher, similar to the conditions outlined for harsh washdown environments in Lighting for Car Washes: Why IP66 Is the Minimum.

Wall packs and exterior barn lights

Exterior wall-mounted fixtures over barn doors, driveways, and loading pads see impact risk from:

Tall vehicles backing up or turning too close
Loader buckets raised while entering or exiting
Flying debris in storms

Here, a practical strategy is:

Specify IK08+ for wall packs mounted where vehicles maneuver nearby
Combine with IP65+ for weather protection, as highlighted in Why IP65+ Floodlights Are Essential for Farms
Use mounting heights and locations that keep fixtures outside the “swing path” of barn doors and gates

Temporary and string lights in construction or renovation zones

During barn construction or renovation, LED string or temporary work lights are often hung at head height for crews. While their housings are usually lightweight, they still benefit from impact consideration:

Protect bulbs from swings of lumber, tools, and equipment
Use additional guards or hang them above the typical tool swing line
Keep cords tight and supported so they do not create catch points for livestock or machinery

While these lights may not always carry formal IK ratings, choosing rugged casings and guarding them physically can dramatically extend their usable life on the jobsite.

Step 5 – Integrate Impact Resistance with Controls and Voltage Choices

Impact resistance does not exist in a vacuum. To get a durable, code-appropriate system, you also need to align IK-rated fixtures with controls, voltage, and power quality.

Sensor placement to avoid false triggers and damage

Modern energy codes such as ASHRAE 90.1‑2022 and IECC 2024 push for occupancy and daylight controls, even in industrial and agricultural buildings. Both standards increase requirements for automatic shutoff and daylight-responsive control.

In barns, occupancy or microwave sensors can be an asset if installed correctly:

Mount sensors away from direct animal movement lines to reduce nuisance trips
Adjust sensitivity to avoid triggering on animals in adjacent pens if not desired
Consider ceiling-mounted microwave sensors for wide coverage without exposing them to kicks and head butts
Use protective shrouds or guards if sensors are within reach

The U.S. Department of Energy’s guidance on wireless occupancy sensors for federal facilities emphasizes clear mounting height limits and careful placement in high-bay spaces to avoid gaps in coverage and false alarms, particularly in warehouses and large rooms. The same logic applies to barns.

Voltage ranges for small farms vs. commercial barns

Impact-resistant fixtures must also be compatible with your electrical system. Experiences from contractors on agricultural projects show:

Small and mid-size farms often run 120–277 V circuits in general lighting panels.
Larger commercial barns and complexes may have 347–480 V distribution.

For simple retrofits in smaller barns, plug-ready fixtures on 120–277 V supply with robust cord grips make for very fast installs. In larger facilities, ensure that your high-voltage fixtures not only meet IK/IP requirements but are also listed to the correct UL/ETL category and rated for the system voltage.

Flicker, dimming, and driver durability

Impacts do not just damage housings; they also stress internal LED drivers. To support long service life:

Favor fixtures with driver compartments mechanically decoupled from the lens area when possible
Confirm 0–10 V dimming or other control interfaces comply with industry guidance such as NEMA control terminology (NEMA LSD 64)
Verify that EMI performance meets FCC Part 15 to prevent interference with radios, sensors, or equipment in the barn

In feedback from electricians, many early driver failures in barns were traced to cheap electronics that could not tolerate vibration and impacts over time. Combining a solid IK-rated housing with verified electrical and EMI performance greatly reduces unplanned outages.

Maintenance Strategy: Keeping IK-Rated Barn Lights Performing

Even the toughest fixture loses performance if it is never inspected or cleaned. Barn environments in particular shorten lifetimes through dust, cobwebs, ammonia, and repeated washing.

Inspection and cleaning schedule

A practical schedule used successfully on working farms is:

Twice-yearly visual inspections in dusty or high-ammonia environments
Additional checks after any power-wash cycles where chemicals or hot water were used

During each inspection, look for:

Cracked lenses or housings, even if lights still operate
Yellowing or hazing on polycarbonate lenses that reduces light output
Loose guards, safety cables, or mounting hardware
Corrosion at conduit entries and cable glands

Top off this process with occasional light level measurements in critical areas (parlors, alleys, workstations) to confirm you still meet your target lux. Remember that dirt, aging, and small mechanical damage typically reduce delivered lux by 10–20% over a few years; designing with a 10–15% lux margin up front provides a buffer.

When to replace or upgrade

Consider planning replacements or upgrades when you observe:

Repeated breakage in a specific zone despite guards
Significant yellowing of lenses that no longer clean up
Frequent nuisance trips or failures in sensors due to poor placement
Multiple driver or board failures in the same fixture model

In many barns, a targeted re-specification of only the highest-risk zones (for example, upgrading to IK10 with robust guards in feed alleys) reduces on-call maintenance dramatically while letting you keep existing fixtures in low-risk zones.

Quick Decision Framework: Choosing IK-Rated Lights for Your Barn

Use this checklist to move from concept to a practical, spec-ready lighting plan:

Walk the barn and mark:
- Low-, moderate-, and high-impact areas
- Equipment paths, feed alleys, and door swing arcs
- Areas regularly washed or exposed to high moisture
Set minimum IK levels by zone:
- Low-impact: IK07+
- Moderate-impact: IK08+
- High-impact: IK10 preferred, especially below 12 ft mounting height
Pair fixtures to zones:
- High-bay fixtures for tall, open spaces; guarded linear fixtures for stalls and alleys
- Wall-mounted units with IK08+ over doors and loading pads
Choose lens and housing materials:
- Tempered glass with guards, or coated polycarbonate where ammonia and impacts are high
- Corrosion-resistant housings with robust coatings and good heat dissipation
Require documentation:
- IK and IP test reports (IEC 62262 and 60529)
- IES files (LM‑63 format), LM‑79 performance data, and UL/ETL listing evidence
Align with controls and voltage:
- Confirm compatibility with your 120–277 V or 347–480 V system
- Design sensor placement to avoid impact and nuisance trips
- Verify 0–10 V or other controls follow common terminology and EMI limits
Plan maintenance:
- Biannual inspections and cleaning
- Use guards and safety cables in high-risk zones
- Build a 10–15% lux margin into layouts to accommodate dirt and aging

When you treat IK ratings as a core selection parameter—alongside IP rating, light output, and controls—you end up with barn lighting that stays on the ceiling, keeps glass and debris away from animals and people, and reduces both downtime and maintenance costs for years.

Safety and Compliance Disclaimer

This article is for informational purposes only and does not constitute professional engineering, electrical, or safety advice. Electrical work and lighting design in barns and agricultural facilities must comply with the National Electrical Code (NFPA 70), local electrical codes, building regulations, and any applicable animal welfare or workplace safety rules. Always consult a licensed electrician, professional engineer, or local authority having jurisdiction (AHJ) before modifying electrical systems or selecting equipment for regulated environments.

Choosing IK-Rated Lights for High-Traffic Barns
