Beyond Waterproof: Why Your Car Wash Needs IP66-Rated Lighting
A modern car wash is a brutal environment for any piece of equipment. It combines high-pressure water jets, corrosive cleaning chemicals, and constant humidity—a combination that can destroy standard electrical fixtures in weeks, not years. While many operators might select a "weatherproof" or "waterproof" light, they soon discover a costly lesson: not all water protection is created equal. A light that can withstand rain is no match for a targeted, high-pressure spray.
This is where Ingress Protection (IP) ratings become critical. Understanding these codes is the first step to avoiding premature failure, ensuring facility safety, and reducing maintenance costs. This guide explains why an IP66 rating is the absolute minimum for survival in a wash bay and details the other, equally important features—from lens materials to surge protection—that define a truly durable car wash luminaire.
Disclaimer: This article provides general technical guidance and is not a substitute for professional engineering or electrical advice. All electrical installations, modifications, and servicing must be performed by a licensed electrician or qualified engineer in compliance with local codes. Before purchasing, we strongly recommend requesting and verifying third-party laboratory test reports for IP ratings and current UL/ETL certification documents from the supplier.
Decoding IP Ratings: From Dust-Proof to Powerful Jets
The IP rating system is an international standard defined by the International Electrotechnical Commission (IEC) in its 60529 standard. It precisely classifies the degree of protection an electrical enclosure provides against the intrusion of foreign objects (including dust) and moisture. The two digits in an IP rating each have a specific meaning.
- First Digit (Solids): This number, from 0 to 6, indicates protection against solid particles. A "6" is the highest level, signifying the enclosure is completely dust-tight. For a car wash, where airborne dirt and debris are common, a "6" is essential.
- Second Digit (Liquids): This is the crucial number for a wet environment. It ranges from 0 to 9K, detailing protection against water, from simple drips to high-pressure, high-temperature jets.
For car wash applications, the most relevant liquid ratings are IPX5, IPX6, and IPX7.
| IP Rating | Protection Against Water | Test Conditions (per IEC 60529) | Suitability for Car Wash |
|---|---|---|---|
| IP65 | Low-Pressure Water Jets | Water projected by a 6.3mm nozzle at 12.5 liters/min from any direction. | Inadequate. Cannot withstand the high-pressure spray from wash wands or automated arches. |
| IP66 | Powerful Water Jets | Water projected by a 12.5mm nozzle at 100 liters/min from any direction at a pressure of 100 kPa at a distance of 3m. | Minimum Requirement. Specifically designed to resist the force of high-pressure cleaning equipment as defined in clause 14.2.6 of the standard. |
| IP67 | Temporary Immersion | Enclosure can be immersed in up to 1 meter of water for 30 minutes. | Exceeds Requirements. Offers protection beyond what is typically needed, but is a safe and robust choice. |
The Myth of "Good Enough": Why IP65 Fails
A common and costly mistake is assuming that an IP65-rated fixture, often marketed as "weatherproof," is sufficient for a car wash tunnel. While IP65 is perfectly adequate for general outdoor locations exposed to rain, it is not designed to handle the directed, high-pressure water streams used in vehicle washing. The difference in testing standards is dramatic: an IP66 test uses eight times the water volume at a much higher force than an IP65 test. This intense pressure easily breaches the seals of an IP65-rated fixture, leading to condensation, short-circuiting, and complete failure.
For instance, a 2023 field report from a high-volume car wash documented that several IP65 fixtures failed in under 90 days. The cause was water ingress from spray wands operating at approximately 1,100 PSI, a common pressure level that these fixtures were not designed to withstand. The initial savings were quickly erased by the cost of replacement labor and upgraded IP66 fixtures, highlighting the risk of underspecification.
Beyond Water: Specifying Materials for Chemical Resistance
Water is only half the battle. The other enemy of car wash lighting is the constant barrage of chemicals. Alkaline pre-soaks, acidic wheel cleaners, and various waxes can cause materials to degrade, crack, and yellow, compromising the fixture's seal and light output. Experienced installers consistently report that chemical attack is a dominant failure mode for fixtures in these settings.
Choosing the right materials for the luminaire's lens and gaskets is just as important as its IP rating.
Lens & Housing Material Comparison
| Material | Impact Resistance | Chemical Resistance | UV/Yellowing Resistance | Best Use Case |
|---|---|---|---|---|
| Tempered Glass | Good | Excellent | Excellent | Ideal for lenses in harsh chemical environments. |
| Chemically-Stabilized Polycarbonate | Excellent | Good | Good | A strong choice for housings and lenses where impact is a primary concern. |
| Standard Polycarbonate (PC) | Excellent | Poor | Poor | Avoid. Becomes brittle and yellows quickly when exposed to wash chemicals. |
| Acrylic (PMMA) | Fair | Poor | Fair | Avoid. Prone to cracking from both impacts and chemical exposure. |
Gasket Material Comparison
| Material | Chemical Resistance | Temperature Range | Durability | Best Use Case |
|---|---|---|---|---|
| EPDM | Excellent | -40°F to 300°F | Excellent | A versatile and reliable choice for most car wash applications. |
| FKM (Viton®) | Superior | -15°F to 400°F | Excellent | The premier choice for extreme chemical or high-temperature conditions. |
| Silicone | Fair | -65°F to 450°F | Good | Avoid. While it has a wide temperature range, it has poor resistance to many wash chemicals and can be prone to tearing. |
Using a fixture with a standard polycarbonate lens or silicone gaskets is a recipe for failure. The materials will degrade, the seal will be compromised, and the light will fail. Insisting on a tempered glass lens and EPDM gaskets is a critical step in ensuring longevity.

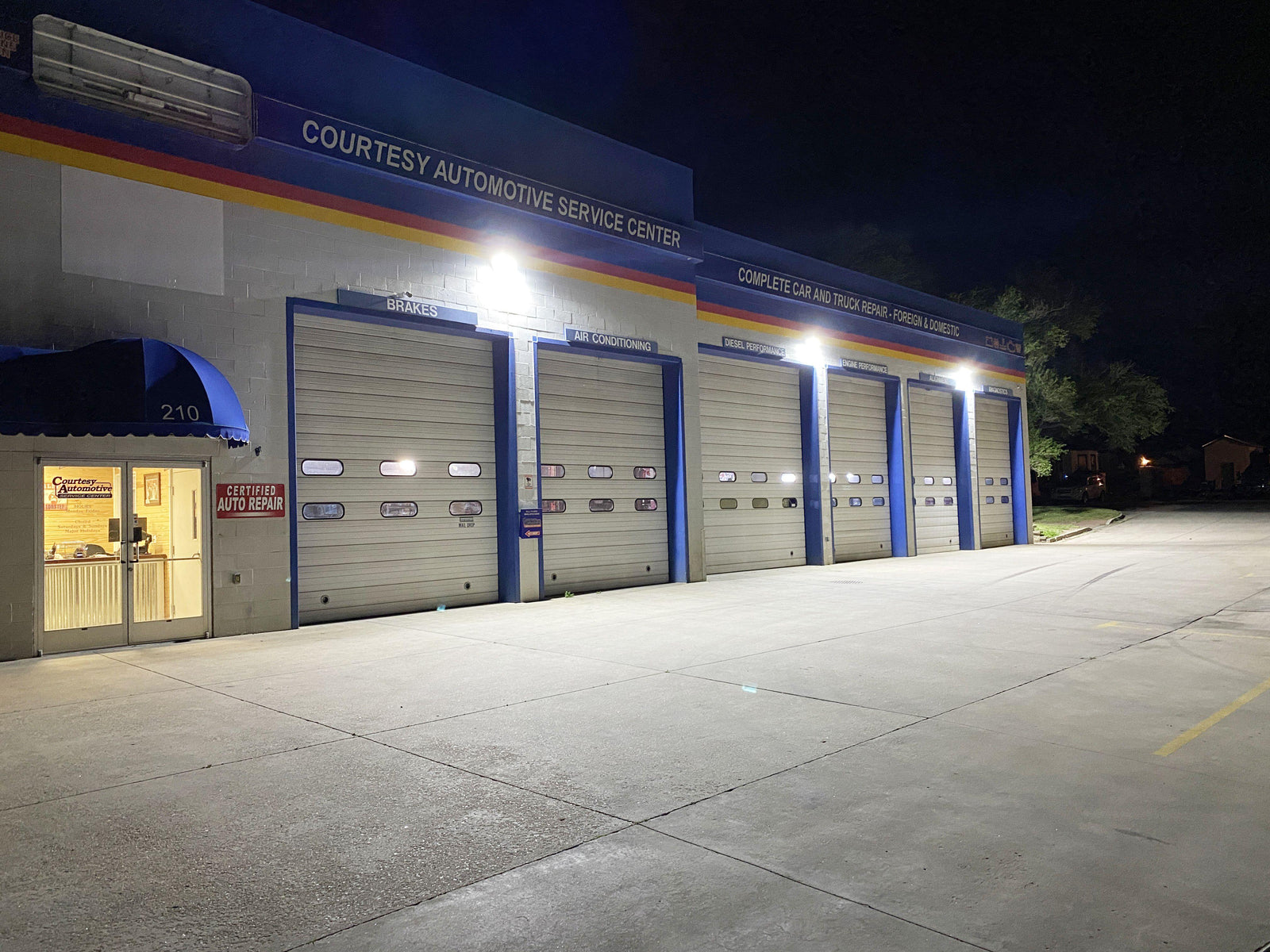

Wall Pack Light with Photocell - Oval series, 15600 lumens, 5000K, AC 120-277V
Engineering for Survival: Critical Design & Electrical Features
A truly robust car wash light is more than just a sealed box. It includes design features that anticipate and mitigate the unique challenges of the environment.
Fighting Condensation
Even with a perfect seal, temperature fluctuations between a hot wash cycle and a cold rinse can cause air inside the fixture to expand and contract. This "thermal cycling" can create a vacuum effect, pulling moist air past the seals. When the fixture cools, that moisture turns into condensation, fogging the lens and threatening the electronics. High-quality fixtures, like the durable Wall Pack Light with Photocell - Oval series with its glass lens, are built to resist these cycles. The best designs incorporate a pressure-equalizing breather vent—a small, hydrophobic membrane that allows air to pass but blocks water molecules. This prevents the vacuum from forming and keeps the interior dry.
Guarding Against Electrical Failure
Car washes are electrically noisy environments. The constant switching of powerful motors for pumps and conveyors can create voltage spikes and electrical surges on the power lines. These surges are a common cause of premature failure in LED drivers. A field-proven best practice, based on data from environments with heavy motor loads, is to demand fixtures with built-in surge protection of at least 6 kilovolts (kV). For example, the driver in a robustly designed outdoor fixture like the Hyperlite Led Parking Lot Lights - Hope Series contains a 10kV surge protection device, showcasing the level of durability required. For maximum protection, this should be supplemented with a dedicated Surge Protective Device (SPD) at the service panel feeding the lighting circuits.
Installation Best Practices
How a fixture is installed can significantly impact its lifespan. Experienced installers follow a few key rules:
- Orient Seams Carefully: Whenever possible, mount the luminaire so that any gasket seams on the housing face away from the direct line of fire from high-pressure nozzles.
- Use Proper Glands: Ensure all wiring enters the fixture through high-quality, double-seal cable glands that are rated for wet locations.
- Control Torque: Follow the manufacturer's torque specifications when tightening screws on the housing and mounting hardware. Over-tightening can deform gaskets, creating a weak point for water to enter.
How to Specify and Verify Car Wash Lighting
To ensure you get a product that will last, you need to create a clear technical specification and verify that the products you purchase meet it.
Building a Bulletproof Specification Checklist
Use this checklist when evaluating or specifying luminaires for a car wash project:
- [ ] Ingress Protection: Minimum IP66 rating. NEMA 4X is also an acceptable equivalent.
- [ ] Safety Certification: Must be UL Listed for Wet Locations. This ensures it has been tested to standards like UL 1598, the Standard for Luminaires, which covers construction and durability in wet environments.
- [ ] Lens Material: Tempered glass or chemically-stabilized polycarbonate.
- [ ] Gasket Material: EPDM or FKM.
- [ ] Surge Protection: Built-in surge protection of 6kV or higher.
- [ ] Condensation Control: Includes a pressure-equalizing breather vent.
- [ ] Documentation: Request a copy of the lab test report verifying the IP rating and the UL certificate.
Recommended Lighting Levels
Proper light levels are essential for both quality control and safety. Based on established best practices, aim for these targets:
- Detailing and Drying Bays: 30–50 foot-candles (300–540 lux) to ensure technicians can spot imperfections.
- Wash Corridors & Tunnels: 10–20 foot-candles (100–215 lux) for safe navigation.
- Color Temperature & Rendering: A color temperature (CCT) of 4000K to 5000K provides a clean, neutral white light that aids visibility. A Color Rendering Index (CRI) of 70 or higher is sufficient for judging vehicle cleanliness.
Key Takeaways for a Reliable System
Choosing the right lighting for a car wash is a technical decision that pays dividends in reliability and safety. Moving beyond generic "waterproof" fixtures and specifying for the reality of the environment is the key to long-term success. Remember the core principles:
- IP66 is the Baseline: For any area directly exposed to high-pressure water jets, avoid specifying fixtures with a liquid ingress rating below IP66.
- Materials Matter: Chemical resistance is paramount. Choose tempered glass and EPDM or FKM gaskets.
- Design for Survival: Look for features like breather vents and robust surge protection.
- Install with Care: Proper orientation and assembly ensure the fixture
