Decoding IP Ratings: A Practical Refresher
When specifying outdoor or industrial lighting, the Ingress Protection (IP) rating is a critical metric. Governed by the International Electrotechnical Commission (IEC) standard 60529, this two-digit code defines a fixture's resistance to solids and liquids. Understanding it is the first step in making a cost-effective decision.
- First Digit (Solids): For most quality outdoor fixtures, this digit is a '6'. This signifies the highest level of protection against solids, meaning the enclosure is completely dust-tight. No ingress of dust is permitted.
-
Second Digit (Liquids): This is where the crucial differences lie for weatherproofing.
- IP65: Protected against low-pressure water jets from any direction. Think lawn sprinklers or light rain.
- IP66: Protected against powerful water jets from any direction. This covers heavy seas or strong hose-downs during cleaning.
- IP67: Protected against temporary immersion in water (up to 1 meter for 30 minutes).
Here’s how they compare in testing and application:
| IP Rating | Liquid Protection Test | Common Real-World Scenario |
|---|---|---|
| IP65 | Water projected by a 6.3mm nozzle | Rain, snow, garden sprinklers, light wash-downs |
| IP66 | Water projected by a powerful 12.5mm nozzle | High-pressure cleaning, deck-mounted marine use, heavy storms |
| IP67 | Immersion in water up to 1m depth for 30 mins | Ground-level fixtures in flood-prone areas, temporary ponding |
Where IP65 and IP66 Are the Smart Choice
For the vast majority of commercial and industrial applications, an IP65 or IP66 rating is not just sufficient—it's the correct specification. I’ve seen countless projects where budgets were needlessly inflated by over-specifying for IP67 when the actual site conditions didn't warrant it.

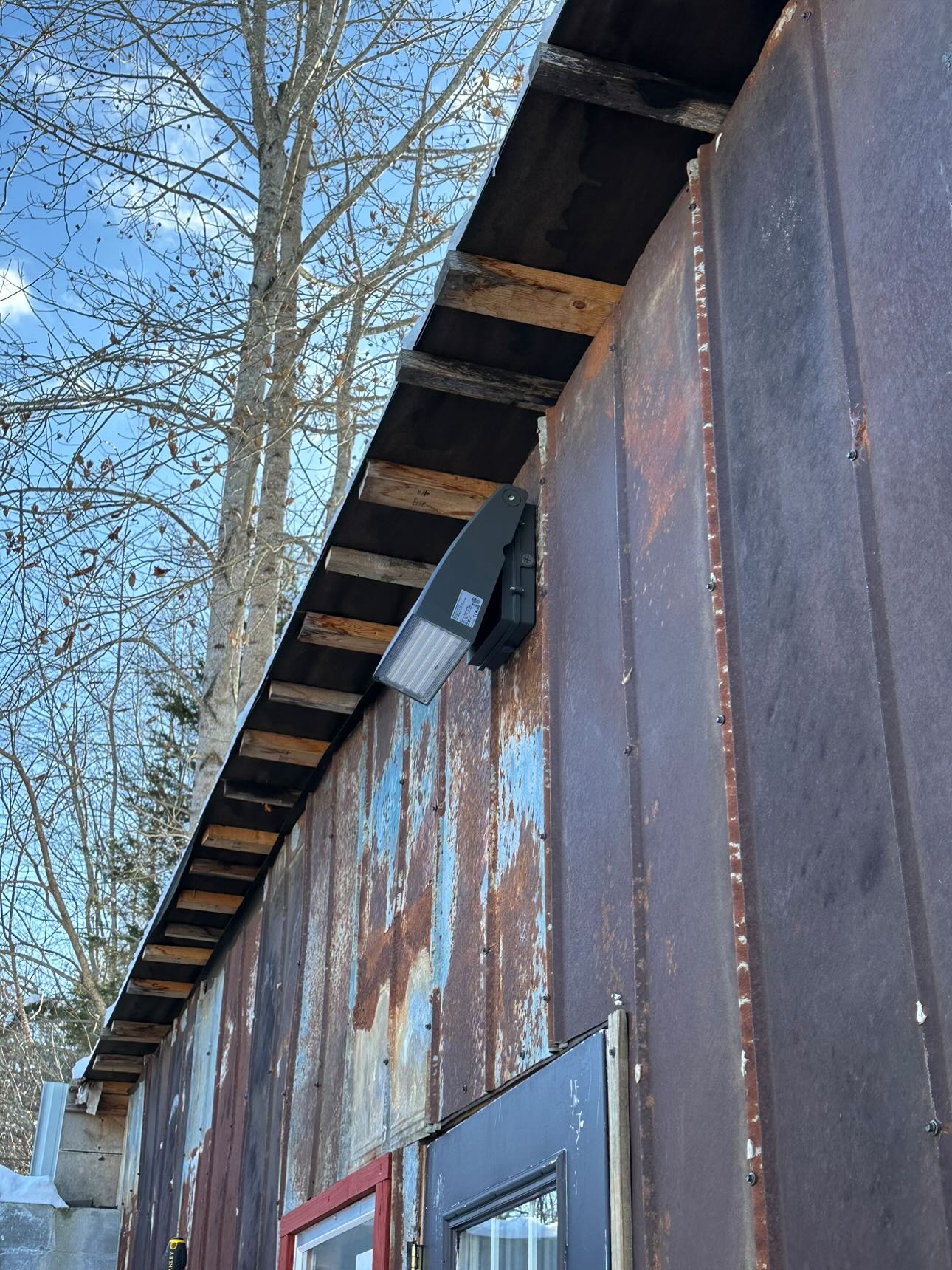

Fixtures mounted on walls, poles, or under eaves are prime candidates for IP65 or IP66 ratings. These locations are subject to rain, wind, and even routine cleaning, but not submersion. A well-built IP65 fixture, like a Wall Pack Light - Wall E series, is engineered to handle these conditions reliably for years. Applications include:
- Parking lots and roadways
- Building exteriors and security lighting
- Warehouse loading docks
- General-purpose IP66 floodlights for harsh environments
In food processing plants or heavy industrial sites, equipment is often subjected to high-pressure, high-temperature wash-downs. Here, an IP66 rating is essential to prevent water from being forced past the seals. However, even in these demanding scenarios, submersion is not a typical risk, making IP67 unnecessary.
Debunking a Common Myth
A frequent misconception is that a higher IP rating is always "better." In reality, the best rating is the one that matches the environmental risk. Paying 10-40% more for an IP67 fixture that will only ever see rain is a misallocation of project funds. That money could be better spent on fixtures with higher efficacy (lumens per watt), better thermal management, or advanced controls.
When to Invest in IP67: The Submersion Scenarios
Stepping up to an IP67 rating is a calculated decision based on a clear and present risk of temporary submersion. My rule of thumb is simple: if the fixture is at or near ground level where water can pool or rise, IP67 becomes a critical investment against premature failure.
These are the specific situations where I always specify IP67:
- Flood-Prone Locations: Any fixture installed at an elevation that could be compromised during a 50- or 100-year flood event should be IP67-rated. This includes wall packs on low-lying buildings or pole lights in areas with poor drainage.
- Ground-Level and In-Grade Installations: Lights installed in plazas, decks, or at the base of signage are susceptible to standing water after heavy rain or snowmelt. The 30-minute, 1-meter immersion test for IP67 directly simulates this risk.
- Below-Grade Vaults and Pits: Utility vaults or maintenance pits that are not continuously submerged but can fill with water require IP67-rated fixtures to ensure they function when access is needed.
It's important to understand the limits of the rating. IP67 certifies protection against temporary immersion, not continuous. For applications like ponds or permanent underwater features, an IP68 rating is required, where the depth and duration are specified by the manufacturer.
Beyond the Rating: Real-World Causes of Water Ingress
Experience in the field teaches you that a high IP rating on a spec sheet is only part of the story. Long-term reliability depends just as much on material quality and proper installation. I’ve troubleshooted hundreds of failed outdoor lights, and the culprit is often not a faulty rating but one of these factors:
- Gasket Degradation: In sun-exposed sites, gaskets made from inferior materials like standard neoprene can become brittle from UV radiation and heat within 3-5 years. This creates a path for water ingress long before the LEDs fail. Specifying fixtures with high-quality silicone or fluoroelastomer gaskets is crucial for longevity.
- Improper Conduit Installation: This is a huge one. I often see conduit runs that allow water to collect and siphon directly into the fixture's entry point. Every installation must incorporate proper drip loops and be sealed according to the National Electrical Code (NEC) to prevent the wiring system from becoming a water hose.
- Thermal Cycling: Fixtures heat up when on and cool down when off. This daily thermal cycle can create a pressure differential, causing the fixture to "breathe." In humid environments, this can pull moist air inside, leading to condensation that shorts out electronics. Well-designed fixtures incorporate breathable membranes (like PTFE vents) that allow pressure to equalize without letting water molecules in.
- Corrosion vs. Ingress Protection: An IP rating only addresses water and dust, not corrosive agents. In coastal areas with salt spray or industrial zones with chemical fumes, an IP67 rating is insufficient. The fixture must also have a corrosion-resistant housing and finish (e.g., marine-grade aluminum with a robust powder coat) to prevent the enclosure itself from being compromised.
The Final Verdict: A Decision Framework
Choosing between IP65/66 and IP67 is a risk-based financial decision. To make the right call, ask these questions during the design and specification phase.
| Decision Factor | Recommendation | Rationale |
|---|---|---|
| Will the fixture be installed more than 4 feet above ground on a wall or pole? | IP65 / IP66 | Submersion risk is negligible. Protection from rain and wind-driven spray is sufficient. |
| Is the fixture in a location prone to flooding or significant water pooling? | IP67 | This is the primary use case for IP67. The extra cost is insurance against predictable failure. |
| Will the fixture be installed at ground level or in-grade? | IP67 | Temporary immersion from rain and snowmelt is highly probable. |
| Is the environment subject to high-pressure wash-downs? | IP66 or higher | The '6' rating is specifically for powerful water jets. An IP67 fixture may not be rated for jets unless it is also certified as IP66. |
| Is the installation in a coastal or chemically aggressive environment? | IP66/67 AND Corrosion-Resistant Finish | IP rating alone is not enough. Material and finish specifications are equally important to prevent housing failure. |
Key Takeaways
Moving from an IP66 to an IP67 rating is not a simple upgrade; it is a specific solution for a specific problem: temporary submersion. While the higher price tag may seem like better protection, it is often an unnecessary expense for the majority of outdoor lighting applications.
By analyzing the real-world conditions of the installation site—paying close attention to elevation, drainage, and exposure—facility managers and contractors can make an informed choice. Reserve the IP67 specification for high-risk zones where water immersion is a genuine possibility. For everything else, a robust, third-party certified IP65 or IP66 fixture provides the reliable, long-term weather protection needed without straining the project budget.
Frequently Asked Questions (FAQ)
Can I use a pressure washer on an IP67-rated light?
Not necessarily. The '7' in IP67 only denotes protection against immersion. Protection against high-pressure jets is defined by the IP65 and IP66 ratings. A fixture must be explicitly rated IP66 or IP69K to be considered safe for pressure washing. Many IP67 fixtures are also rated IP66, but you must verify this on the product's specification sheet.
How much more does an IP67 fixture typically cost?
Practitioner experience shows that moving from an IP65/IP66 to a true IP67 rating can increase the fixture cost by 10% to 40%. This is due to the additional sealing steps, higher-grade gaskets, or potting of electronics required to pass the immersion test.
What is the difference between IP67 and IP68?
IP67 specifies protection against immersion in up to 1 meter of water for 30 minutes. IP68 is for continuous immersion at depths and durations specified by the manufacturer (e.g., "rated for continuous submersion up to 3 meters"). IP68 is for permanent underwater applications like swimming pool or fountain lights.
