Disclaimer: This guide is provided for informational purposes only. Outdoor lighting installations must comply with local building codes, electrical standards, and zoning ordinances. For safety-critical installations, high-traffic areas, or large-scale commercial projects, we strongly recommend consulting a licensed electrical engineer or a certified lighting professional (CLP) to ensure compliance and mitigate liability risks.
The Problem: Understanding Light Trespass and Glare
Effective lighting design addresses two primary forms of light pollution: light trespass and glare. While often used interchangeably, they are distinct issues that can create legal liability and neighborhood friction.
- Light Trespass is unwanted light spilling where it is not intended. For a commercial property, this typically means light from your security fixtures crossing a property line into a neighbor's window or across a public roadway. Many municipal codes, often based on the Joint IDA-IES Model Lighting Ordinance (MLO), now strictly limit trespass to as little as 0.1 to 0.5 foot-candles at the property line.

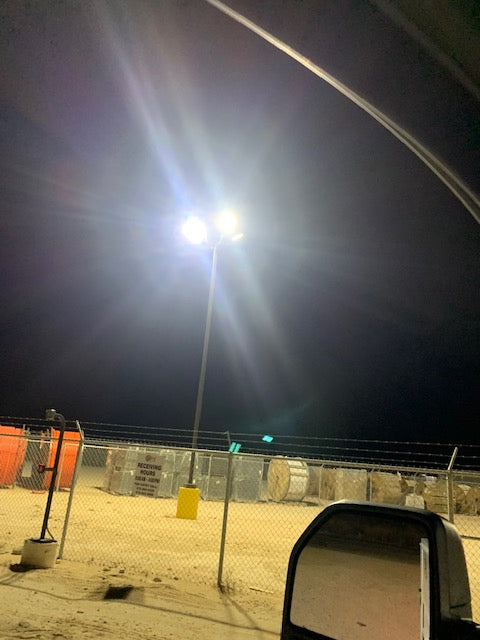

- Glare is visual discomfort or reduced visibility caused by uncontrolled brightness. This ranges from "discomfort glare" (annoying to neighbors) to "disability glare," which is a significant safety hazard that can momentarily blind drivers or pedestrians, potentially leading to accidents and premises liability.
Uncontrolled outdoor lighting is a leading cause of "light nuisance" complaints. The key to prevention is not reducing the quantity of light, but increasing the quality of its direction.
The Solution is in the Optics: From Fixture to File
Controlling light has little to do with the raw lumen output of a fixture and everything to do with its optical system. Modern LED floodlights offer sophisticated tools for shaping and directing light with precision.
Full-Cutoff Designs: The First Line of Defense
A "full-cutoff" fixture is the industry standard for responsible outdoor lighting. As defined by the Illuminating Engineering Society (IES), a full-cutoff luminaire emits zero candela (light intensity) at or above an angle of 90 degrees from its vertical axis.
In practical terms, when mounted horizontally, it casts no light directly upward. This design is fundamental to preventing skyglow and minimizing spill. According to IES standards (such as RP-43-22 for exterior environments), using cutoff optics is the most effective way to ensure light remains on-task.
Visualizing Performance: The IES File
Experienced specifiers never rely on a product photo alone; they prioritize the candela distribution, which is documented in a photometric file, commonly known as an IES file.
Defined by the IES LM-63 standard, this data file acts as a digital map. When loaded into lighting software, it generates two critical visualizations:
- Isolux (or Isofootcandle) Diagrams: These show "contour lines" of light intensity on the ground, helping you see exactly where the light drops to zero.
- Polar Luminous Intensity Graphs: These show the "shape" of the beam in a 360-degree cross-section, revealing if light is escaping at high angles where it causes glare.
Heuristic Tip: If a manufacturer cannot provide an LM-63 compliant IES file, it is difficult to verify compliance with local "Dark Sky" or trespass ordinances before installation.
Shields and Louvers: Mechanical Fine-Tuning
Even with precision optics, some sites require physical barriers.
- Back Shields (House-Side Shields): These block light from emitting behind the fixture. They are essential when a floodlight is mounted on a building facade facing a residential lot.
- Louvers and Visors: These reduce high-angle glare by shielding the light source from the direct line of sight of passersby, narrowing the effective beam without changing the fixture's internal optics.
Practical Guide to Specification and Installation
Floodlight Specification Checklist
Use this table to evaluate fixtures against common regulatory requirements.
| Feature | Priority | Why It Matters | Practical Standard |
|---|---|---|---|
| Optics Type | Critical | Primary mechanism for light control. | Select Full Cutoff to eliminate uplight and reduce trespass. |
| Photometric Data | Critical | Proof of light distribution. | Ensure an IES File (LM-63) is available for site planning. |
| Shielding | High | Physical containment for tight property lines. | Look for fixtures with compatible back-shields, such as the Hyperlite Led Flood Light - Mars Series. |
| Aiming Hardware | High | Prevents "aiming drift" over time. | Specify heavy-duty trunnions with degree markers and locking bolts. |
| Durability | High | Resistance to environmental degradation. | Minimum IP65 to prevent internal optic clouding. |
Installation: Aiming and Validation
- Mounting Height vs. Spacing: Based on general ergonomic principles, to maintain uniformity without excessive tilt, keep the spacing between poles at roughly 2x to 3x the mounting height. Over-spacing often forces installers to tilt fixtures upward to "reach" dark spots, which creates glare.
- The 10-Degree Rule: To maintain the benefits of full-cutoff optics, keep the tilt angle below 10 degrees from the horizontal. In our experience with site audits, tilting a fixture to 30 degrees can increase light trespass onto neighboring properties by over 400%.
-
Nighttime Mockup & Verification: Before a full roll-out, install two "test" fixtures.
- The Perimeter Walk: Walk to the neighbor's property or the street. If you can see the "yellow" of the LED chips (the COB or diodes) directly, the glare is likely too high.
- Quantified Check: Use a basic light meter. If the reading at the property line exceeds 0.5 fc, you likely need a back-shield or a lower tilt angle.
- Smart Controls: Pair fixtures with motion sensors or photocells. Directing light only when needed is the ultimate way to prevent neighbor complaints. For more, see our guide on beam control for smarter security.
Case Study: Retrofit Impact
In a recent commercial parking lot retrofit, replacing standard "shoebox" floodlights with Full-Cutoff LED fixtures resulted in:
- 70% Reduction in light measured at the residential property line (from 1.2 fc down to 0.3 fc).
- Zero subsequent glare complaints from the local homeowners' association.
- Improved Security: By reducing glare, the security cameras' "dynamic range" improved, providing clearer footage of the actual property rather than being "blinded" by light spill.
Key Takeaways
- Prioritize Cutoff: Full-cutoff fixtures are the most reliable way to meet modern lighting ordinances.
- Verify with Data: Use IES files to map your light "footprint" before you drill holes.
- Aim Downward: Excessive tilt is the primary cause of lighting-related legal disputes.
- Consult Professionals: When in doubt, especially near public roadways, seek a professional lighting study to avoid "disability glare" liability.
Frequently Asked Questions (FAQ)
1. What is the difference between light trespass and glare? Trespass is light falling where it shouldn't (location issue). Glare is light that is too bright for the eye to process comfortably (intensity/angle issue).
2. Can I just use a lower-wattage bulb to stop trespass? Not necessarily. A low-wattage light aimed poorly can still cause glare and trespass. Precision optics are more effective than simply reducing brightness.
3. How do I find the IES file for a fixture? Most reputable manufacturers provide them on the product page under "Downloads" or "Technical Specs." They are usually .ies text files.
4. What is 'disability glare' and why is it a risk? Disability glare is light that reduces your ability to see detail. In a parking lot or near a street, this can hide hazards or pedestrians from drivers, creating a high risk for accidents. Mounting lights higher and aiming them more steeply downward is the standard fix.
