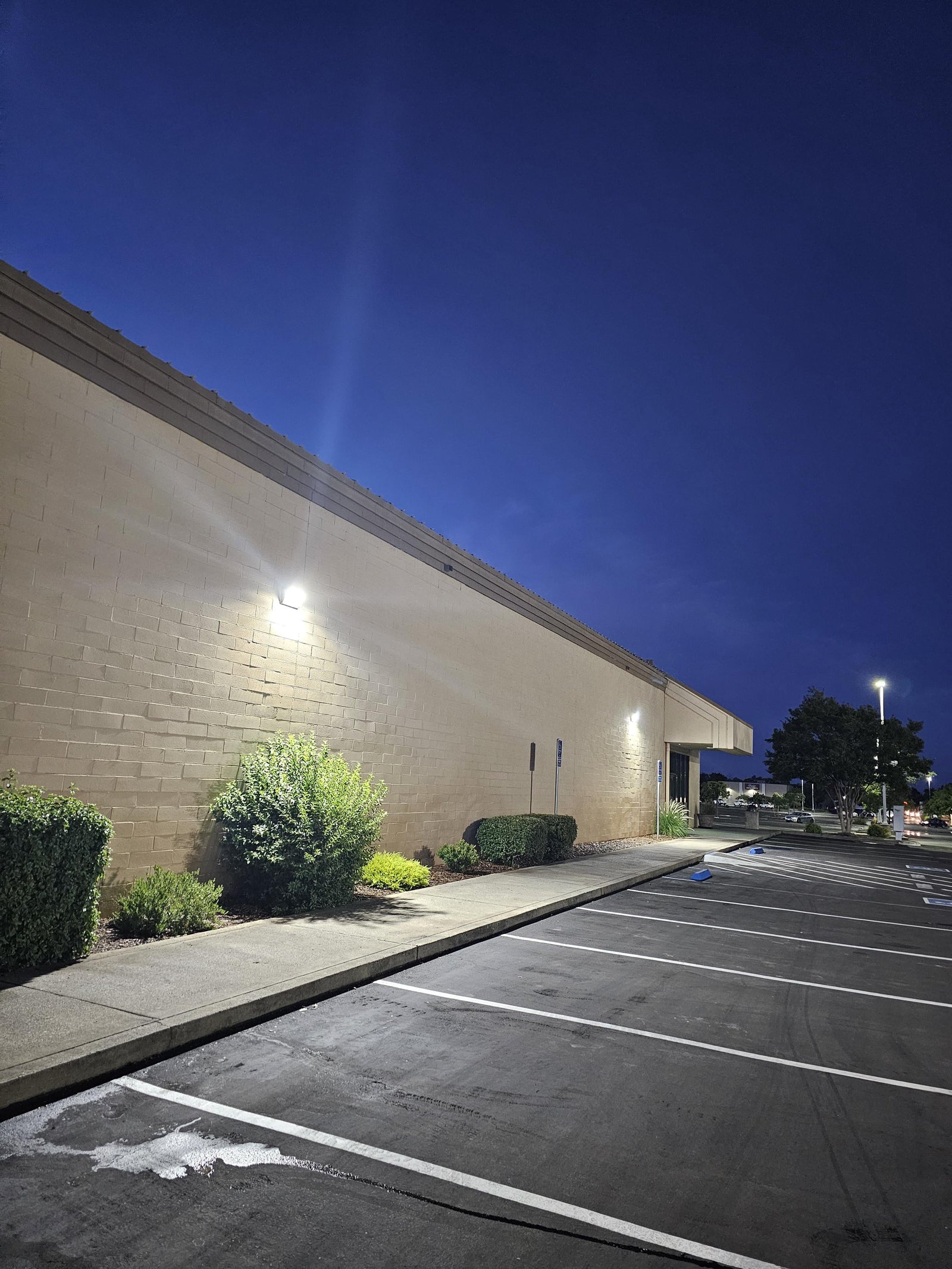

Planning for Security: Why a Lighting Model is Non-Negotiable
Before a single trench is dug or a fixture is mounted, you can predict exactly how your security lighting will perform. Planning a lighting scheme for a large retail space or parking lot based on lumen specs and guesswork is a recipe for failure. It leads to critical blind spots, excessive glare that can blind cameras, and light trespass that angers neighbors. This is where IES photometric files become the most critical tool in a specifier's arsenal. An IES file is a standardized data format, defined by the Illuminating Engineering Society (IES) in their LM-63-19 standard, that contains a complete digital profile of a luminaire's light output.
Think of it as a fixture's unique fingerprint. It tells lighting design software precisely how a fixture distributes light in three-dimensional space. This allows you to build a virtual model of your site—be it a big-box storefront, a loading dock, or a massive parking area—and see exactly where the light will fall. This process moves security lighting from an imprecise art to a predictable science, ensuring every dollar spent on illumination contributes directly to safety and surveillance effectiveness. For a foundational understanding, it's helpful to know how to read an IES file for warehouse lighting design, as the principles are directly transferable to outdoor security applications.
Avoiding the Pitfalls: Common Errors in Security Lighting Modeling
Having worked on numerous security lighting projects, I've seen the same handful of mistakes derail otherwise well-intentioned designs. These errors often stem from taking the IES file at face value without understanding the real-world factors that influence performance. Getting these details right during the modeling phase is the difference between a system that works on paper and one that works in the field.
One of the most frequent "gotchas" is failing to apply a Light Loss Factor (LLF), also known as a maintenance factor. A brand-new fixture might produce 100% of its rated lumens, but over time, dirt accumulation and natural LED degradation will reduce its output. Forgetting this leads to a model that is far too optimistic. For most exterior security fixtures, a maintenance factor of 0.7 to 0.8 is a realistic starting point, representing a 20-30% reduction in light output over the maintenance cycle.
Here’s a breakdown of common errors and how to correct them:
| Common Error | The "Why" It's a Problem | The Professional Solution |
|---|---|---|
| IES vs. Catalog Mismatch | The IES file might be for a different driver or binning of LEDs, causing its lumen value to differ from the product's spec sheet. | Verify and Scale: Always cross-reference the lumen output stated in the IES file header with the catalog data. If they don't match, scale the file in your software to the correct output. |
| Ignoring Tilt & Rotation | An IES file assumes a default orientation (usually facing straight down). If you mount the fixture on an angle without telling the software, the beam will point in the wrong direction in your model. | Specify Aiming Parameters: Your software allows you to input tilt, roll, and rotation values. These must match the intended real-world installation to get an accurate prediction. |
| No Maintenance Factor (MF) | Your model will predict day-one performance forever, which is unrealistic. The lighting levels will fall below your security minimums much faster than anticipated. | Apply a Realistic MF: Apply a maintenance factor (typically 0.7-0.8 for outdoor fixtures) to simulate light loss from dirt, dust, and lumen depreciation over time. This ensures your "end-of-life" light levels still meet security requirements. |
| Focusing Only on Foot-Candles on the Ground | Security cameras need to see faces and vertical surfaces, not just the pavement. High horizontal foot-candles can coexist with dangerously low vertical light. | Analyze Vertical Illuminance: The key metric is vertical illuminance at a height of 1.5 to 1.7 meters (roughly 5 to 5.5 feet). This simulates what a security camera will actually "see." |
The "More Lumens" Myth in Security Lighting
A pervasive myth is that a higher lumen count automatically equals better security. This is fundamentally incorrect. The true measure of a security light is not how much light it produces, but how effectively it directs that light onto a target. An ultra-high-lumen floodlight aimed poorly can create disabling glare for cameras and leave adjacent areas in deep shadow, making them ideal hiding spots.
In reality, a lower-lumen fixture with a precisely controlled beam pattern, as detailed in its IES file, is often far superior. It allows you to place light exactly where it’s needed—on faces, doorways, and along fence lines—while minimizing spill light and glare. This is why understanding NEMA beam spreads for floodlights is crucial for effective security design.
A Step-by-Step Guide to Modeling Retail Security Lighting
Building an effective lighting model is a systematic process. By following these steps, you can create a robust and reliable plan that ensures optimal coverage and eliminates surprises during installation.
Step 1: Establish Security Objectives and Light Level Targets
First, define what you need to achieve. Are you deterring intruders, identifying faces, or simply providing safe passage? Your goals dictate the required light levels. Based on extensive field experience and industry best practices:
- General Surveillance (Detection): Target a minimum of 10 lux (approx. 1 foot-candle) on vertical surfaces. This is generally sufficient for modern grayscale CCTV cameras to detect motion and presence.
- Identification Zones (Facial Recognition): For areas like entrances, transaction points, and access gates where you need to identify individuals, target a minimum of 20 lux (approx. 2 foot-candles) on vertical surfaces. This provides enough light for color cameras to capture identifying details.
Remember, these are vertical illuminance targets measured at a height of 1.5 to 1.7 meters off the ground.
Step 2: Select Fixtures and Gather IES Files
Choose fixtures that are appropriate for the application. For large areas, pole-mounted area lights are common. For building perimeters, wall packs are effective. Look for durable, IP65-rated fixtures designed for outdoor use, as defined by IEC standard 60529, to ensure protection against dust and water ingress. When evaluating options, a high-performance fixture like the Hyperlite Led Parking Lot Lights - Hope Series provides the reliable output and Type III distribution often required for broad retail lots. Once you have selected your fixtures, download the corresponding IES files directly from the manufacturer’s website. This ensures you have the correct, most up-to-date photometric data.
Step 3: Develop a Layout Using Spacing Heuristics
Before placing hundreds of fixtures in a model, use heuristics to get a sensible starting layout. The Spacing-to-Mounting-Height (S/MH) ratio is your guide. This ratio, often found in a fixture’s technical data, tells you how far apart fixtures can be placed relative to their mounting height while maintaining good uniformity.
- For broad patterns (NEMA Type III, IV, V): A typical S/MH ratio is between 1.0 and 1.5. For a fixture mounted at 20 feet, you can space them 20-30 feet apart.
- For long, narrow patterns (NEMA Type II): These are designed for pathways or long perimeters. The S/MH ratio can be higher along the long axis, often 1.5 to 2.5.
Adhering to these ratios helps in achieving lighting uniformity in a warehouse layout, and the same principle prevents a "patchy" or "scalloped" effect in outdoor lots, which can create dangerous shadows.
Step 4: Simulate and Analyze the Results
Import your site plan and IES files into a lighting simulation tool like AGi32. Place your fixtures according to your layout from Step 3. Now, run the calculations and analyze the output.
- Isolux Maps (Plan View): Check the foot-candle or lux levels across the entire ground plane. This shows you the overall brightness and uniformity. Look for dark zones between poles.
- Vertical Slices: This is the crucial step for security. Place calculation grids on vertical planes at key locations, such as along storefronts, at camera locations, and facing doorways. Verify that you are meeting your 10 or 20 lux minimums.
- Check for Silhouetting: Be mindful of backlight. If a camera is aimed at a bright fixture, a person standing in front of it will appear as a dark silhouette, rendering them unidentifiable. Adjust fixture aiming to prevent this.
Step 5: Refine for Glare Control and On-Site Verification
Your model looks good, but the job isn't done. Consider light trespass onto adjacent properties and potential glare for drivers or pedestrians. Specify fixtures with good optical control (e.g., cutoff optics) and ensure your luminaire schedule includes precise tilt and aiming angles for installers to follow.
Finally, after installation, conduct an on-site verification. I always bring a lux meter to the site to take measurements at representative points. This closes the loop and confirms the model's accuracy. Don’t be surprised if the real-world measurements are about 70-90% of the modeled values. This is an expected outcome when you’ve correctly applied a maintenance factor and accounted for real-world installation tolerances. The goal of the model is not to be perfect, but to be a reliably accurate predictor of the final result.
Key Takeaways
Effectively modeling retail security lighting is a process of diligence that pays dividends in safety and performance. Relying on IES photometric files elevates your design from guesswork to a predictable science. By avoiding common errors like forgetting maintenance factors and focusing on the critical metric of vertical illuminance, you can design a system that truly supports your surveillance objectives. The final step of on-site verification confirms that your virtual model has become a real-world success, providing peace of mind and a secure environment for customers and employees.
Frequently Asked Questions (FAQ)
What is an IES file? An IES file is a standardized photometric data file that describes how a specific light fixture distributes light. Created by the Illuminating Engineering Society (IES), it allows lighting designers and specifiers to accurately simulate a fixture's performance in software before installation.
Why is vertical illuminance more important than ground illuminance for security? Security cameras are designed to capture faces and vertical objects for identification. High light levels on the ground (horizontal illuminance) do not guarantee that vertical surfaces will be adequately lit. By targeting vertical illuminance at a height of 1.5-1.7 meters, you ensure that cameras have enough light to capture clear, identifiable images.
What is a typical maintenance factor for outdoor LED floodlights? A common maintenance factor, or Light Loss Factor (LLF), for outdoor LED security lighting is between 0.7 and 0.8. This means the design accounts for a 20-30% loss of light over the fixture's life due to factors like dirt accumulation and lumen depreciation, ensuring the system still meets minimum light level requirements years after installation.
Do I need special software to use IES files? Yes, to properly use IES files for lighting design, you need photometric simulation software. AGi32 is an industry-standard tool, but other programs are also available that can import IES files to create lighting layouts and calculations.
Disclaimer: This article is for informational purposes only and does not constitute professional engineering or security advice. Electrical work and lighting design should be performed by qualified professionals in accordance with all local codes and safety standards. Always consult with a security expert to assess the specific needs of your property.
