The Problem with a "More Lumens" Approach

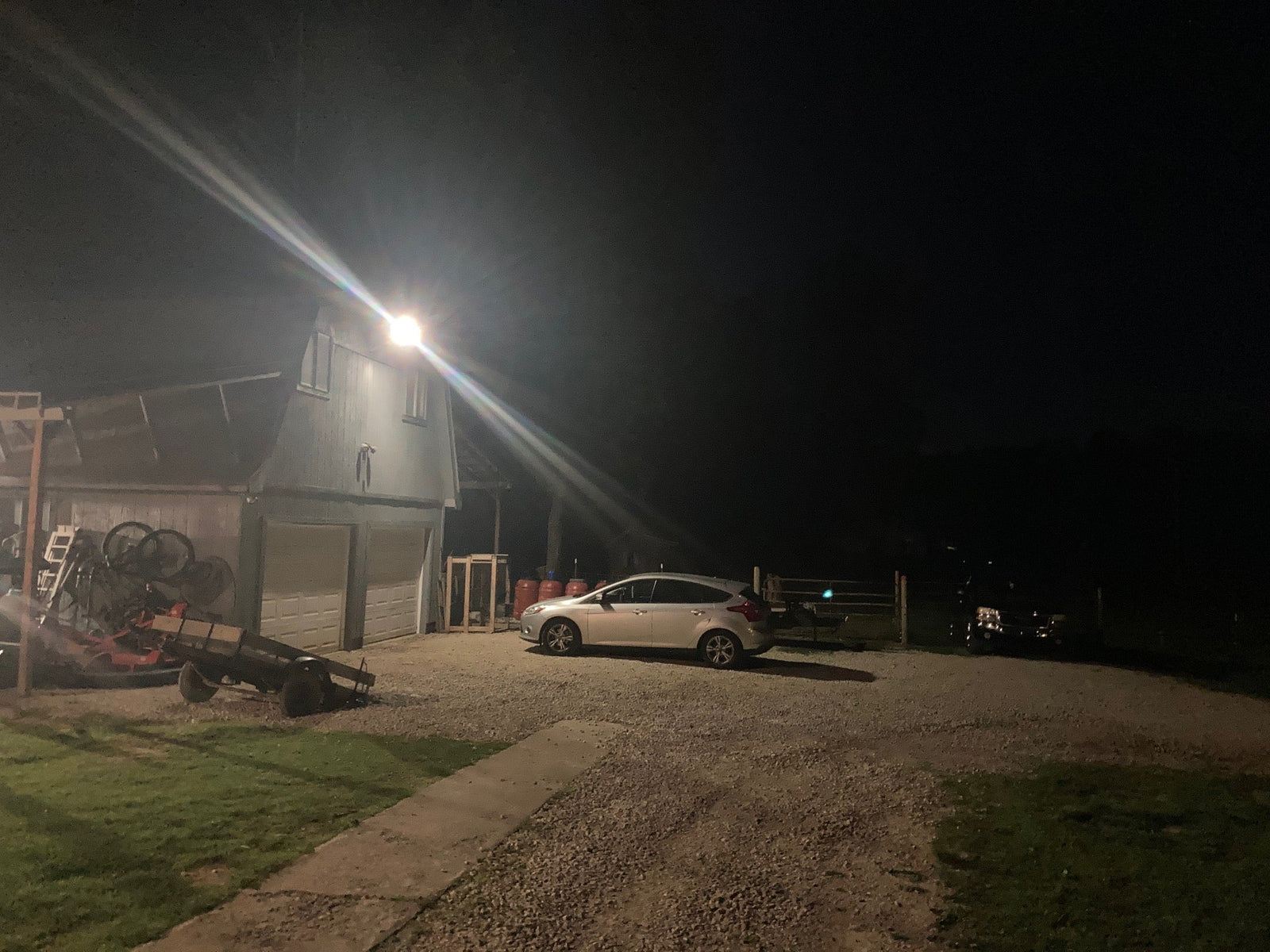

When securing a property with cameras, a common mistake is to buy the floodlight with the highest lumen number. The thinking is that more light equals a better picture. In reality, this approach often fails. Uncontrolled brightness creates harsh glare and deep shadows, causing camera sensors to struggle. It can produce "hot spots" that blow out details and dark voids where a subject can hide. The goal isn't just brightness; it's clarity.
A much more effective strategy starts by defining the security task and then delivering the precise amount of light—measured in lux (or foot-candles)—exactly where it's needed. This is the difference between professional security lighting design and simply flooding an area with raw, uncontrolled lumens. The key is to match the light to the camera's field of view and the specific detail you need to capture.
Define Your Goal: Detection, Recognition, or Identification
Before choosing a floodlight, you must decide what you need your security camera to do. The required light level changes dramatically based on the task. These three categories, used by security professionals, provide a clear framework.
Wall Pack Light with Photocell - Moon series, 13000lumens, 5000K, AC 100-277V
| Security Goal | Required Light Level (Lux) | Typical Application |
|---|---|---|
| Detection | 5–15 lux | General monitoring of a yard, confirming if a person or vehicle is present. |
| Recognition | 30–50 lux | Being able to say you recognize a person as someone you know. Used for entryways and pathways. |
| Identification | 100–200 lux | Capturing enough detail to positively identify an unknown individual or read a license plate. |
As the table shows, simply detecting movement in a back lot requires far less light than identifying a license plate at a controlled entrance. A mistake I often see is over-lighting a large area for simple detection, which wastes energy and can create nuisance light for neighbors. Conversely, under-lighting a critical entryway for recognition makes the camera footage nearly useless for an investigation.
Matching Lumens and Beam Control to the Task
Once you know your required lux level, you can select a fixture. This is where lumens, mounting height, and beam angle work together. A common "gotcha" for installers is focusing only on lumens without considering how the light is shaped.
The Role of Beam Angle and Mounting Height
Beam angle determines how a floodlight's lumens are distributed. A wide beam spreads light over a large area, diluting its intensity. A narrow beam concentrates light on a smaller spot, increasing the lux level within that zone. A practical rule of thumb for installers is to estimate the effective throw distance: Throw Distance ≈ Mounting Height ÷ tan(Half Beam Angle). This helps you predict if the light will reach its target effectively.
For more precise planning, consulting NEMA beam spread types is essential. A fixture with a wide NEMA 7x6 spread is ideal for general area lighting, while a narrow 3x3 spot is better for illuminating a specific target from a distance.
Scenario-Based Selection
-
Wide Area Detection (Parking Lot): To achieve 5-15 lux over a large commercial lot, you need high-lumen fixtures with wide beam patterns. A pole-mounted area light is a common solution. The height of the pole is critical; mounting too low creates dark spots between poles. Mounting floodlights on poles versus building facades requires different fixture considerations.
-
Perimeter Recognition (Building Facade): To achieve 30-50 lux along a building's edge, a mid-lumen fixture is often sufficient if the beam is controlled. A fixture like the Wall Pack Light with Photocell - Moon series, 13000lumens, 5000K, AC 100-277V mounted at 15-20 feet can create a "wall of light" that provides excellent facial recognition conditions as people approach. Proper wall pack placement is key to creating overlapping zones of coverage without gaps.
-
Target Identification (Gate Access): To get over 100 lux needed for license plate capture, a high-lumen fixture with a narrow, focused beam is necessary. The light must be aimed carefully to illuminate the plate without causing reflective glare back into the camera lens.
Key Technical Specs for Camera Performance
Beyond lumens and beam angles, several other specifications directly impact the quality of nighttime surveillance footage.
Color Temperature (CCT)
Correlated Color Temperature (CCT) determines the visual appearance of the light. For security applications, the industry has largely standardized on 4000K (neutral white) or 5000K (cool white). The choice depends on the environment.
- 4000K Neutral White: Provides excellent color rendering and is less harsh on the eyes. It's a great choice for areas with reflective surfaces like wet asphalt or glossy vehicles, as it produces less glare than cooler temperatures.
- 5000K Cool White: Maximizes contrast and perceived brightness, making details appear sharper to a camera sensor. This is often the default for commercial security applications where clarity is the top priority.
Consistency is key, which is why standards like ANSI C78.377-2017 exist to ensure a "5000K" fixture from one batch looks the same as the next.
Flicker and LED Drivers
A non-obvious issue that plagues many budget security lighting setups is flicker. A low-quality LED driver can produce high-frequency strobing that is invisible to the naked eye but results in visible banding or rolling bars on camera footage, especially at common shutter speeds (e.g., 1/60s). This can corrupt critical frames. Using fixtures with high-quality, constant-current drivers is essential. Reputable products will have their drivers certified to safety and performance standards like UL 8750, which governs LED equipment used in lighting.
Durability and Environmental Ratings
Outdoor security lighting must be built to last. An IP (Ingress Protection) rating, defined by IEC 60529, is a critical specification. An IP65-rated fixture is protected against dust and low-pressure water jets, making it suitable for most outdoor locations. For installations in areas with heavy rain or pressure washing, upgrading to an IP66-rated floodlight provides an extra layer of protection and reliability.
Commissioning Checklist for Optimal Performance
Installation doesn't end when the light turns on. Proper commissioning ensures the system works as designed. I always run through this checklist on-site to prevent callbacks.
- Aim with a Live Feed: Use the live video feed from the security camera to aim each floodlight. This is the only way to see exactly what the camera sees and eliminate glare or hot spots.
- Measure Lux at the Target: Use a light meter to measure the lux level at your primary detection plane (e.g., a doorway, a license plate location). Don't guess—verify that you are meeting your design target.
- Check for Temporal Flicker: View the live feed and recordings. Test at different times of the night to ensure there is no visible banding or strobing caused by driver incompatibility.
- Verify Color Balance: Check the camera's nighttime color accuracy. A poor CRI (Color Rendering Index) light can make it difficult to identify the true color of a vehicle or clothing.
- Integrate Shielding: If you notice lens flare, install a shield, louver, or full-cutoff optic. This simple accessory can dramatically improve image quality and reduce false motion-detection alarms.
- Tune Sensor Timings: If using motion sensors, ensure the light's "on" time is long enough for the camera to record a complete event. A light that shuts off after only 30 seconds may not capture the full context of what triggered it.
Wrapping Up
Choosing the right floodlight for your security cameras is a technical decision that goes far beyond a simple lumen rating. By shifting your focus from raw brightness to delivering a specific lux level on target, you can create a system that delivers clear, usable video evidence. Start by defining your security goal—detection, recognition, or identification—and use that to establish a lux target. Then, select a fixture with the appropriate lumen output and beam control to achieve that target efficiently. Finally, pay close attention to technical specifications like CCT and driver quality, and always commission the system with a live camera feed to guarantee optimal performance.
Frequently Asked Questions (FAQ)
How many lumens do I need for a security camera?
There is no single answer. The required lumens depend on your security goal (detection, recognition, identification), the distance to the target, and the floodlight's beam angle. Focus on delivering the right lux level to the target area rather than on the lumen rating alone.
Is 4000K or 5000K better for security cameras?
Both are excellent choices. 5000K provides slightly better contrast and is often preferred for maximum detail. 4000K is less harsh and reduces glare from wet or reflective surfaces, which can also improve camera performance in certain conditions. For most professional applications, 5000K is the standard.
What is the difference between lumens and lux?
Lumens measure the total amount of light emitted from a source (the floodlight). Lux measures the amount of light that actually falls on a specific surface (your detection area). A high-lumen floodlight with a very wide beam might produce very low lux at a distance, while a lower-lumen floodlight with a narrow, focused beam can produce very high lux.
